VBUN-DIS-4 4Way Distribution 2 Meters (6.5ft)

SKU: 666561426118

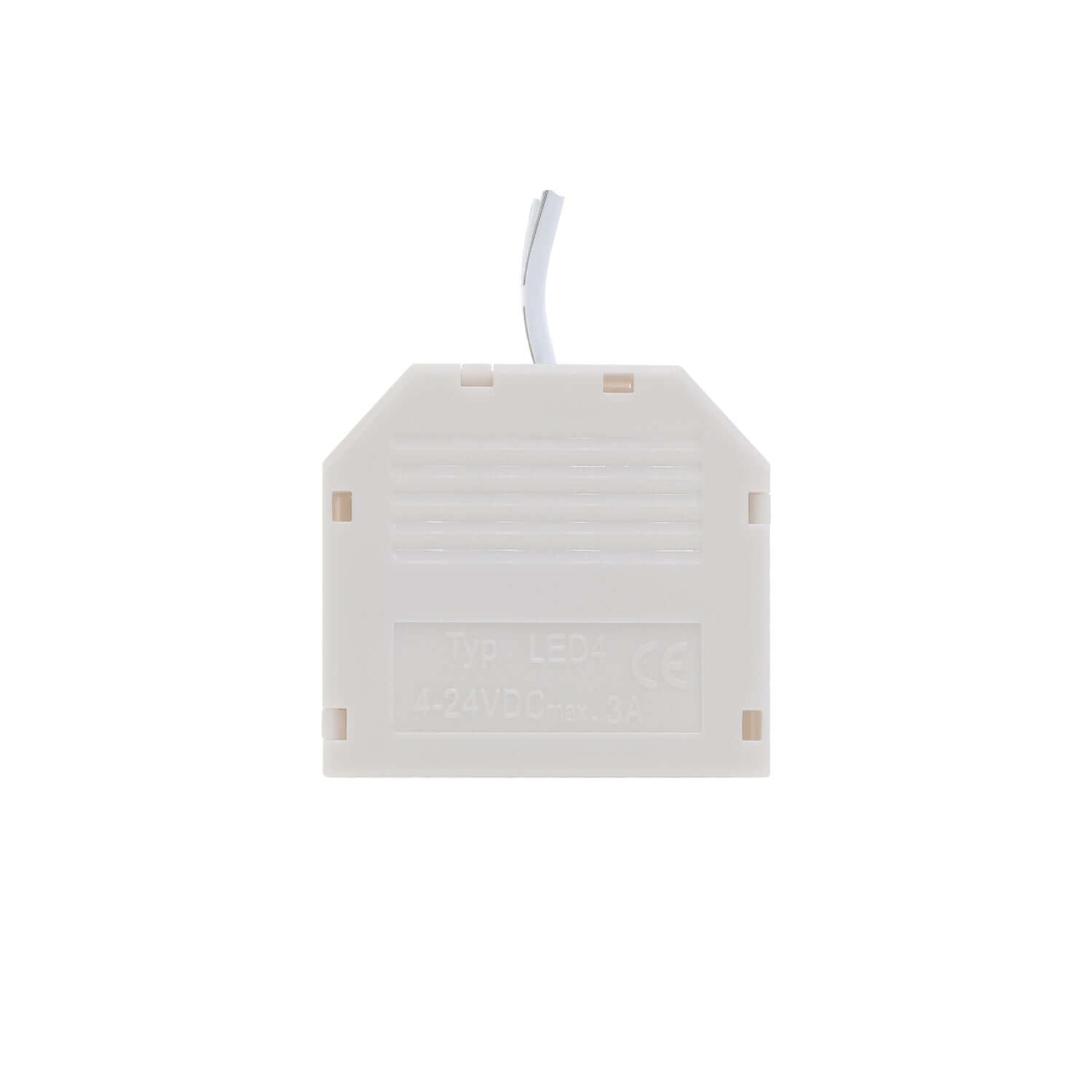

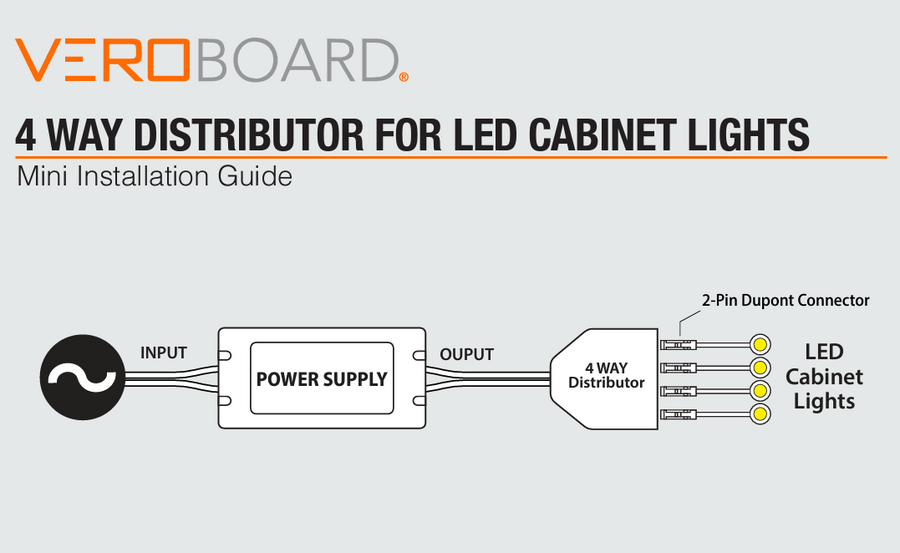

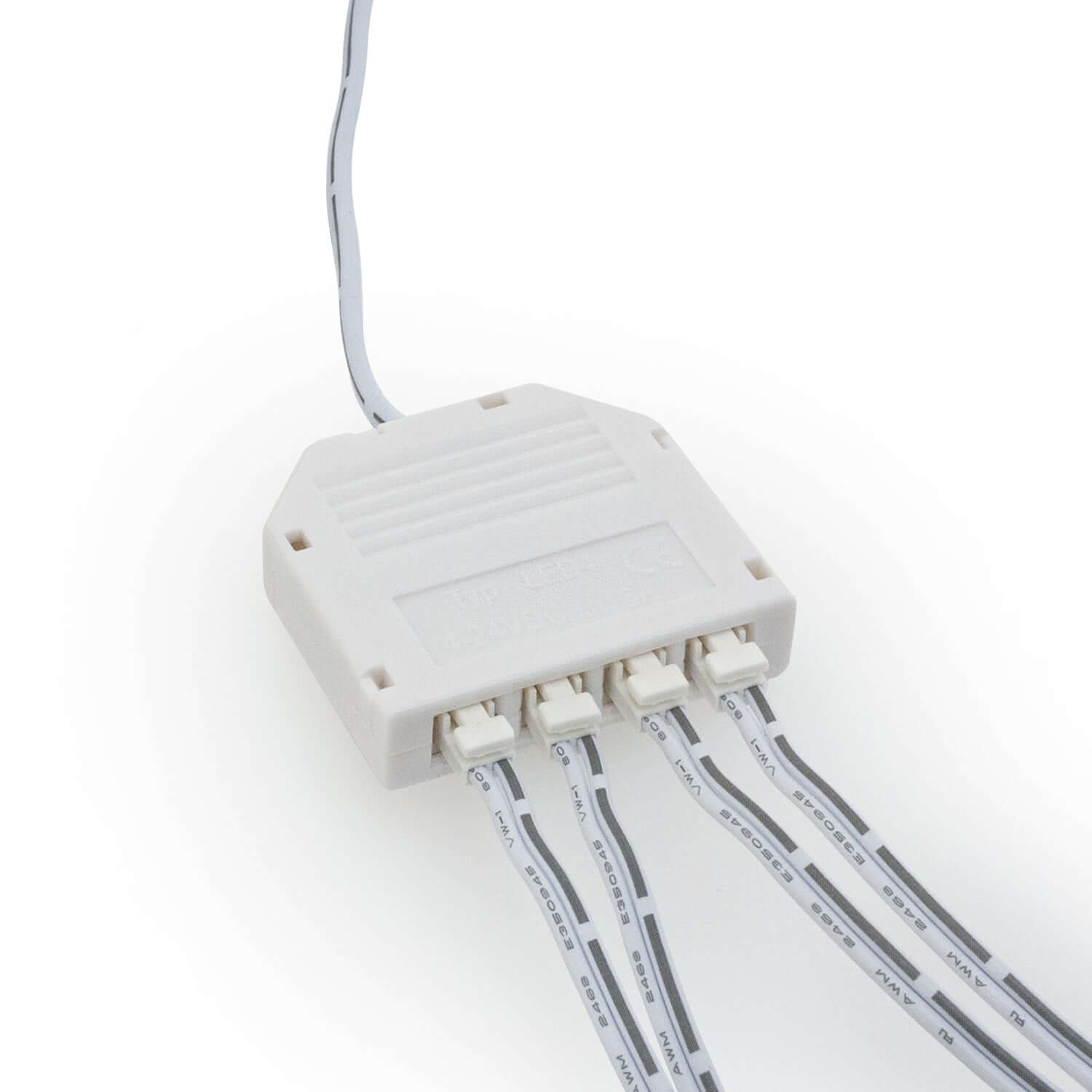

VBUN-DIS-4 with Voltage Rating 4-24V DC, Current Rating 3A max, Port Type DuPont Port with 4 connecting ports, The 4-way distributor is manufactured for our cabinet lights, puck lights. The 4-way distributor allows people to connect up to 4 LED cabinet lights, and the other end connects with the output of the LED driver or power supply.

  • Model No: VBUN-DIS-4
  • Voltage Rating: 4-24V DC
  • Current Rating: 3A max
  • No. Connecting Ports: 4 Ports

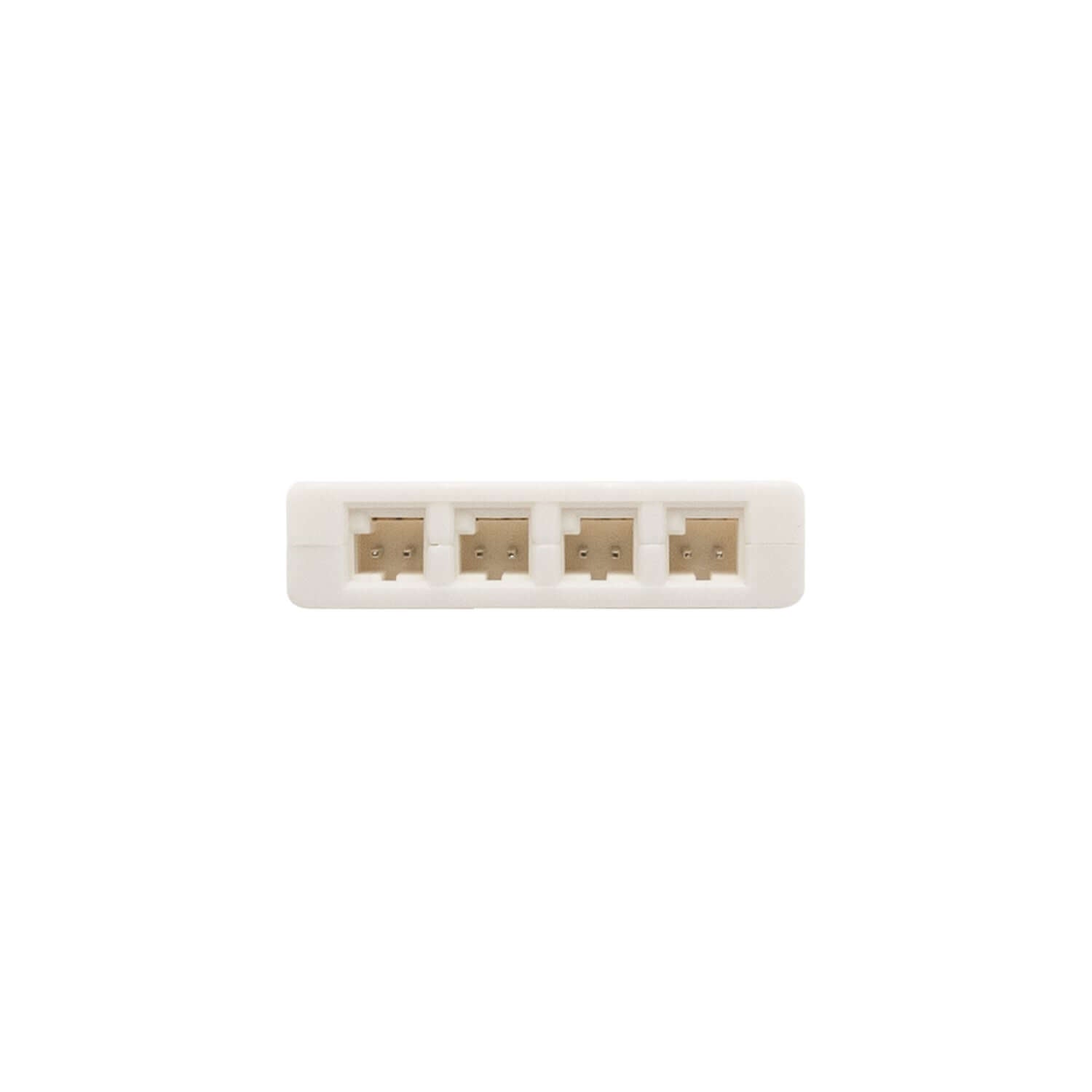

  • Port Type: DuPont Port
  • Pins: 2 Pins
  • Material: PVC (Plastic)
  • Color: White

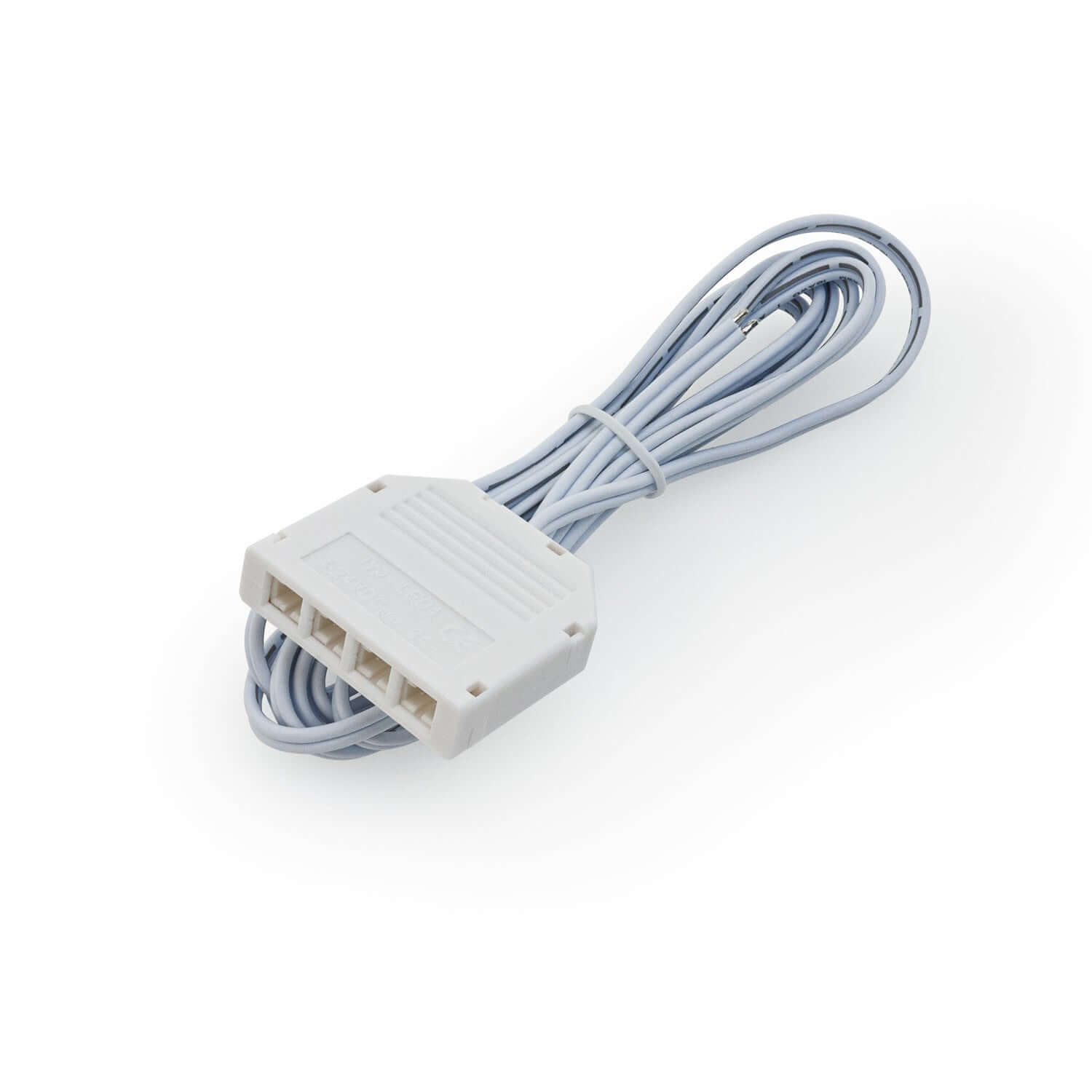

  • Wire Length: 6.5 Feet (2 Meters)
  • Wire Gauge: 18AWG

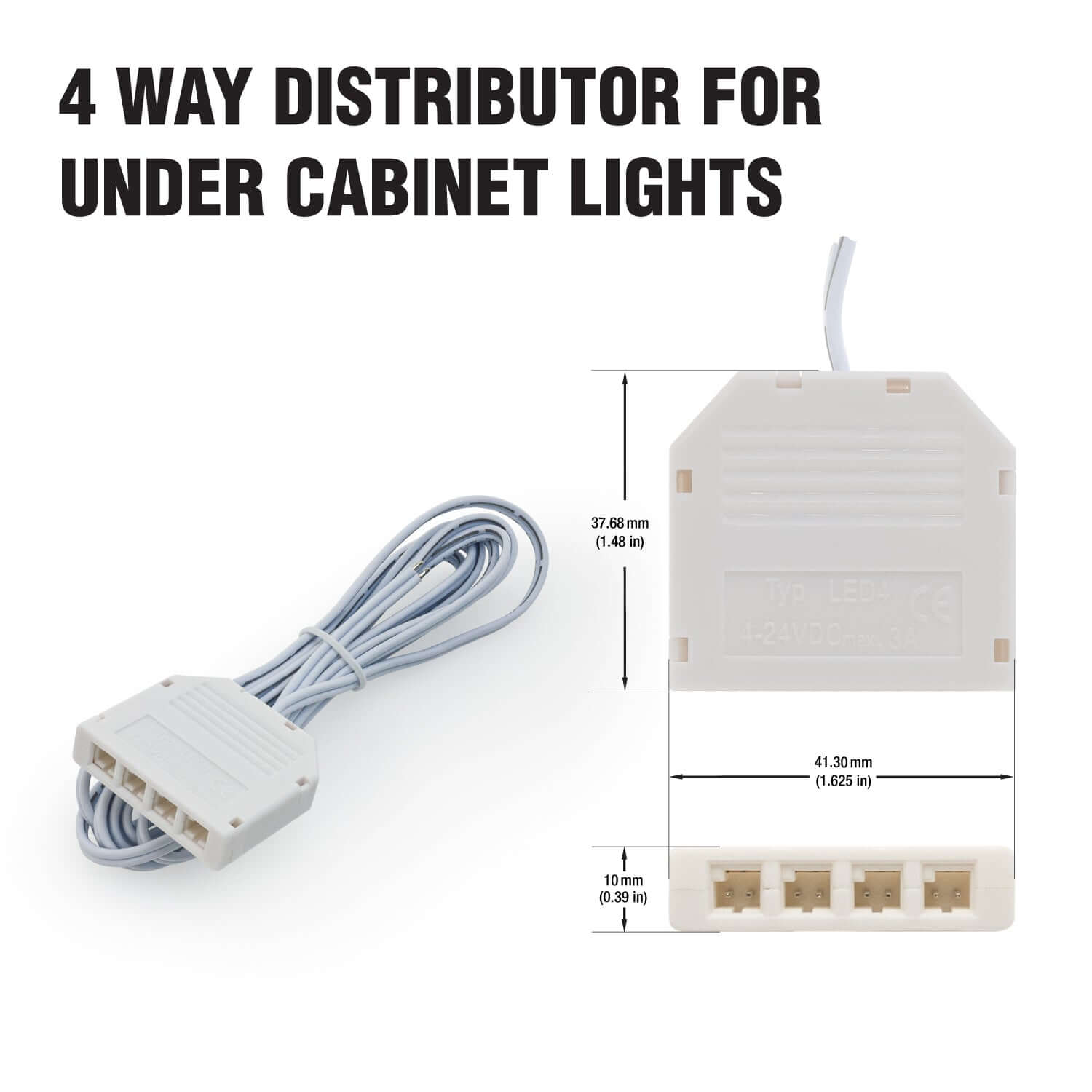

  • Dimensions: 41.3 x 37.6 x 10mm(1.6 x 1.4 x 0.3in)
  • Certificate: CE
