Veroboard Canada

VBUN-DIS-3

SKU: 666561426101

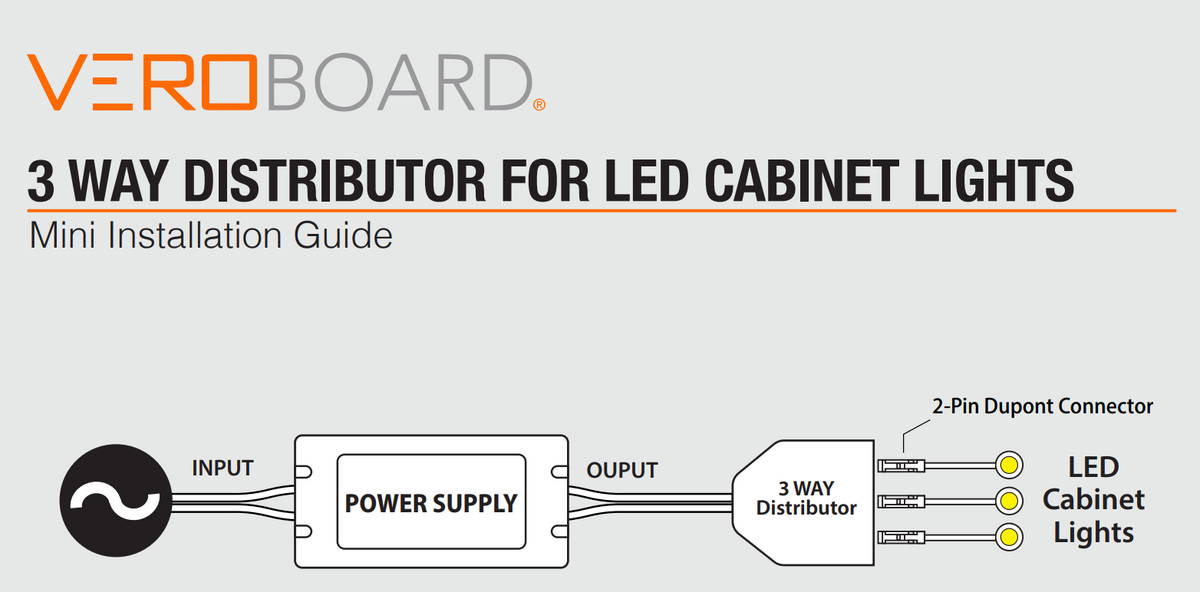

VBUN-DIS-3 with Voltage Rating 4-24V DC, Current Rating 3A max, Port Type: DuPont Port with 4 connecting ports, The 3-way distributor is manufactured for our cabinet lights, puck lights. It allows people to connect up to 3 LED cabinet lights, and the other end connects with the output of the LED driver or power supply.


  • Model No: VBUN-DIS-3
  • Voltage Rating: 3-24V DC
  • Current Rating: 3A max
  • No. Connecting Ports: 3 Ports

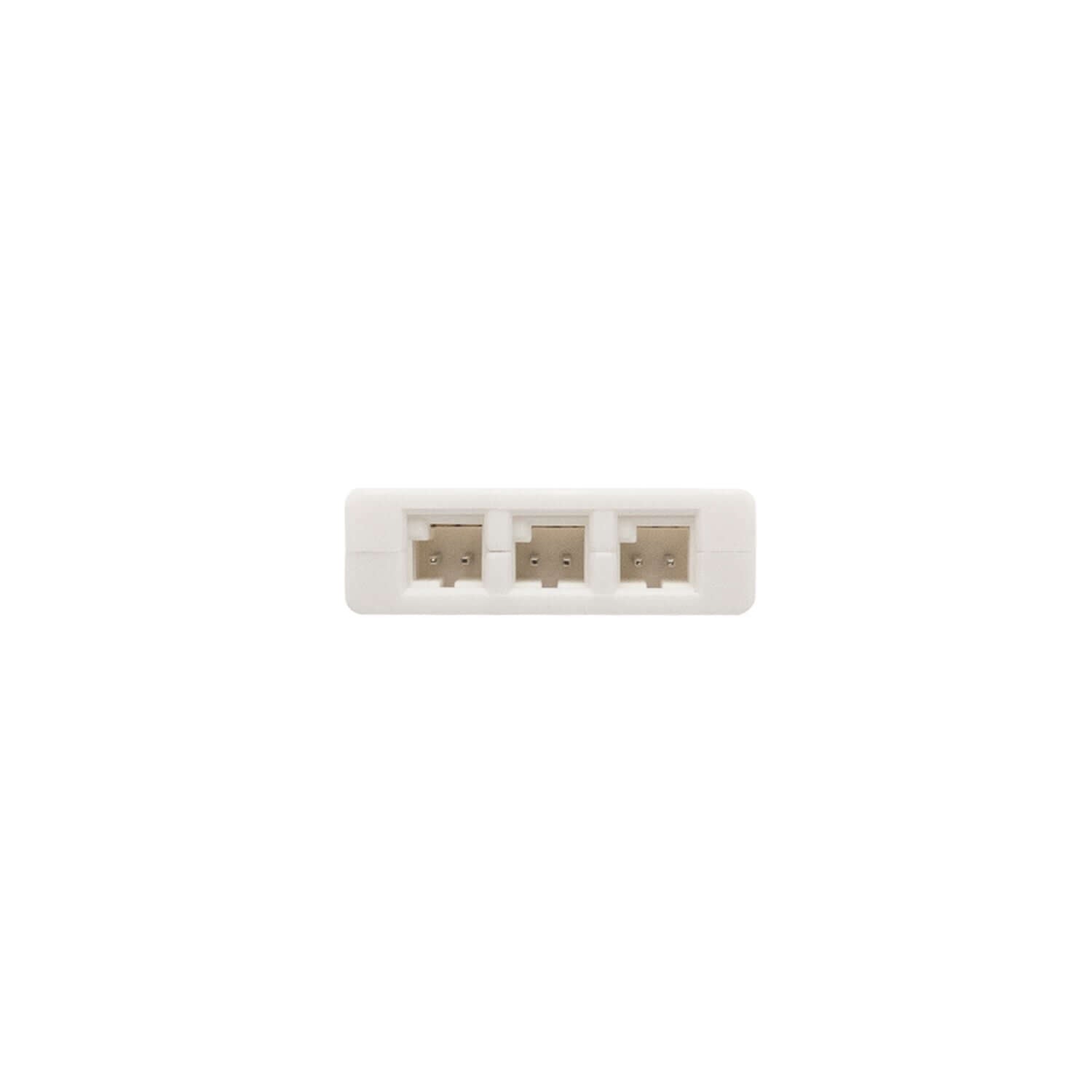

  • Port Type: DuPont Port
  • Pins: 2 Pins
  • Material: PVC (Plastic)
  • Color: White
  • Wire Length: 6.5 Feet (2 Meters)
  • Wire Gauge: 18AWG

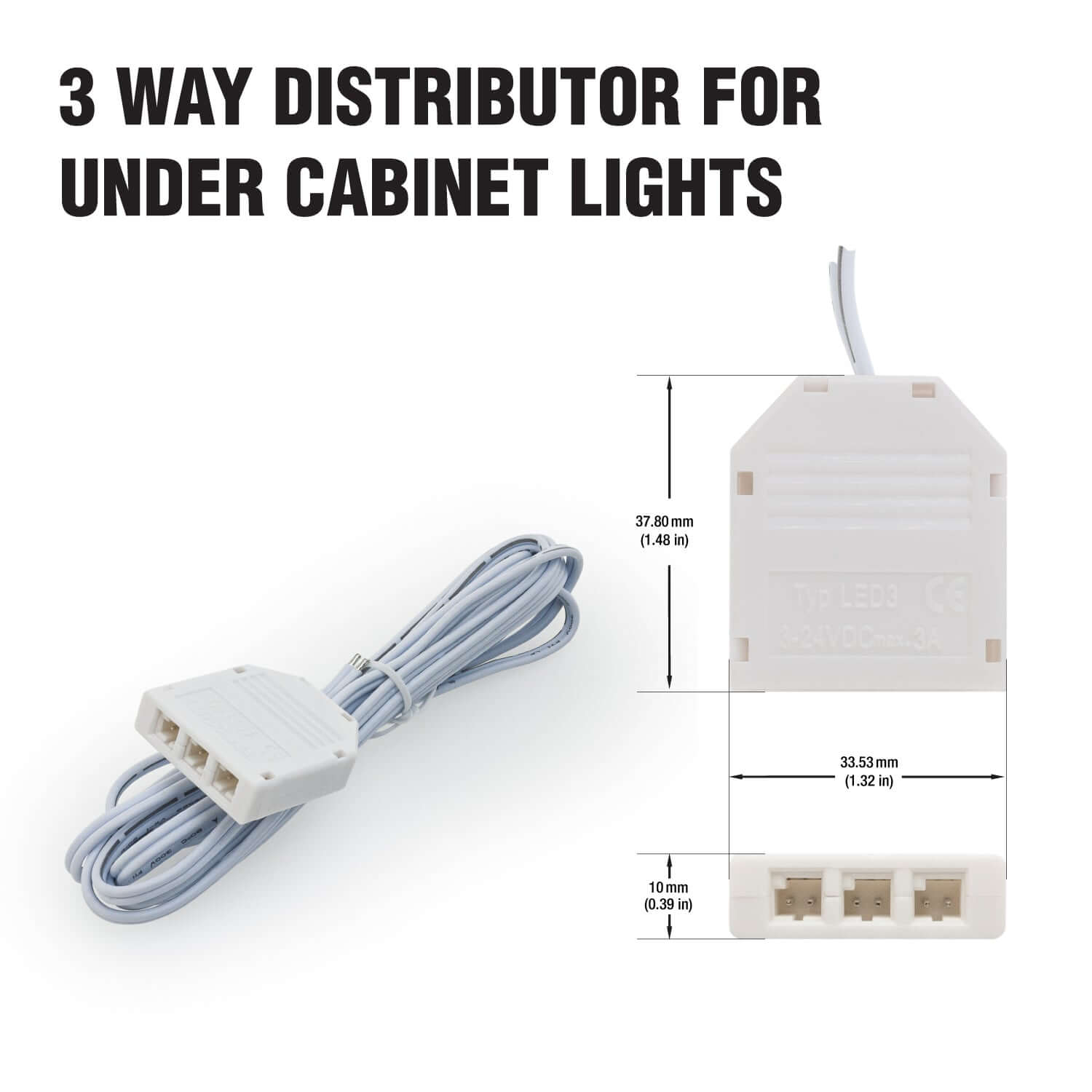

  • Dimensions: 33.5 x 37.8 x 10mm (1.3 x 1.4 x 0.3in)
  • Certificate: CE
