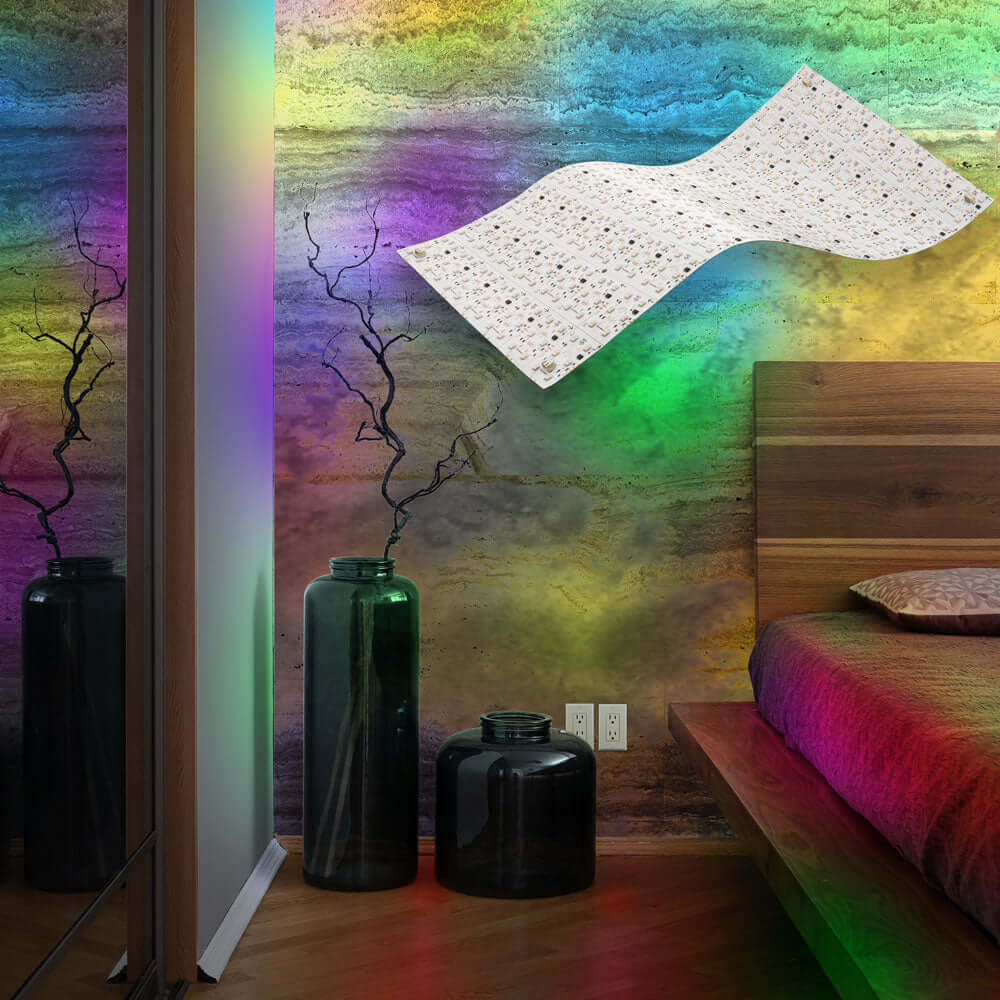

Flexible addressable RGB LED backlighting sheet enhancing a modern bedroom ambiance.

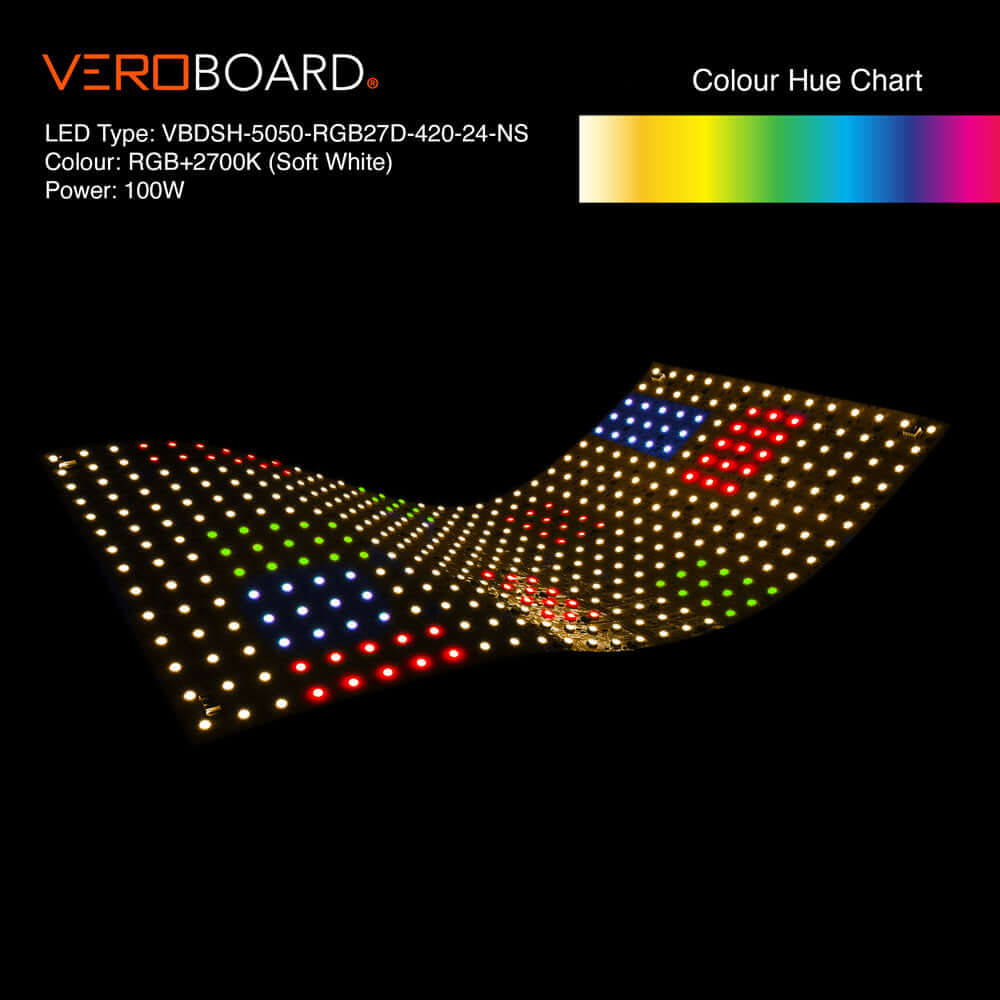

Flexible LED backlighting sheet VBDSH-5050 with RGB and 2700K soft white lights, 100W power consumption.

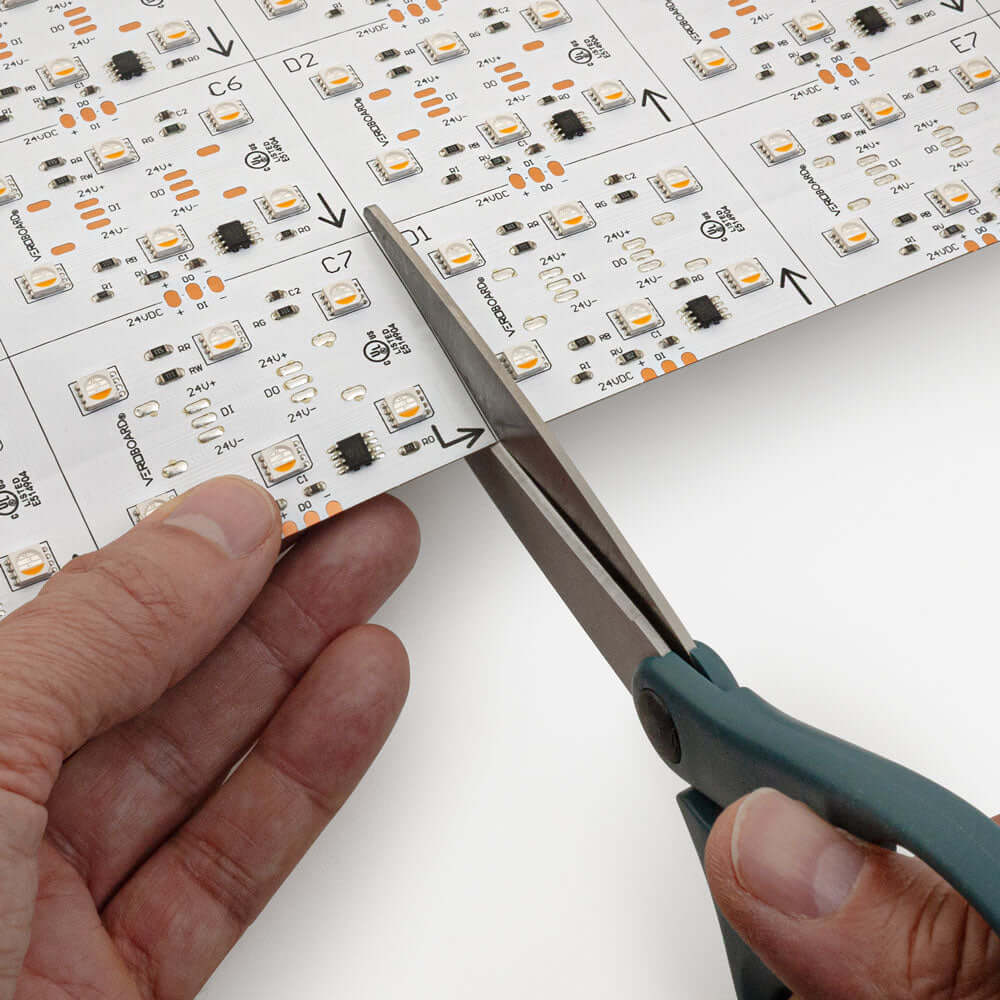

Person cutting a flexible addressable LED backlighting sheet with scissors, showcasing its cut size feature.

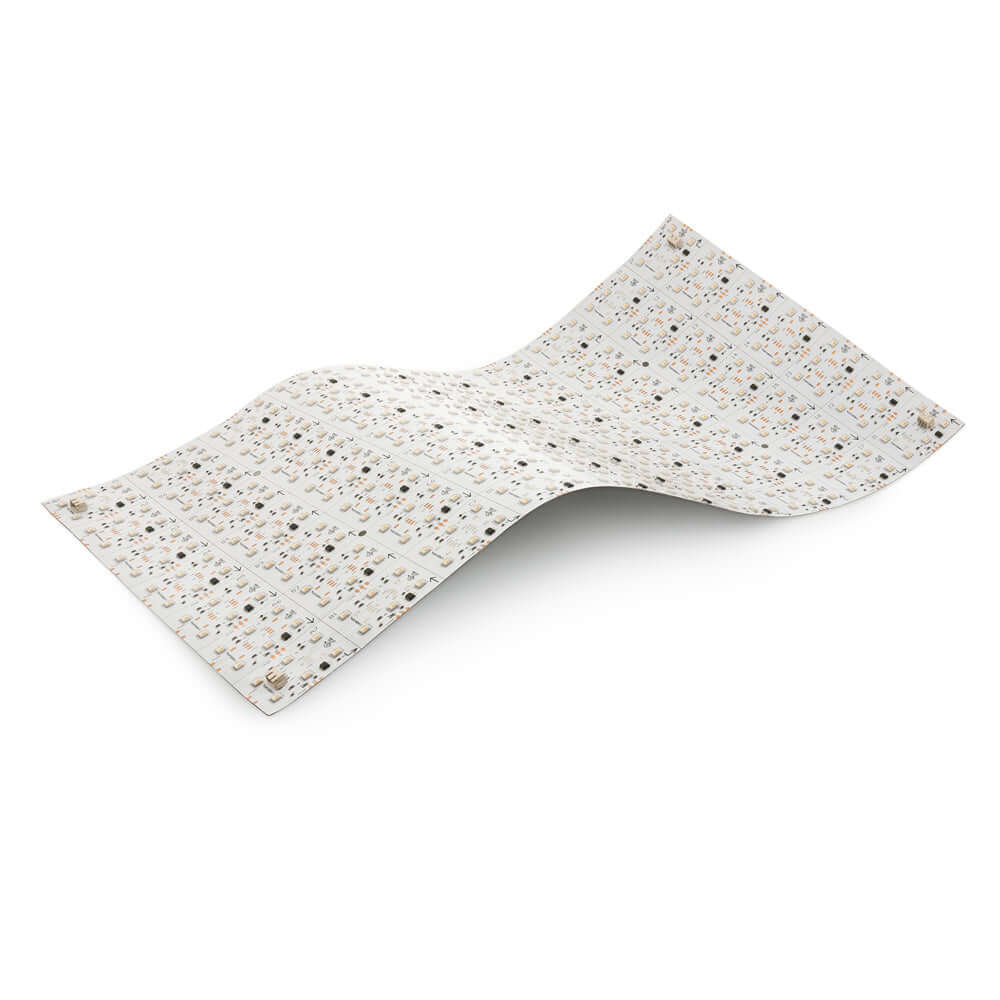

Flexible LED backlighting sheet with connection to 24V DC power supply and multiple LED sections.

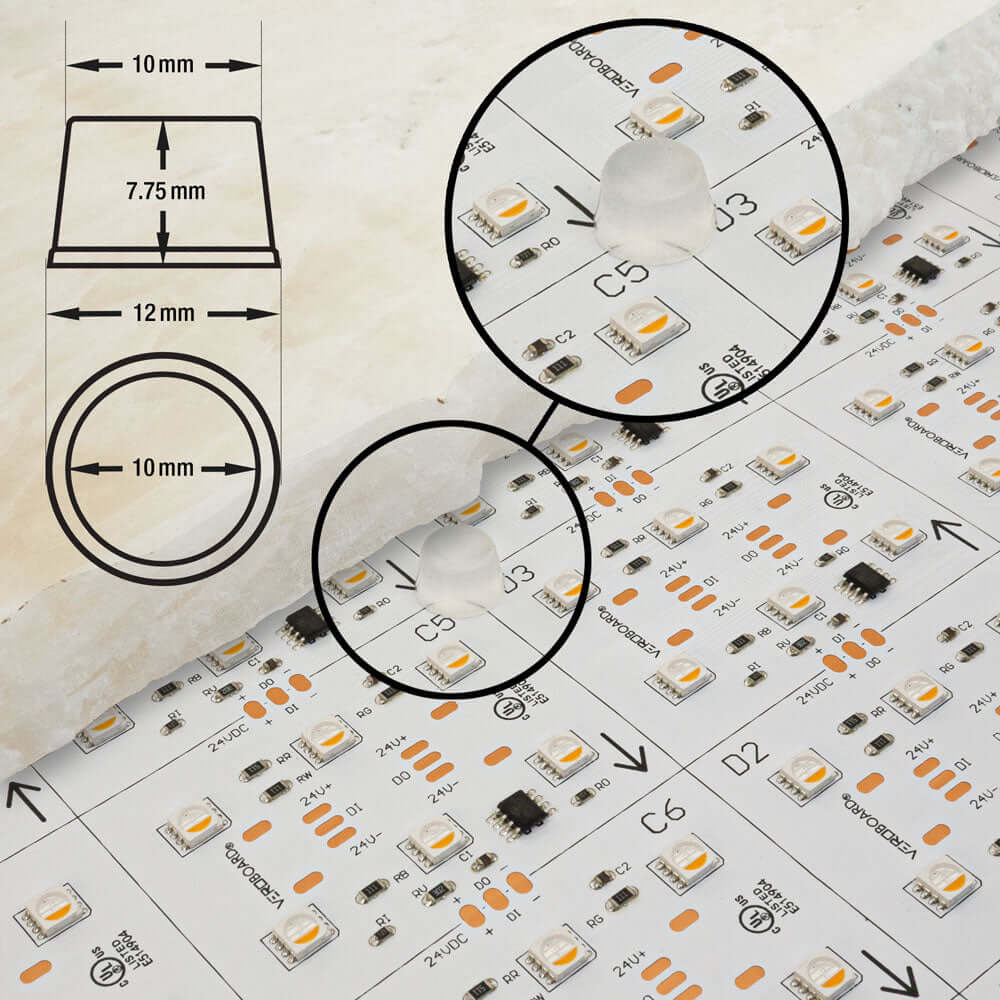

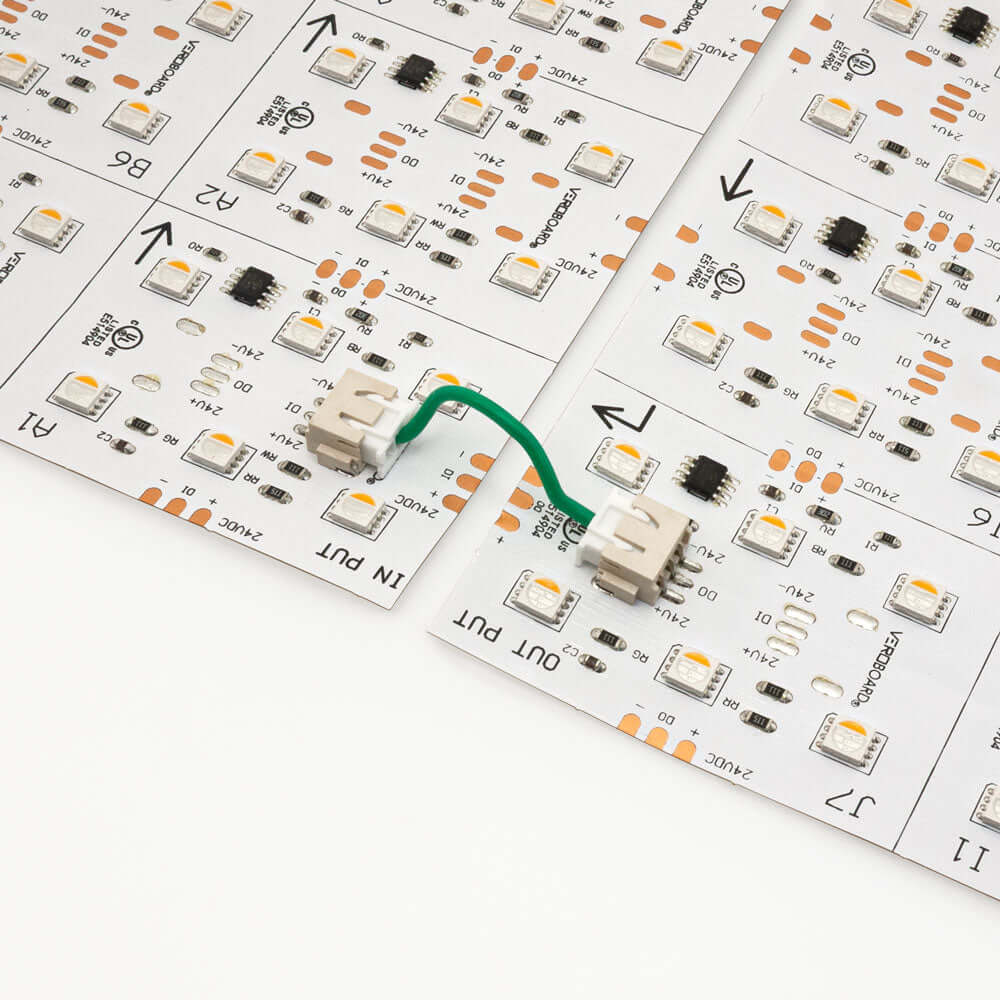

Close-up of flexible LED backlighting sheet with connectors and chips for RGBW lighting installation.

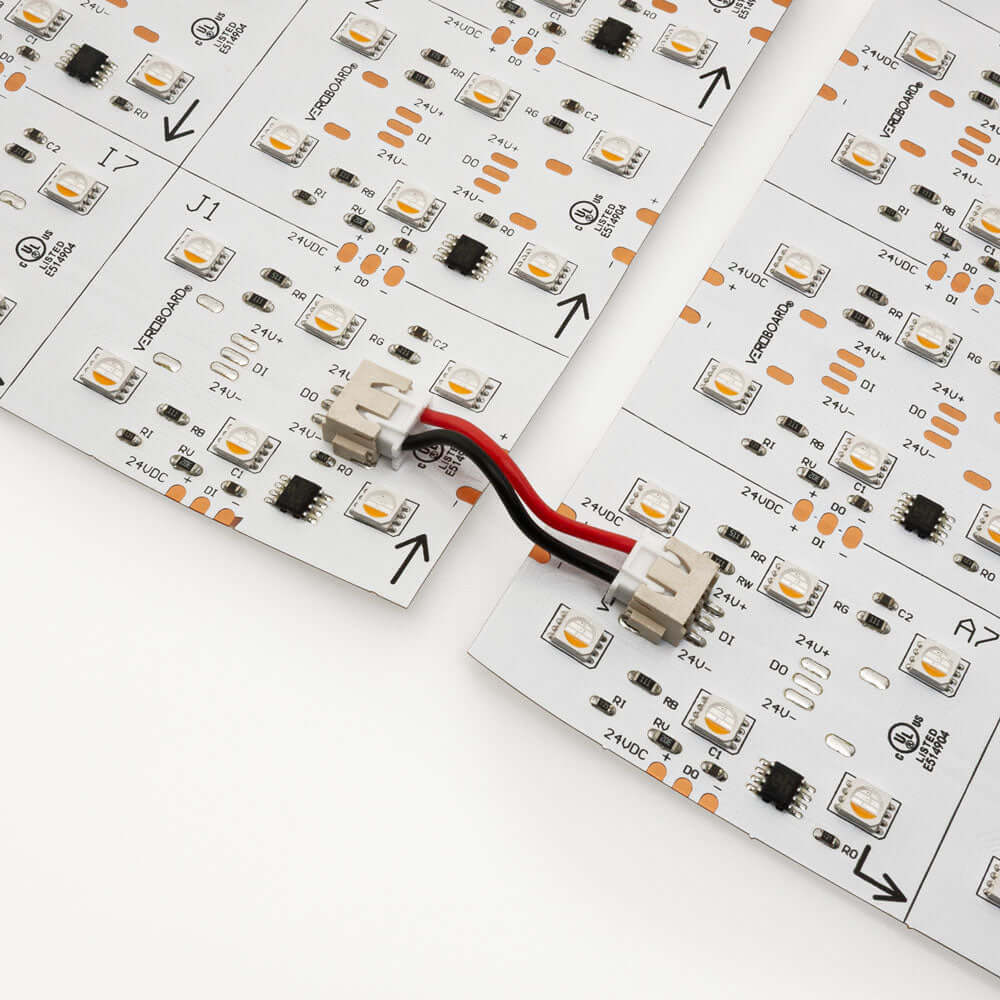

Close-up of VBDSH-5050-RGB27D LED backlighting sheet connectors and circuit layout.

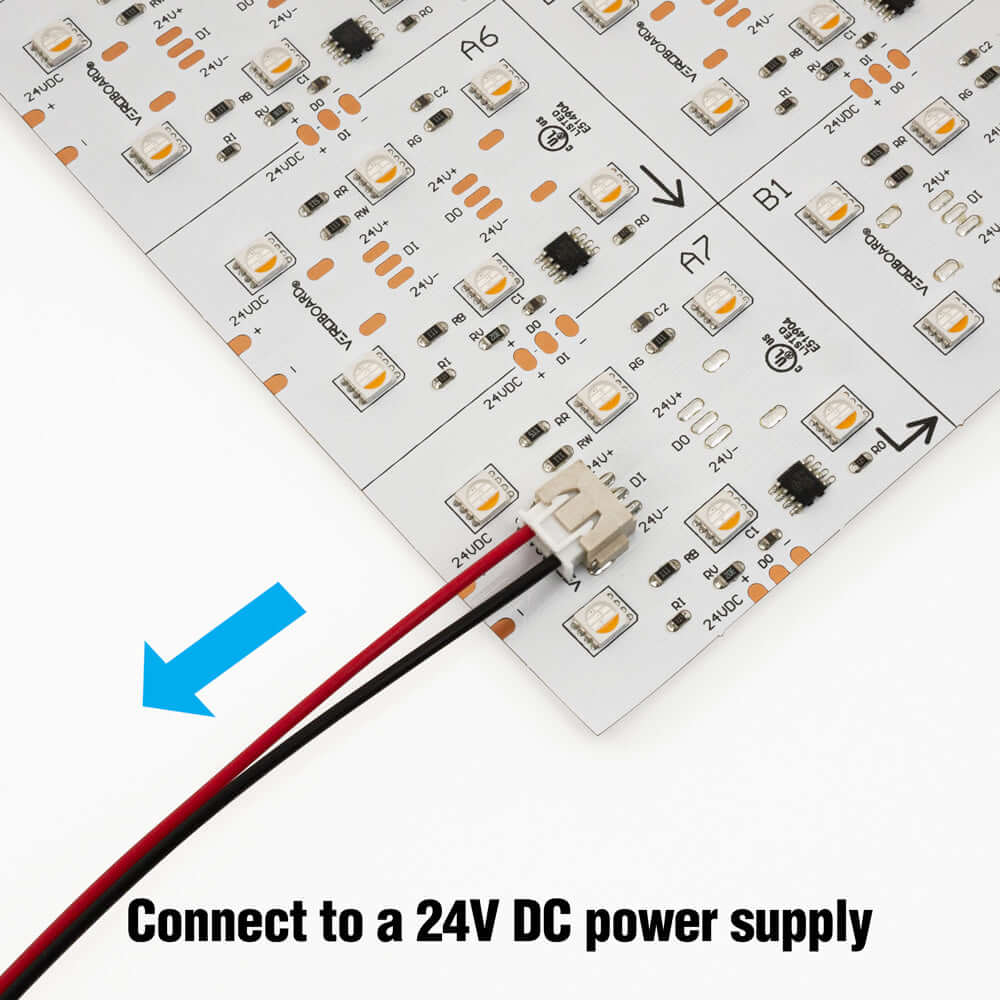

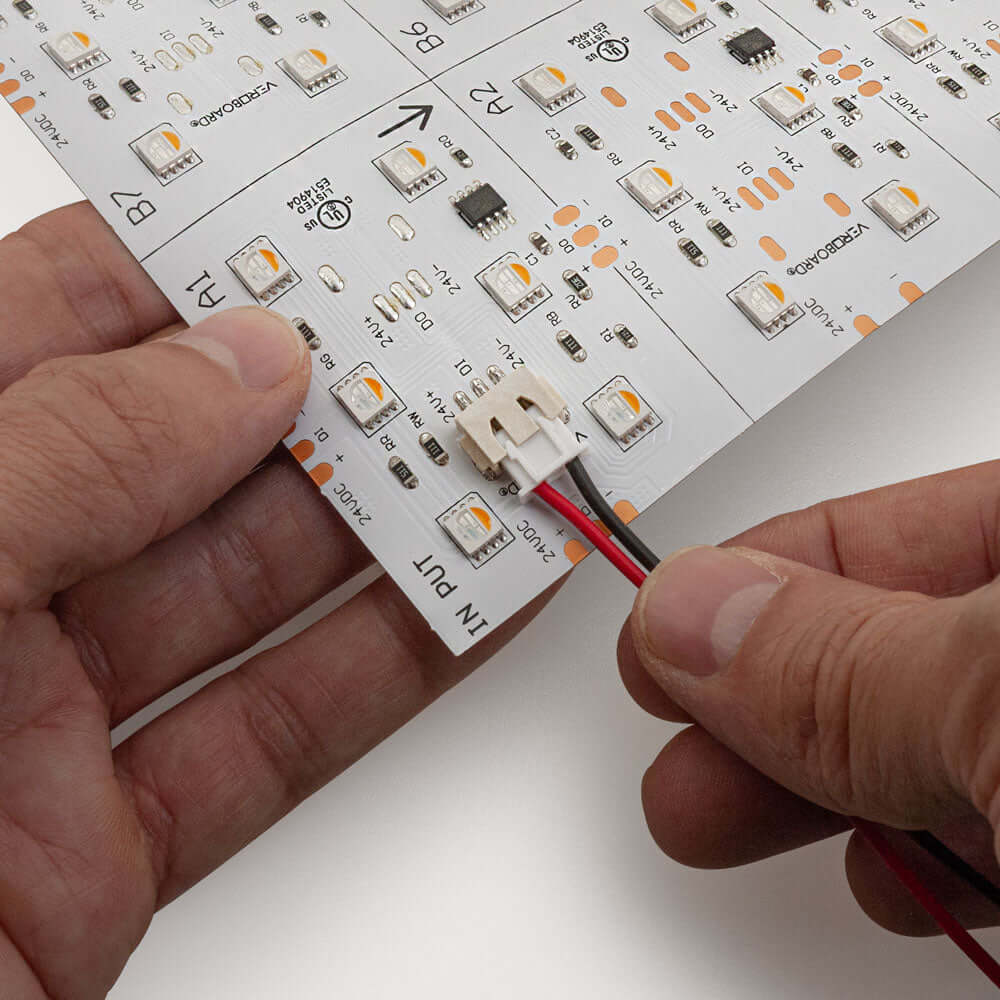

Close-up of hands connecting wires to the VBDSH-5050-RGB27D LED backlighting sheet's connector.
Flexible RGB addressable LED backlighting sheet with 420 LEDs, 24V DC, and 120° beam angle.

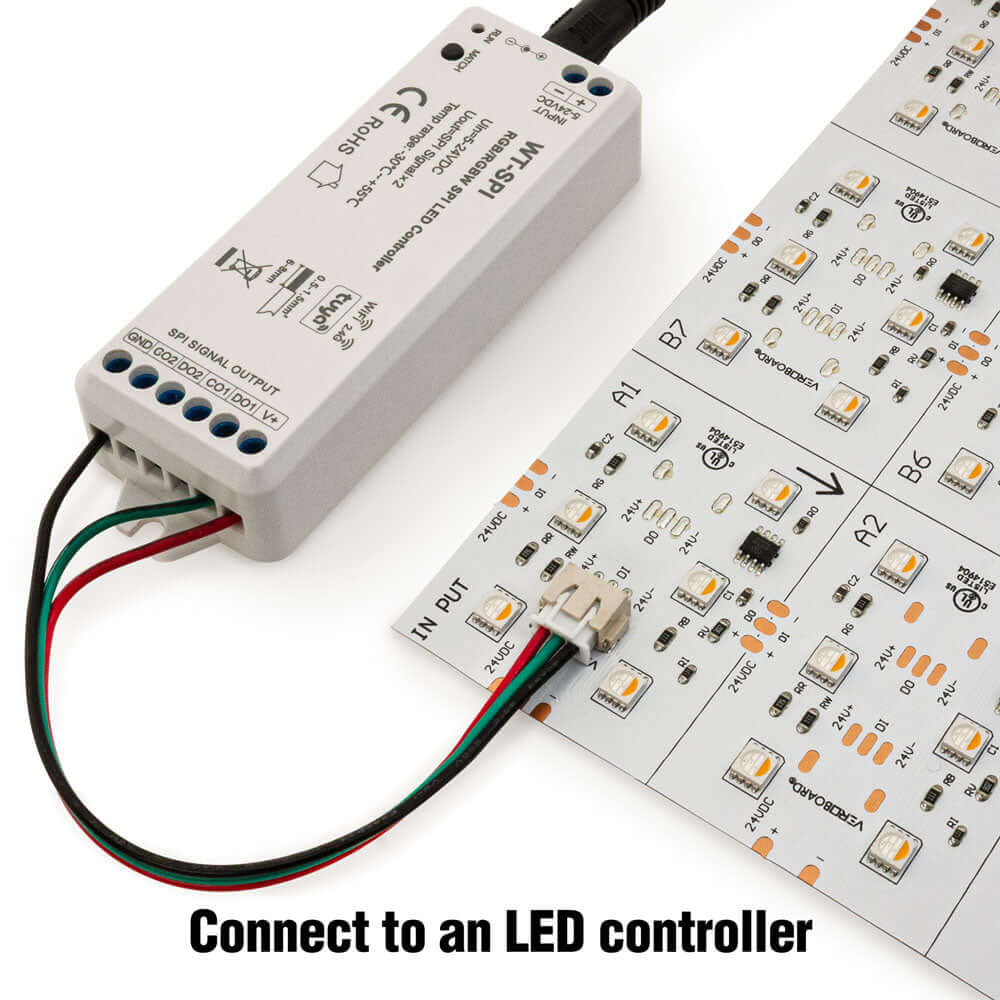

Flexible LED backlighting sheet connected to an LED controller with clear wiring instructions.

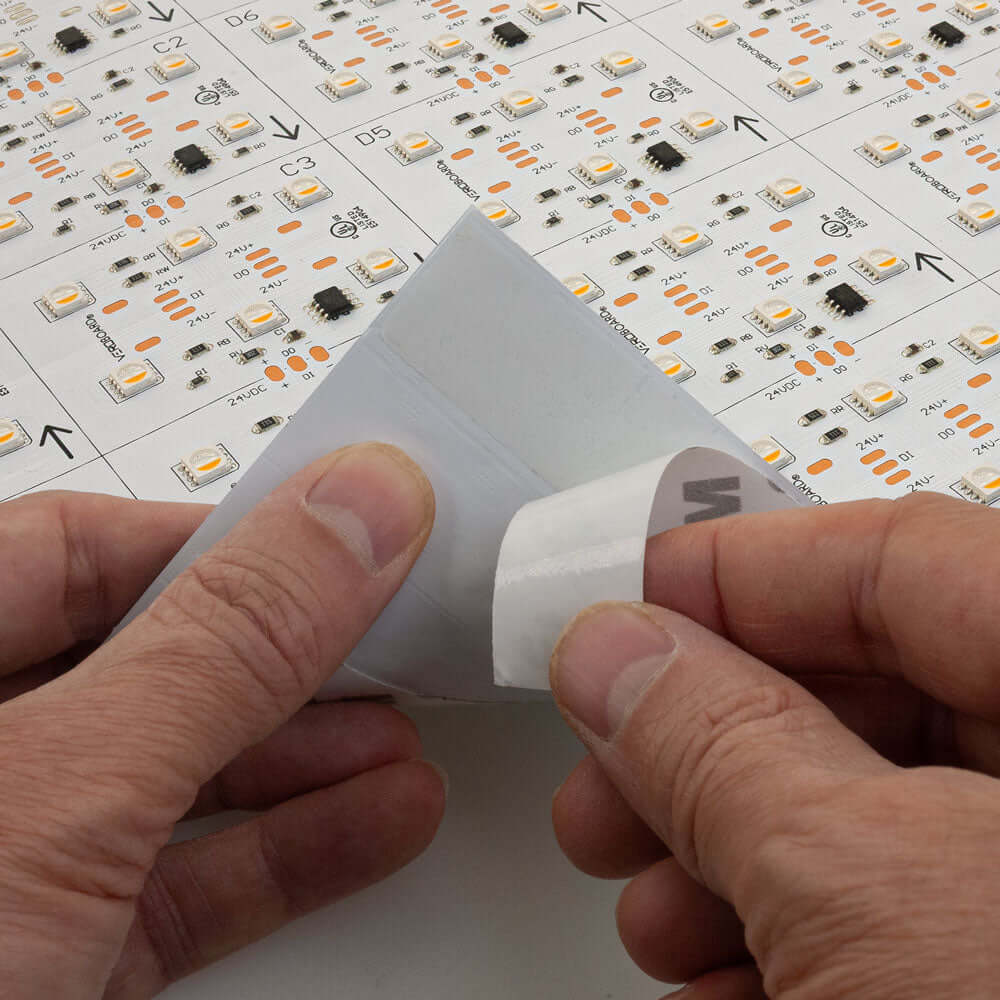

Person peeling adhesive from flexible LED backlighting sheet with RGB chips for installation.
Flexible addressable LED backlighting sheet with 420 RGBW LEDs, 24V, suitable for various installations.

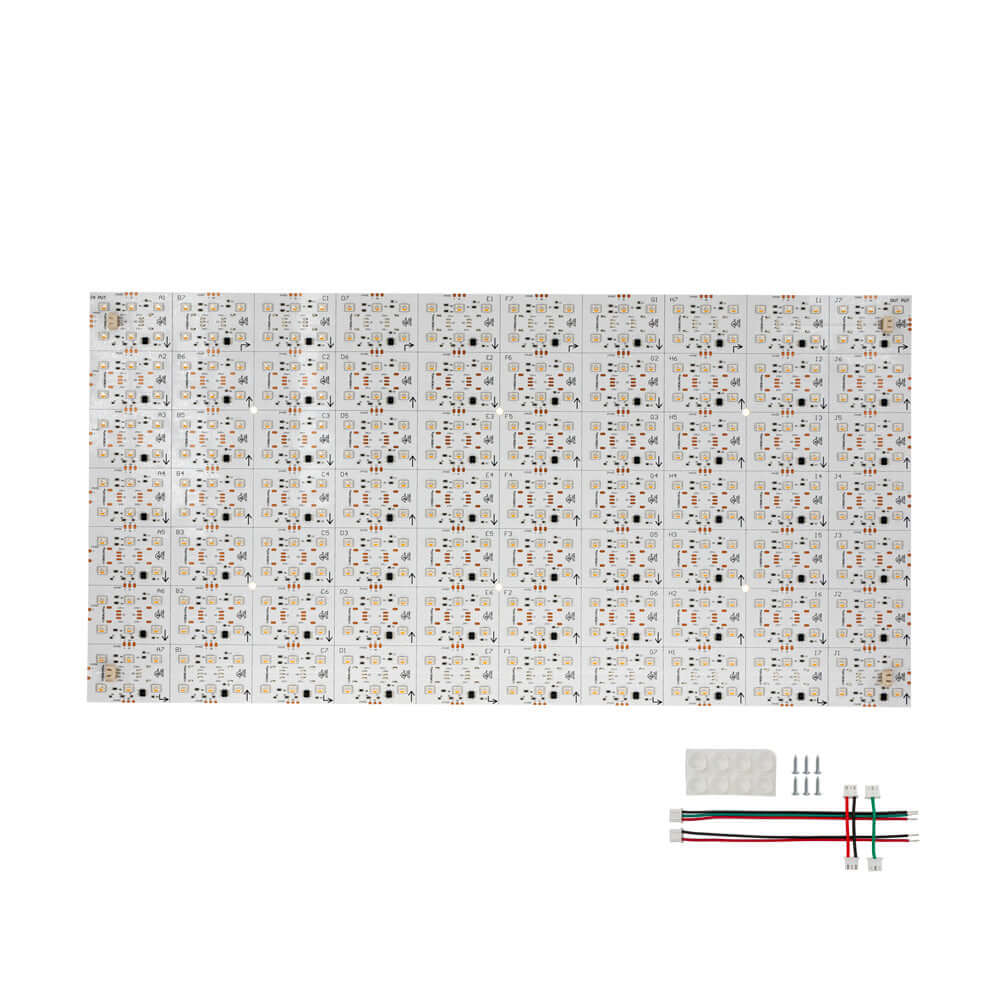

Close-up of flexible LED sheet with detailed markings and cut points, showcasing LED placement and specifications.

VBDSH-5050-RGB27D-420-24-NS Flexible Addressable LED Backlighting Sheet

SKU: 666561436919

VBDSH-5050-RGB27D-420-24-NS Flexible Digital LED Backlighting Sheet is Thin, bendable, and easily shaped, it adapts flawlessly to various uses including signage, backlighting, trade shows, displays, and panels. Effortlessly create captivating designs by bending it into intricate shapes, and with cut lines in both directions, odd shapes are a breeze to achieve.

Where to buy?



* Sample available upon request

  • Model No: VBDSH-5050-RGB27D-420-24-NS
  • Voltage: 24V DC
  • Wattage: 100W
  • Color Temperature: RGBW(2700K)
  • Rendering Index: CRI>90+
  • LED Qty: 420 LEDs
  • Chip Type: UC2904
  • Beam Angle: 120°
  • Cut Size: Every 60mm (2.36") x 45mm (1.77")
  • Installation: 3M Double sided tape
  • Connector Size:
    40mm (1.6") Sheet to Sheet
    150mm (6") Sheet to Power
    20AWG
  • Dimensions: 610 x 305mm (24 x 12in)
  • Certification: UL
