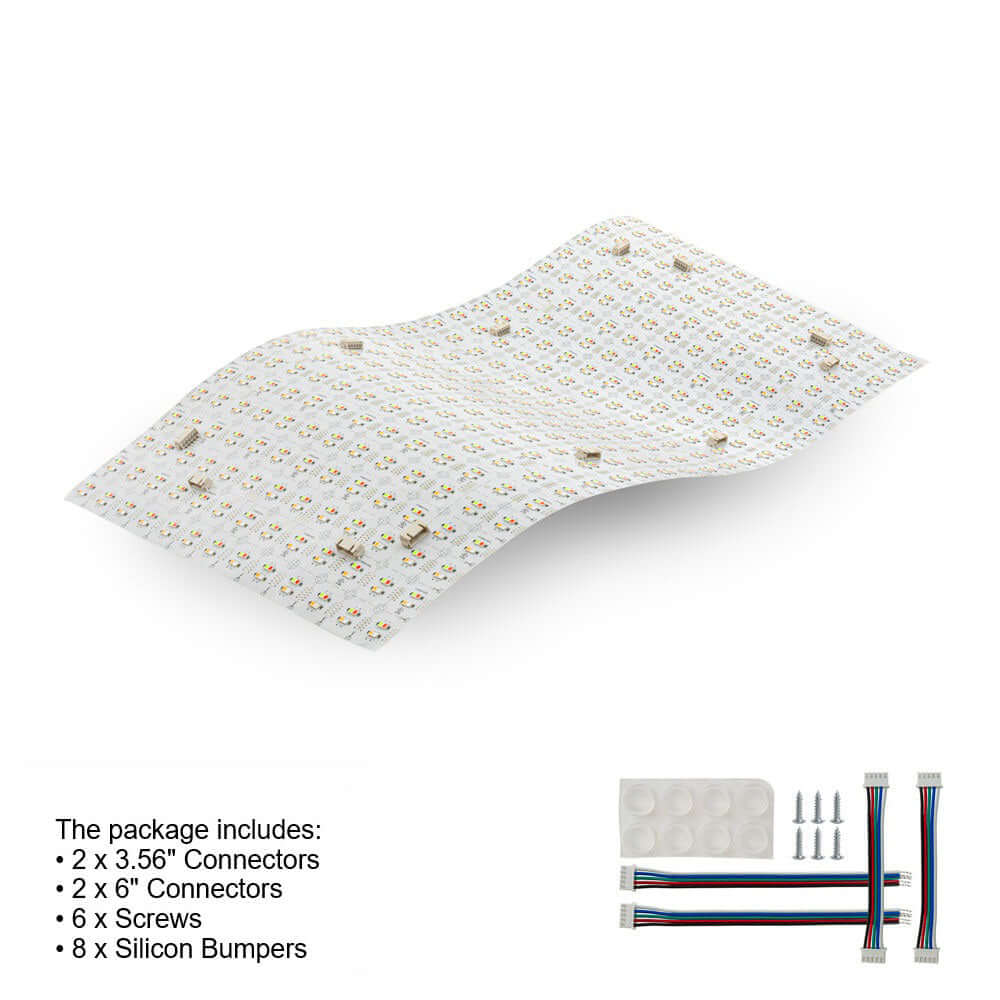

VBDSH-2835-RGB27-1248-24-NS Flexible LED Backlighting Sheet

SKU: 666561432331

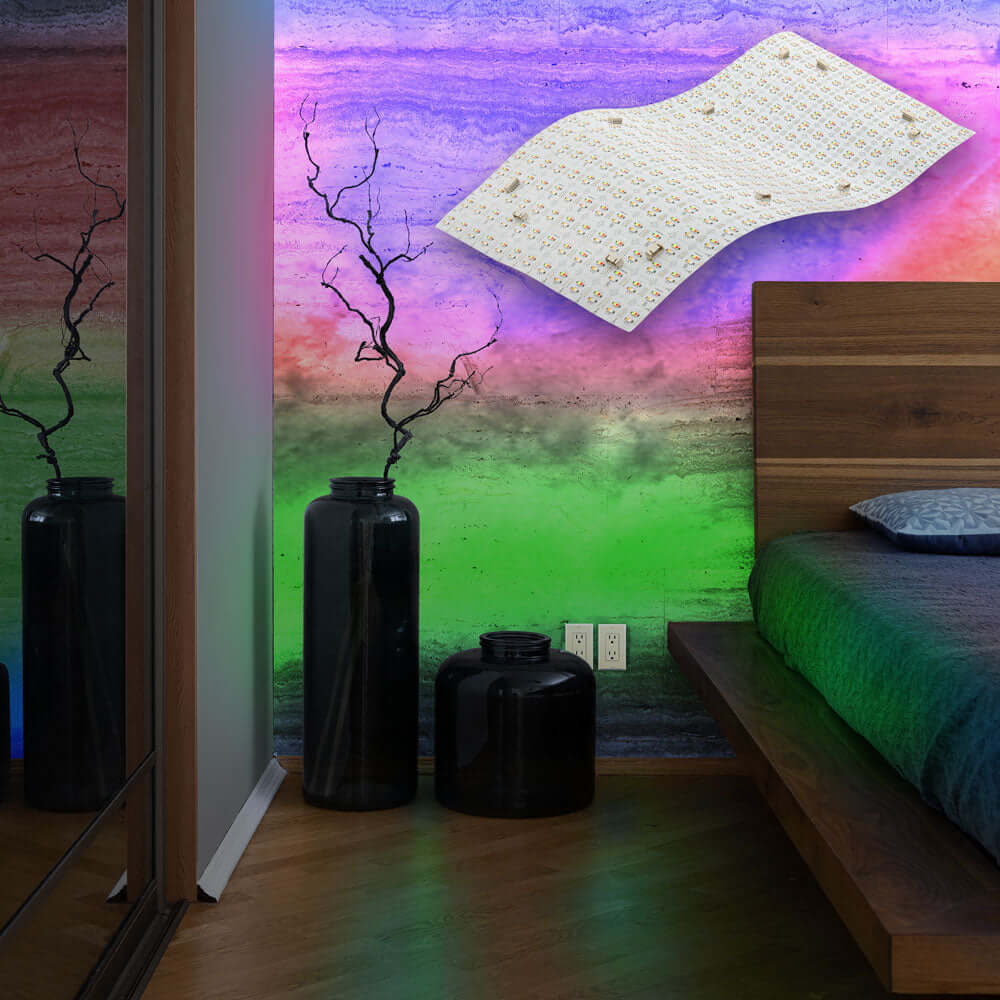

VBDSH-2835-RGB27-1248-24-NS Flexible LED Backlighting Sheet is Thin, bendable, and easily shaped, it adapts flawlessly to various uses including signage, backlighting, trade shows, displays, and panels. Effortlessly create captivating designs by bending it into intricate shapes, and with cut lines in both directions, odd shapes are a breeze to achieve.



  • Model No: VBDSH-2835-RGB27-1248-24-NS
  • Voltage: 24V DC
  • Wattage: 46W

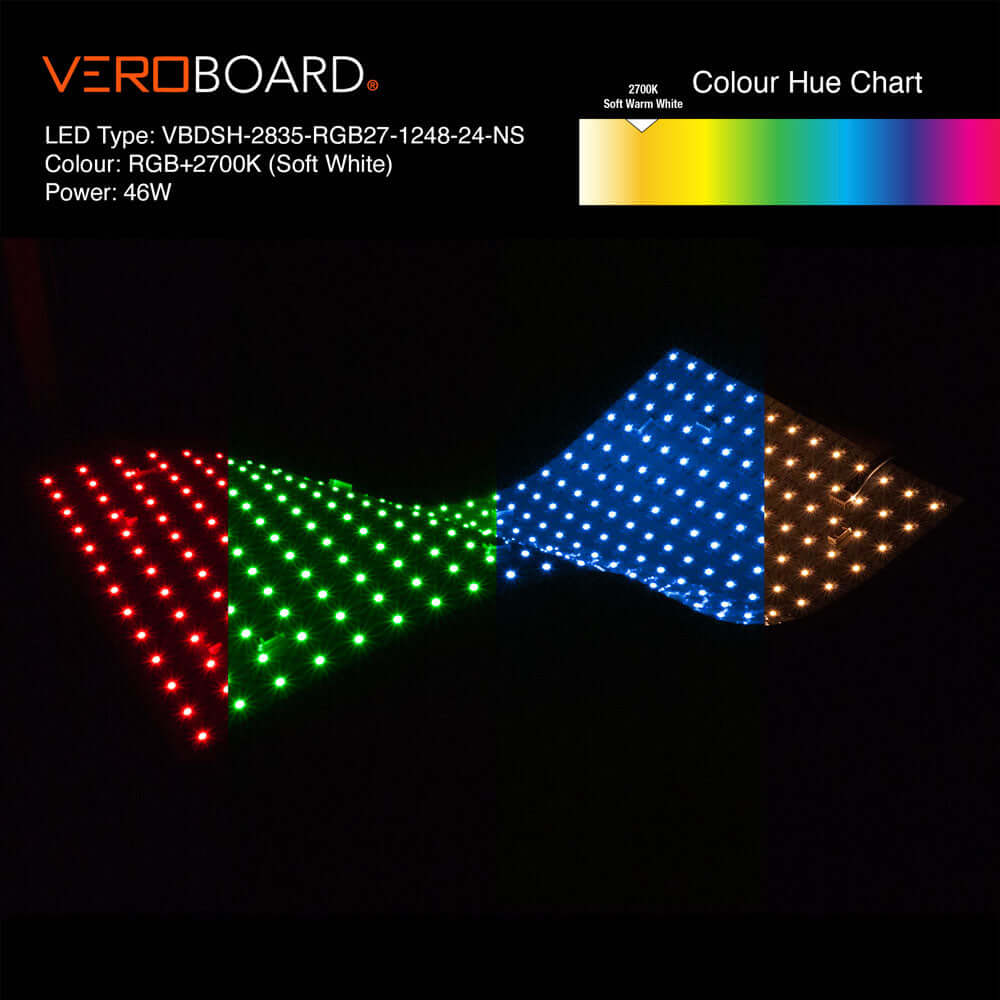

  • Color Temperature:
    RGB2.7K-(Soft White)
  • Rendering Index: CRI>90+
  • LED Qty: 1248 LEDs
  • Beam Angle: 120°

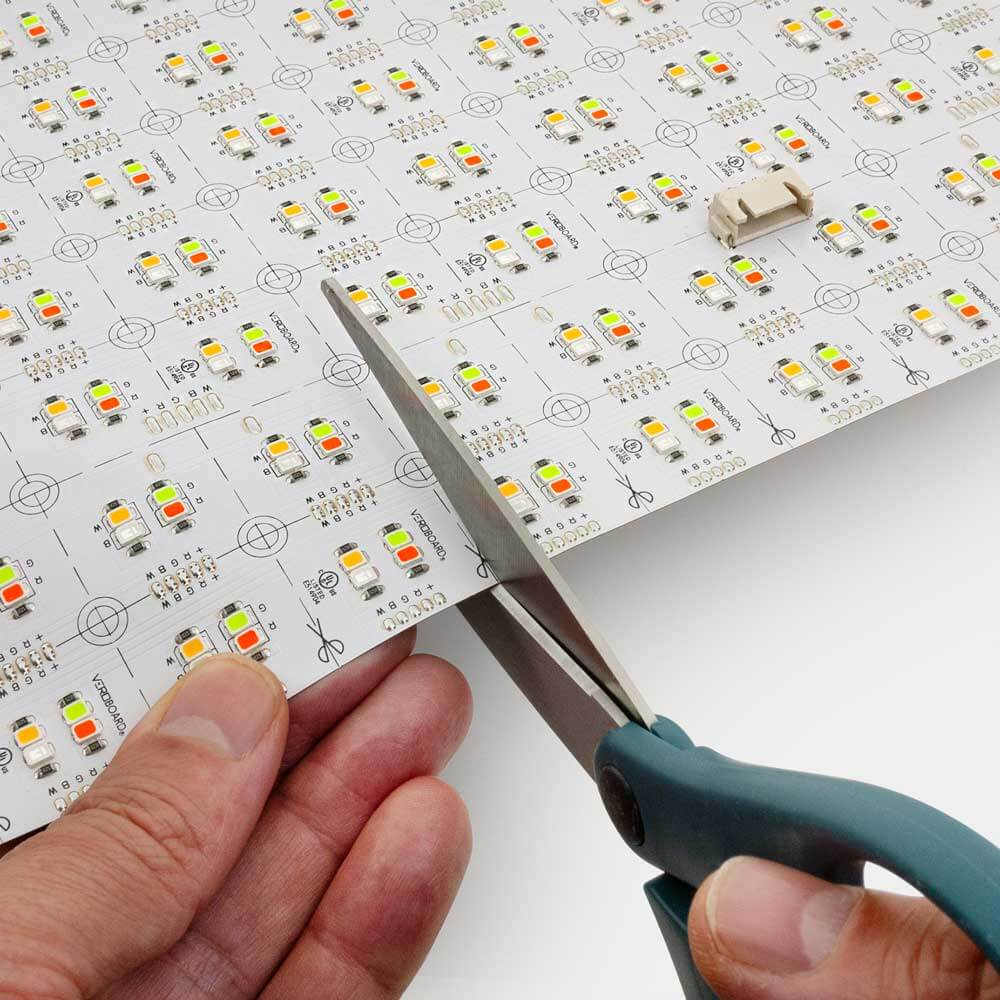

  • Cut Size: Every 25.5mm (1in)
  • Installation: 3M Double sided tape

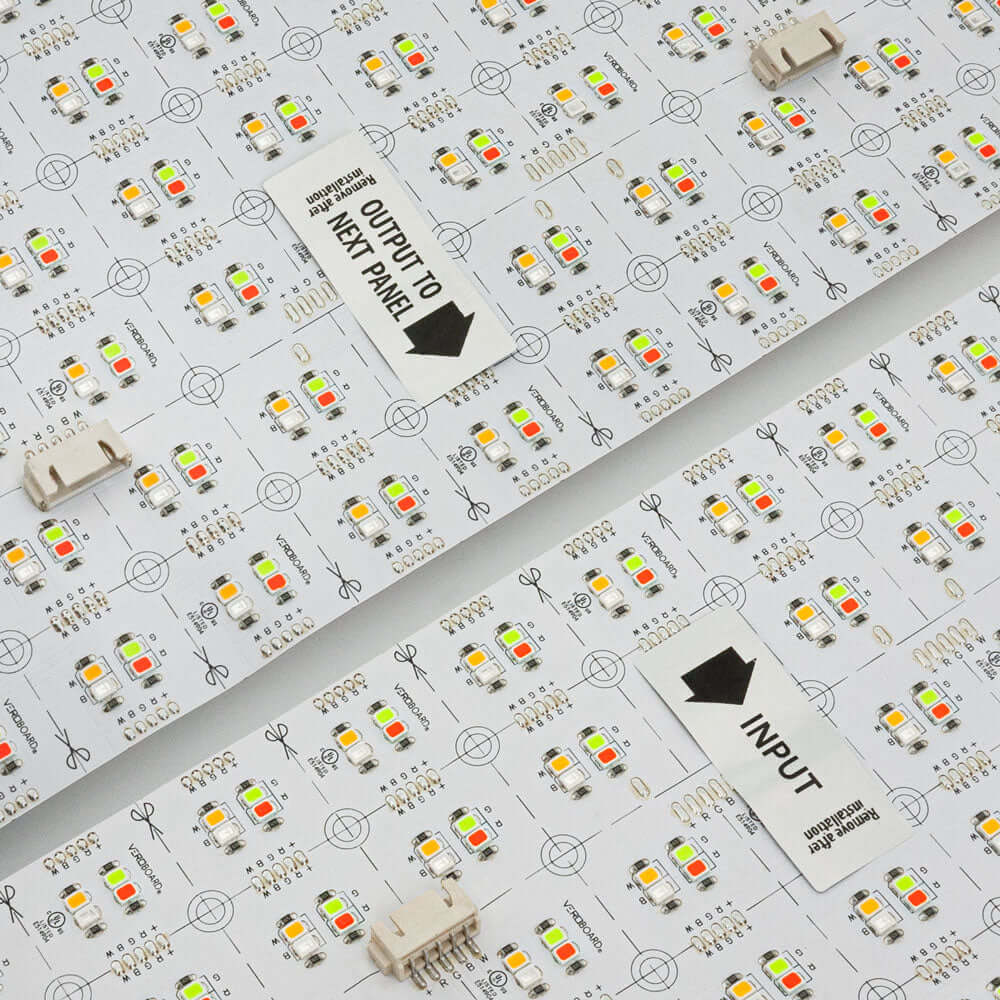

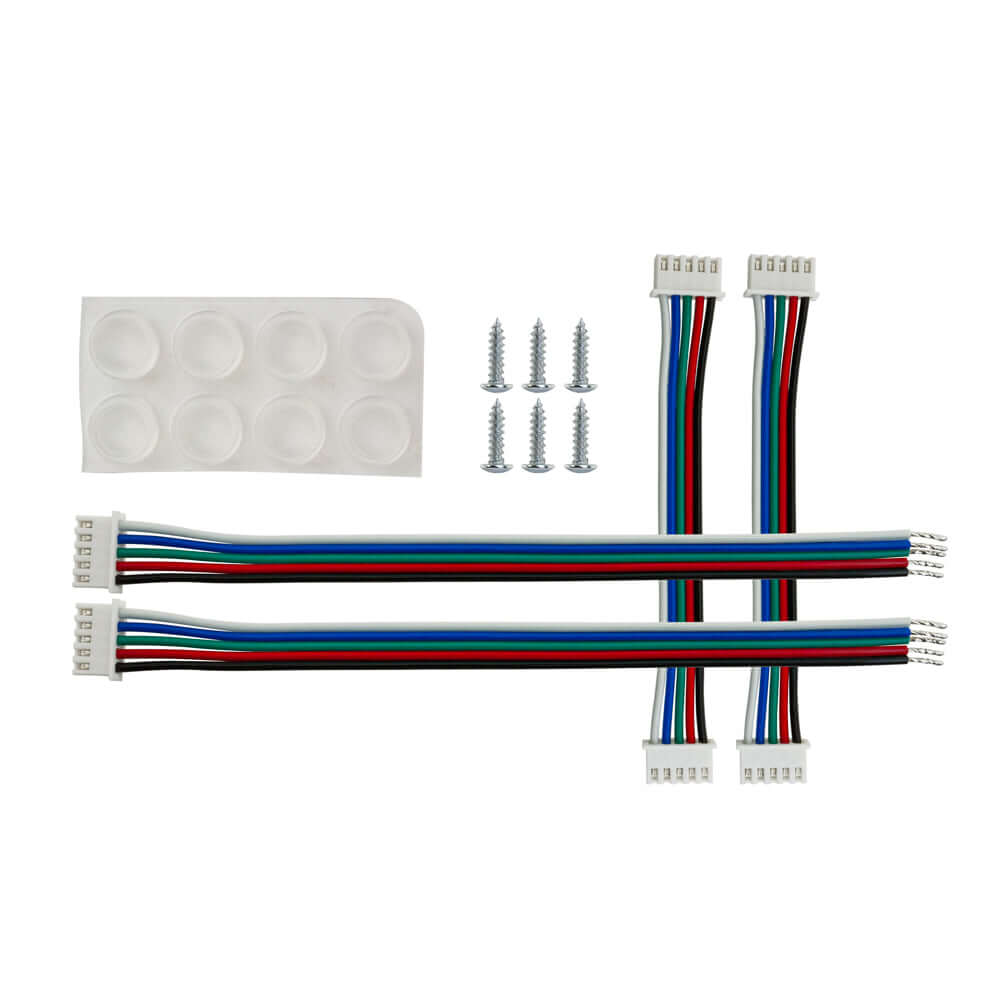

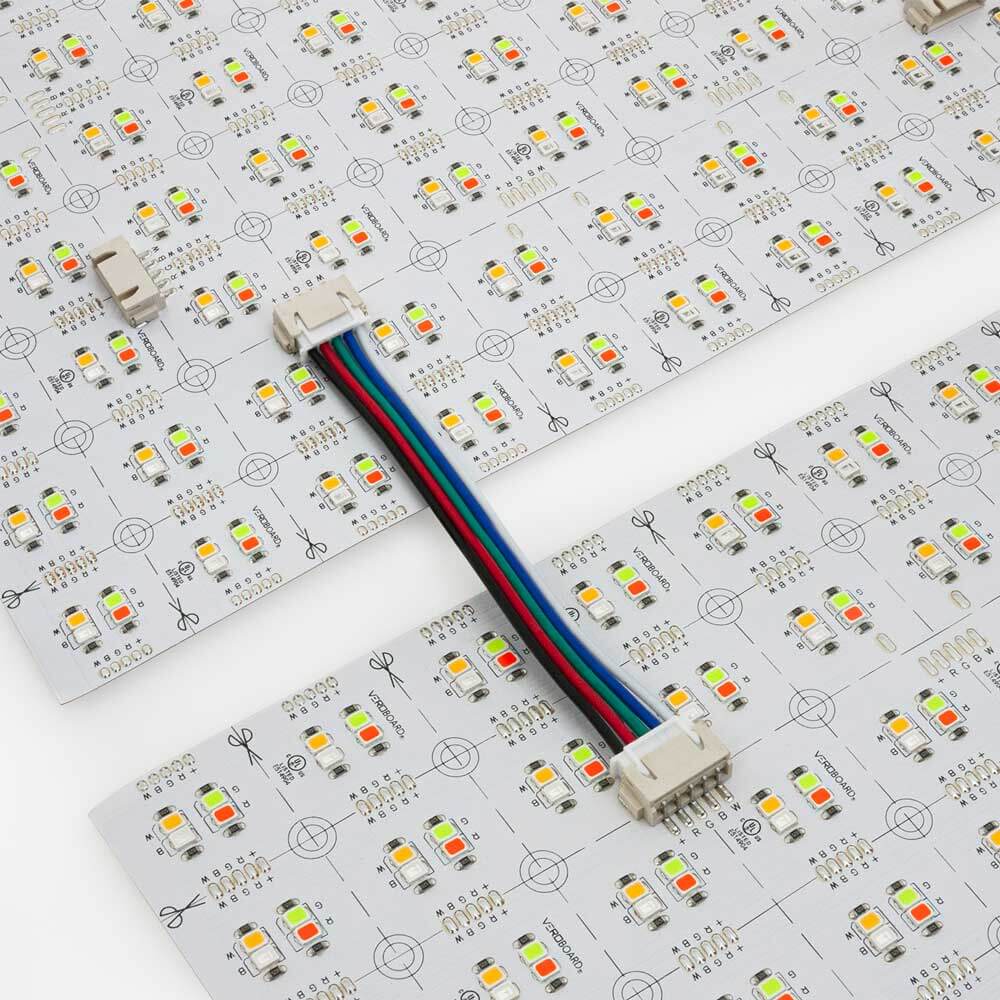

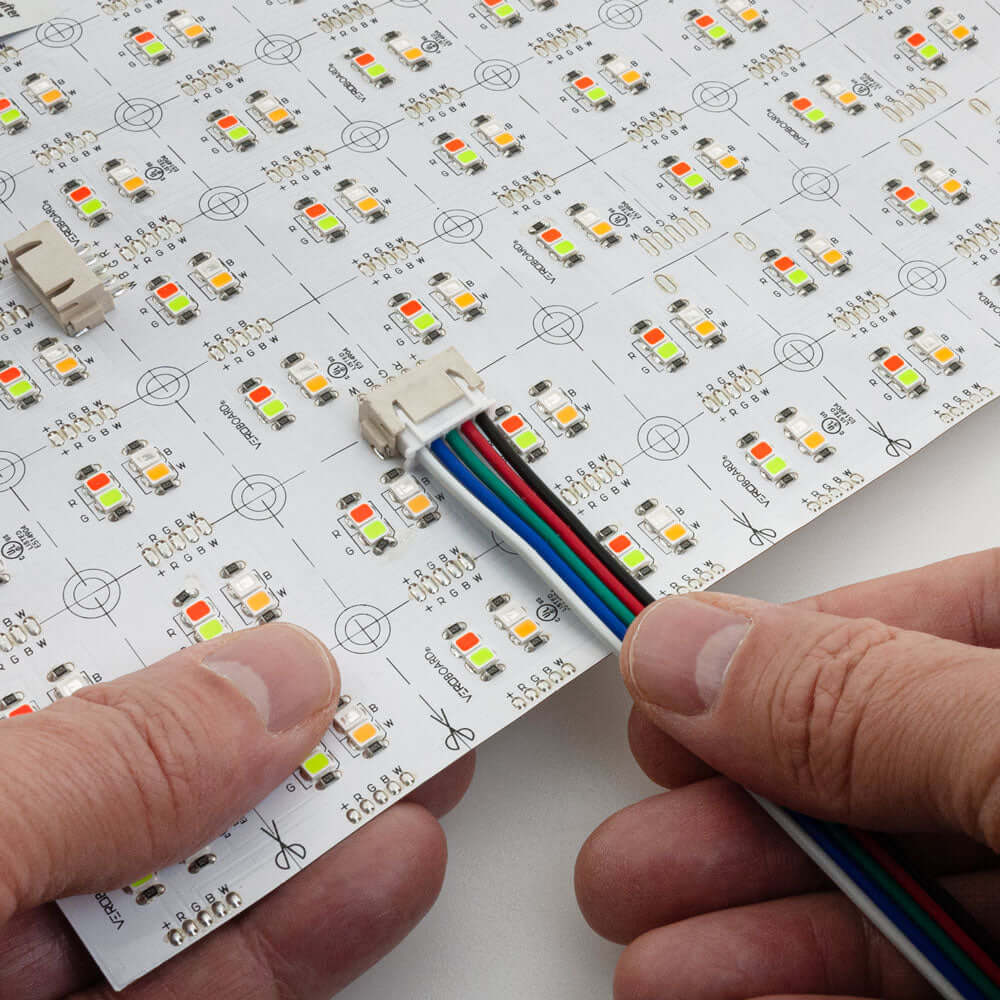

  • Connector Size:
    90mm (3.5") Sheet to Sheet
    150mm (6") Sheet to Power
    20AWG

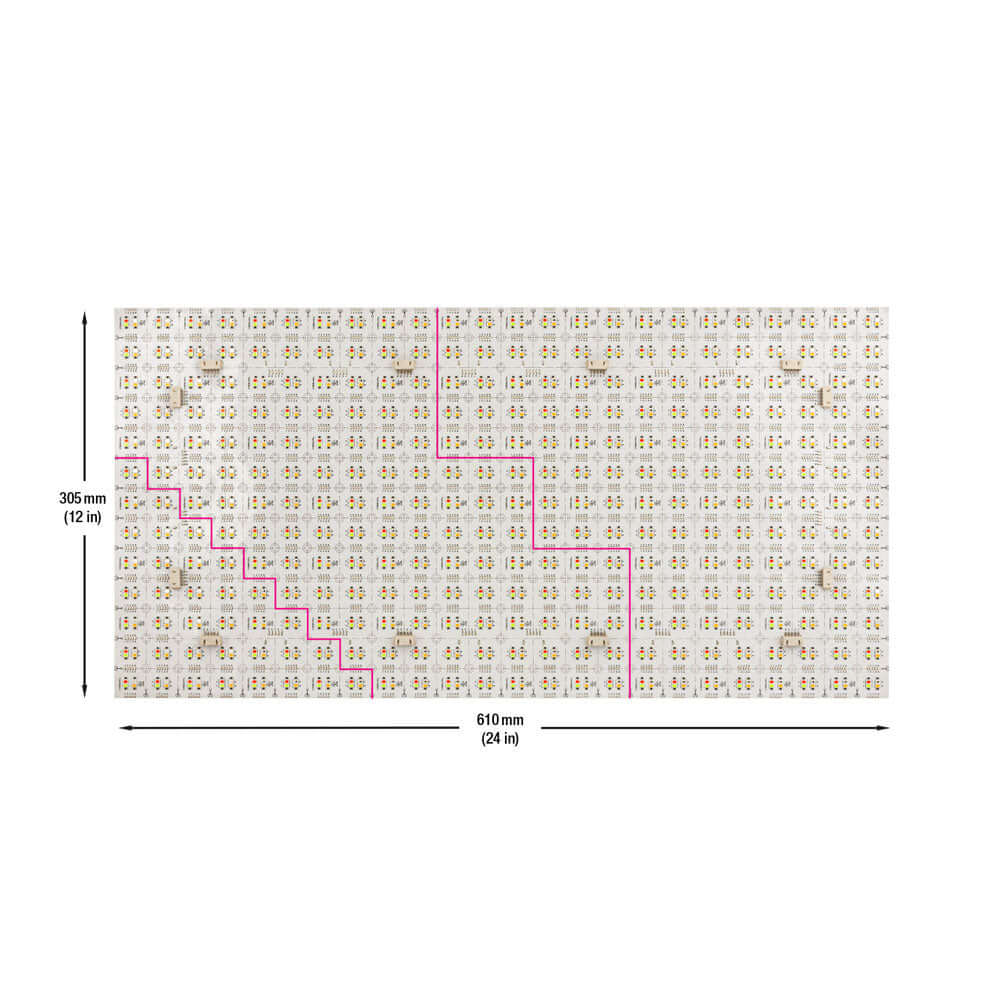

  • Dimensions: 610 x 305mm (24 x 12in)
  • Certification: UL
