VBDMDL-6652 120V AC Dimmable COB LED Light Engine, 12W/14W/16W/18W, 2700K/3000K/4000K
VBDMDL-6652 120V AC Dimmable COB LED Light Engine, 12W/14W/16W/18W, 2700K/3000K/4000K
VBDMDL-6652 120V AC Dimmable COB LED Light Engine, 12W/14W/16W/18W, 2700K/3000K/4000K
VBDMDL-6652 120V AC Dimmable COB LED Light Engine, 12W/14W/16W/18W, 2700K/3000K/4000K

VBDMDL-6652 120V AC Dimmable COB LED Light Engine, 12W/14W/16W/18W, 2700K/3000K/4000K

SKU: 666561438432
Wattage:

Wattage
Color Temperature:

Color Temperature

120V AC dimmable COB LED light engine available in 12W, 14W, 16W, 18W with 2700K, 3000K and 4000K options.

Where to buy?
  • LED Type: COB LED
  • Input Voltage: 120V AC
  • Wattage Options: 12W, 14W, 16W, 18W
  • Color Temperature: 2700K, 3000K, 4000K
  • Brightness by Wattage: 12W: 1000 lm, 14W: 1200 lm, 16W: 1280 lm, 18W: 1800 lm
  • Power Factor: 12W: PF>0.98, 14W: PF>0.85, 16W: PF>0.85, 18W: PF>0.98
  •  CRI: CRI>90
  • Dimmable: Yes
  • IP Rating: IP20 (Indoor rated)

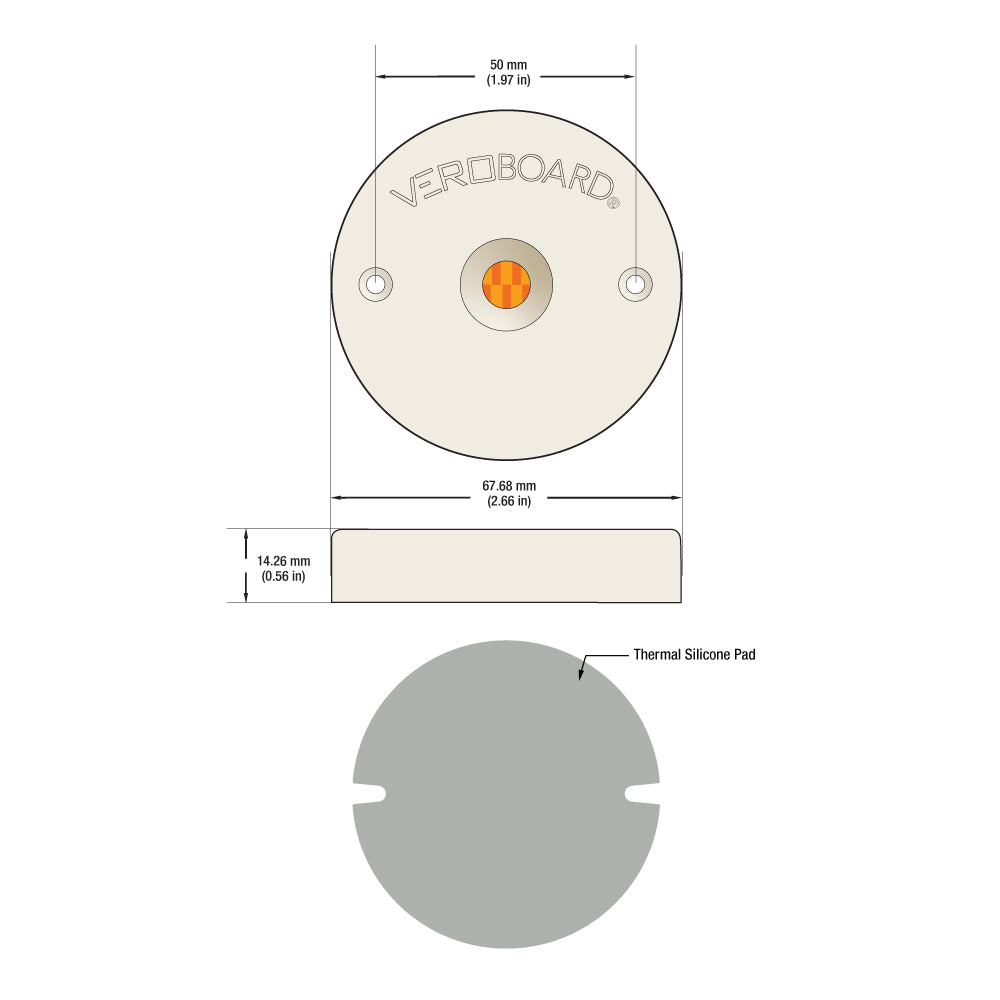

  • Module / Holder Dimensions: Dia. 67.68 mm x H 14.26 mm (2.66 in x 0.56 in)
  • Certifications: ETL, RoHS, JA8, CE



VBDMDL-6652 - 12W

Model SKU
VBDMDL-6652-12W-927K-120V 666561438432
VBDMDL-6652-12W-930K-120V 666561438241
VBDMDL-6652-12W-940K-120V 666561438593

VBDMDL-6652 - 14W

Model SKU
VBDMDL-6652-14W-927K-120V 666561438449
VBDMDL-6652-14W-930K-120V 666561438258
VBDMDL-6652-14W-940K-120V 666561438609



VBDMDL-6652 - 16W

Model SKU
VBDMDL-6652-16W-927K-120V 666561438456
VBDMDL-6652-16W-930K-120V 666561438265
VBDMDL-6652-16W-940K-120V 666561438616


VBDMDL-6652 - 18W

Model SKU
VBDMDL-6652-18W-927K-120V 666561438463
VBDMDL-6652-18W-930K-120V 666561438272
VBDMDL-6652-18W-940K-120V 666561438624
