VBDMDL-5848 120V AC Dimmable COB LED Light Engine, 10W/20W/30W, 2700K/3000K/4000K
VBDMDL-5848 120V AC Dimmable COB LED Light Engine, 10W/20W/30W, 2700K/3000K/4000K
VBDMDL-5848 120V AC Dimmable COB LED Light Engine, 10W/20W/30W, 2700K/3000K/4000K
VBDMDL-5848 120V AC Dimmable COB LED Light Engine, 10W/20W/30W, 2700K/3000K/4000K

VBDMDL-5848 120V AC Dimmable COB LED Light Engine, 10W/20W/30W, 2700K/3000K/4000K

SKU: 666561438340
Wattage:

Wattage
Color Temperature:

Color Temperature

120V AC dimmable COB LED light engine available in 10W, 20W, 30W with 2700K, 3000K and 4000K options.

Where to buy?
  • LED Type: COB LED
  • Input Voltage: 120V AC
  • Wattage Options: 10W, 20W, 30W
  • Color Temperature: 2700K, 3000K, 4000K
  • Brightness by Wattage: 10W: 1100 lm, 20W: 2100 lm, 30W: 3150 lm
  • Power Factor: 10W: PF>0.85, 20W: PF>0.85, 30W: PF>0.85
  •  CRI: CRI>90
  • Dimmable: Yes
  • IP Rating: IP20 (Indoor rated)

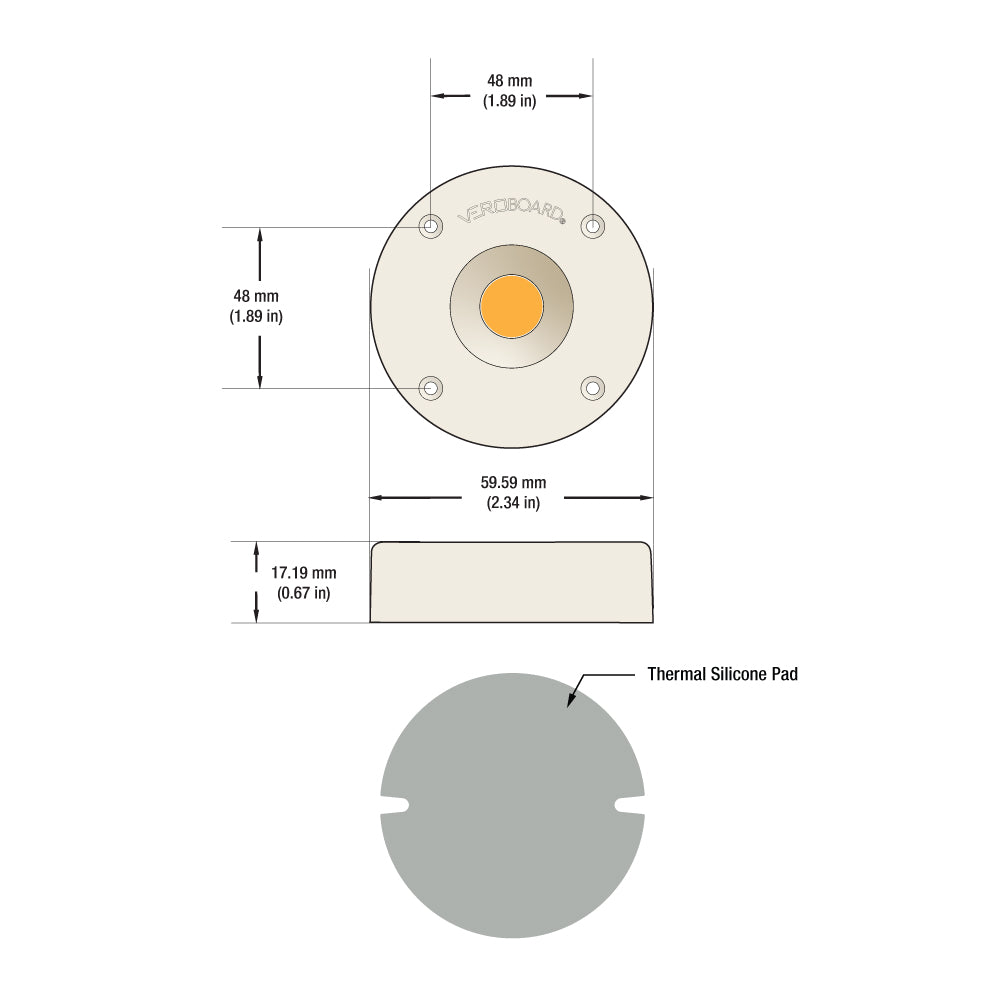

  • Module / Holder Dimensions: Dia. 59.59 mm x H 17.19 mm (2.34 in x 0.67 in)
  • Certifications: ETL, RoHS, JA8, CE

VBDMDL-5848 - 10W

Model SKU
VBDMDL-5848-10W-927K-120V 666561438340
VBDMDL-5848-10W-930K-120V 666561438159
VBDMDL-5848-10W-940K-120V 666561438500



VBDMDL-5848 - 20W

Model SKU
VBDMDL-5848-20W-927K-120V 666561438357
VBDMDL-5848-20W-930K-120V 666561438166
VBDMDL-5848-20W-940K-120V 666561438517



VBDMDL-5848 - 30W

Model SKU
VBDMDL-5848-30W-927K-120V 666561438364
VBDMDL-5848-30W-930K-120V 666561438173
VBDMDL-5848-30W-940K-120V 666561438524
