VBDMDL-4838 120V AC Dimmable COB LED Light Engine, 12W/14W/16W, 2700K/3000K/4000K
VBDMDL-4838 120V AC Dimmable COB LED Light Engine, 12W/14W/16W, 2700K/3000K/4000K
VBDMDL-4838 120V AC Dimmable COB LED Light Engine, 12W/14W/16W, 2700K/3000K/4000K
VBDMDL-4838 120V AC Dimmable COB LED Light Engine, 12W/14W/16W, 2700K/3000K/4000K

VBDMDL-4838 120V AC Dimmable COB LED Light Engine, 12W/14W/16W, 2700K/3000K/4000K

SKU: 666561438371
Wattage:

Wattage
Color Temperature:

Color Temperature

120V AC dimmable COB LED light engine available in 12W, 14W, 16W with 2700K, 3000K and 4000K options.

Where to buy?
  • LED Type: COB LED
  • Input Voltage: 120V AC
  • Wattage Options: 12W, 14W, 16W
  • Color Temperature: 2700K, 3000K, 4000K
  • Brightness by Wattage: 12W: 1000 lm, 14W: 1200 lm, 16W: 1280 lm
  • Power Factor: 12W: PF>0.85, 14W: PF>0.98, 16W: PF>0.85
  • CRI: CRI>90
  • Dimmable: Yes
  • IP Rating: IP20 (Indoor rated)

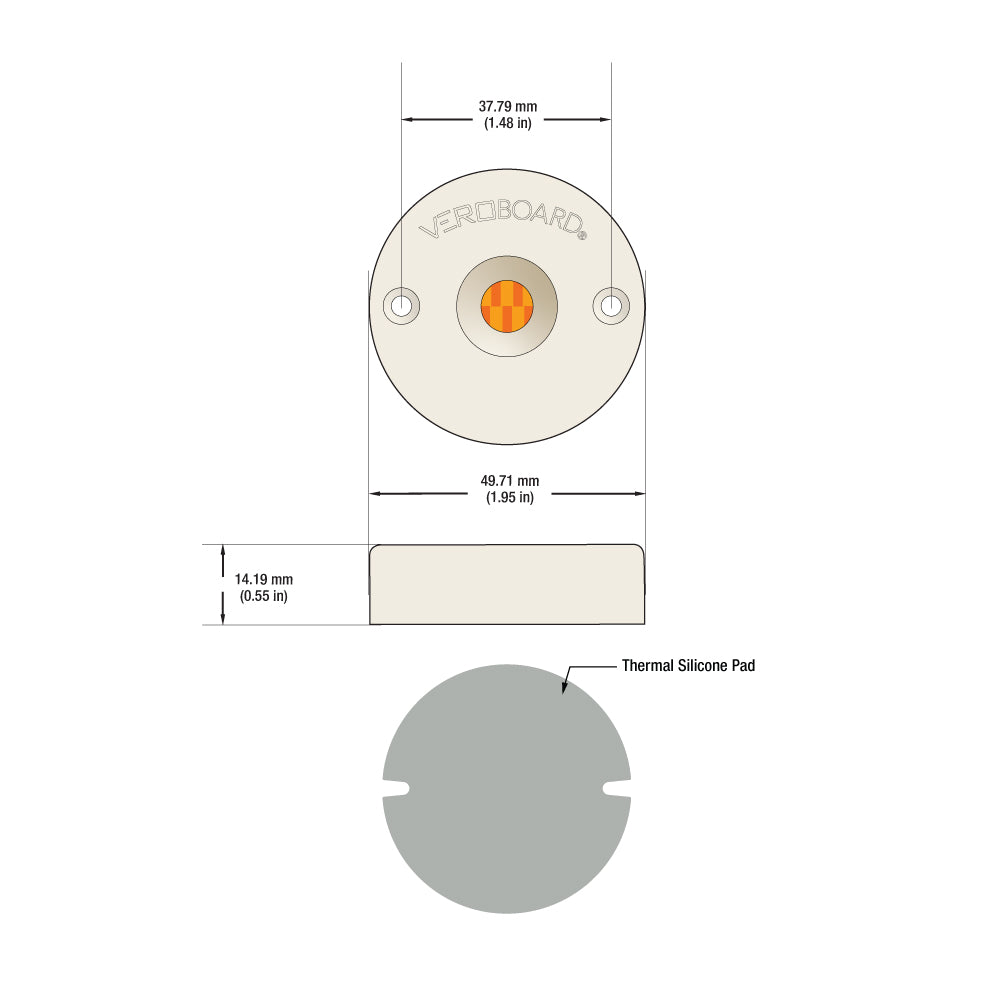

  • Module / Holder Dimensions: Dia. 49.71 mm x H 14.19 mm (1.95 in x 0.55 in)
  • Certifications: ETL, RoHS, JA8, CE

Ā

VBDMDL-4838 - 12W

Model SKU
VBDMDL-4838-12W-927K-120V 666561438371
VBDMDL-4838-12W-930K-120V 666561438180
VBDMDL-4838-12W-940K-120V 666561438531

VBDMDL-4838 - 14W

Model SKU
VBDMDL-4838-14W-927K-120V 666561438388
VBDMDL-4838-14W-930K-120V 666561438197
VBDMDL-4838-14W-940K-120V 666561438548

VBDMDL-4838 - 16W

Model SKU
VBDMDL-4838-16W-927K-120V 666561438395
VBDMDL-4838-16W-930K-120V 666561438203
VBDMDL-4838-16W-940K-120V 666561438555
