VBDMDL-4314 120V AC Dimmable COB LED Light Engine, 6W/11W/12W/14W/16W, 2700K/3000K/4000K
VBDMDL-4314 120V AC Dimmable COB LED Light Engine, 6W/11W/12W/14W/16W, 2700K/3000K/4000K
VBDMDL-4314 120V AC Dimmable COB LED Light Engine, 6W/11W/12W/14W/16W, 2700K/3000K/4000K
VBDMDL-4314 120V AC Dimmable COB LED Light Engine, 6W/11W/12W/14W/16W, 2700K/3000K/4000K

VBDMDL-4314 120V AC Dimmable COB LED Light Engine, 6W/11W/12W/14W/16W, 2700K/3000K/4000K

SKU: 666561438401
Wattage:

Wattage
Color Temperature:

Color Temperature

120V AC dimmable COB LED light engine available in 6W, 11W, 12W, 14W and 16W with 2700K, 3000K and 4000K options.

Where to buy?
  • LED Type: COB LED
  • Input Voltage: 120V AC
  • Wattage Options: 6W, 11W, 12W, 14W, 16W
  • Color Temperature: 2700K, 3000K, 4000K
  • Brightness by Wattage: 6W: 420 lm, 11W 880 lm, 12W: 1000 lm, 14W: 1200 lm, 16W: 1280 lm
  • Power Factor: 12W: PF>0.98, 14W: PF>0.98, 16W: PF>0.85
  •  CRI: CRI>90
  • Dimmable: Yes
  • IP Rating: IP20 (Indoor rated)

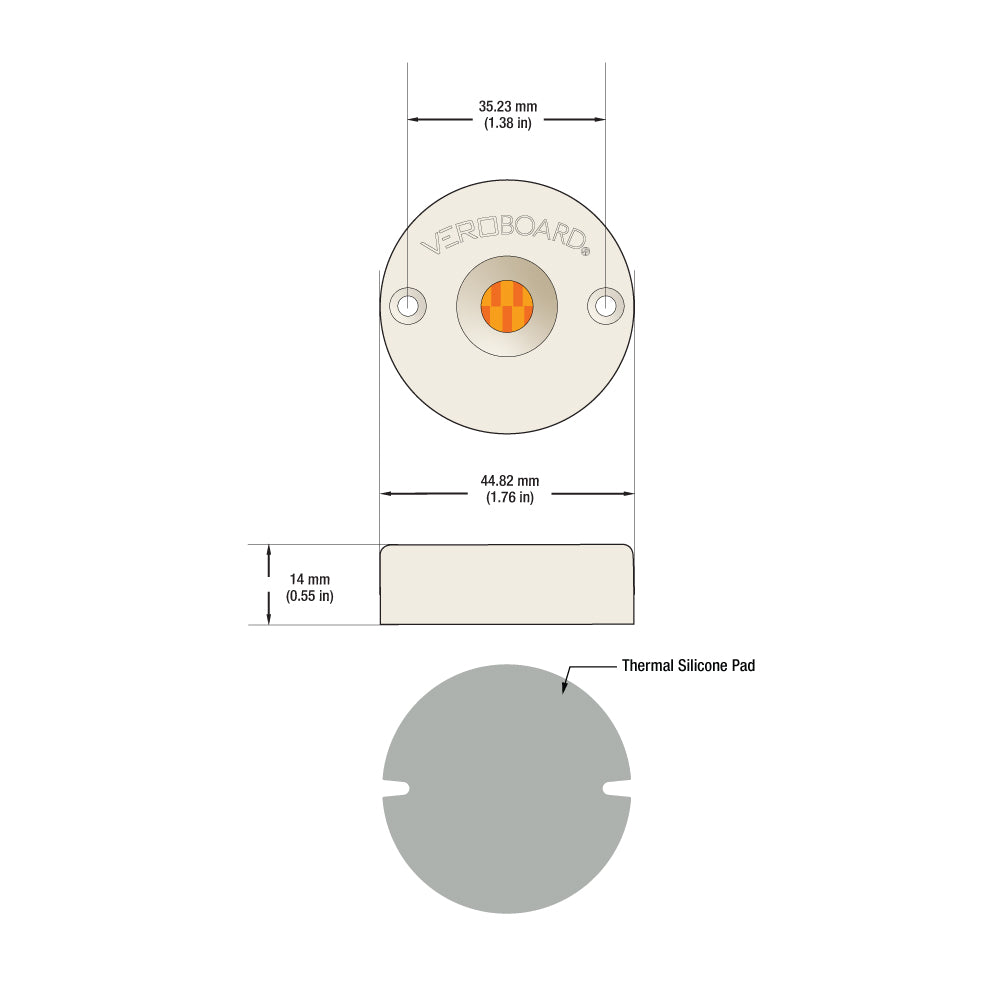

  • Module / Holder Dimensions: Dia. 44.82 mm x H 14 mm (1.76 in x 0.55 in)
  • Certifications: ETL, RoHS, JA8, CE



VBDMDL-4314 - 6W

Model SKU
VBDMDL-4314-06W-927K-120 666561438852
VBDMDL-4314-06W-930K-120 666561438869
VBDMDL-4314-06W-940K-120 666561438876



VBDMDL-4314 - 11W

Model SKU
VBDMDL-4314-11W-927K-120 666561438753
VBDMDL-4314-11W-930K-120 666561438760
VBDMDL-4314-11W-940K-120 666561438777



VBDMDL-4314 - 12W

Model SKU
VBDMDL-4314-12W-927K-120V 666561438401
VBDMDL-4314-12W-930K-120V 666561438210
VBDMDL-4314-12W-940K-120V 666561438562



VBDMDL-4314 - 14W

Model SKU
VBDMDL-4314-14W-927K-120V 666561438418
VBDMDL-4314-14W-930K-120V 666561438227
VBDMDL-4314-14W-940K-120V 666561438579



VBDMDL-4314 - 16W

Model SKU
VBDMDL-4314-16W-927K-120V 666561438425
VBDMDL-4314-16W-930K-120V 666561438234
VBDMDL-4314-16W-940K-120V 666561438586
