VBDFS-L2835-xxxx-120-24-NS 980Lm/m(289Lm/ft) 10W/m(3W/ft) CCT(2.7K, 3K, 3.5K, 4K, 5K, 6K)

SKU: 666561419653
Color Temperatures:

Color Temperatures

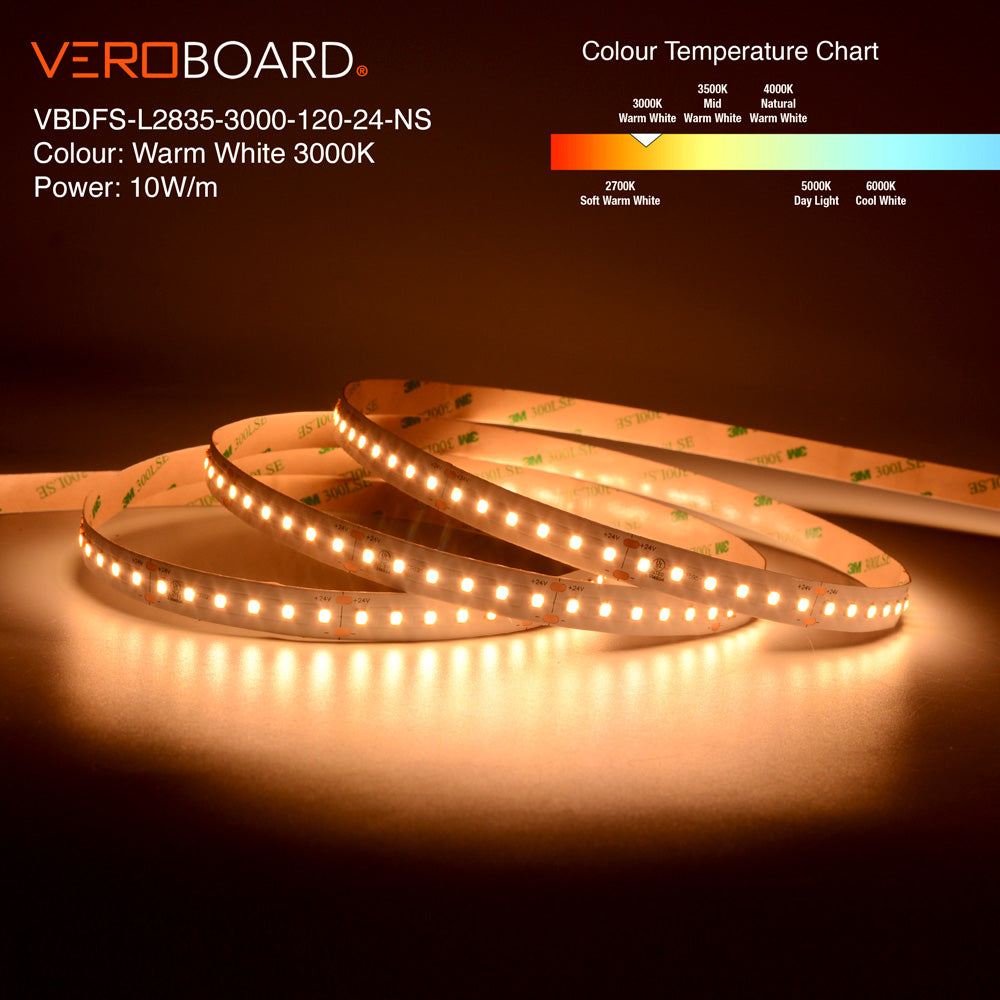

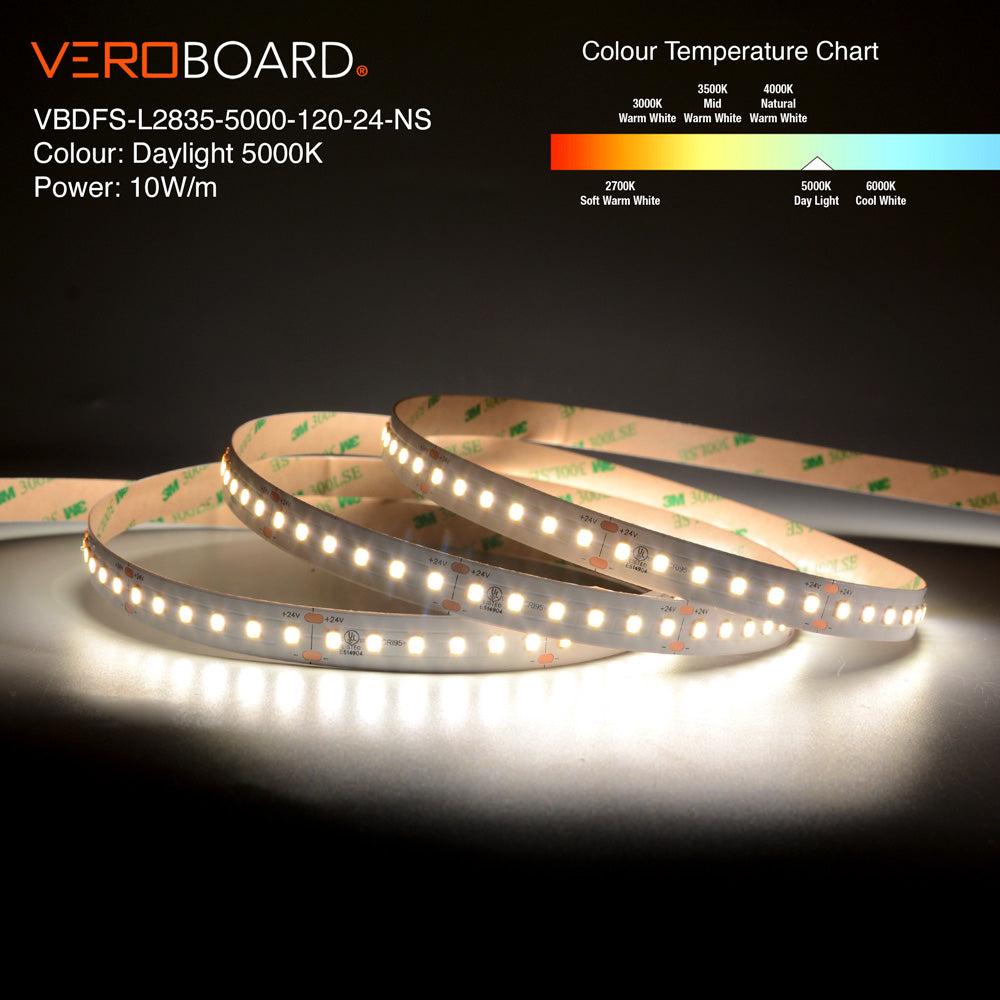

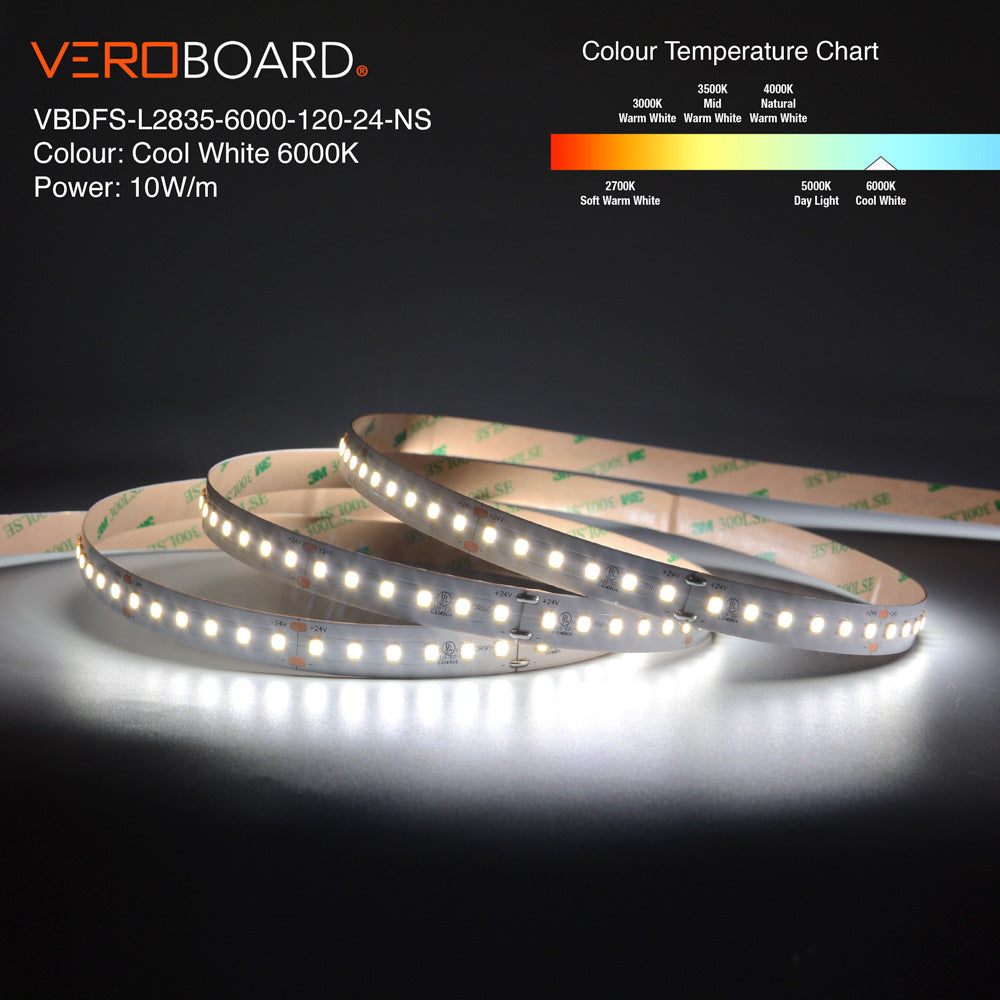

VBDFS-L2835-xxxx-120-24-NS Indoor Strip Lights with Input Voltage: 24V DC, Wattage: 10W/m(3W/ft), Brightness: 980Lm/m(289Lm/ft), It can be used for cove lighting, under cabinet lighting, backlighting, and much more. Long Run LED Strip(Ribbon) Light Series comes in 20Meter (65.6ft) rolls and is 12mm wide. This LED Strip(Ribbon) Light can be powered without experiencing voltage drop for the whole 20Meter (65.6ft) roll.


  • Model No: VBDFS-L2835-xxxx-120-24-NS
  • Input Voltage: 24V DC
  • Wattage: 10W Per meter (3W/ft)
  • Brightness: 980Lm/meter (289Lm/ft)
  • Lumen/LED: 8-10Lm Per LED
  • Available Color Temperatures:
    2600-2800K (Soft-Warm White)
    2900-3100K (Warm White)
    3400-3600K (Mid-Warm White)
    3900-4100K (Natural White)
    4900-5100K (Daylight)
    5800-6200K (Cool White)

  • Dimensions: 20,000mm x 12mm x 1.5mm (787.4in x 0.47in x 0.05in)
  • Roll Length: 20meter per roll (65.6ft)
  • LED Qty: 120 LEDs per meter
  • LED Type: 2835 SMD
  • Rendering Index: CRI>95
  • Lifespan: >50,000 hours
  • PCB: Double-side, White color 12mm width
  • IP rating:  IP20 [Indoor use only]
  • Dimmable: Yes
  • Beam angle: 120°
  • Operating temperature: -15℃ to +40℃
  • Cut Size: Every 6 LED chips (2 inches)
  • Certifications: UL/RoHS


Model No.
(For each Color Temperature)
SKU
VBDFS-L2835-2700-120-24-NS 666561419653
VBDFS-L2835-3000-120-24-NS 666561419660
VBDFS-L2835-3500-120-24-NS 666561419677
VBDFS-L2835-4000-120-24-NS 666561419684
VBDFS-L2835-5000-120-24-NS 666561419691
VBDFS-L2835-6000-120-24-NS 666561419707
