VBD-XB2CFR0157 3.75 inch Outdoor Round Adjustable Beam Direction In-ground Light

SKU: 666561414900

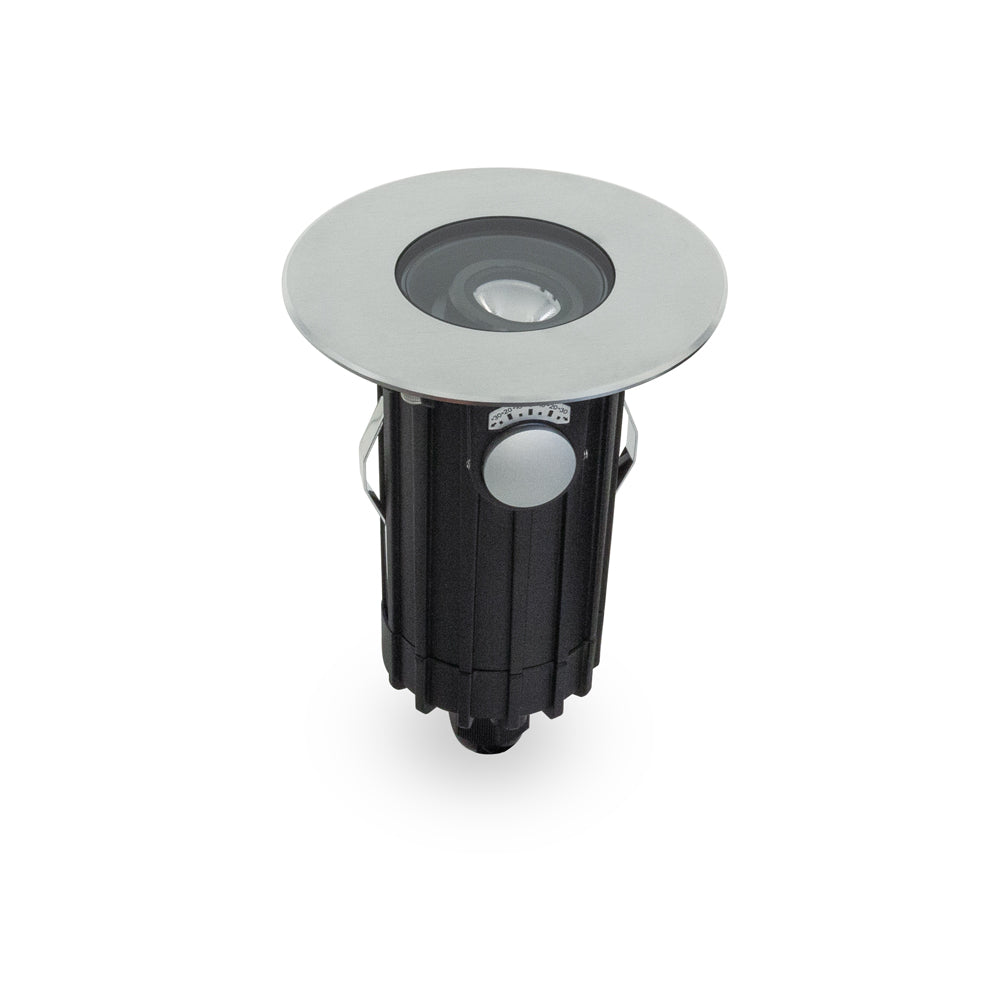

The VBD-XB2CFR0157 is a 3.75-inch round adjustable beam direction up-light, designed for outdoor applications. It operates on 24 V DC and has a total power consumption of 2.5W, powered by a single 2W LED. The light source is an integrated COB LED with a warm white color temperature of 3000K, and a clear lens type. Durable, drivable inground light for long-lasting outdoor illumination.



  • Models No: VBD-XB2CFR0157
  • Voltage: 24V DC
  • Light Source: 1 x 2W LED
  • Total Power Consumption: 2.5W
  • Color Temperature: 3000K (Warm White)
  • Lens Type: Clear
  • Bulb Type: Integrated COB LED
  • Housing Material: Die-cast Aluminum body
  • Cap Material: Stainless Steel
  • Beam Angle: ±30° (Adjustable beam direction)
  • IP Rating: IP67
  • IK Rating: IK09

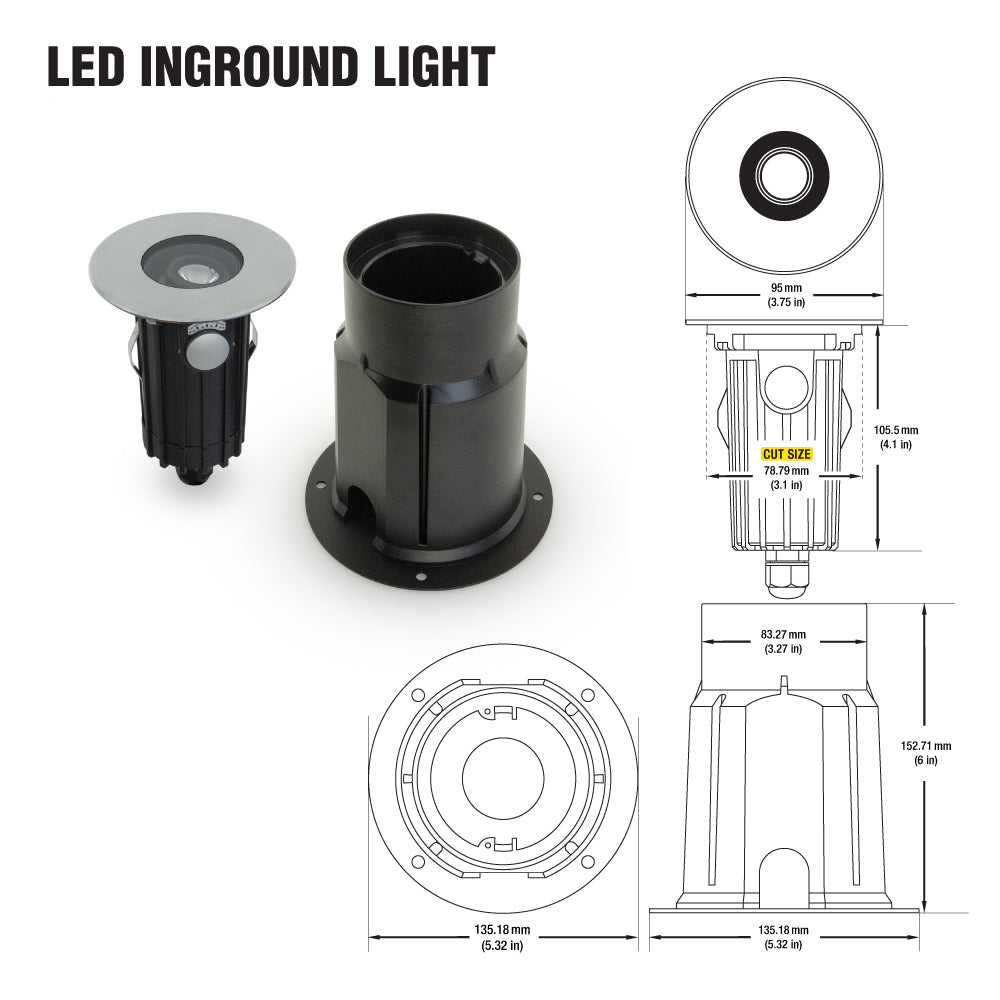

  • Dimensions (Engine):
    Ø 95mm (3.75in)
    H 105mm (4.1in)

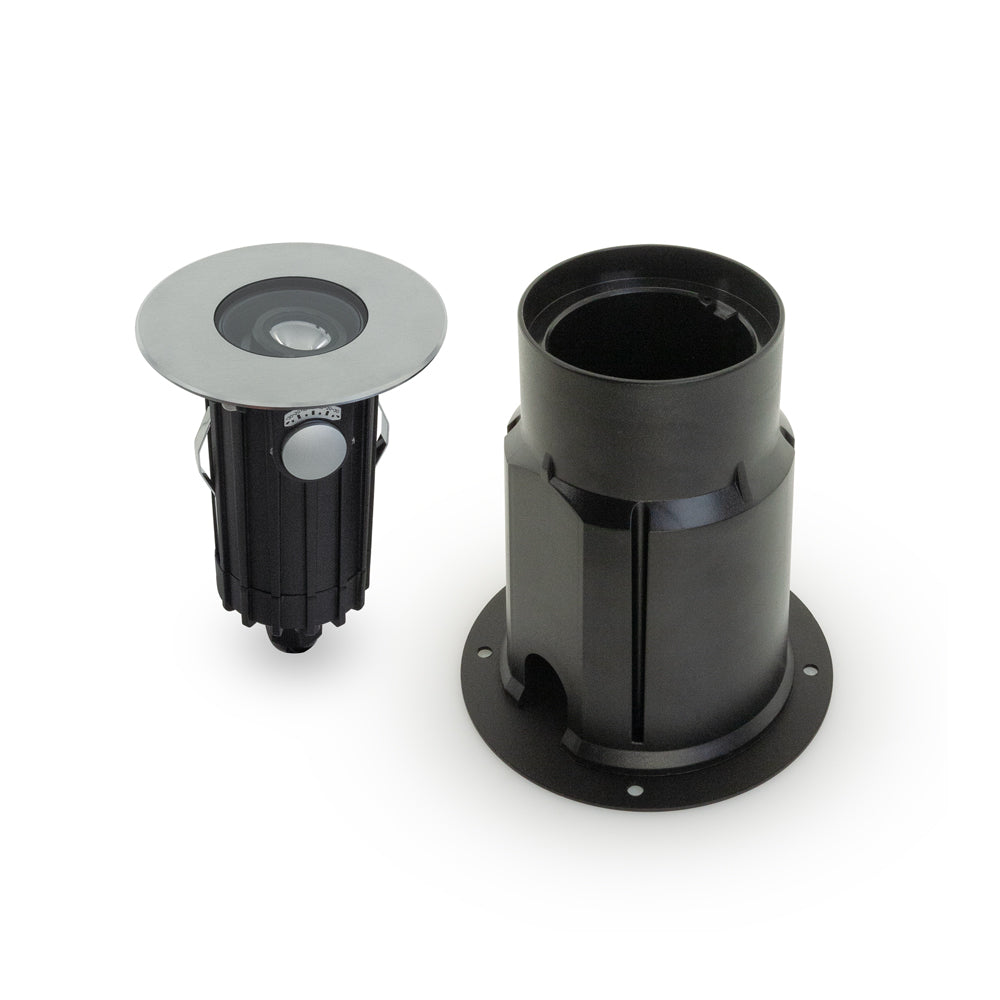

  • Dimensions (With Housing):
    Ø 95mm (3.75in)
    H 148.5mm (5.8in)
    Base Ø 106.80mm (4.2in)

  • Cable Size:
    Length: 500mm (19.6in)
    Ø 7mm (0.27in)
  • Certification: ETL, CE
