VBD-UL-D001-0200-B 4.5 inch Outdoor Round Recessed one way Inground light, veroboard
VBD-UL-D001-0200-B 4.5 inch Outdoor Round Recessed one way Inground light, veroboard
VBD-UL-D001-0200-B 4.5 inch Outdoor Round Recessed one way Inground light, veroboard
VBD-UL-D00X-0X00-B 4.5 inch Outdoor Round Recessed Inground Light
VBD-UL-D00X-0X00-B 4.5 inch Outdoor Round Recessed Inground Light

VBD-UL-D00X-0X00-B 4.5 inch Outdoor Round Recessed Inground Light

SKU: 666561424053
Cover Direction:

Cover Direction

The VBD-UL-D00X-0X00-B is a high-quality 4.5 inch round recessed inground light fixture designed for outdoor applications. It operates on a 24V DC power supply and features a powerful integrated LED bulb that produces a warm white (3000K) light. With a total power consumption of 2W.



  • Models No: VBD-UL-D00X-0X00-B
  • Voltage: 24V DC
  • Wattage:
    2W (1-way), 4W (2-Way), 8W (4-Way)
  • Color Temperature: 3000K (Warm White)
  • Brightness: 240-300 Lumens
  • Bulb Type: Integrated LED
  • Housing Material: Die-cast Aluminum
  • Available Cover Direction:

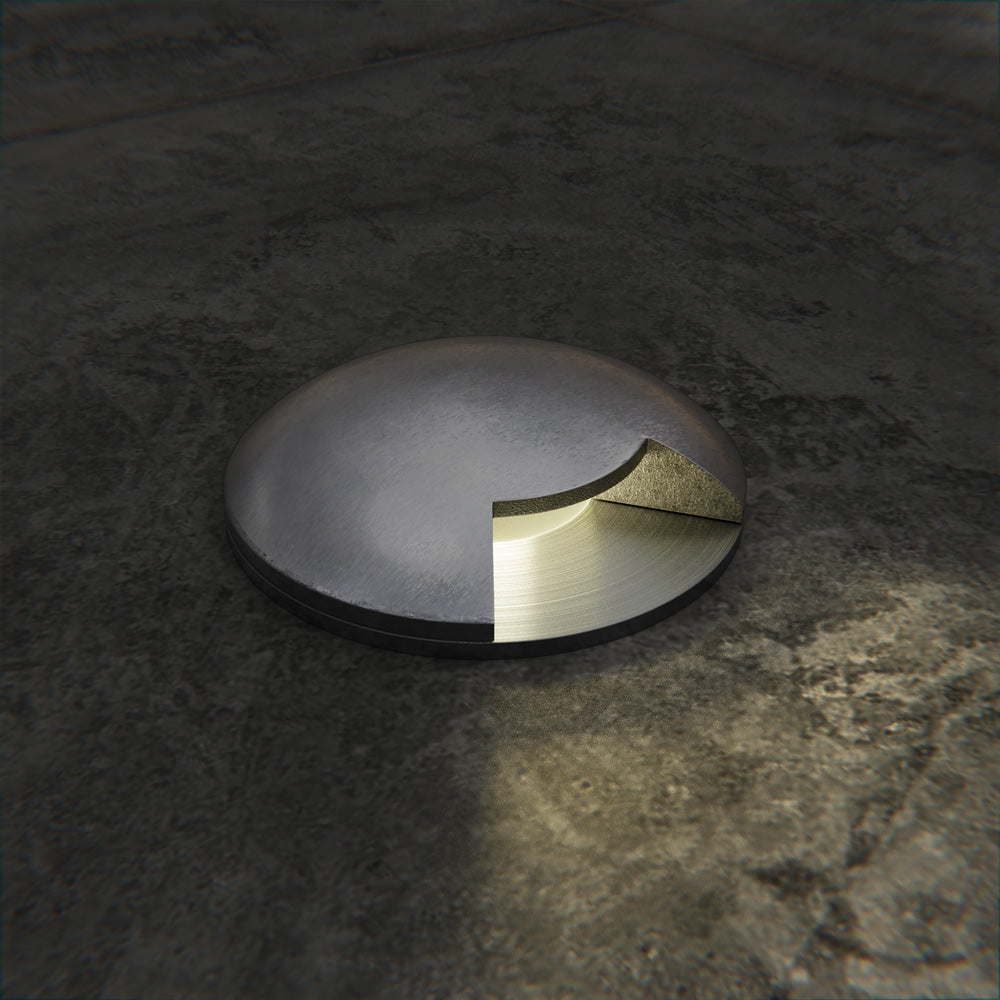

    1-Way Direction

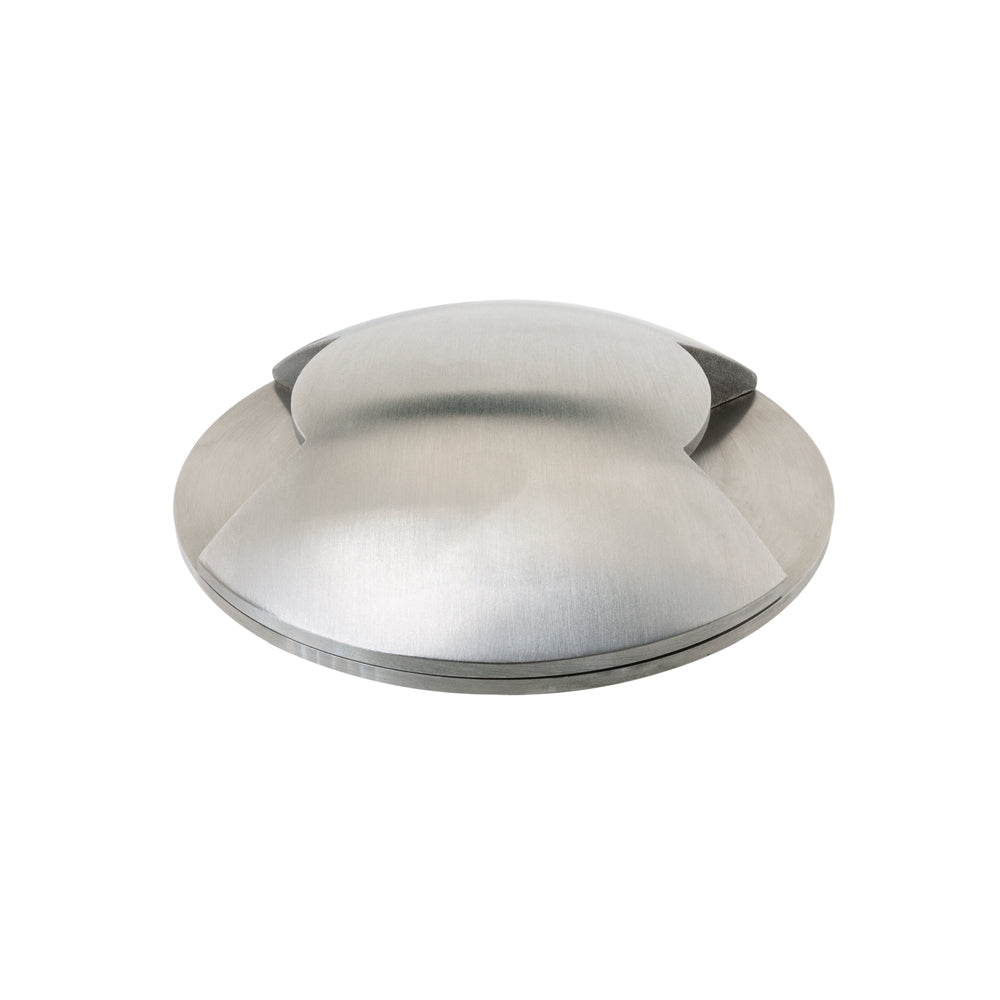

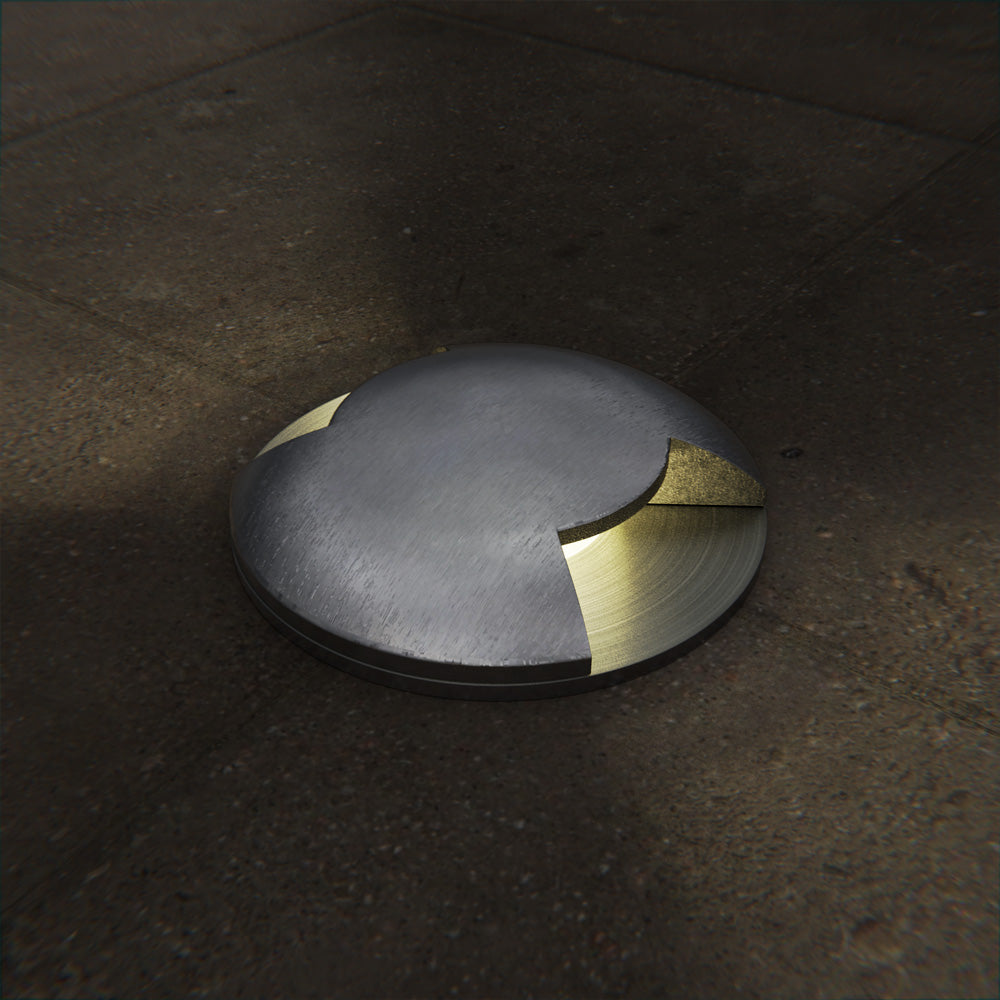

    2-Way Direction

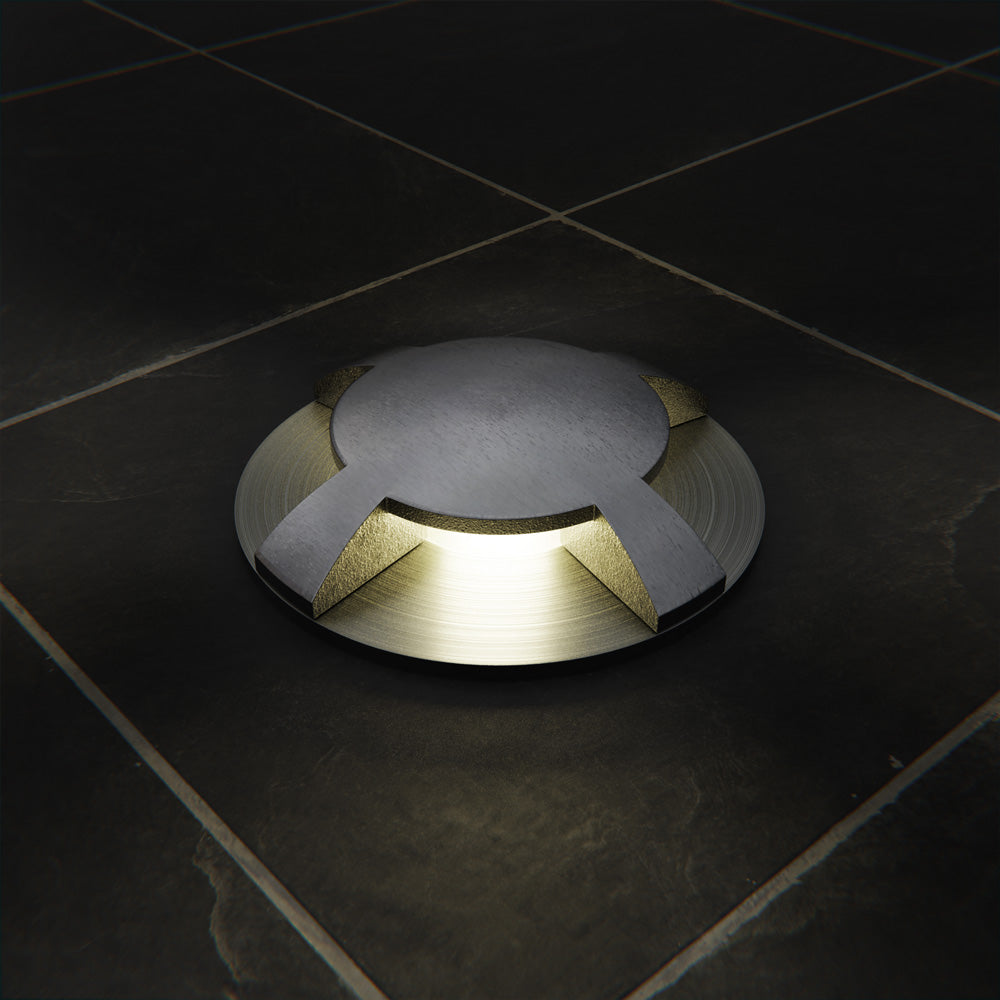

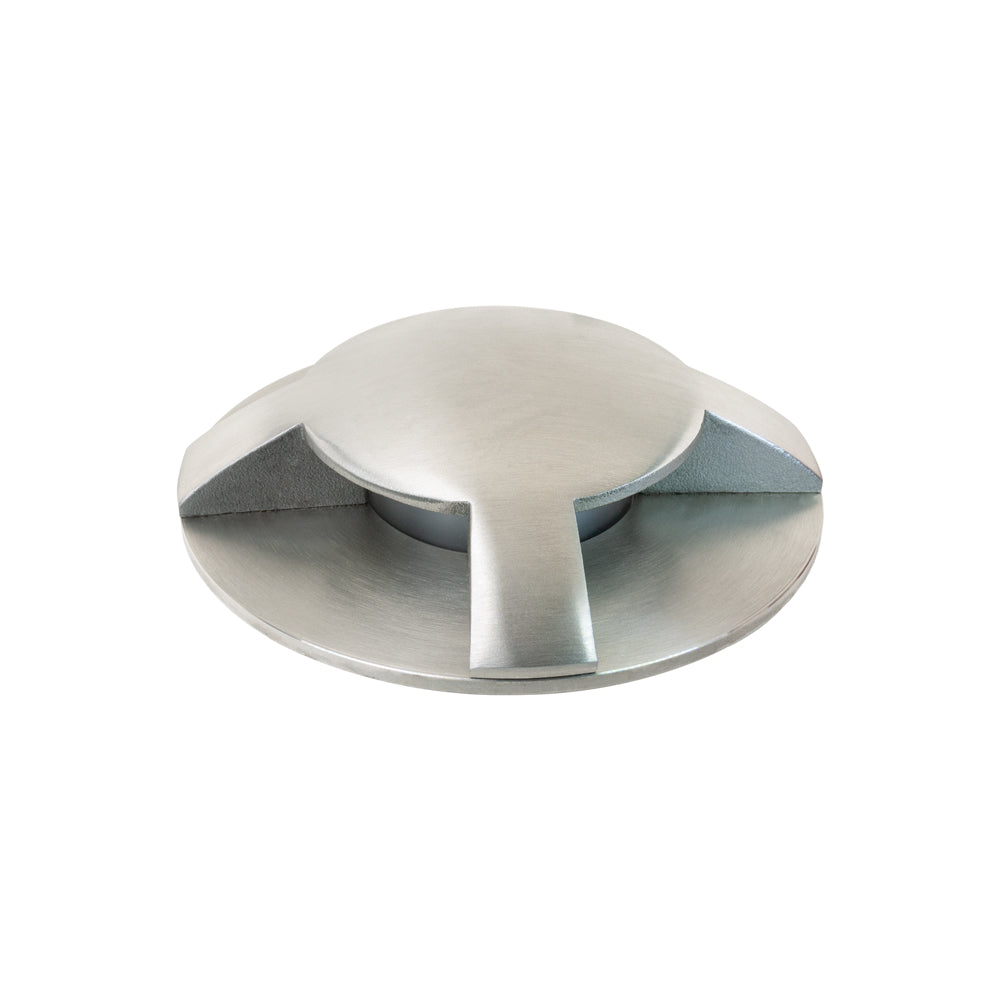

    4-Way Direction
  • Cap Material: Stainless Steel
  • IP Rating: IP67
  • IK Rating: IK10

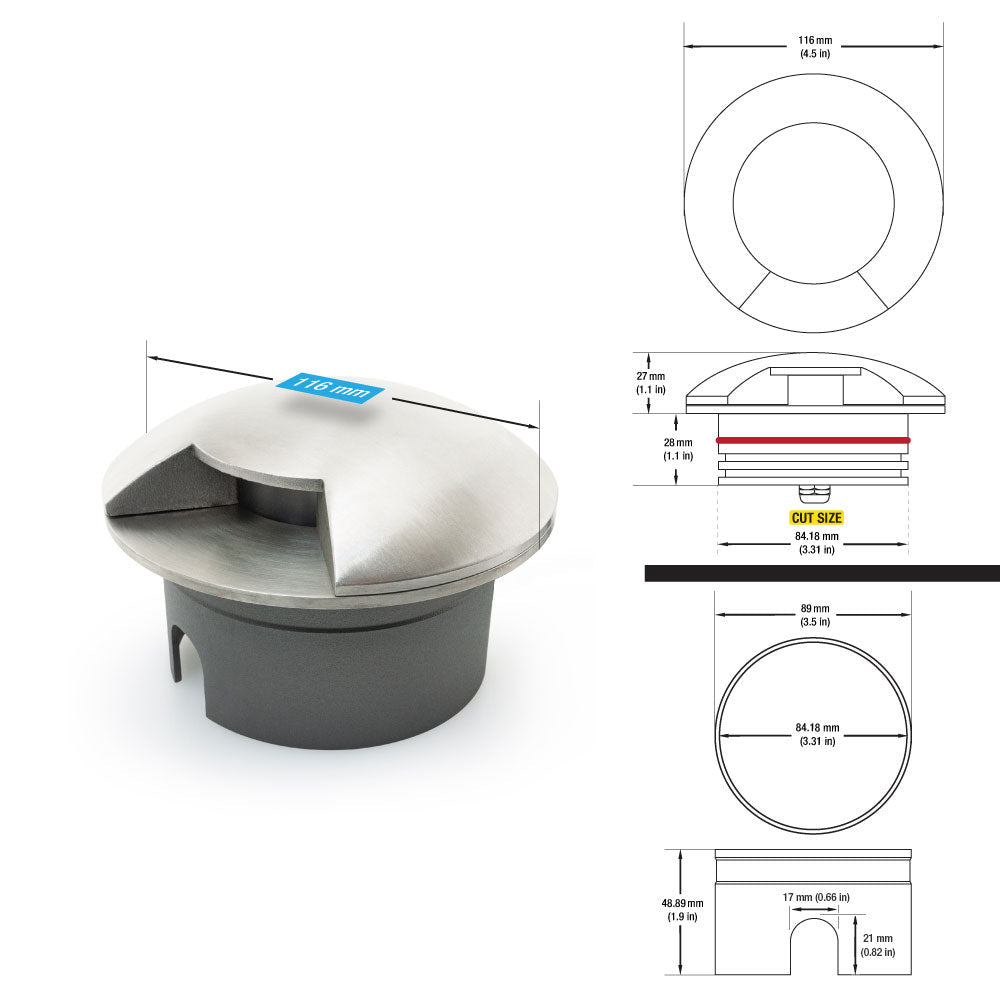

  • Cut Size: Ø 84.18mm (3.31in)
  • Dimensions (Engine):
    Ø 116mm (4.5in)
    H 48.89mm (1.84in)
  • Dimensions (With Housing):
    Ø 116mm (4.5in)
    H 48.9mm (1.92in)
    Base Ø 89mm (3.5in)

  • Cable Size:
    Length: 100cm (39.3in)
    Ø 7.5mm (0.29in)
    18 AWG
  • Certification: ETL, CE
