VBD-I-R-3-8W-24V-1D 3 inch outdoor recessed LED inground light with stainless steel top and asymmetrical beam angle.

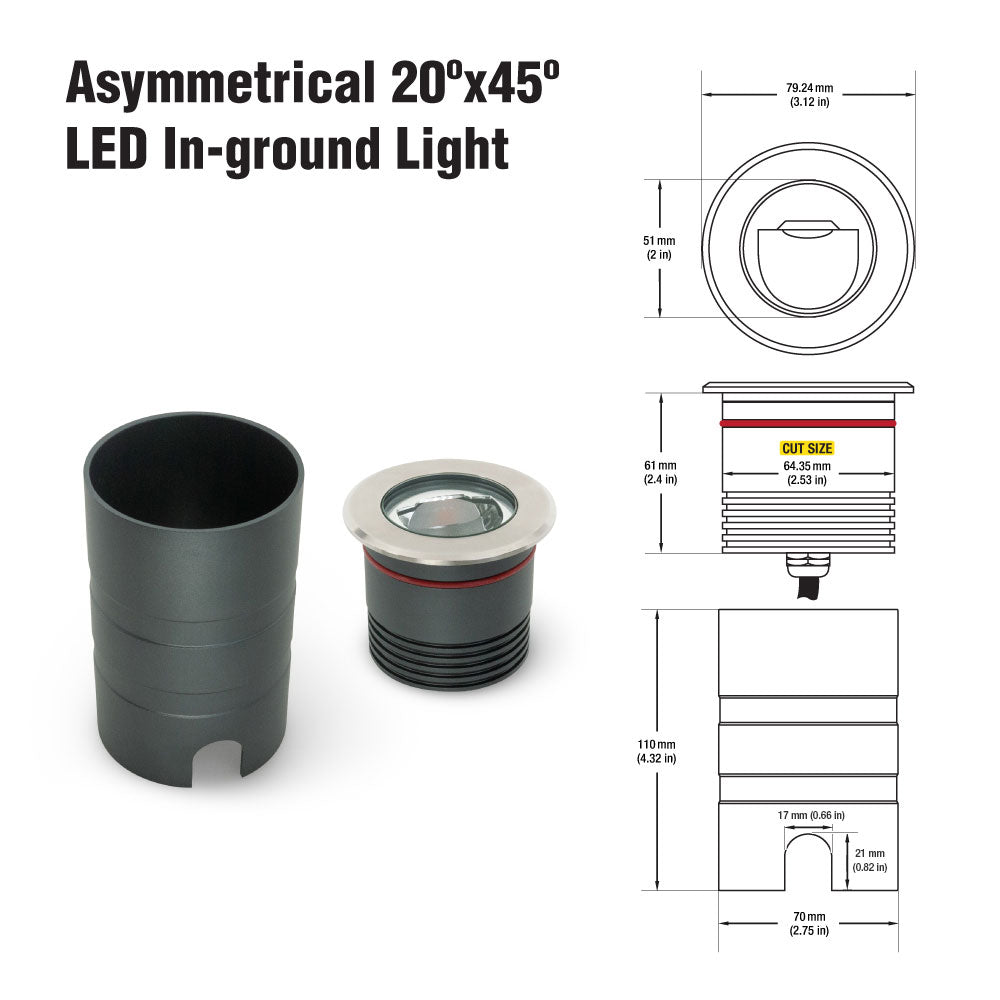

Asymmetrical 20°x45° LED inground light with dimensions and specifications for installation.
VBD-I-R-3-8W-24V-1D 3 inch outdoor round recessed LED inground light with stainless steel trim.

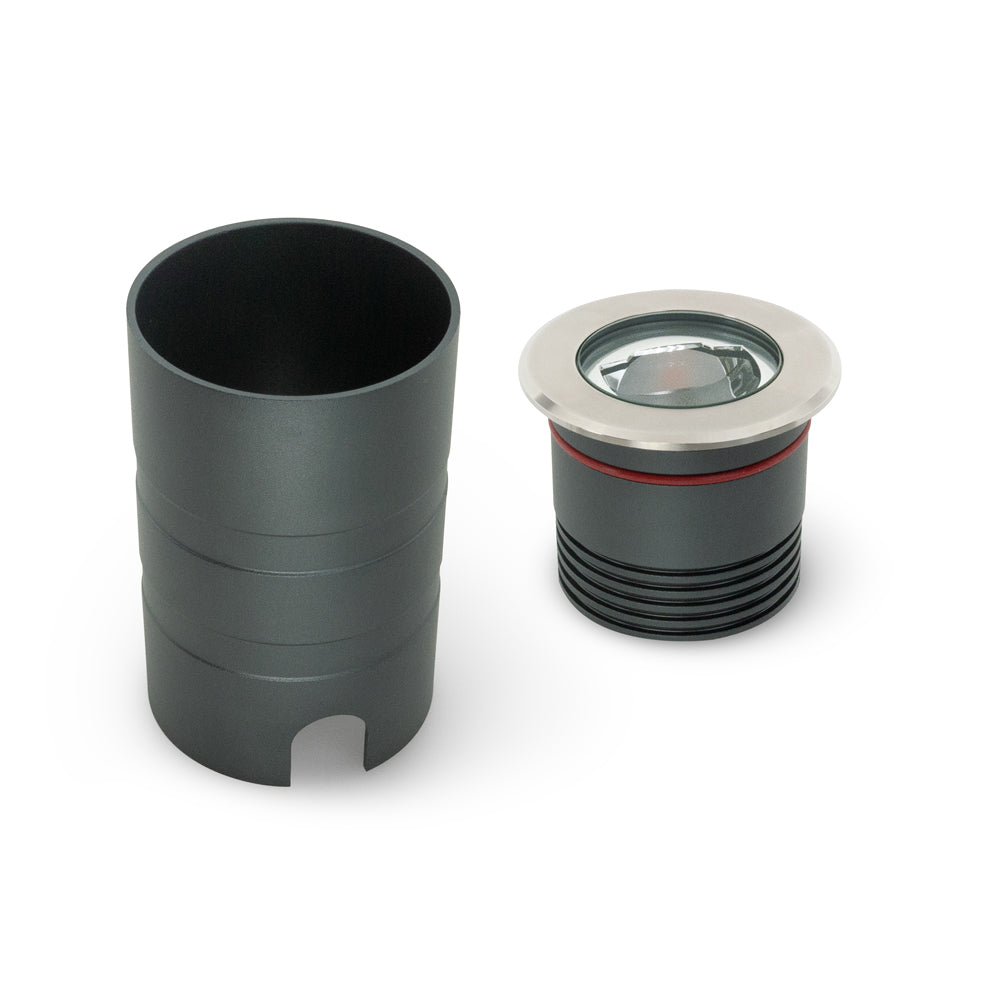

VBD-I-R-3-8W-24V-1D round recessed LED inground light with protective housing and cable.

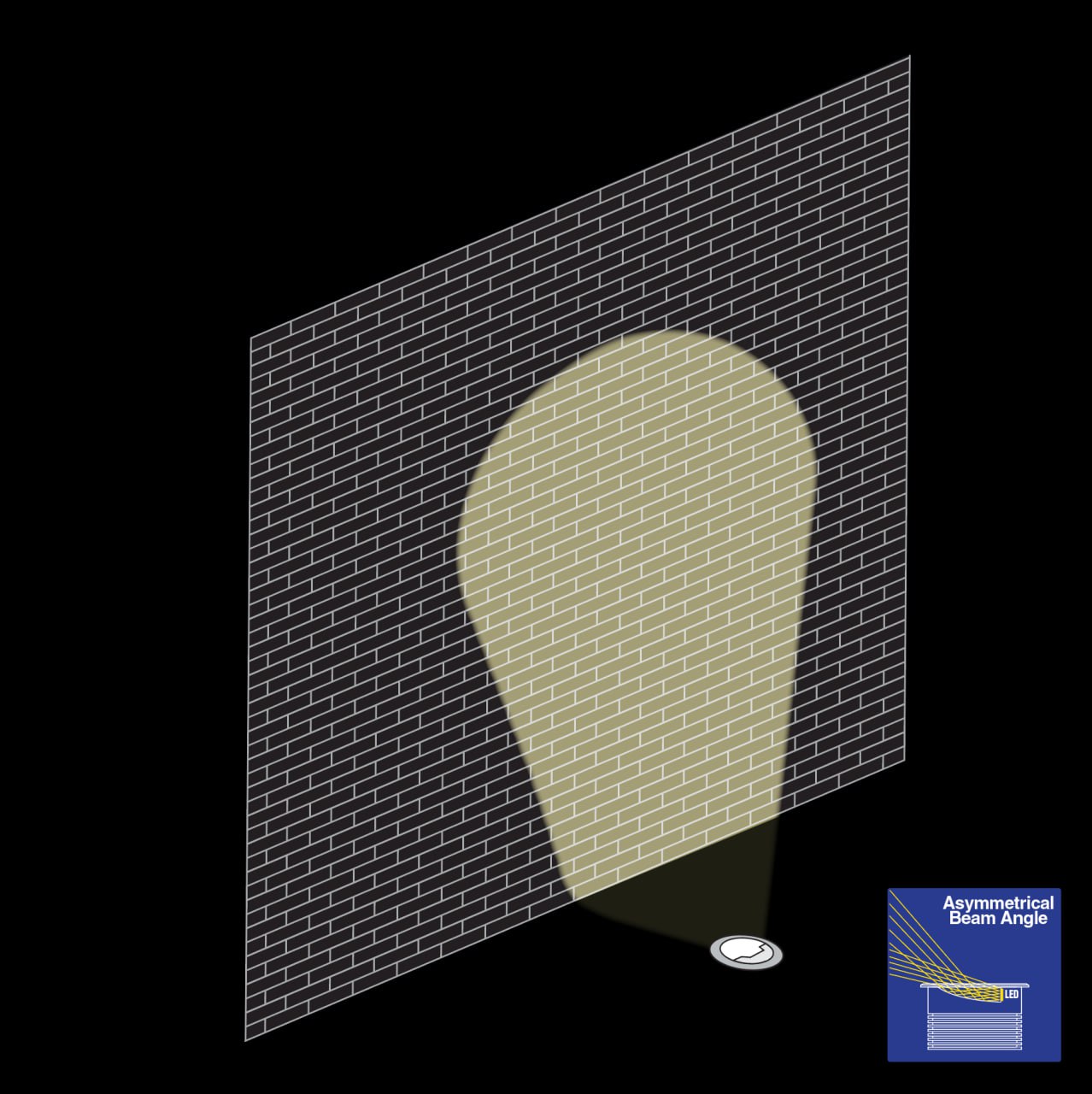

Diagram showing asymmetrical beam angle of a round recessed LED light.

VBD-I-R-3-8W-24V-1D 3 inch outdoor Round Recessed LED Inground Light

SKU: 666561434878

The VBD-I-R-3-8W-24V-1D is a durable, energy-efficient outdoor light that operates on 24V with 8W power, emitting a warm 3000K glow. Featuring an asymmetrical 20° x 45° beam angle, it offers focused illumination ideal for highlighting key areas. With an IP67 rating, this inground fixture is designed to endure harsh weather and foot traffic, ensuring lasting performance.



  • Models No: VBD-I-R-3-8W-24V-1D
  • Voltage: 24V DC
  • Wattage: 8W
  • Color Temperature: 3000K (Warm White)
  • Brightness: 350Lm
  • Asymmetrical: 20° x 45°
  • Operating Temperature: -20℃~40℃
  • Bulb Type: COB
  • Material: Stainless Steel
  • Installation: Concrete, Deck
    (Do not cut the cable short to prevent water from entering the light.)
  • IK Rating: IK07
  • IP Rating: IP67
  • Cut Size: Ø 64.35mm (2.53in)
  • Dimensions (Engine):
    Ø 79.24mm (3.1in)
    H 61mm (2.4in)
  • Dimensions (With Housing):
    Ø 70mm (2.75in)
    H 110mm (4.32in)
  • Cable Size:
    Length: 100cm (39.3in)
    Ø 7.5mm (0.3in)

    18 AWG
  • Certification: ETL, CE
