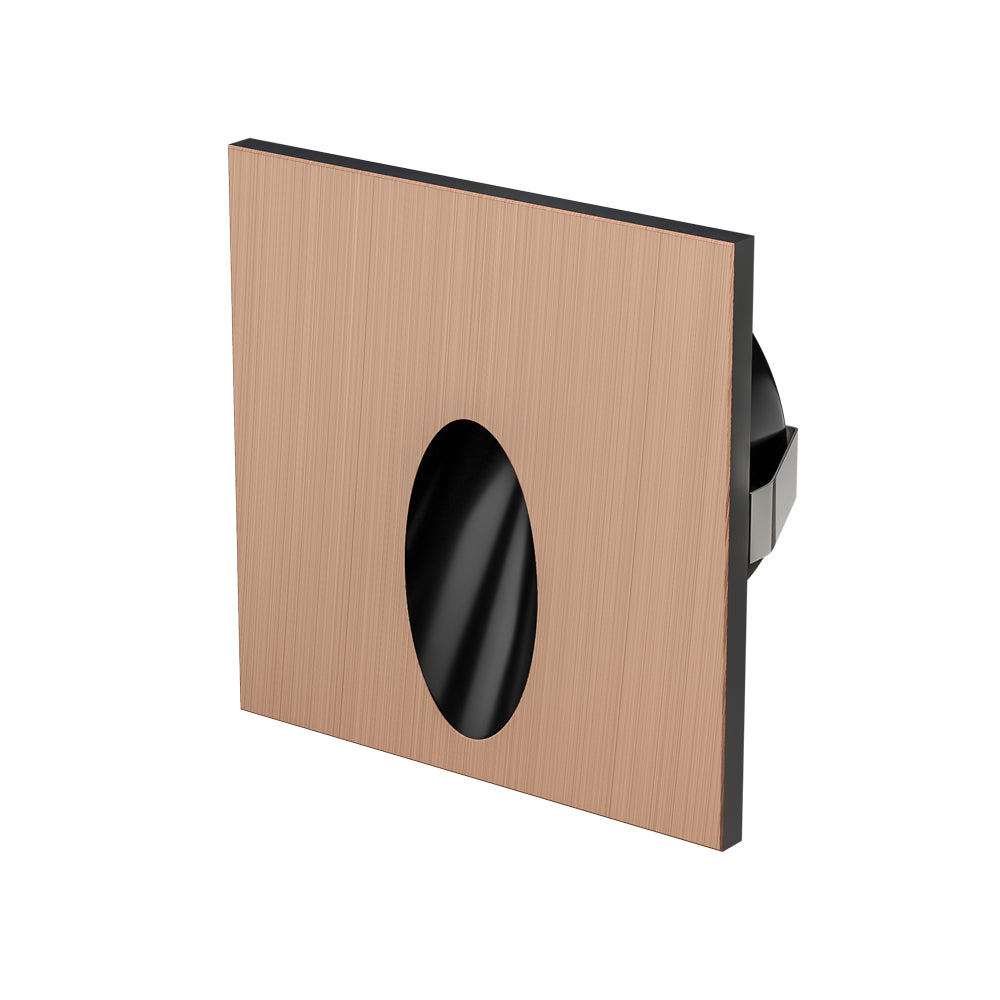

The VBD-SQ25-1W-3K-DB is a square LED step light fixture designed for indoor installation. It has a voltage rating of 12V DC and a wattage of 1W, producing a brightness of 80-100 lumens. The color temperature of this light fixture is 3000K, which provides a warm white color. The LED type is integrated, and the rendering index is CRI>80.
This fixture has a square shape and a body color of dark bronze, constructed with dia-cast aluminum material. The housing material is metallic, and it has an insulation contact of Type IC. It has a lifespan of 50,000 hours and is dimmable using triac dimming.

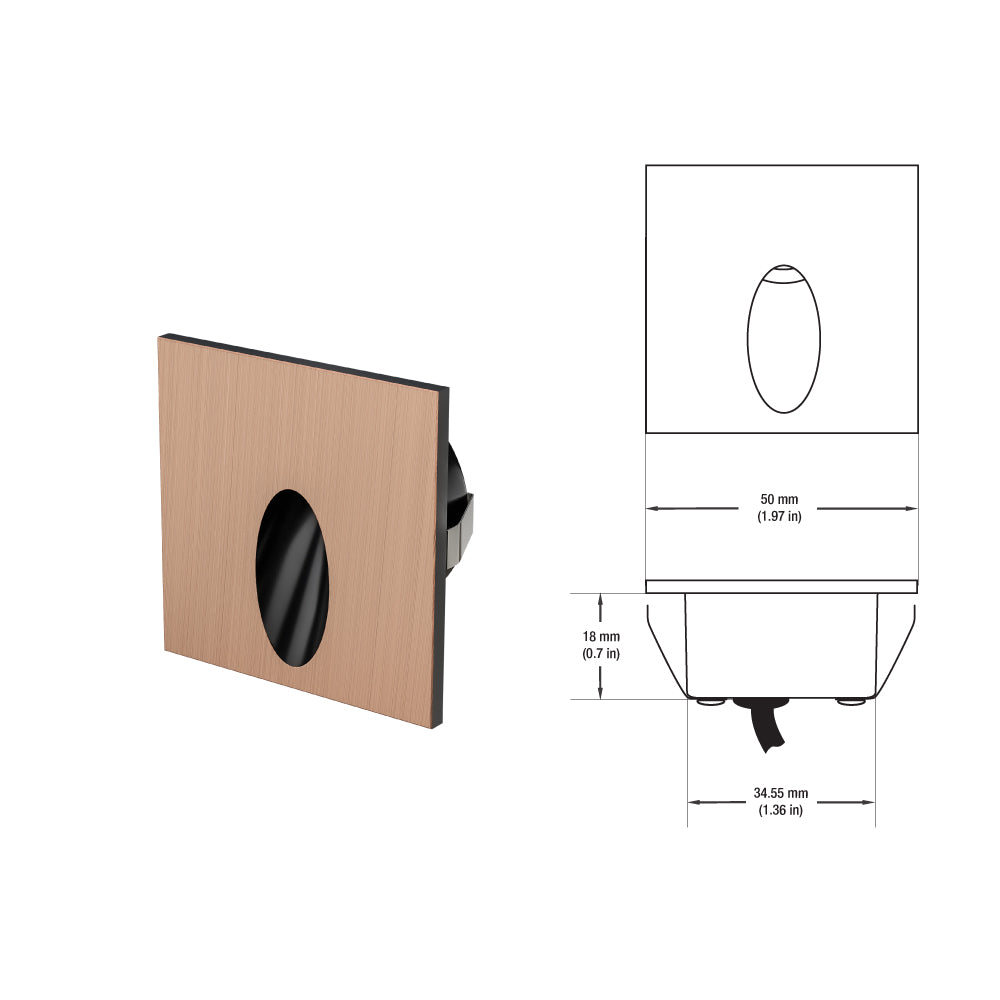

The VBD-SQ25-1W-3K-DB is IP20 rated, making it suitable for indoor installation. It requires recessed installation, and its included content comprises the light fixture, metallic housing, and butterfly clips. The dimensions of this fixture are 50 x 50 x 20mm (1.97 x 1.97 x 0.8in), and the cut size is ø 44.5mm (1.75in). It is ETL certified.
This low voltage recessed LED step light is ideal for walls or in steps. Recessed lights in those areas provide edge lighting that adds sleek sophistication to contemporary
and modern staircases. It is an IC-rated fixture. The air gap between the housing can and the light fixture creates an insulating effect that keeps the outer can cooler.
Therefore, it has less risk of combustion when installed in direct contact with insulation. The light fixture is available in both round and square shapes in different color finishes.
