Name: VBD-N2020-SFD-W White Silicone Flexible LED Neon channel
Brand: Veroboard Canada
SKU: 666561432881
Availability: InStock

SKU: 666561432881

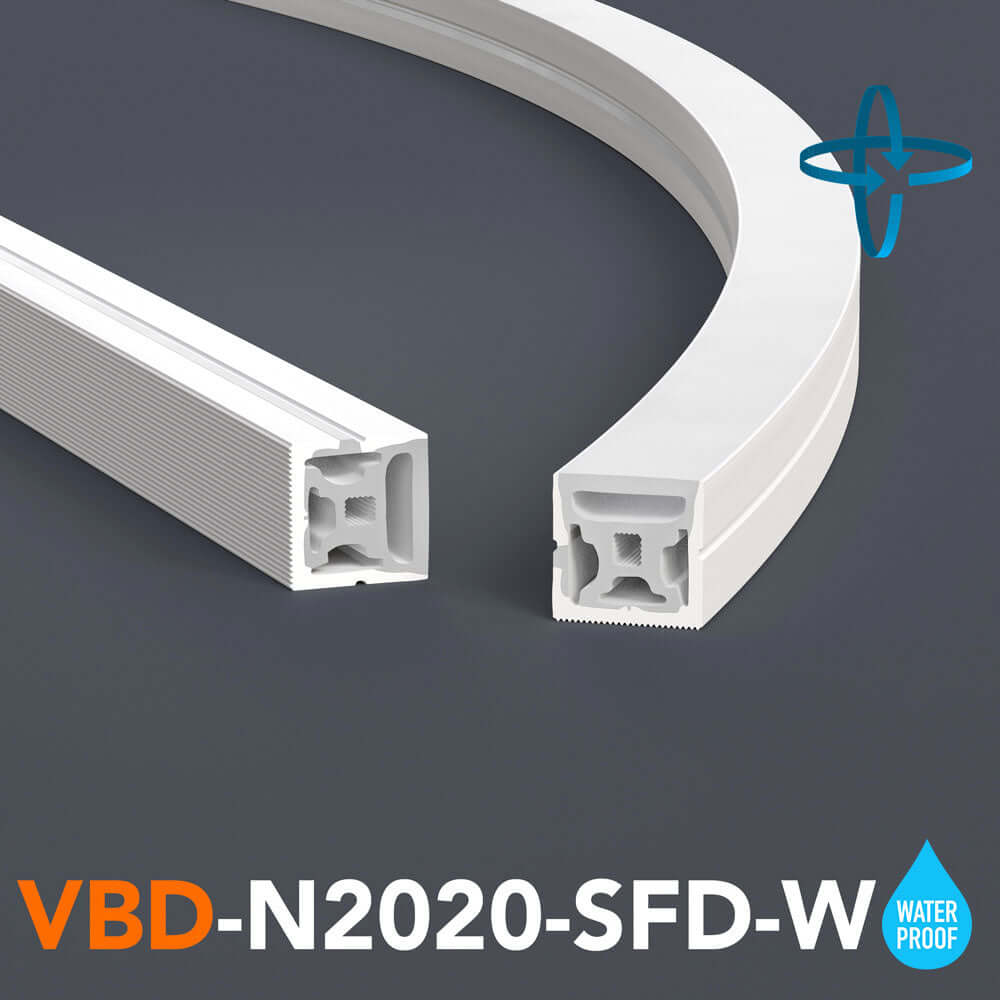

VBD-N2020-SFD-W, a cutting-edge white Flexible LED Neon channel that enhances your lighting projects with superior functionality and aesthetics. With dimensions of H 20mm x W 20mm (H 0.78in x W 0.78in) and a maximum length of 10m (32.8ft).

Model No: VBD-N2020-SFD-W
Material: Silicone
Colour: White
Diffuser Colour: White

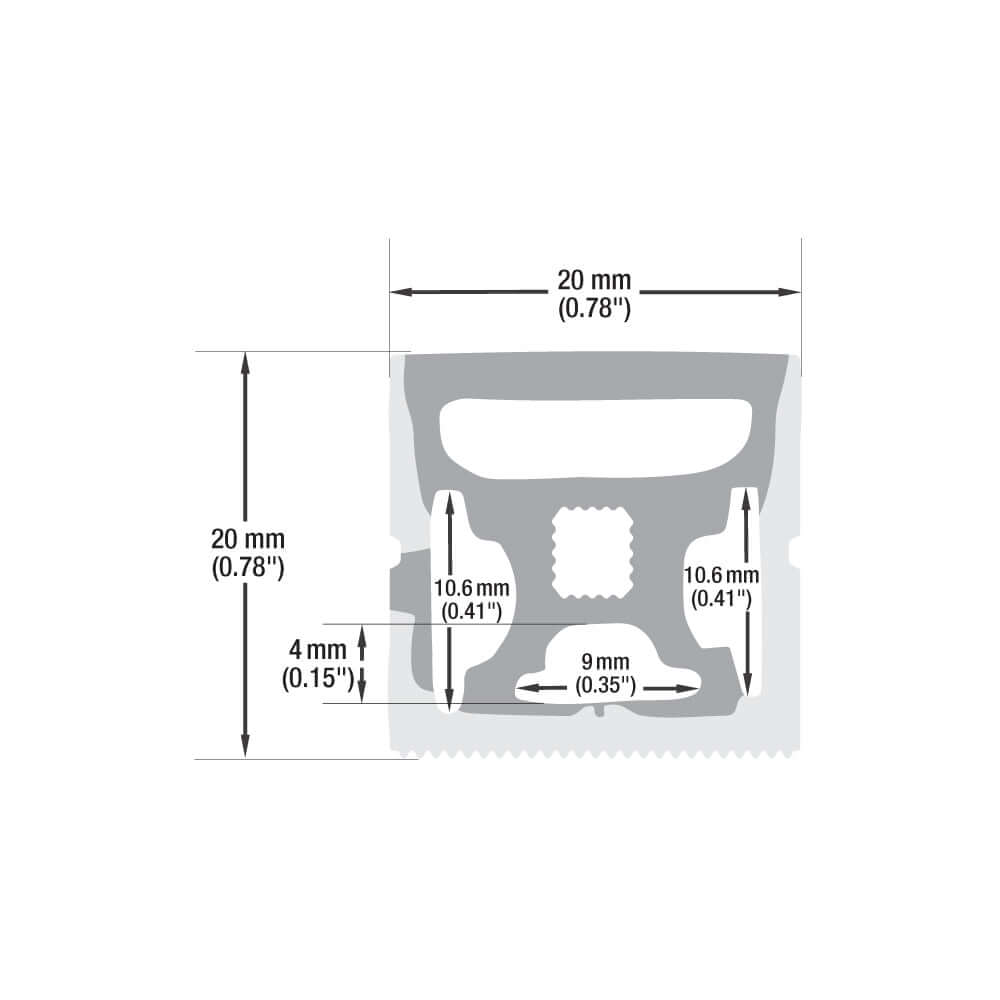

Dimensions:
H 20mm x W 20mm (H 0.78in x W 0.78in)
Maximum Length: 10m (32.8ft)
Compatible LED Strip Width: Up to 10mm
Applications: Indoor, Outdoor
IP Rating: IP65 (Need to be pre-fabricated by Veroboard)

Operating temperature: -40℃ to +80℃

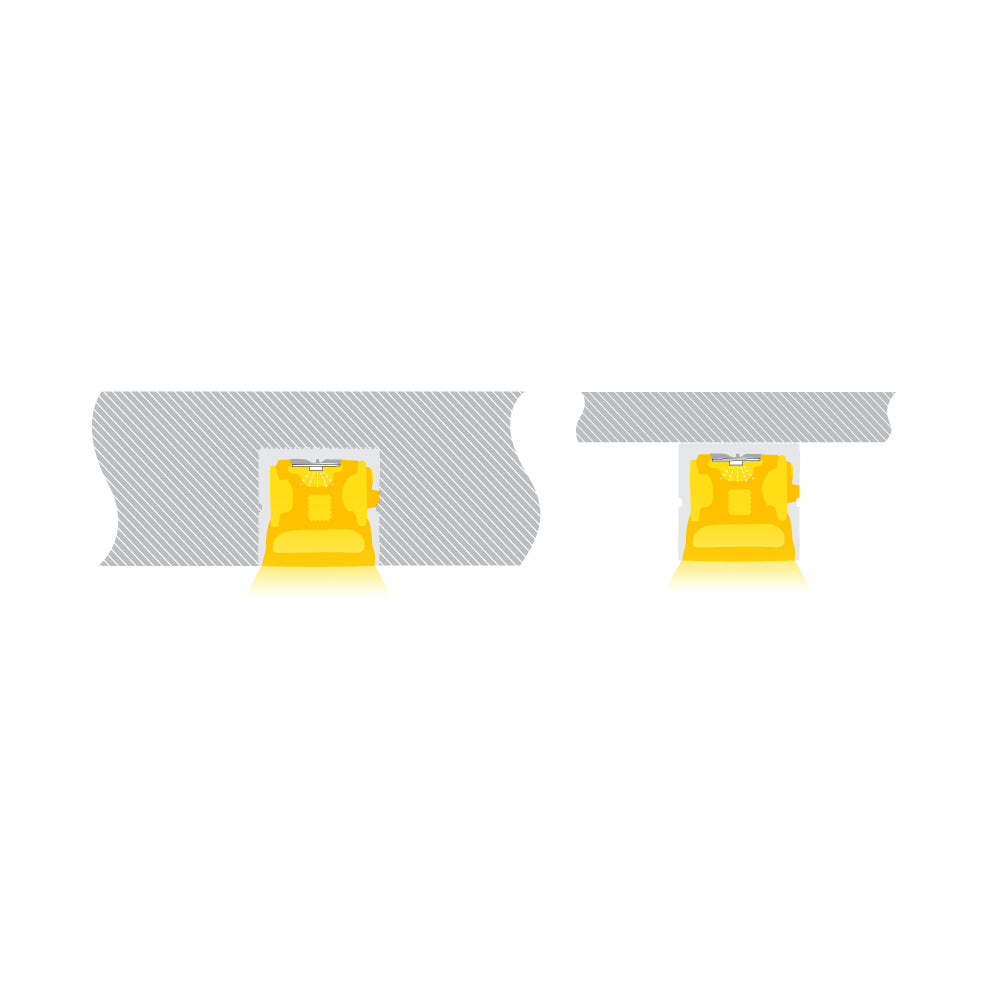

Installation: Flush Mount, Surface Mount
Accessories (Sold Separately):

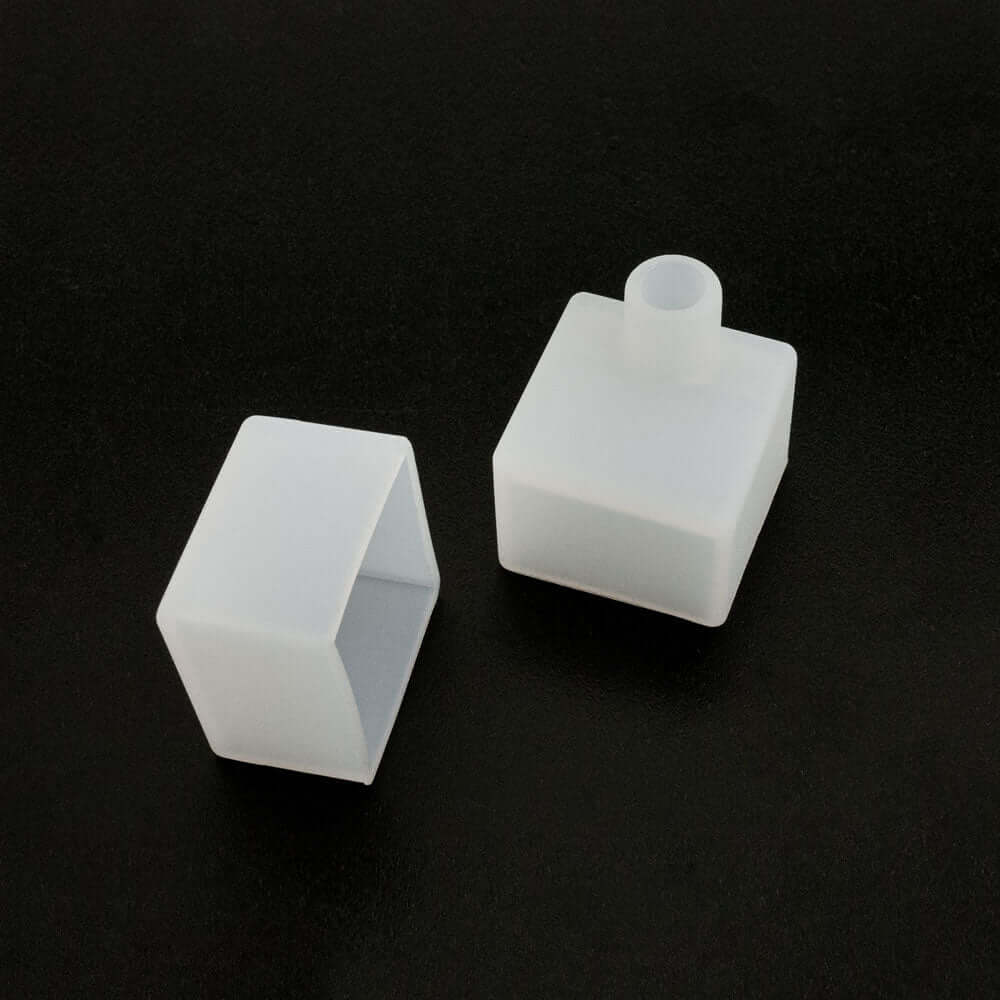

End caps: VBD-EN2020-W SKU: 666561432843

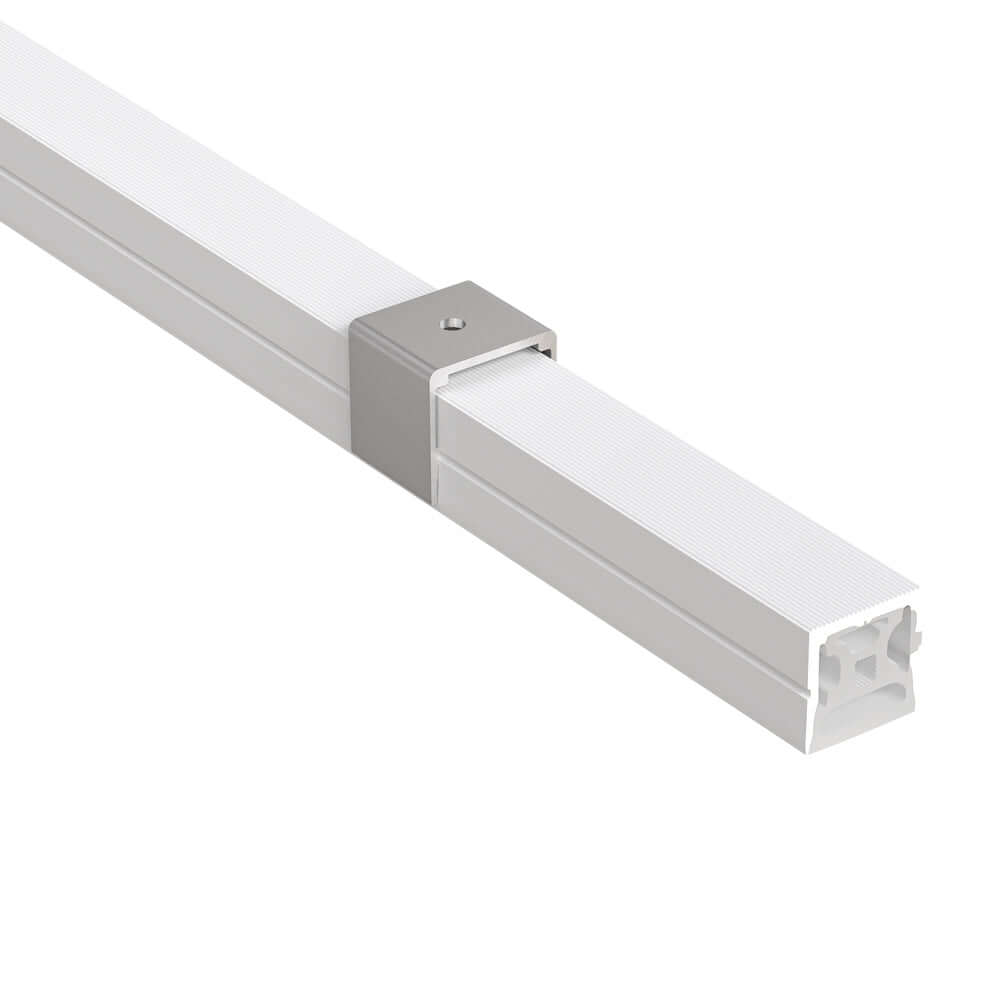

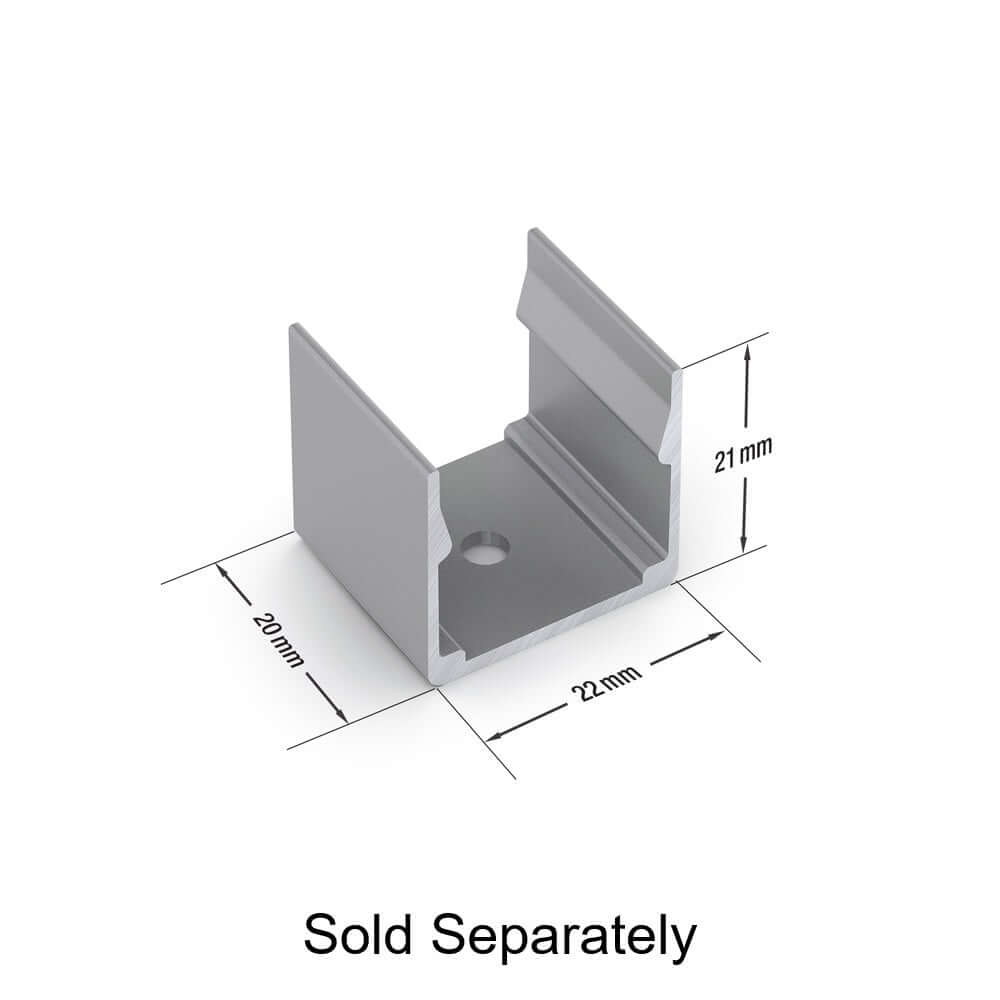

Mounting Clips: VBD-CLN2020-MC SKU: 666561432829

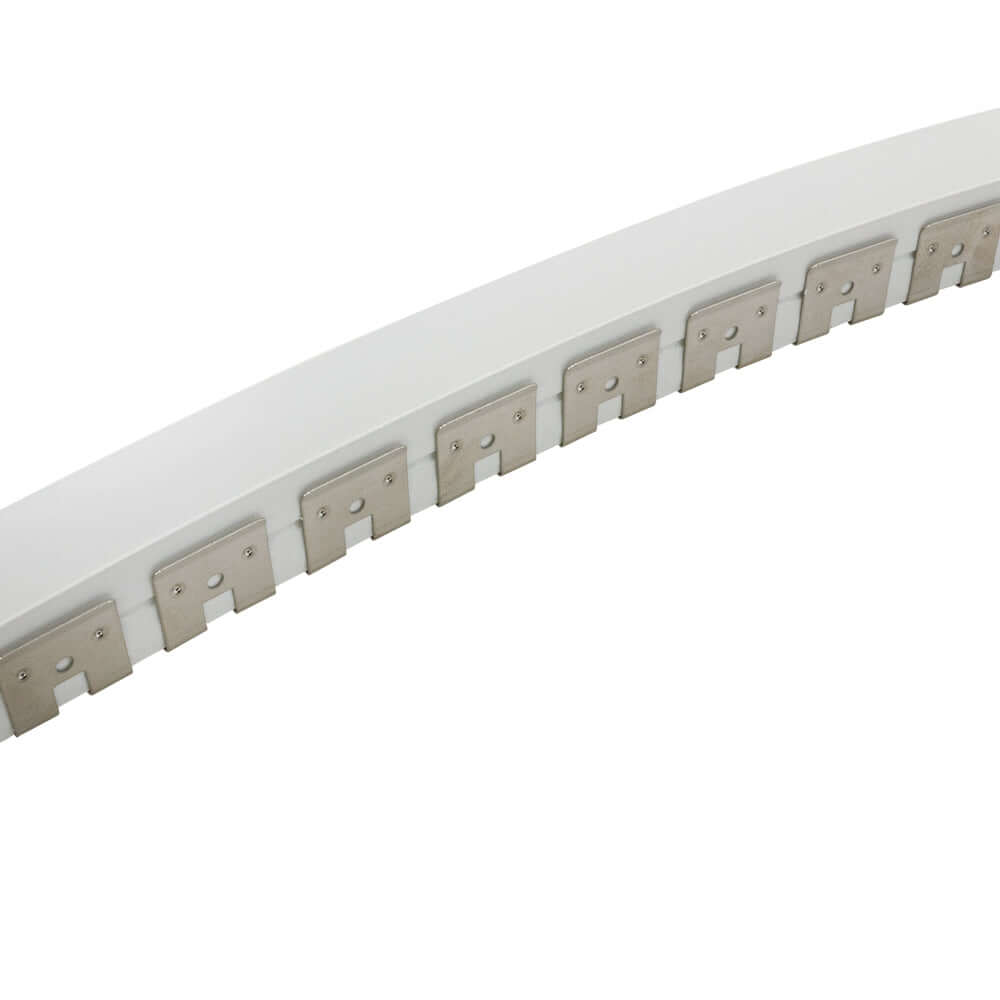

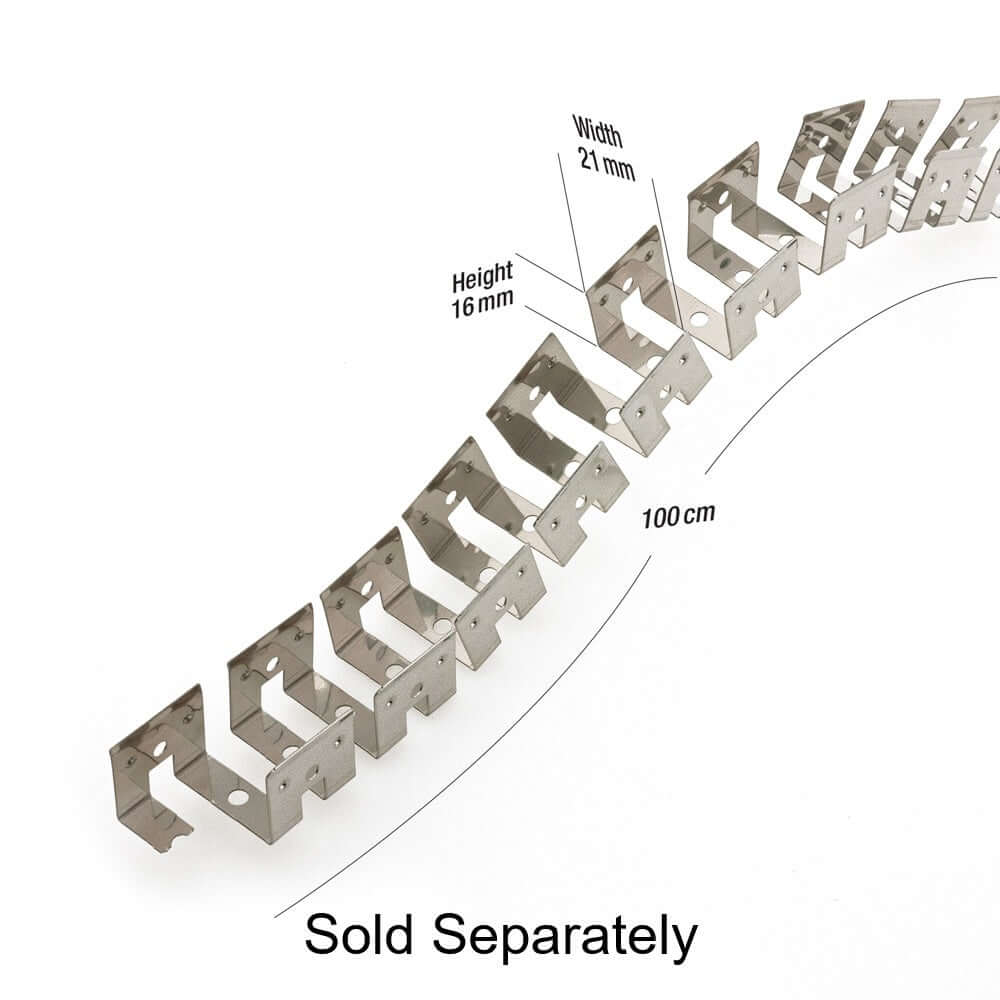

Flexible Clips: VBD-CLN2020-FC
SKU: 666561432805

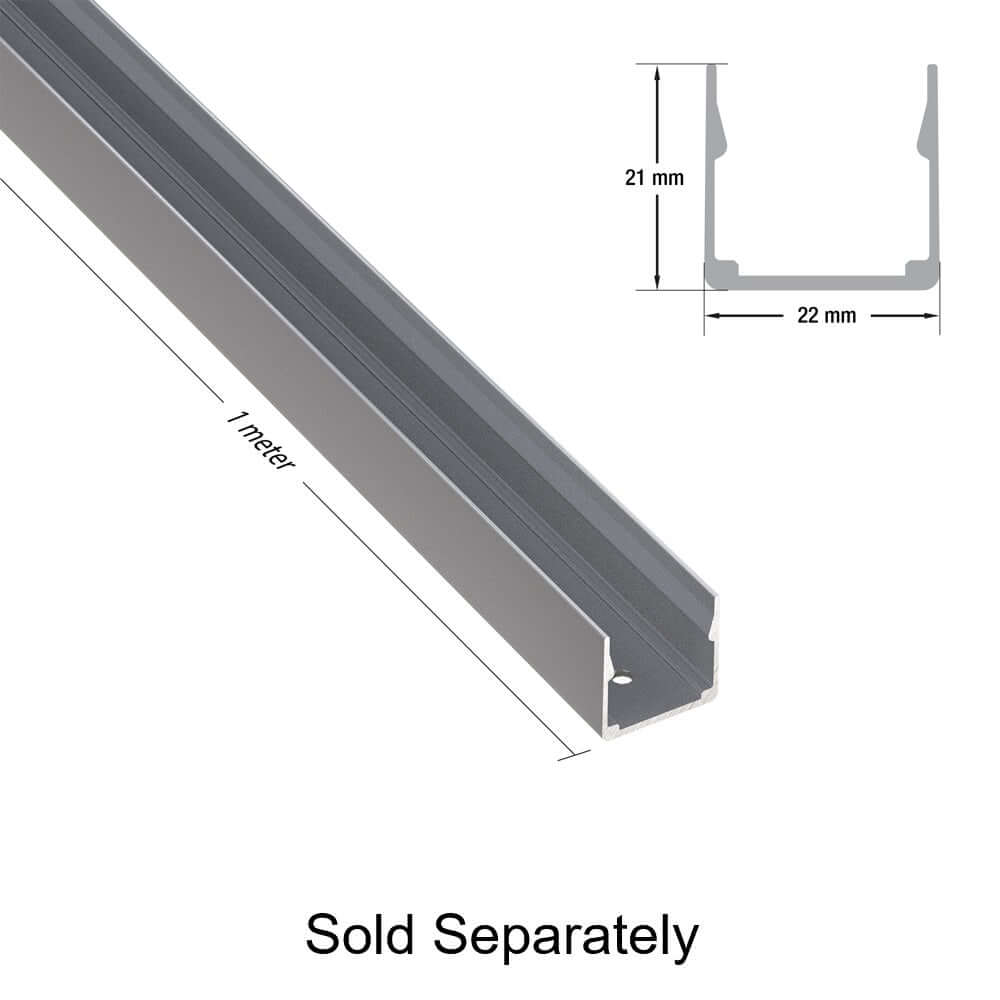

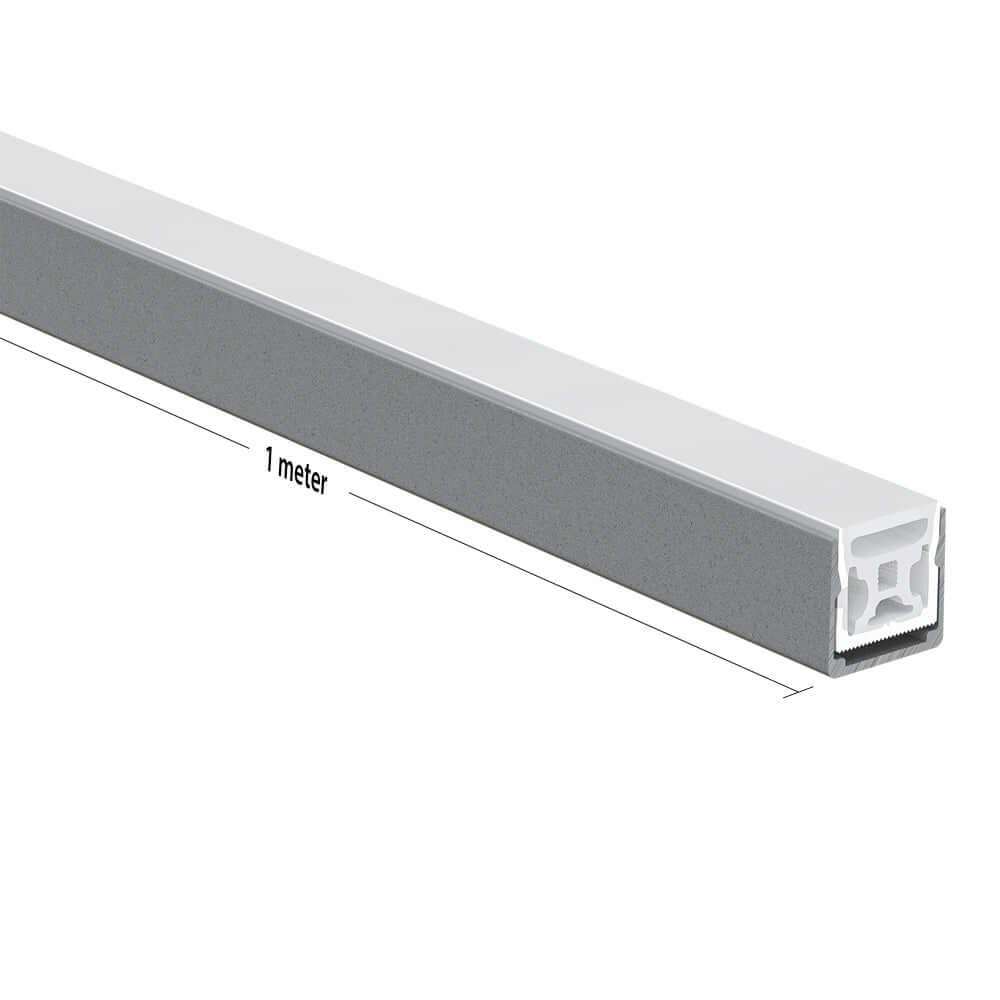

Linear Mounting: VBD-CLN2020-LI SKU: 666561432812
Light Certificate: UL

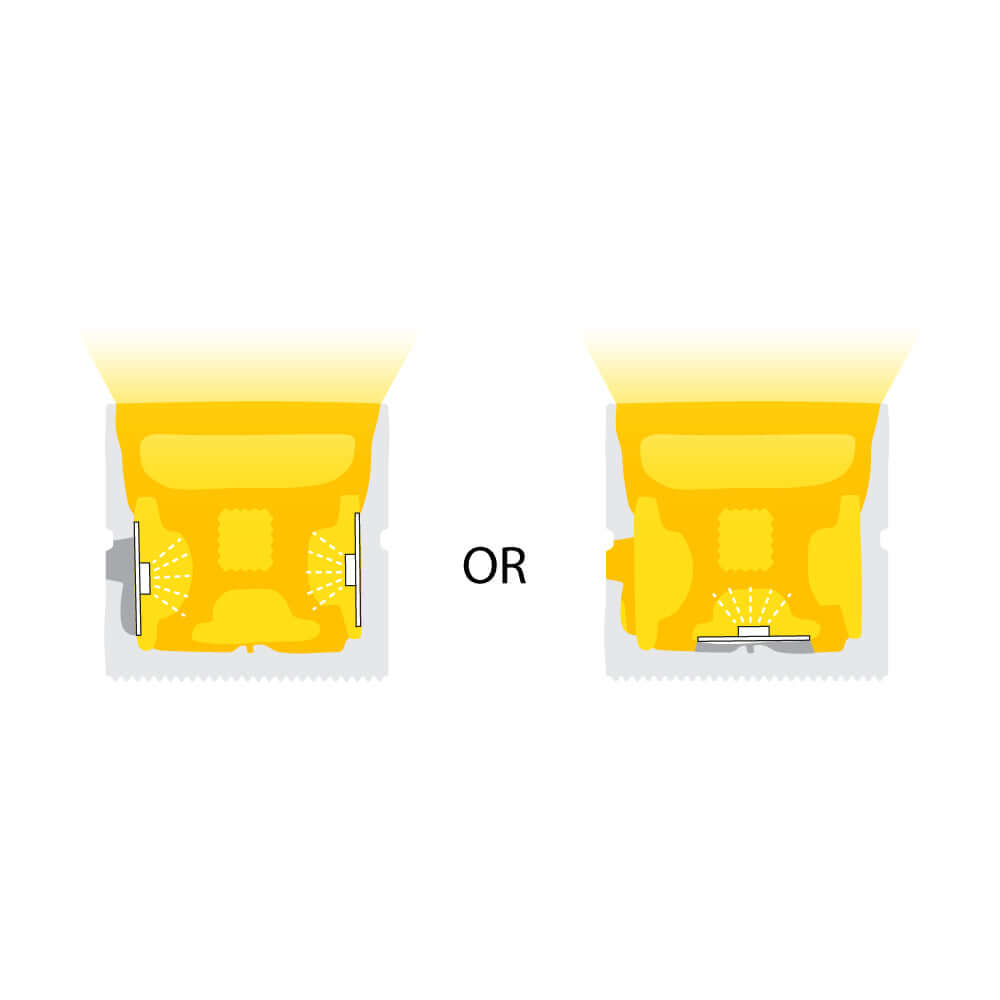

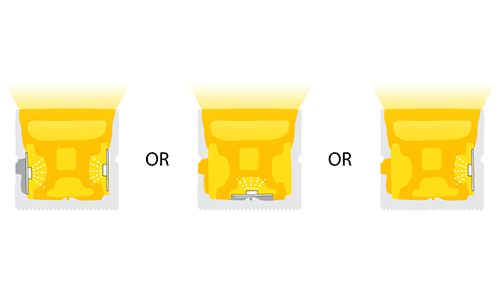

Compatible LED Strips:

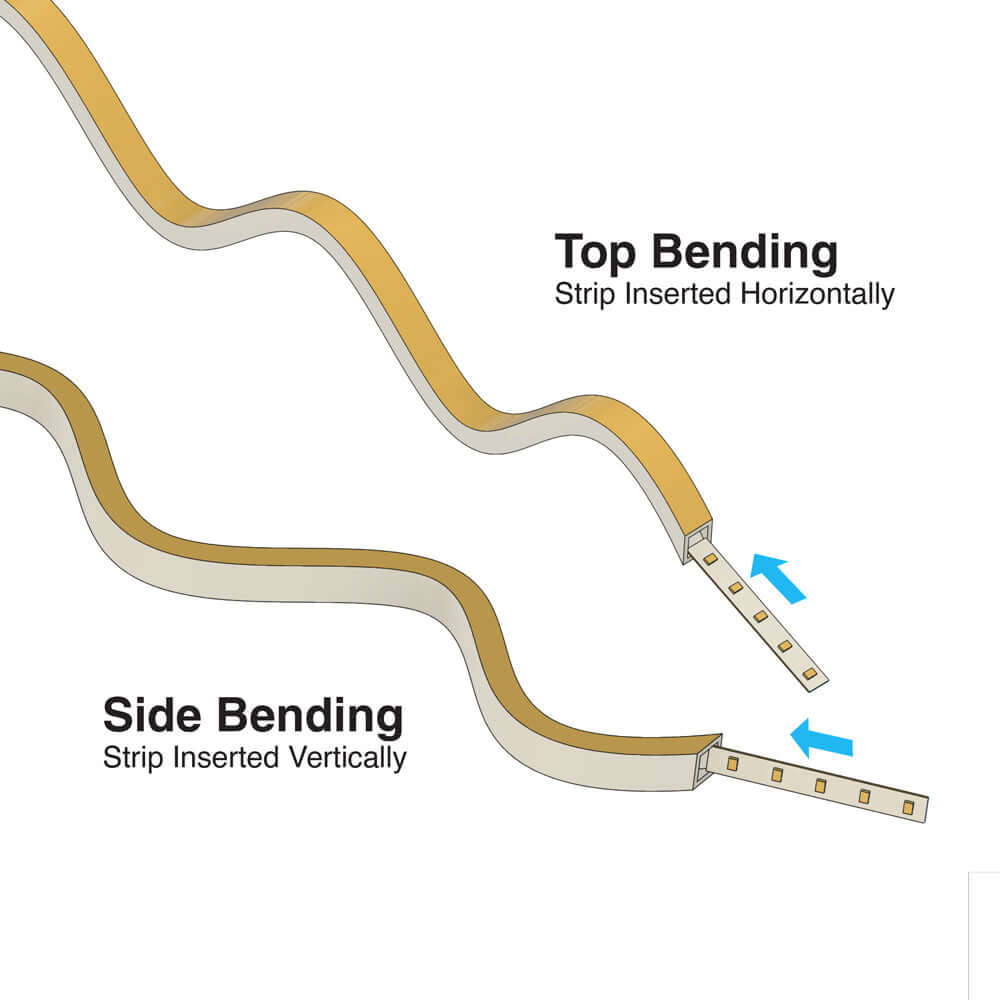

For Bottom

Voltage	Wattage	Brightness
24V DC	12W per meter (3.5W/ft)	1475 Lm/meter (450 Lm/ft)

Download Spec Sheet (2.7K, 3K, 3.5K, 4K, 5K)

VBDFS-E2835-2700-168-24-NS-8 SKU: 666561433147
VBDFS-E2835-3000-168-24-NS-8 SKU: 666561433154
VBDFS-E2835-3500-168-24-NS-8 SKU: 666561433161
VBDFS-E2835-4000-168-24-NS-8 SKU: 666561433178
VBDFS-E2835-5000-168-24-NS-8 SKU: 666561433185

For Side

Voltage	Wattage	Brightness
24V DC	14W per meter (4.2W/ft) (2.7K, 3K, 3.5K, 4K, 5K)	1640 Lm/meter (500 Lm/ft) (2.7K, 3K, 3.5K, 4K, 5K)
24V DC	15W per meter (4.5W/ft) (RGB60K)	------------

Download Spec Sheet (2.7K, 3K, 3.5K, 4K, 5K)

Download Spec Sheet (RGB60K)

VBDFS-E2835-2700-168-24-NS-10 SKU: 666561433192
VBDFS-E2835-3000-168-24-NS-10 SKU: 666561433208
VBDFS-E2835-3500-168-24-NS-10 SKU: 666561433215
VBDFS-E2835-4000-168-24-NS-10 SKU: 666561433222
VBDFS-E2835-5000-168-24-NS-10 SKU: 666561433239
VBDFS-A5050-RGB60K-84-24-NS-10 SKU: 666561433253

VBD-N2020-SFD-W, an innovative LED channel that brings both versatility and style to your lighting projects. Crafted from high-quality silicone material, this channel ensures outstanding durability and flexibility to suit a wide range of lighting installations. Its elegant white color seamlessly complements any design, while the white diffuser color guarantees even and soft light diffusion, creating a captivating and uniform illumination.

With dimensions of H 20mm x W 20mm (H 0.78in x W 0.78in), the VBD-N2020-SFD-W provides a substantial and robust profile, making it perfect for creating bold and eye-catching lighting displays. It accommodates LED strips up to 10mm in width, making it suitable for various lighting setups, from accent lighting to architectural features.

The channel's maximum length of 10m (32.8ft) offers flexibility for both small-scale and larger installations, ensuring continuous and consistent lighting effects. Installation options include flush-mount for a seamless appearance or surface-mount for a visible yet elegant solution, allowing you to tailor the lighting to your specific design preferences.

For easy installation and customization, we offer optional accessories (sold separately) that include end caps (VBD-EN2020-W), mounting clips (VBD-CLN2020-MC), flexible clips (VBD-CLN2020-FC), and linear mounting options (VBD-CLN2020-LI). These accessories provide a secure fit and streamline the installation process, enabling you to achieve your desired lighting effect effortlessly.

With Model No: VBD-N2020-SFD-W, you have the power to transform any space with captivating lighting designs. Whether you're working on residential, commercial, or hospitality projects, this LED channel delivers a flawless and efficient lighting solution that leaves a lasting impression. Trust in our high-quality product to create the perfect lighting ambiance with its impeccable design and performance.
