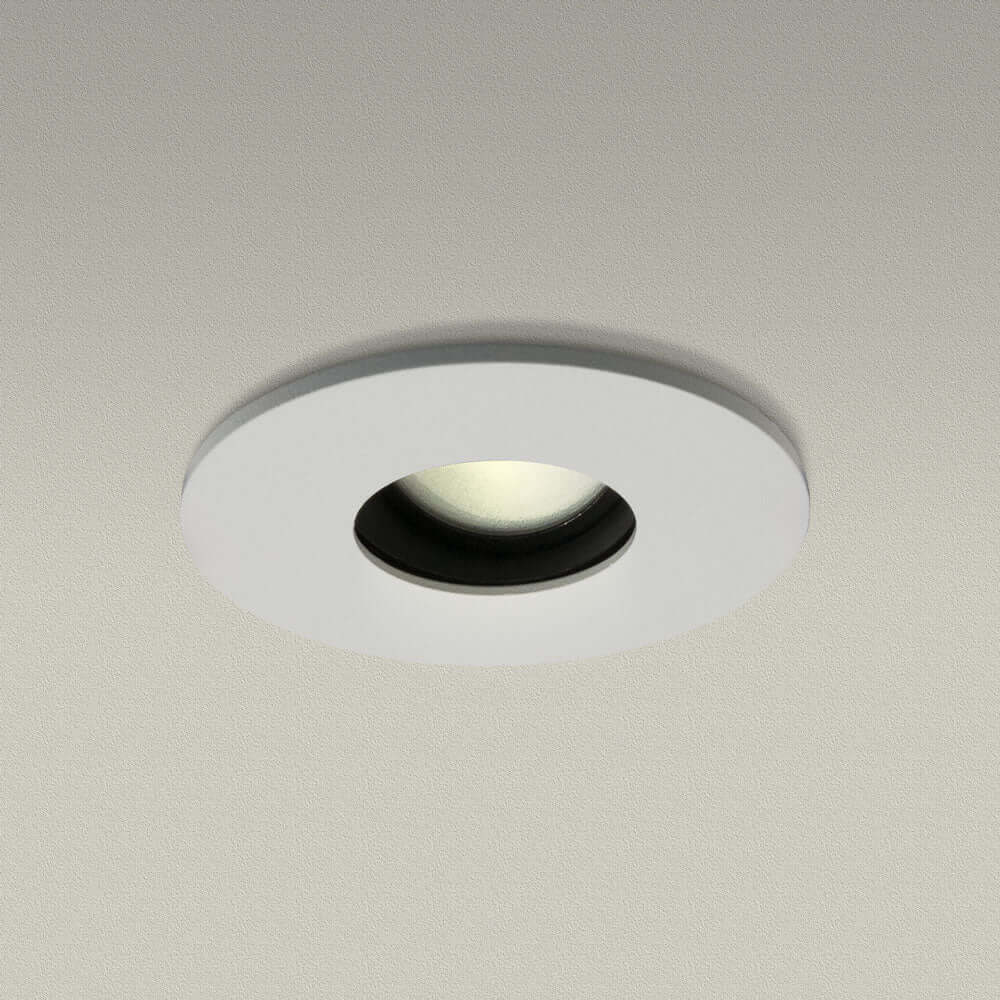

VBD-MTR-T71 low voltage recessed light trim in white, round aluminum design with pivot feature.

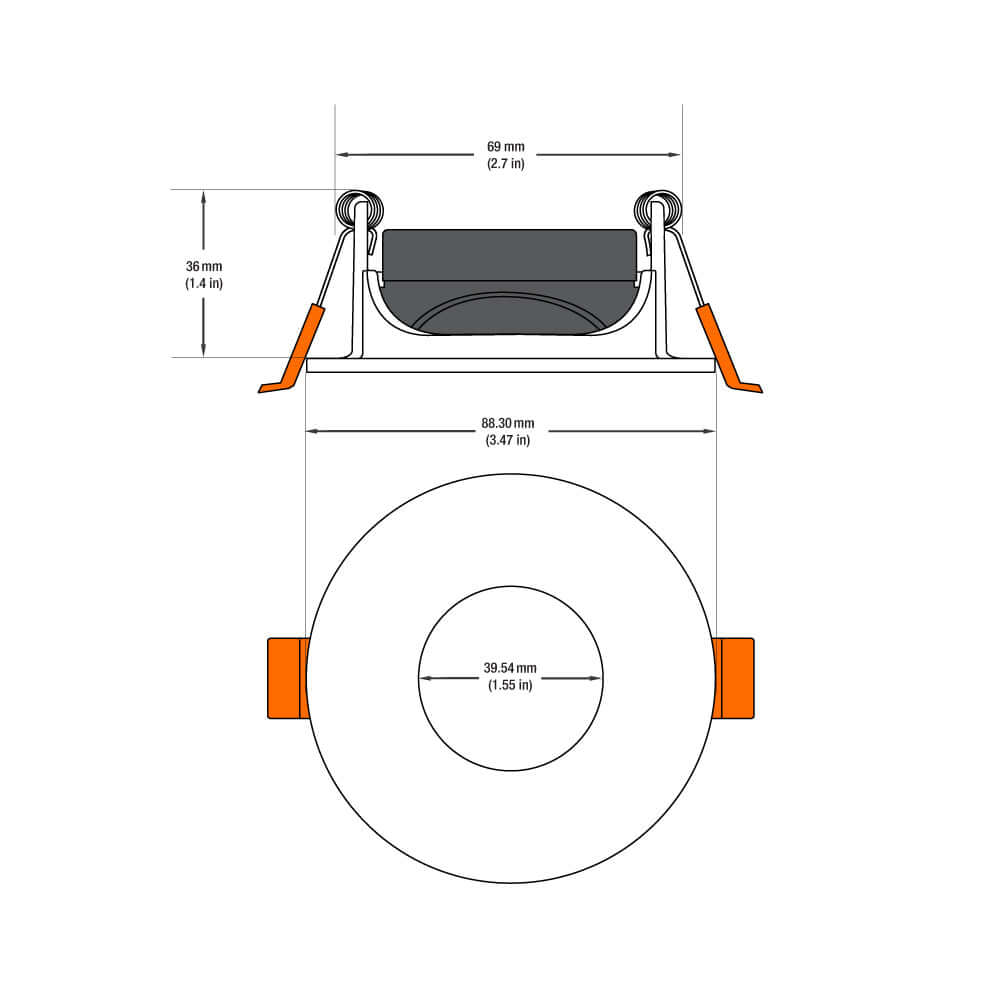

Diagram of VBD-MTR-T71 recessed light trim showing dimensions and shape, with specifications for installation.

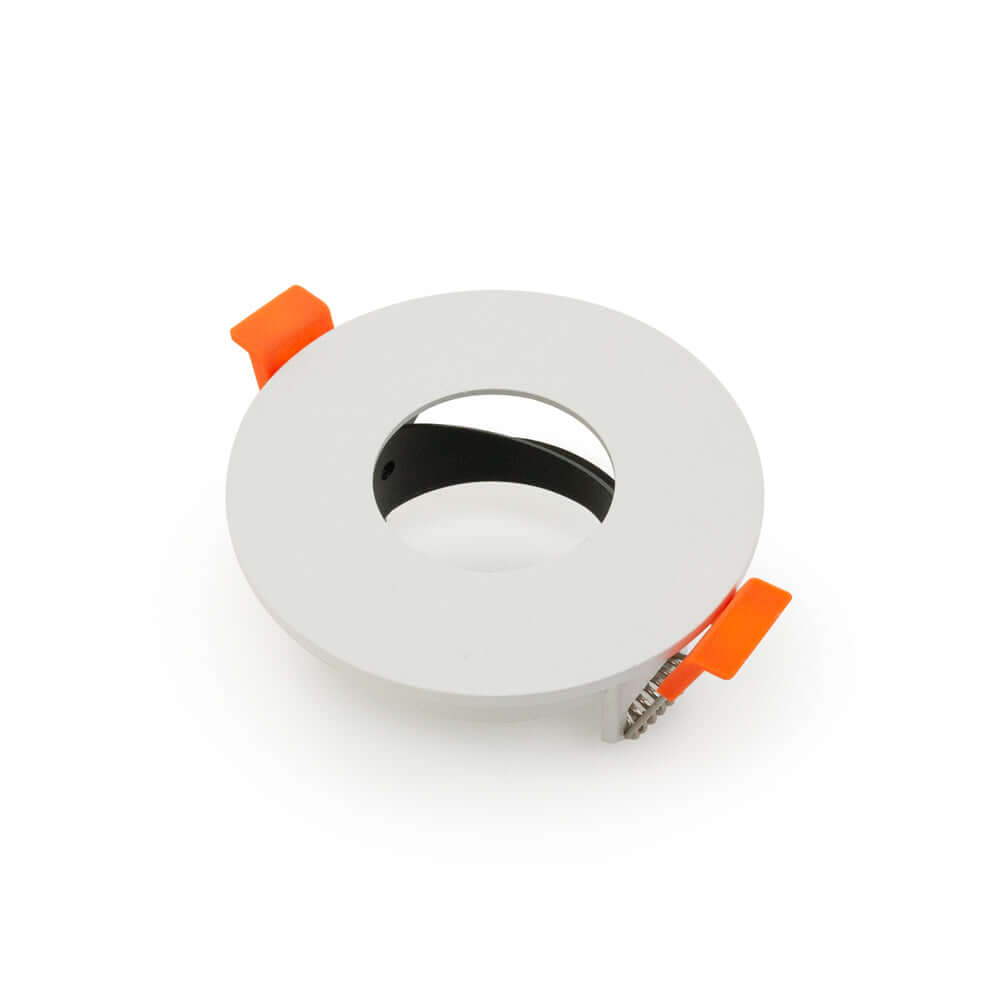

VBD-MTR-T71 low voltage recessed light trim in white aluminum with pivot feature.

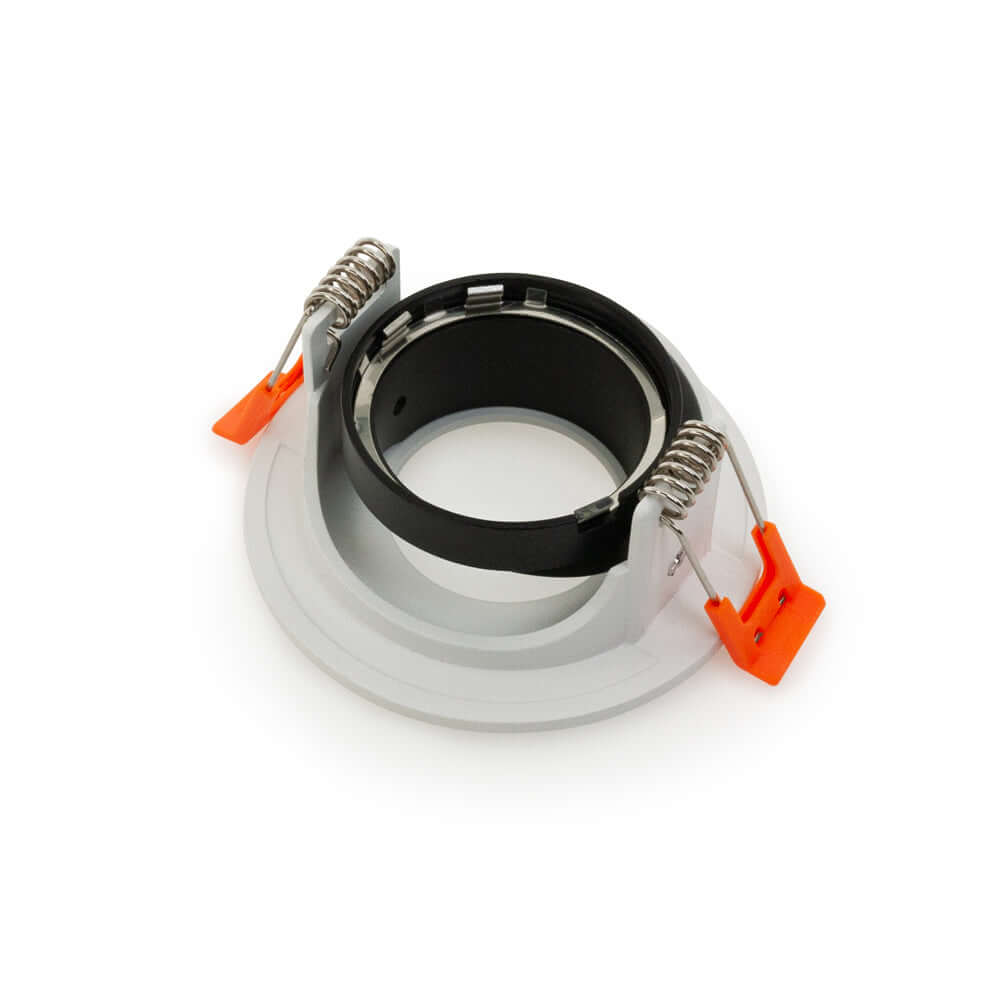

VBD-MTR-T71 low voltage IC rated recessed light trim in white with aluminum pivot design.
VBD-MTR-T71 low voltage recessed light trim in white with color temperature options 2400K-5000K and included module.

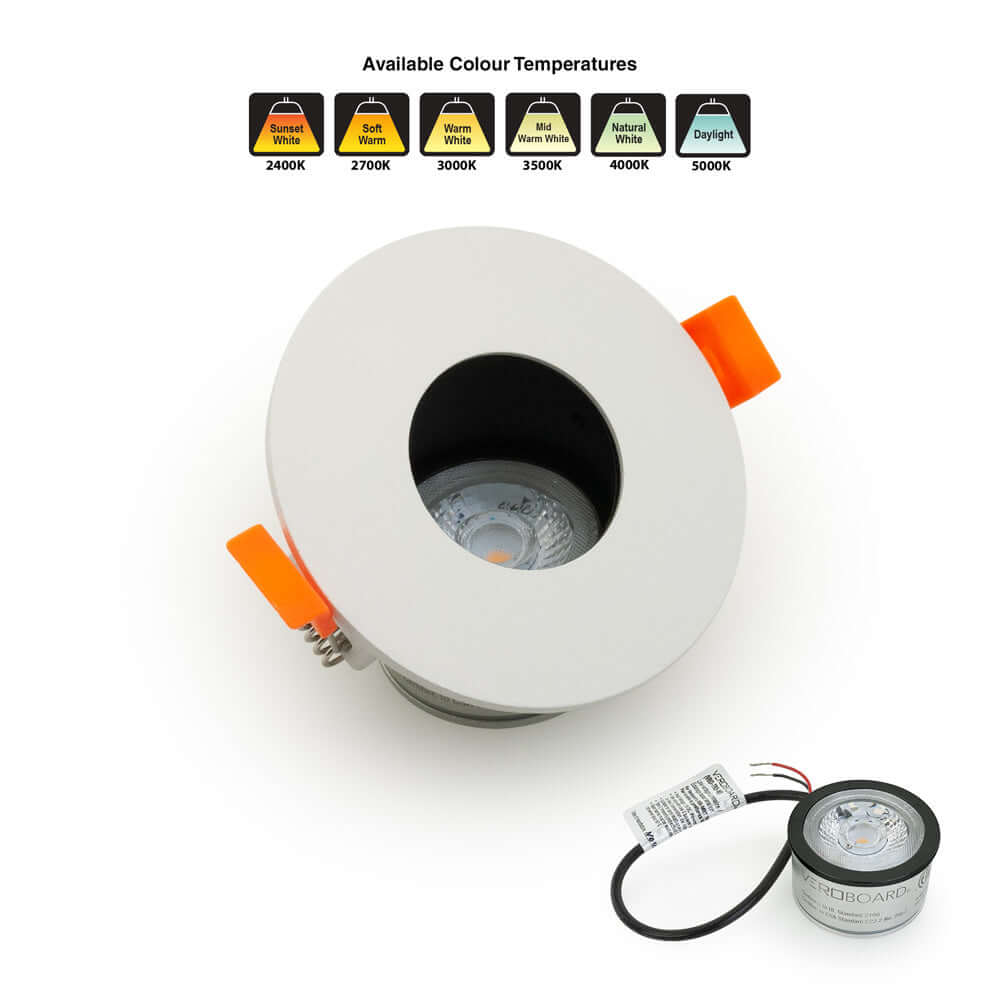

VBD-MTR-T71 low voltage recessed light trim in white, showcasing multiple color temperature options.

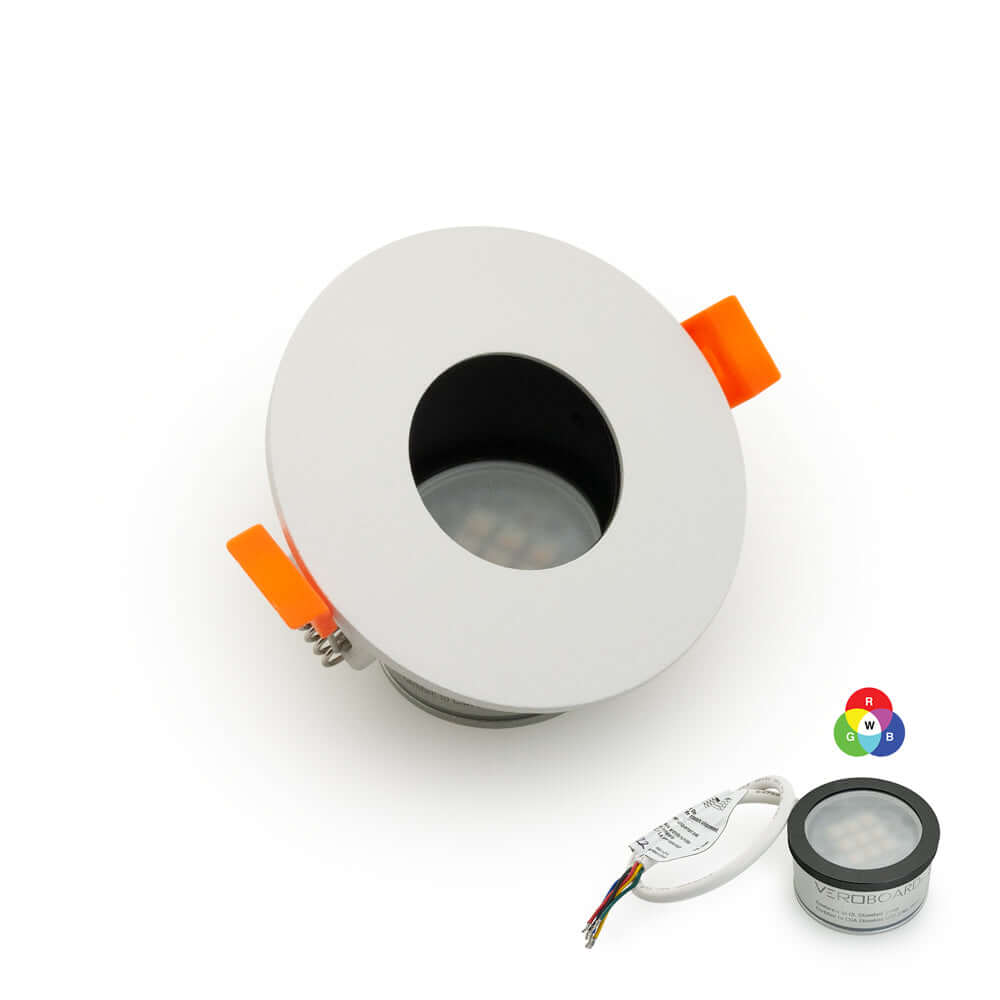

VBD-MTR-T71 low voltage recessed light trim in white with round pivot design and installer wires.

VBD-MTR-T71 Low Voltage IC Rated Recessed Light Trim

SKU: 666561407643
Product:

Product

Elevate your interior lighting with our VBD-MTR-T71 Round LED Light Fixture Recessed Trim. These trims bring a touch of sophistication to your downlighting, allowing you to seamlessly blend them with your interior design and enhance the overall appeal of your space. This versatile VBD-MTR-T71 fixture is designed for compatibility with our VBD-TR Series Light engines (sold separately).

Where to buy?



  • Models No: VBD-MTR-T71
  • Trim Color: White
  • Trim Material: Aluminum
  • Trim Shape: Round
  • Pivot Trim: Yes
  • IC Rated: Yes
  • Light Source: VBD-TR Module Series
  • Dimensions: Ø88.3 mm (3.47 in)
  • Cut Size: Ø69mm (2.7 in)
  • Depth: 36mm (1.4 in)

Lumens

CCT →
Diffuser ↓

 2400K
(Sunset White) 		2700K
(Soft White) 		3000K
(Warm White) 		3500K
(Mid-Warm White) 		4000K
(Natural White) 		5000K
(Daylight)
Frosted Glass (FG) 380 Lm 400 Lm 430 Lm 450 Lm 470 Lm 500 Lm
Clear Lens (L) 450 Lm 480 Lm 520 Lm 550 Lm 580 Lm 600 Lm


Light Engine Models (Sold Separately)

Color Temperature  Diffuser SKU Model
  • 2400K (Sunset White)
 Frosted Glass (FG)
Clear Lens (L)		 666561428518
666561428464
 VBD-TR5-W-FG-24K
VBD-TR5-W-L-24K
  • 2700K (Soft White)
 Frosted Glass (FG)
Clear Lens (L)
 666561428525
666561428471
 VBD-TR5-W-FG-27K
VBD-TR5-W-L-27K
  • 3000K (Warm White)
 Frosted Glass (FG)
Clear Lens (L)
 666561428532
666561428488
 VBD-TR5-W-FG-30K
VBD-TR5-W-L-30K
  • 3500K (Mid-Warm White)
 Frosted Glass (FG)
Clear Lens (L)
 666561428549
666561428495
 VBD-TR5-W-FG-35K
VBD-TR5-W-L-35K
  • 4000K (Natural White)
 Frosted Glass (FG)
Clear Lens (L)
 666561428556
666561428501
 VBD-TR5-W-FG-40K
VBD-TR5-W-L-40K
  • 5000K (Daylight)
 Frosted Glass (FG)
Clear Lens (L)
 666561429997
666561429980
 VBD-TR5-W-FG-50K
VBD-TR5-W-L-50K
  • RGBW
 Frosted Glass (FG) 666561428457 VBD-TR4-FG-RGBW
