VBD-MTR-86B Low Voltage IC Rated Recessed Light Trim

VBD-MTR-86B Low Voltage IC Rated Recessed Light Trim

SKU: 666561432454
Product:

Product

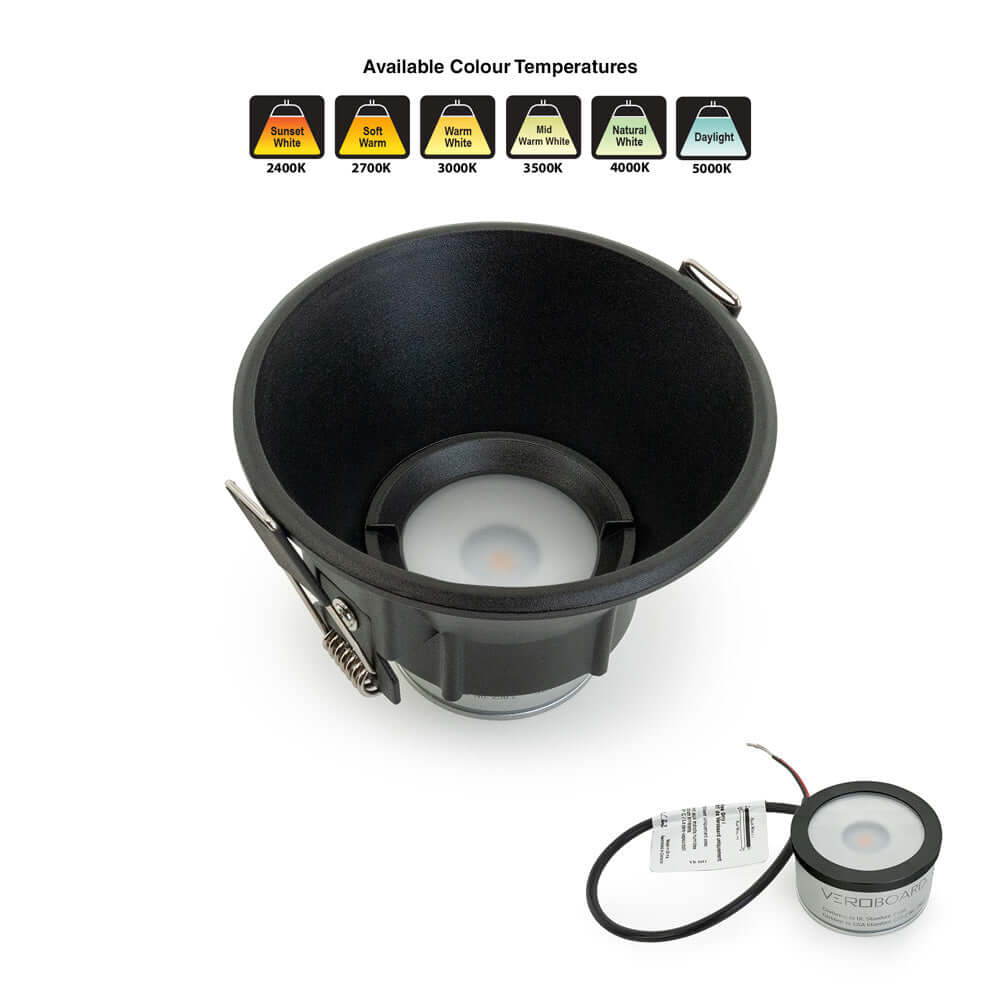

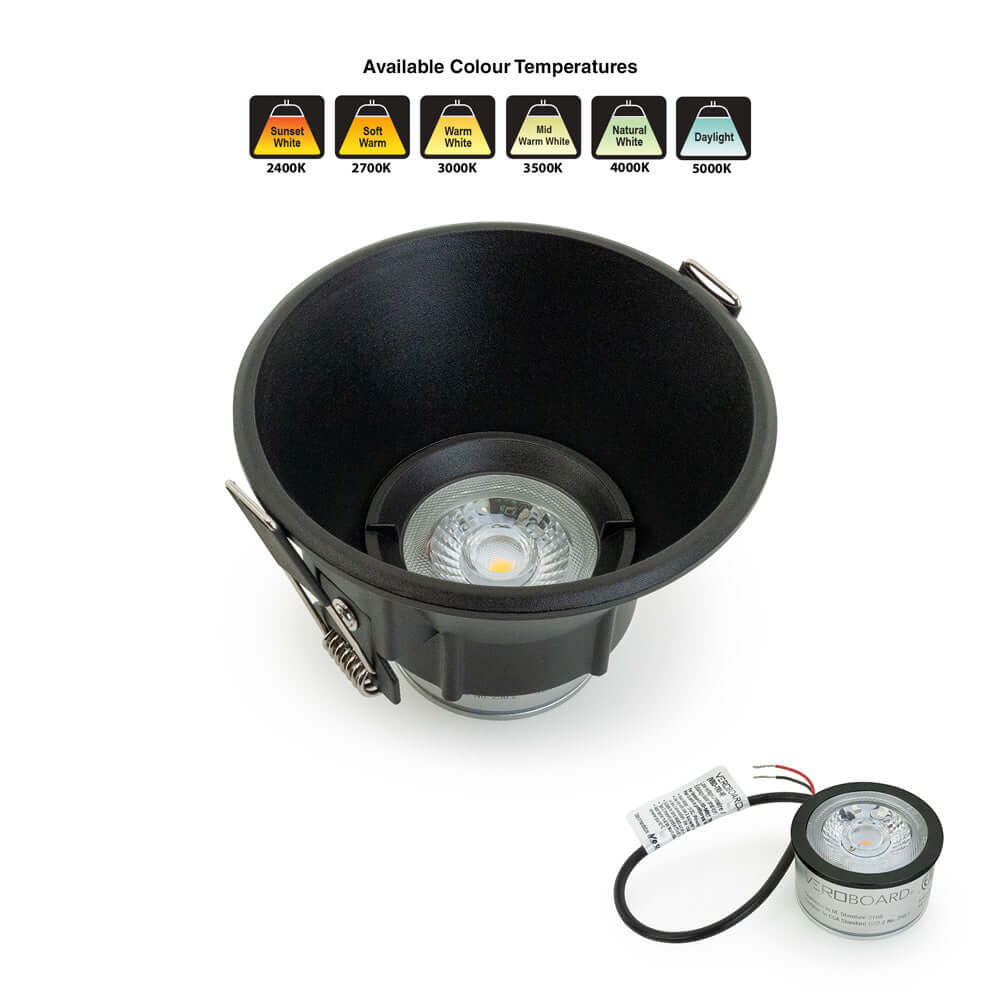

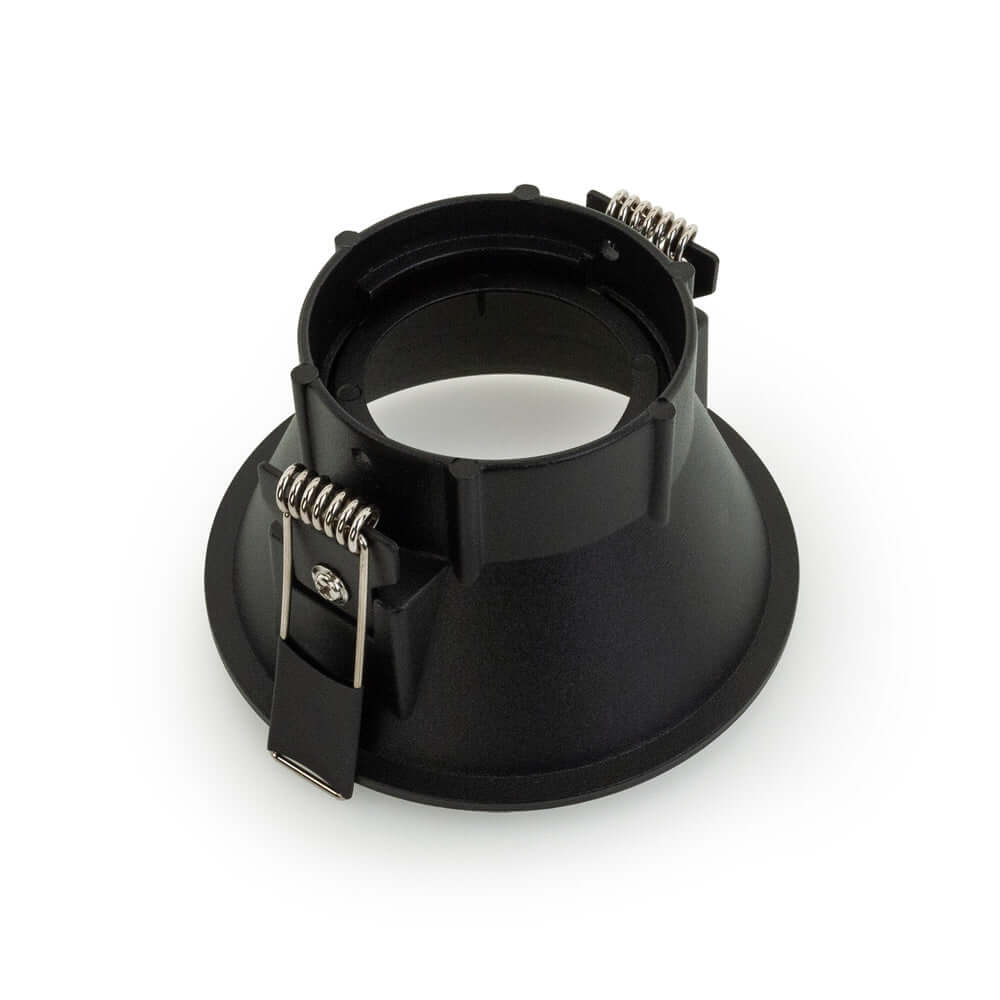

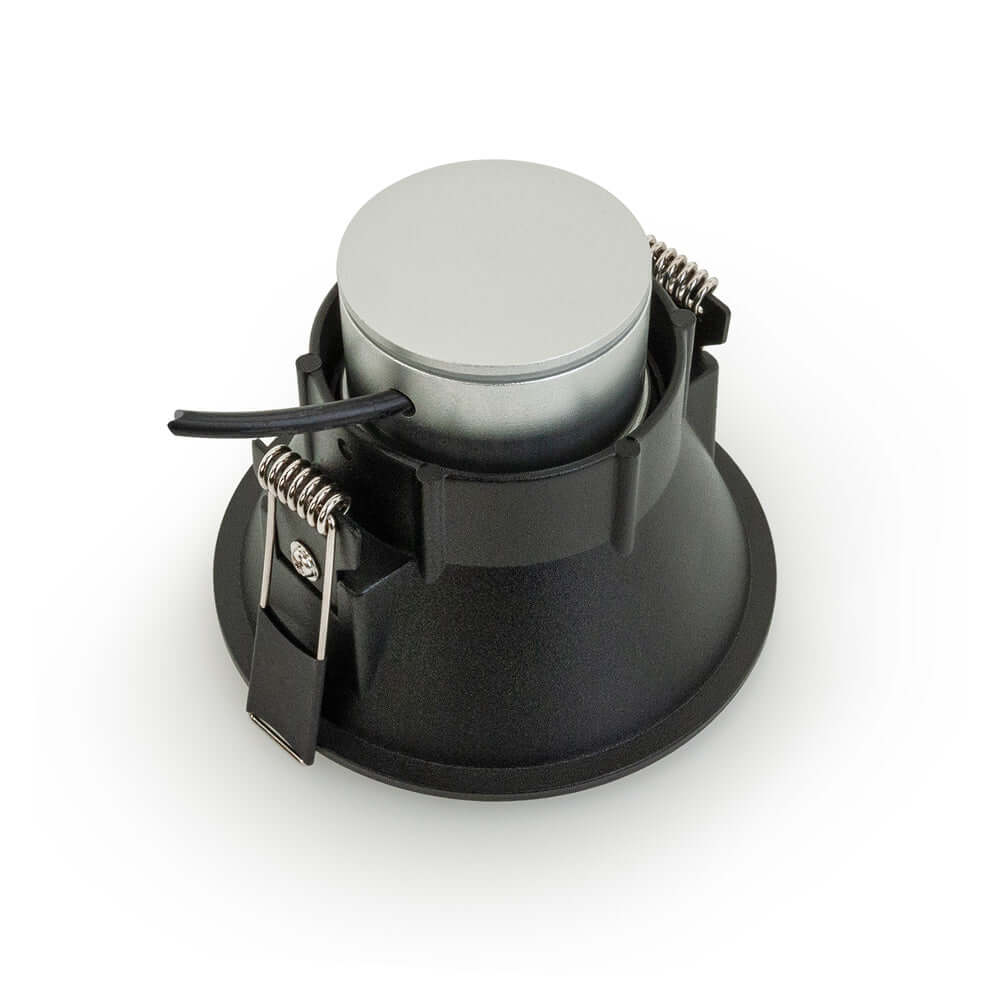

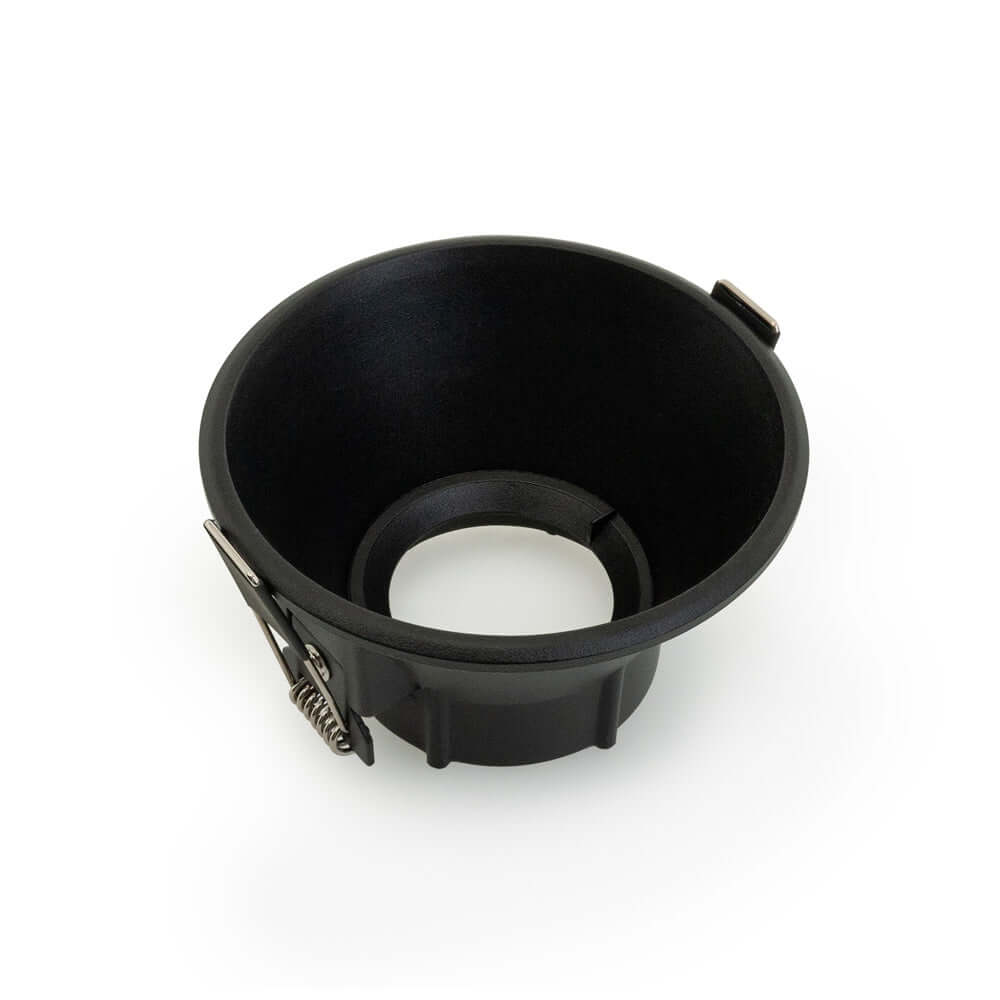

The VBD-MTR-86B Round LED Light Fixture Recessed Trim is a sophisticated choice to elevate your downlighting aesthetics. Its detailed design adds a touch of class, effortlessly matching your interior decor and enhancing overall appeal. This trim is perfectly compatible with our VBD-TR Series Light engines (available separately), which offer a range of impressive features to enhance your lighting experience.


  • Models No: VBD-MTR-86B
  • Trim Color: Black
  • Trim Material: Aluminum
  • Trim Shape: Round
  • Pivot Trim: No

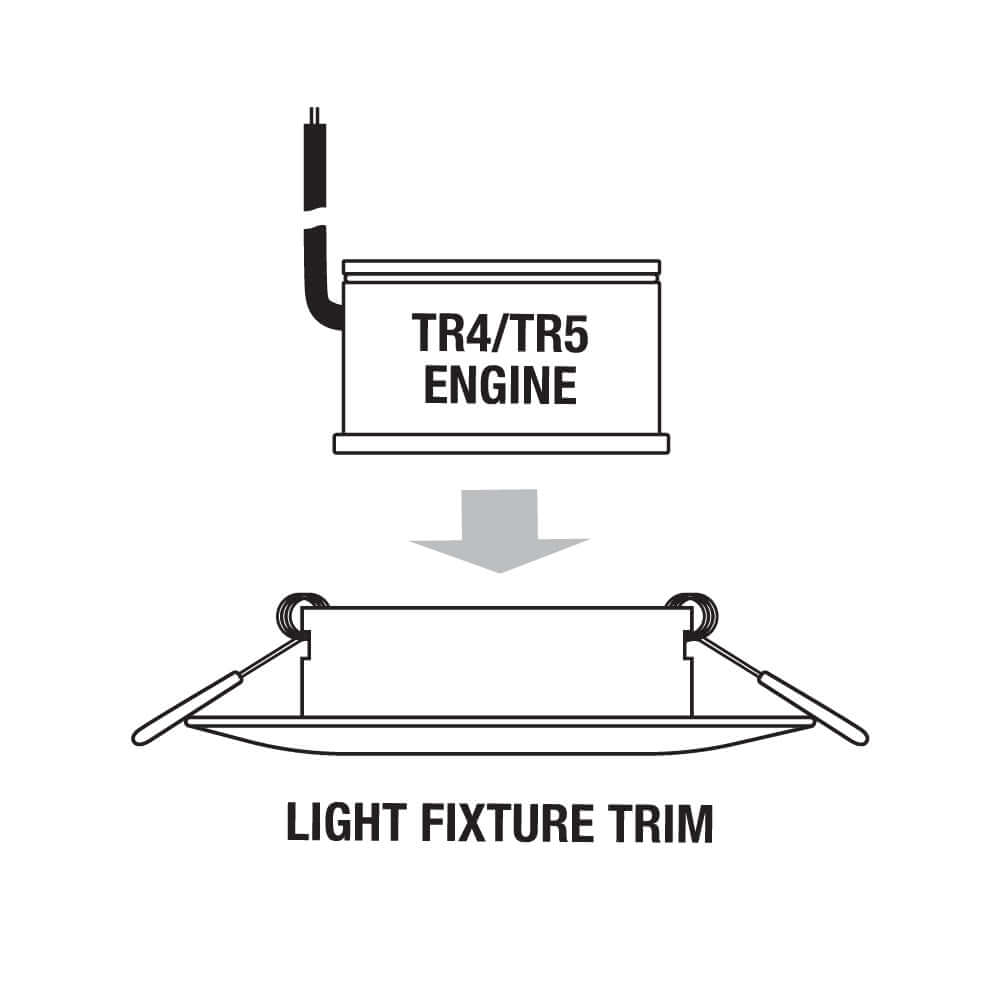

  • Light Source: VBD-TR Module Series
  • IC Rated: Yes
  • Mounting Plate (Sold Separately):
    VBD-MP-UNV-23345 SKU: 666561433802

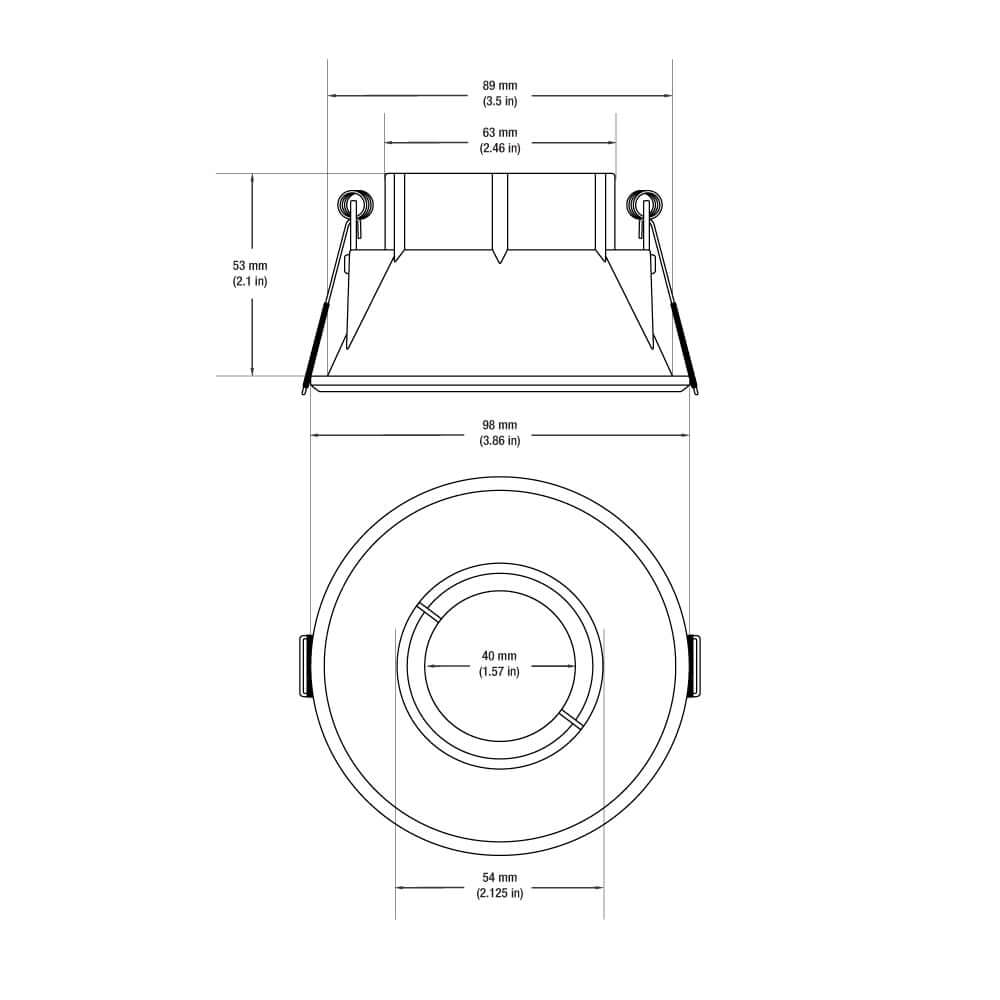

  • Dimensions: Ø98 mm (3.86 in)
  • Cut Size: Ø89 mm (3.5 in)
  • Depth: 53 mm (2.1 in)

Lumens

CCT
Diffuser

2400K
(Sunset White)
2700K
(Soft White)
3000K
(Warm White)
3500K
(Mid-Warm White)
4000K
(Natural White)
5000K
(Daylight)
Frosted Glass (FG) 380 Lm 400 Lm 430 Lm 450 Lm 470 Lm 500 Lm
Clear Lens (L) 450 Lm 480 Lm 520 Lm 550 Lm 580 Lm 600 Lm

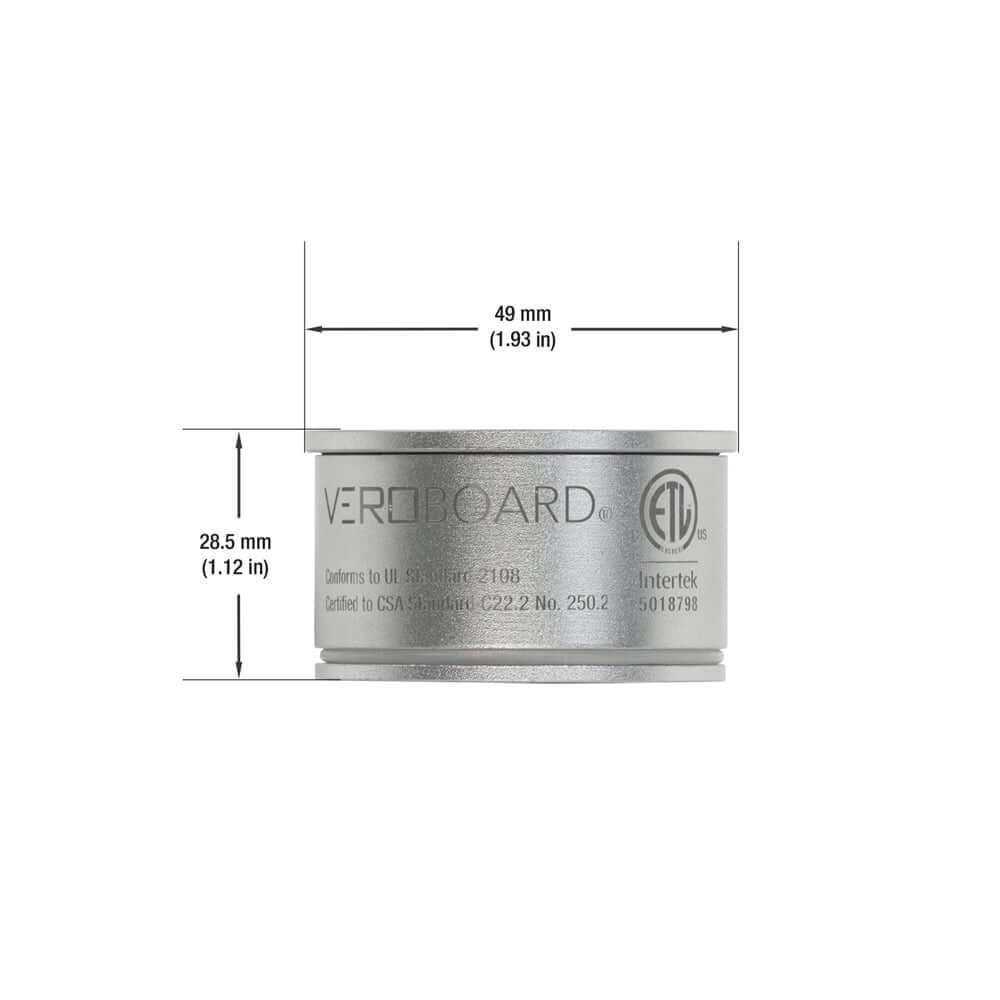

Light Engine Models (Sold Separately)

Color Temperature  Diffuser SKU Model
  • 2400K (Sunset White)
Frosted Glass (FG)
Clear Lens (L)
666561428518
666561428464

VBD-TR5-W-FG-24K
VBD-TR5-W-L-24K
  • 2700K (Soft White)
Frosted Glass (FG)
Clear Lens (L)
666561428525
666561428471

VBD-TR5-W-FG-27K
VBD-TR5-W-L-27K
  • 3000K (Warm White)
Frosted Glass (FG)
Clear Lens (L)
666561428532
666561428488

VBD-TR5-W-FG-30K
VBD-TR5-W-L-30K
  • 3500K (Mid-Warm White)
Frosted Glass (FG)
Clear Lens (L)
666561428549
666561428495

VBD-TR5-W-FG-35K
VBD-TR5-W-L-35K
  • 4000K (Natural White)
Frosted Glass (FG)
Clear Lens (L)
666561428556
666561428501

VBD-TR5-W-FG-40K
VBD-TR5-W-L-40K
  • 5000K (Daylight)
Frosted Glass (FG)
Clear Lens (L)
666561429997
666561429980

VBD-TR5-W-FG-50K
VBD-TR5-W-L-50K

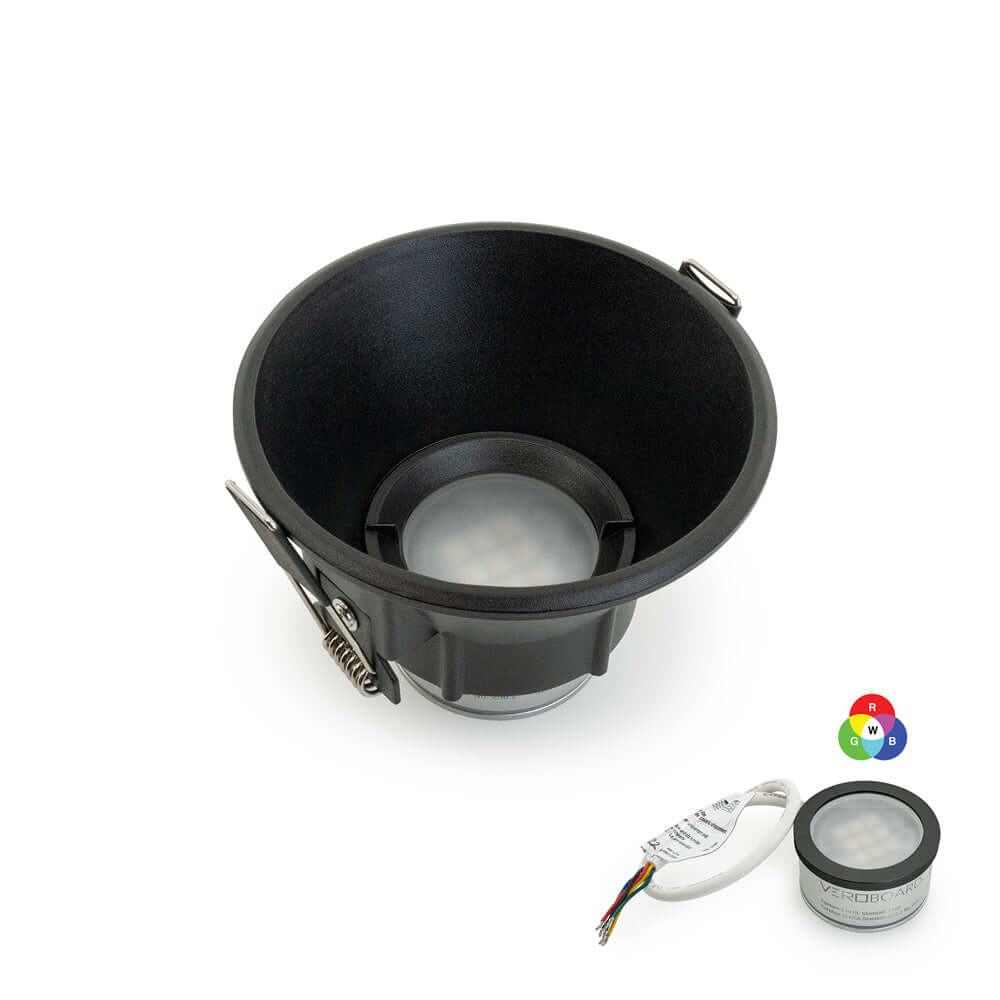

  • RGBW
Frosted Glass (FG) 666561428457 VBD-TR4-FG-RGBW
