VBD-MTR-83W Low Voltage IC Rated Recessed Light Trim, Veroboard

VBD-MTR-83W Low Voltage IC Rated Recessed Light Trim

Name: VBD-MTR-83W Low Voltage IC Rated Recessed Light Trim
Brand: Veroboard Canada
SKU: 666561432423
Availability: InStock

SKU: 666561432423

Product:

Variant

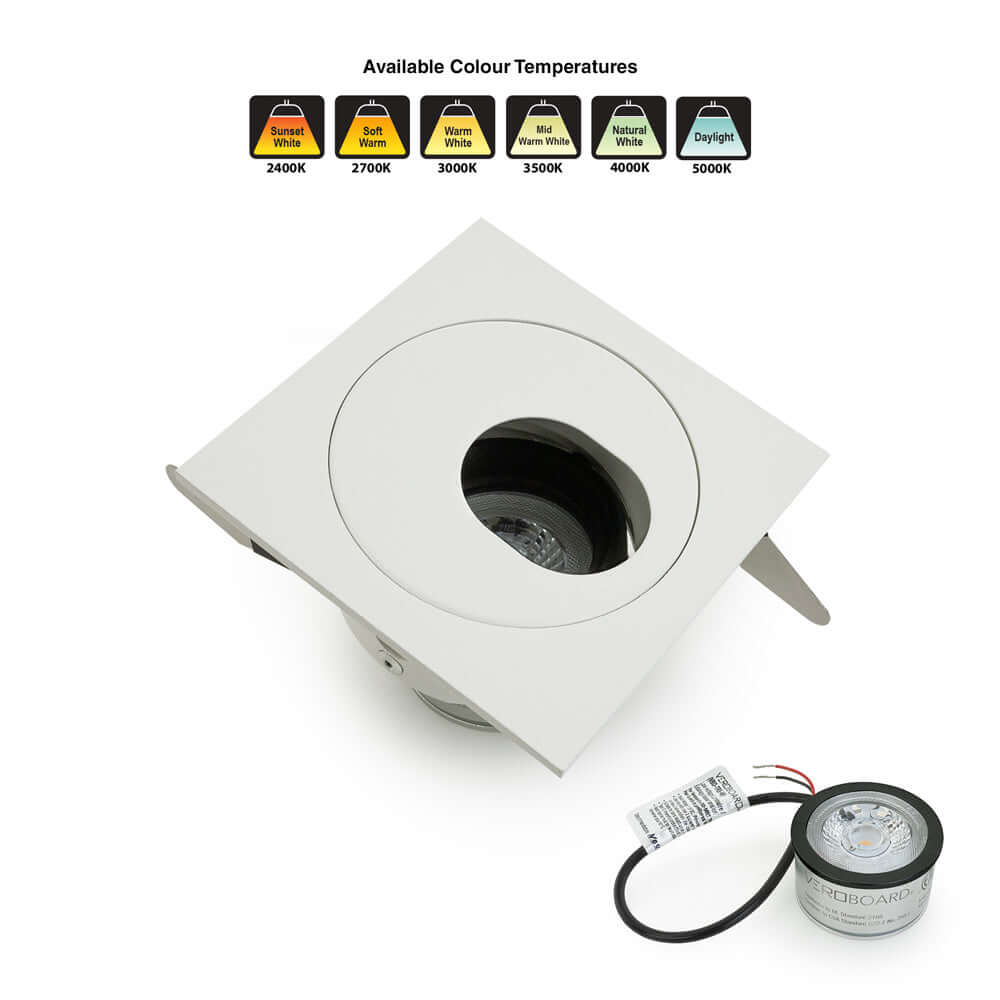

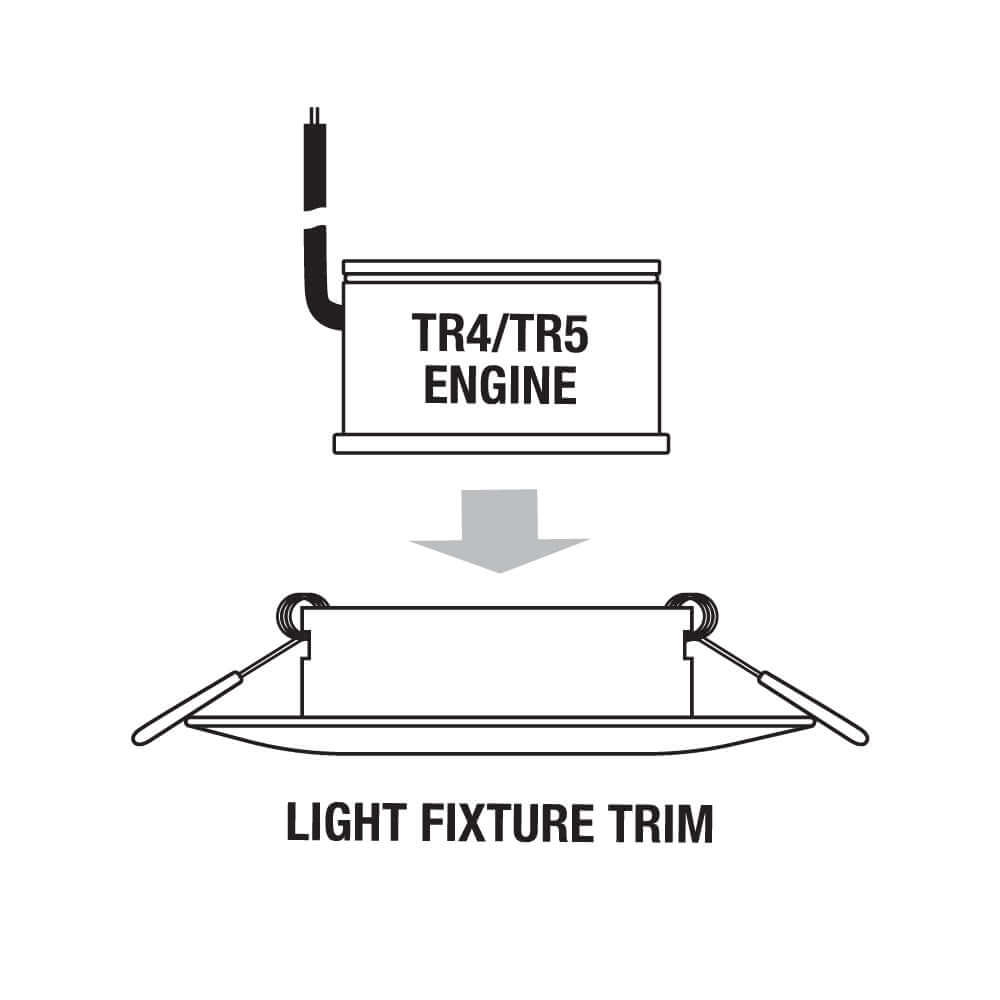

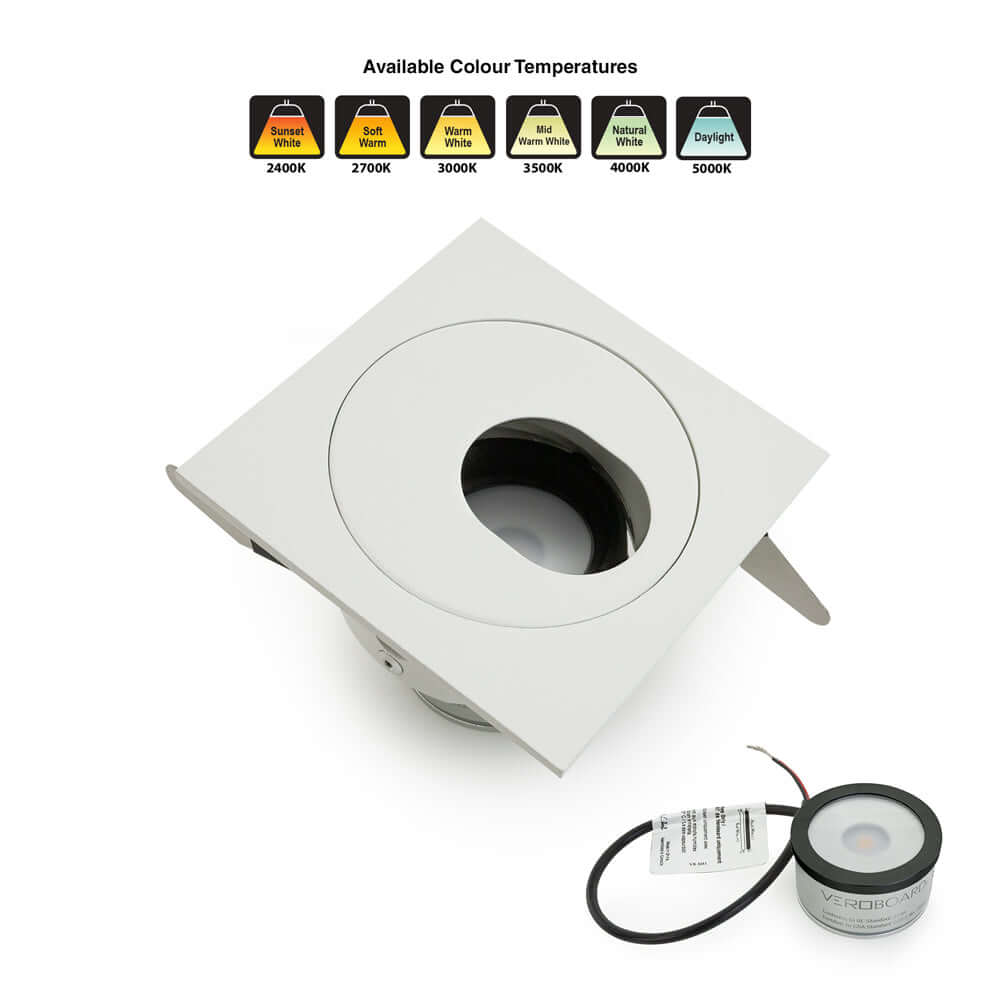

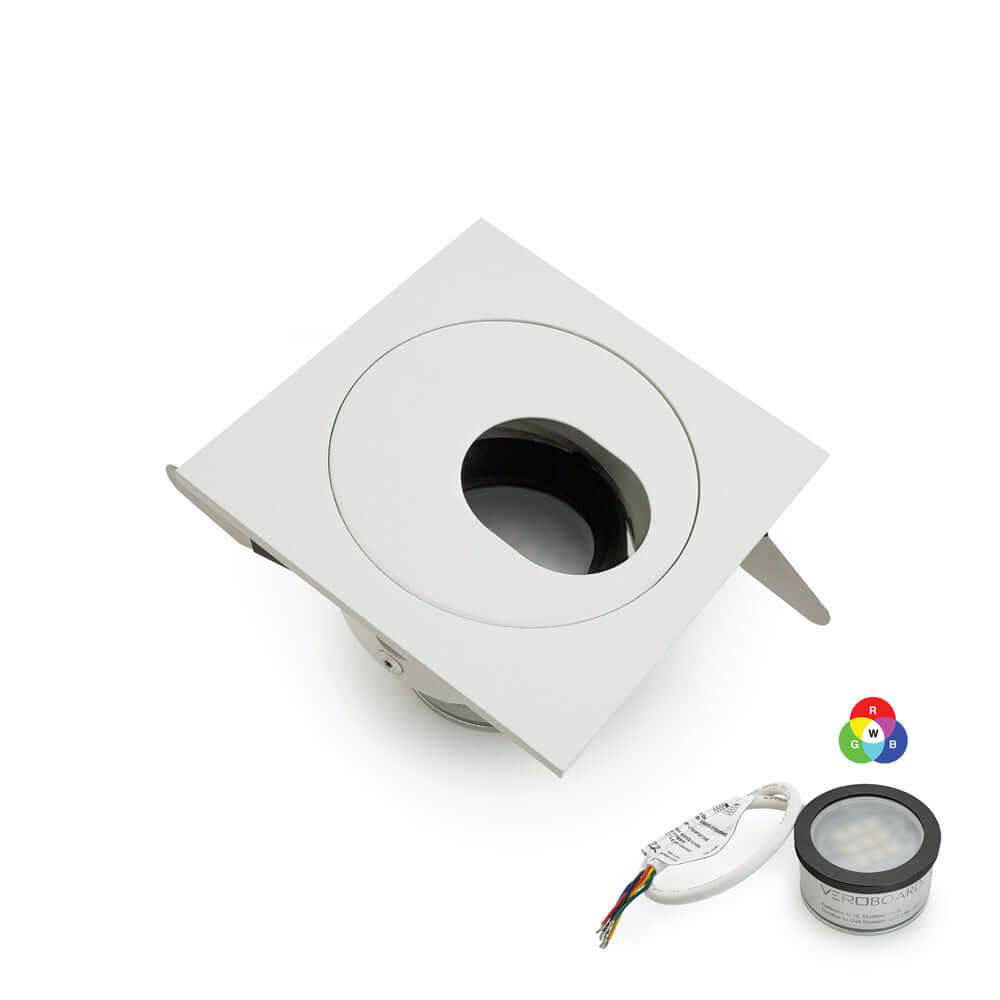

The VBD-MTR-83W Round LED Light Fixture Recessed Trim is designed to infuse your downlighting with sophistication, seamlessly complementing your interior design and enhancing its overall allure. This trim is fully compatible with our VBD-TR Series Light engines, which offer advanced features (available separately) to elevate your lighting experience.

Models No: VBD-MTR-83W
Trim Color: White
Trim Material: Aluminum
Trim Shape: Square
Pivot Trim: Yes
IC Rated: Yes

Light Source: VBD-TR Module Series

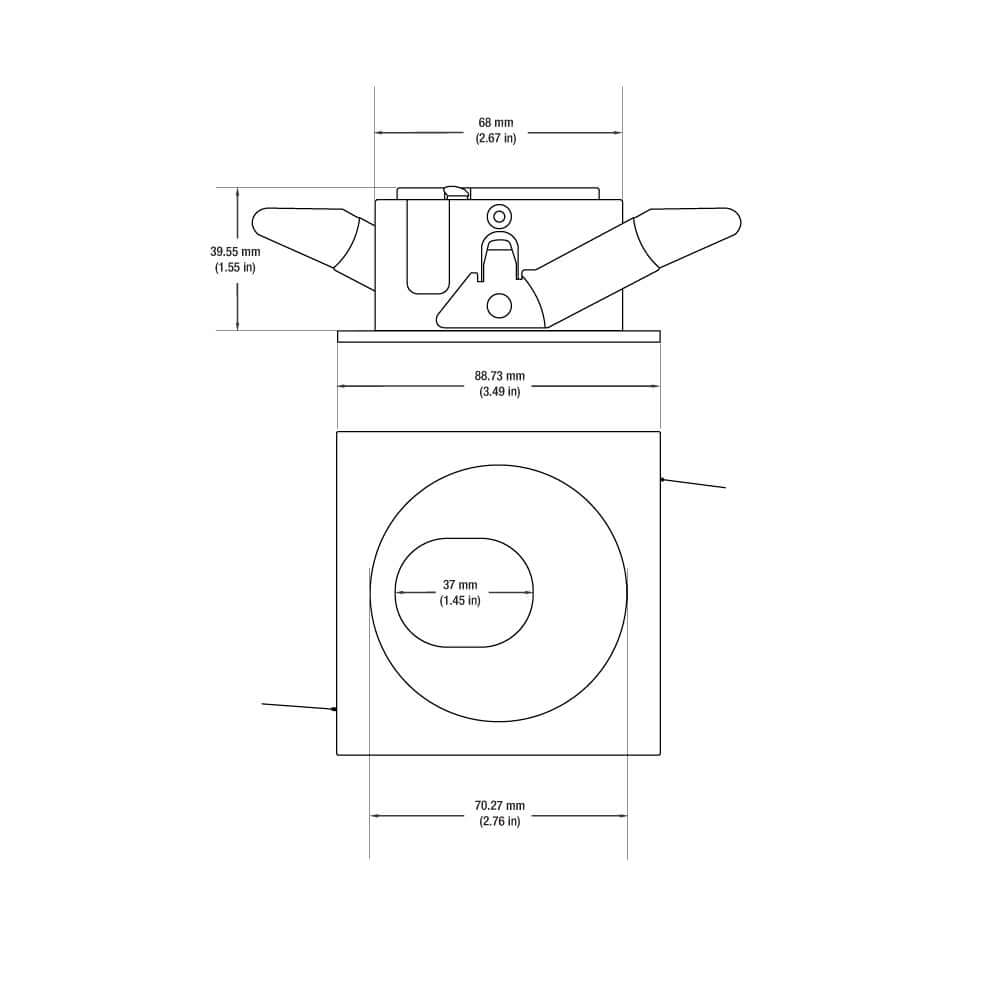

Dimensions: 88.7 x 88.7 mm (3.5 x 3.5 in)
Cut Size: Ø68 mm (2.67 in)
Depth: 39.5 mm (1.55 in)

Lumens

CCT → Diffuser ↓	2400K (Sunset White)	2700K (Soft White)	3000K (Warm White)	3500K (Mid-Warm White)	4000K (Natural White)	5000K (Daylight)
Frosted Glass (FG)	380 Lm	400 Lm	430 Lm	450 Lm	470 Lm	500 Lm
Clear Lens (L)	450 Lm	480 Lm	520 Lm	550 Lm	580 Lm	600 Lm

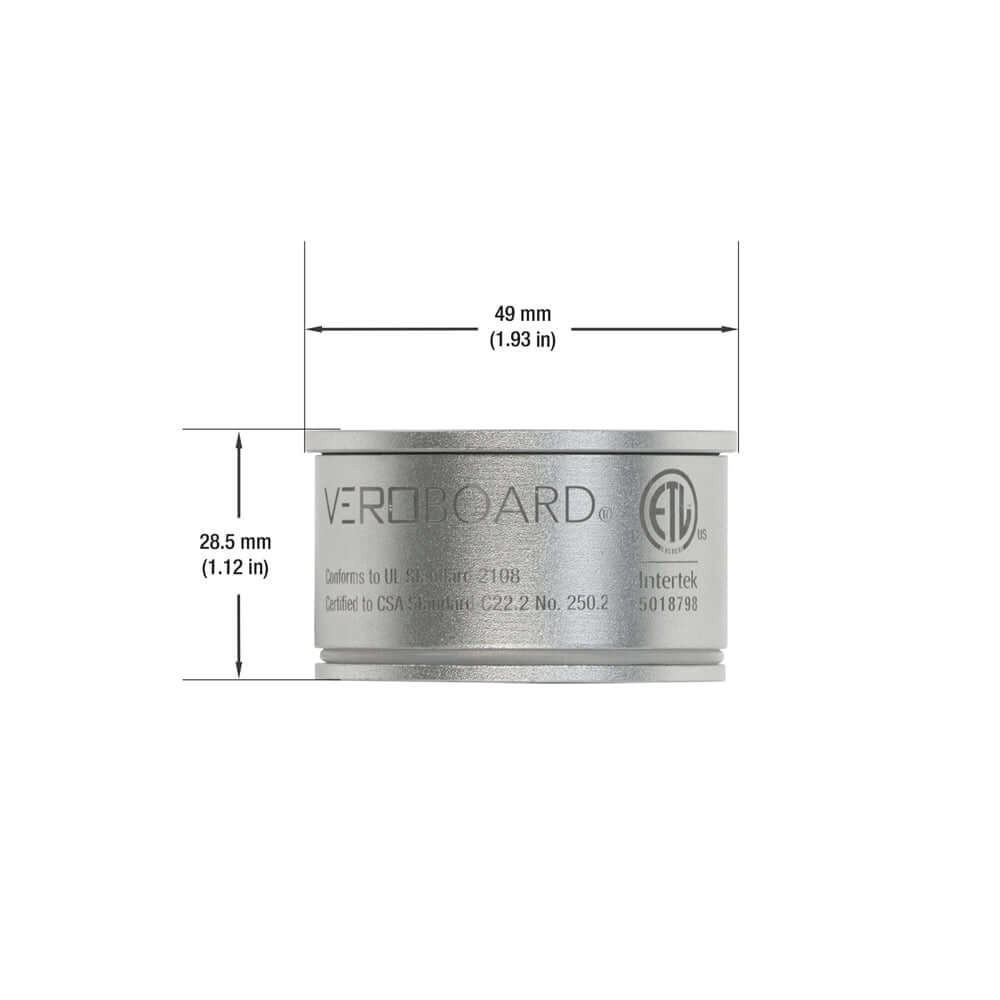

Light Engine Models (Sold Separately)

Color Temperature	Diffuser	SKU	Model
2400K (Sunset White)	Frosted Glass (FG) Clear Lens (L)	666561428518 666561428464	VBD-TR5-W-FG-24K VBD-TR5-W-L-24K
2700K (Soft White)	Frosted Glass (FG) Clear Lens (L)	666561428525 666561428471	VBD-TR5-W-FG-27K VBD-TR5-W-L-27K
3000K (Warm White)	Frosted Glass (FG) Clear Lens (L)	666561428532 666561428488	VBD-TR5-W-FG-30K VBD-TR5-W-L-30K
3500K (Mid-Warm White)	Frosted Glass (FG) Clear Lens (L)	666561428549 666561428495	VBD-TR5-W-FG-35K VBD-TR5-W-L-35K
4000K (Natural White)	Frosted Glass (FG) Clear Lens (L)	666561428556 666561428501	VBD-TR5-W-FG-40K VBD-TR5-W-L-40K
5000K (Daylight)	Frosted Glass (FG) Clear Lens (L)	666561429997 666561429980	VBD-TR5-W-FG-50K VBD-TR5-W-L-50K
RGBW	Frosted Glass (FG)	666561428457	VBD-TR4-FG-RGBW
