VBD-MTR-6W Low Voltage IC Rated Recessed Light Trim

SKU: 666561407230
Product:

Product

Elevate your downlighting with the VBD-MTR-6W Round LED Light Fixture Recessed Trim, adding a touch of sophistication that seamlessly complements your interior design and enhances your space's overall appeal. These trims are fully compatible with our VBD-TR Series Light engines (available separately), which offer a range of advanced features to meet your unique lighting needs.



  • Models No: VBD-MTR-6W
  • Trim Color: White
  • Trim Material: Aluminum
  • Trim Shape: Round
  • Pivot Trim: Yes
  • Light Source: VBD-TR Module Series
  • IC Rated: Yes



  • Mounting Plate (Sold Separately):
    VBD-MP-UNV-23345 SKU: 666561433802
    VBD-MP-UNV-346  SKU: 666561433796

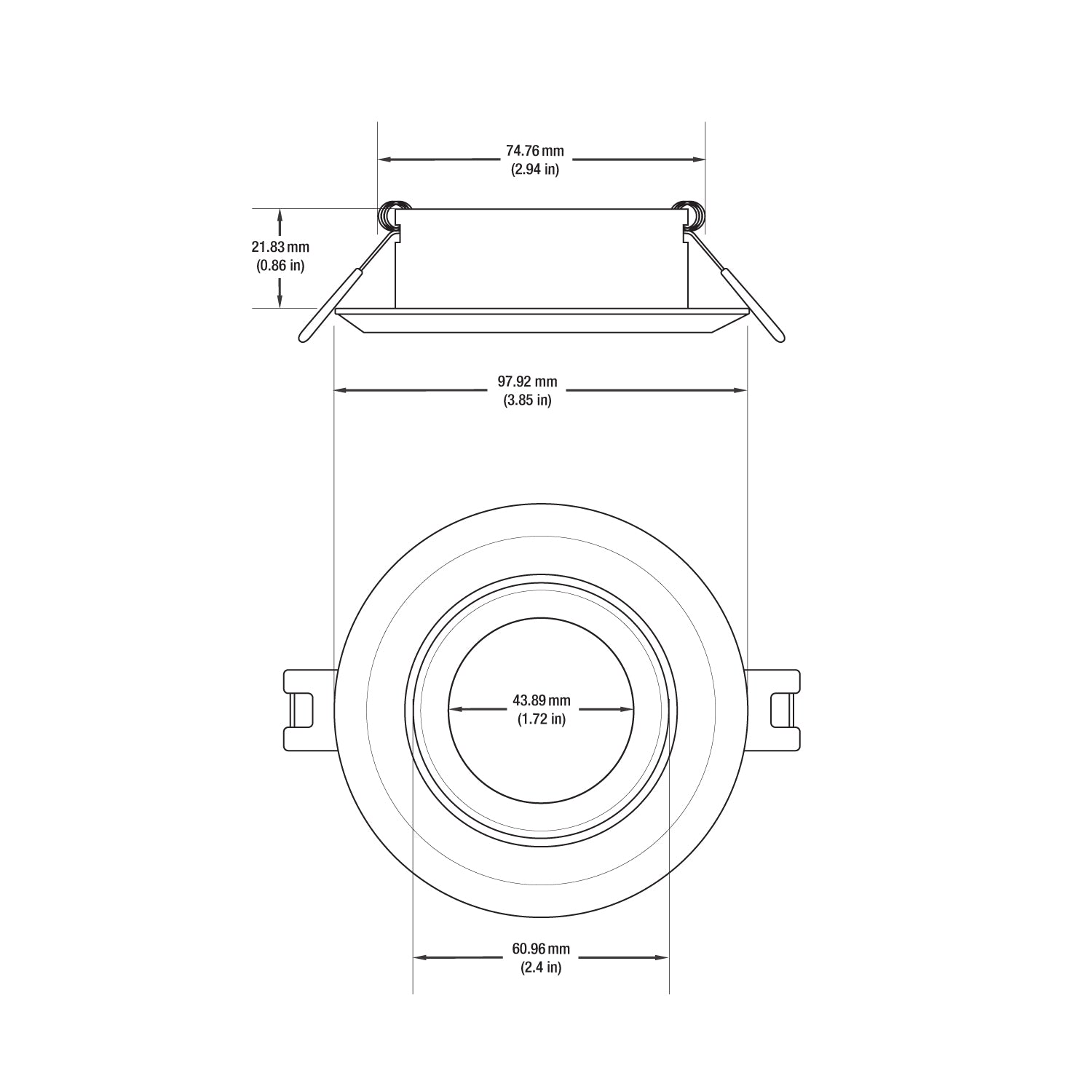

  • Dimensions: Ø97.60 mm (3.84 in)
  • Cut Size: Ø74.76 mm (3 in)
  • Depth: 21.83 mm (0.86 in)

Lumens

CCT →
Diffuser ↓

 2400K
(Sunset White) 		2700K
(Soft White) 		3000K
(Warm White) 		3500K
(Mid-Warm White) 		4000K
(Natural White) 		5000K
(Daylight)
Frosted Glass (FG) 380 Lm 400 Lm 430 Lm 450 Lm 470 Lm 500 Lm
Clear Lens (L) 450 Lm 480 Lm 520 Lm 550 Lm 580 Lm 600 Lm

Light Engine Models (Sold Separately)

Color Temperature  Diffuser SKU Model
  • 2400K (Sunset White)
 Frosted Glass (FG)
Clear Lens (L)		 666561428518
666561428464
 VBD-TR5-W-FG-24K
VBD-TR5-W-L-24K
  • 2700K (Soft White)
 Frosted Glass (FG)
Clear Lens (L)
 666561428525
666561428471
 VBD-TR5-W-FG-27K
VBD-TR5-W-L-27K
  • 3000K (Warm White)
 Frosted Glass (FG)
Clear Lens (L)
 666561428532
666561428488
 VBD-TR5-W-FG-30K
VBD-TR5-W-L-30K
  • 3500K (Mid-Warm White)
 Frosted Glass (FG)
Clear Lens (L)
 666561428549
666561428495
 VBD-TR5-W-FG-35K
VBD-TR5-W-L-35K
  • 4000K (Natural White)
 Frosted Glass (FG)
Clear Lens (L)
 666561428556
666561428501
 VBD-TR5-W-FG-40K
VBD-TR5-W-L-40K
  • 5000K (Daylight)
 Frosted Glass (FG)
Clear Lens (L)
 666561429997
666561429980
 VBD-TR5-W-FG-50K
VBD-TR5-W-L-50K
  • RGBW
 Frosted Glass (FG) 666561428457 VBD-TR4-FG-RGBW
