VBD-MTR-65T Low Voltage IC Rated Recessed Light Trim

VBD-MTR-65T Low Voltage IC Rated Recessed Light Trim

SKU: 666561407490
Product:

Product

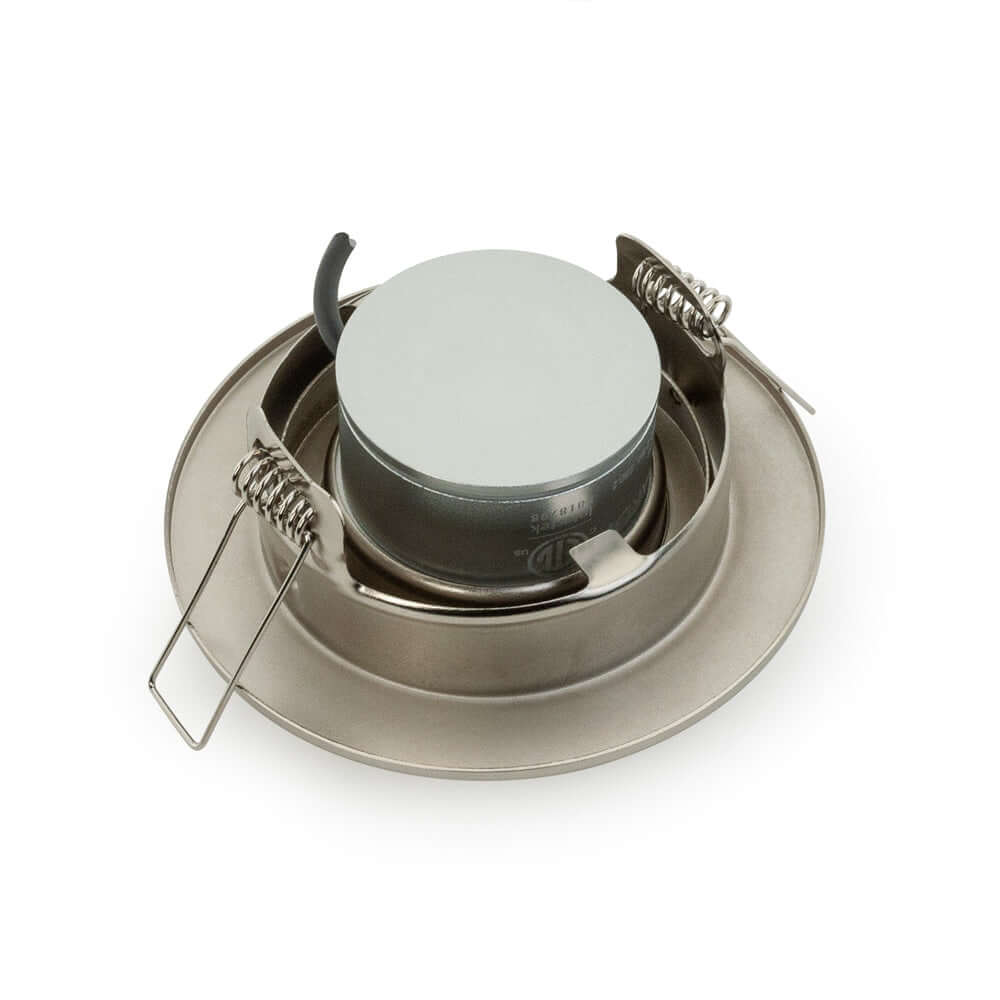

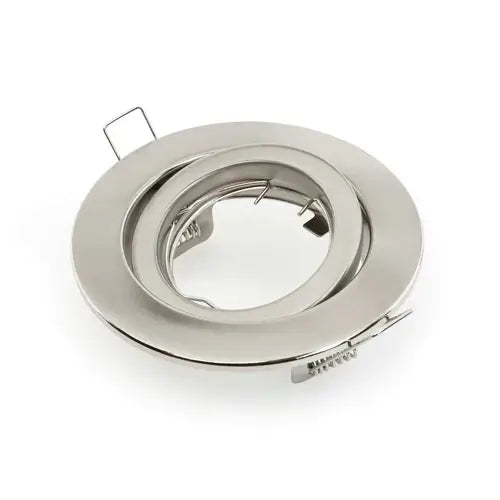

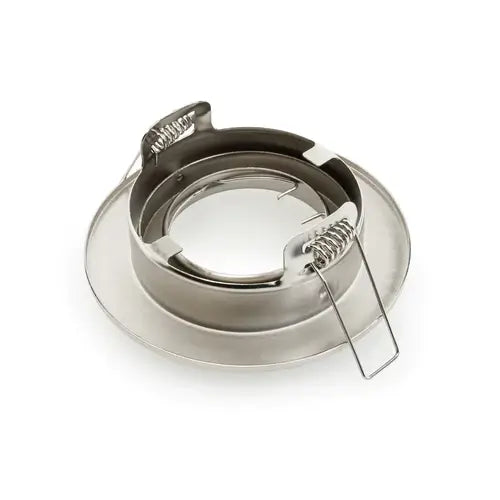

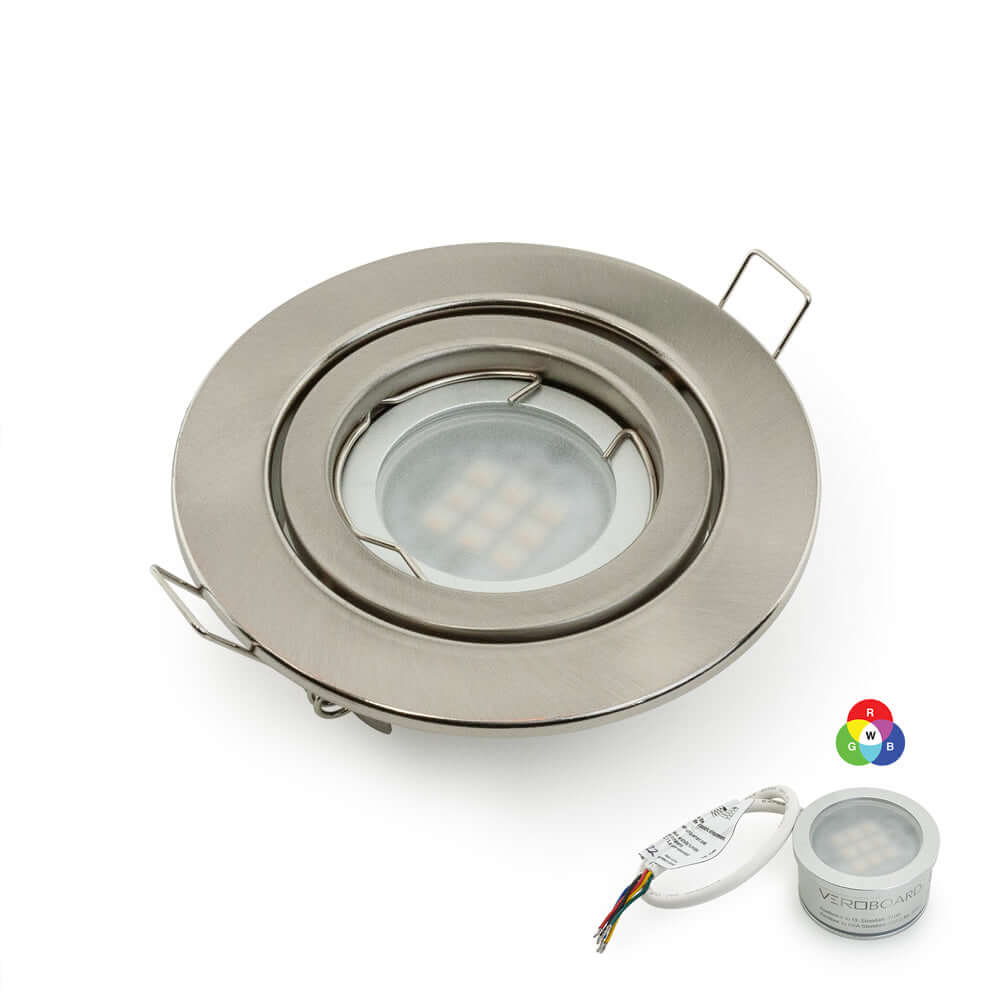

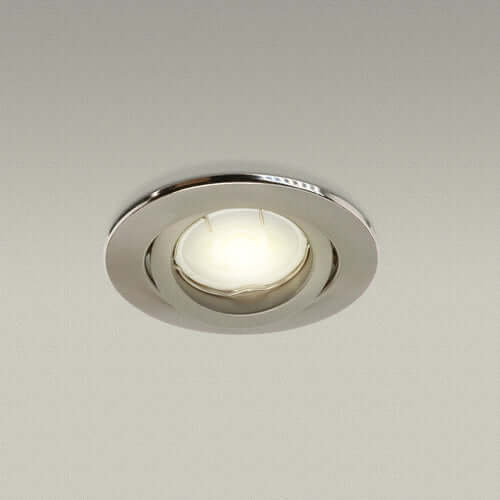

The VBD-MTR-65T Round LED Light Fixture Recessed Trim enhances your downlighting with a touch of sophistication, seamlessly complementing your interior design and elevating its overall appeal. This trim is designed for compatibility with our VBD-TR Series Light engines, which offer advanced features (available separately) to further enhance your lighting experience.



  • Models No: VBD-MTR-65T
  • Trim Color: Nickel Chrome
  • Trim Material: Aluminum
  • Trim Shape: Round
  • Pivot Trim: Yes

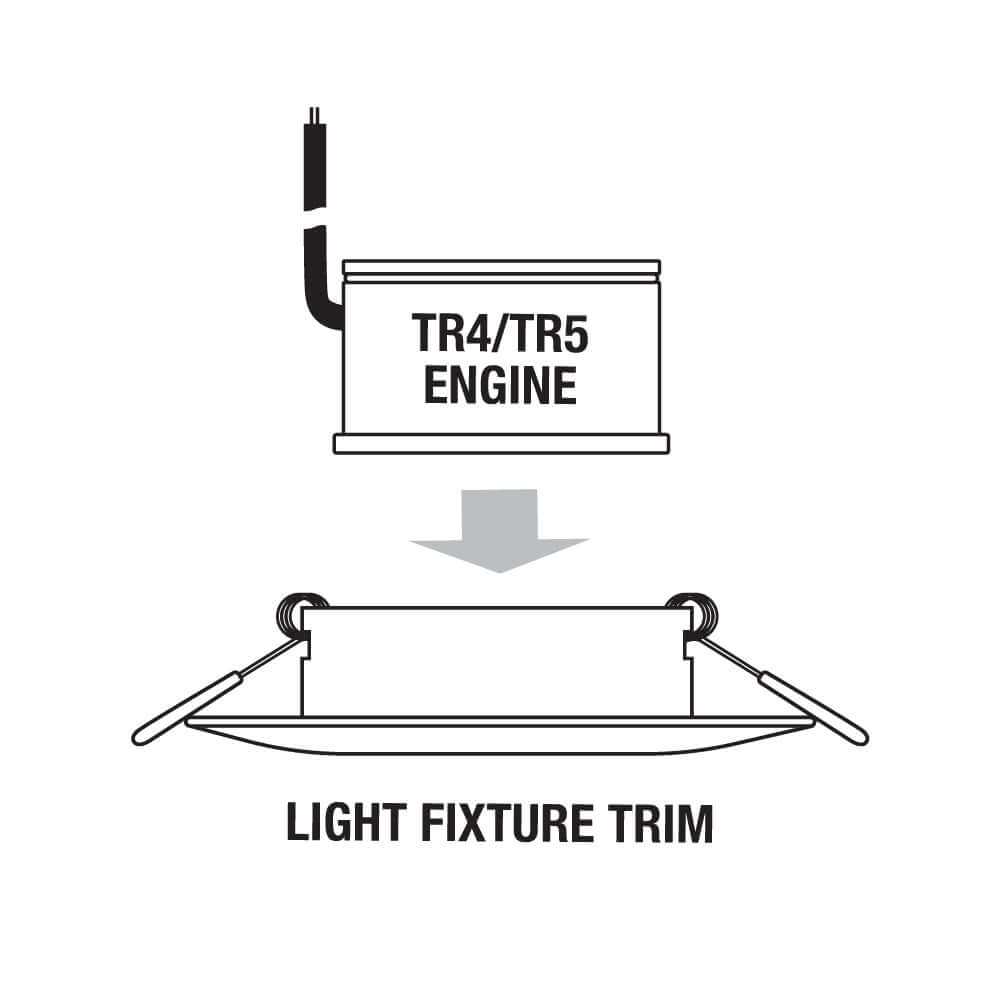

  • Light Source: VBD-TR Module Series
  • IC Rated: Yes
  • Mounting Plate (Sold Separately):
    VBD-MP-UNV-23345 SKU: 666561433802
    VBD-MP-UNV-346  SKU: 666561433796

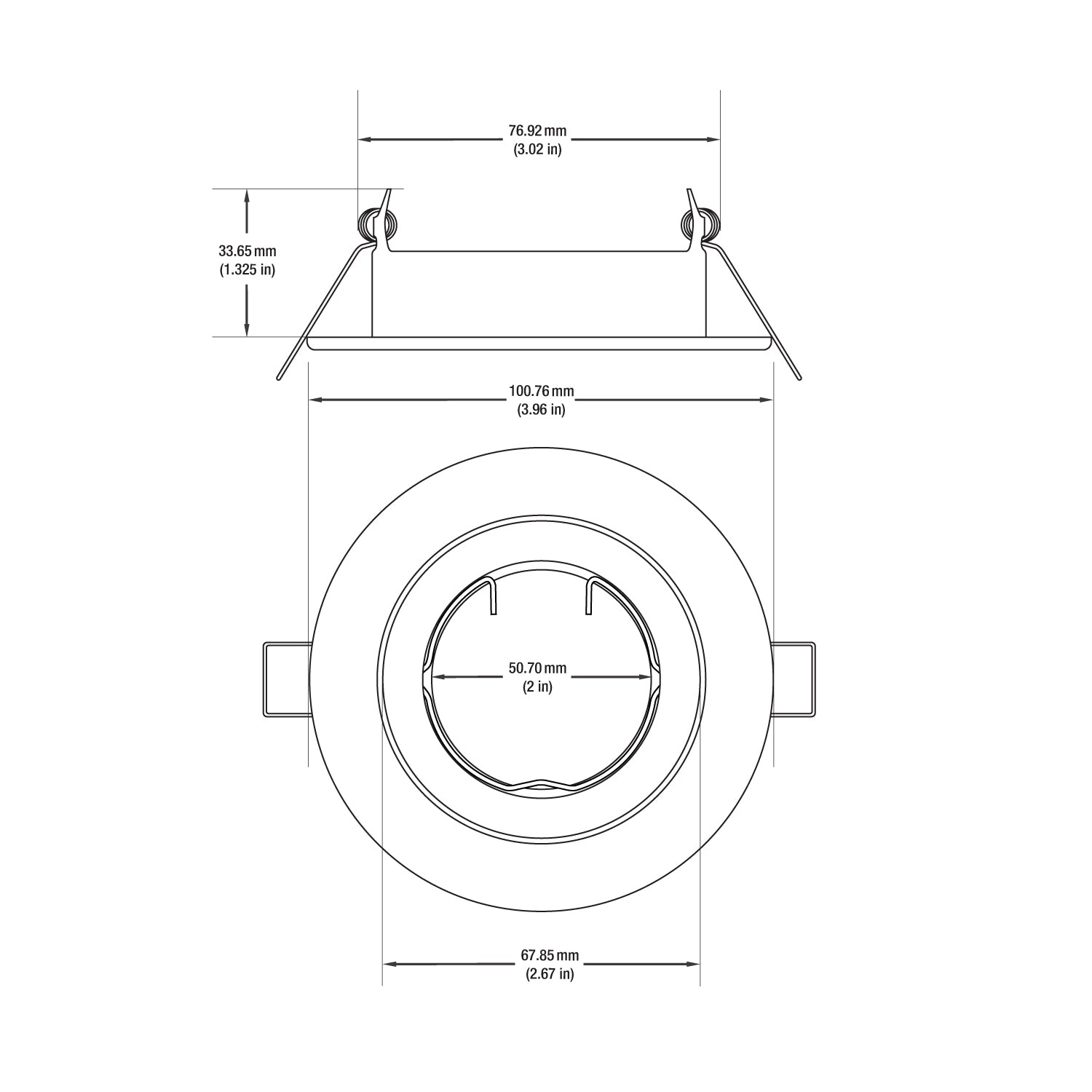

  • Dimensions: Ø100.76mm (3.96 in)
  • Cut Size: Ø76.92mm (3 in)
  • Depth: 33.65mm(1.32 in)

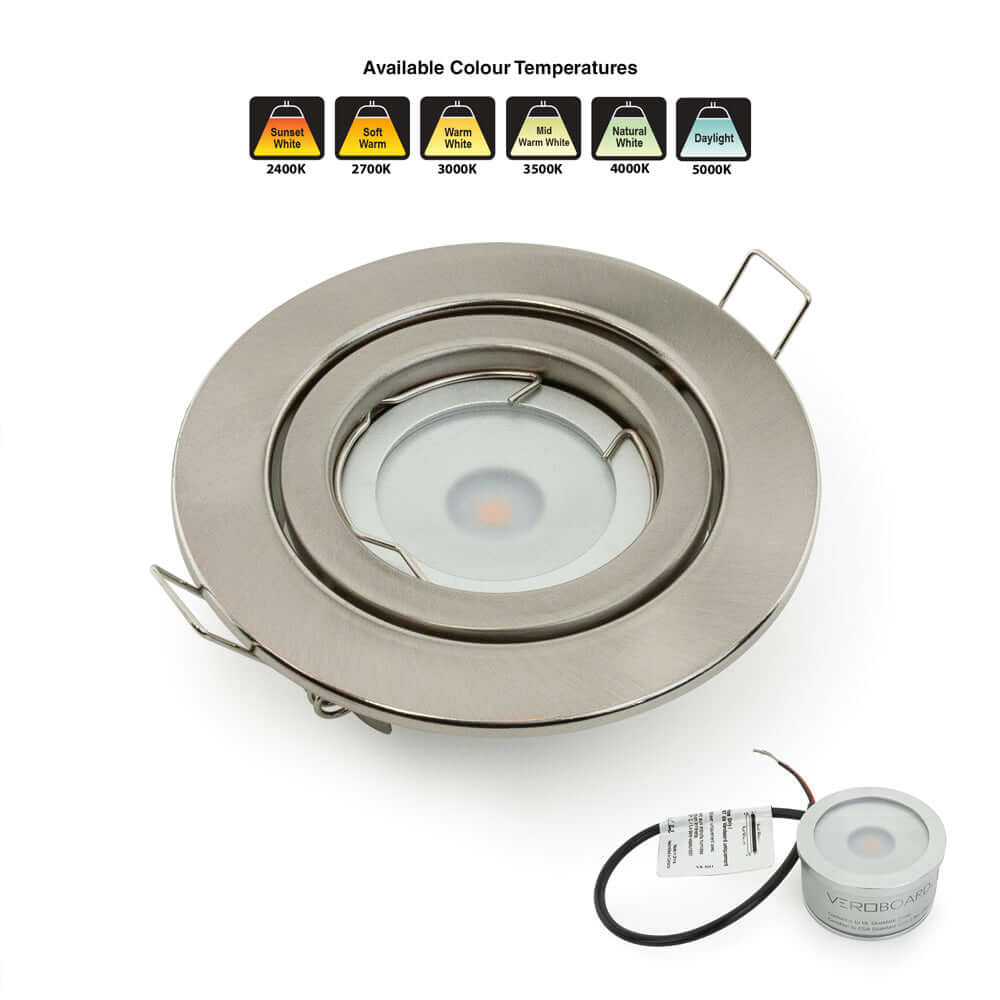

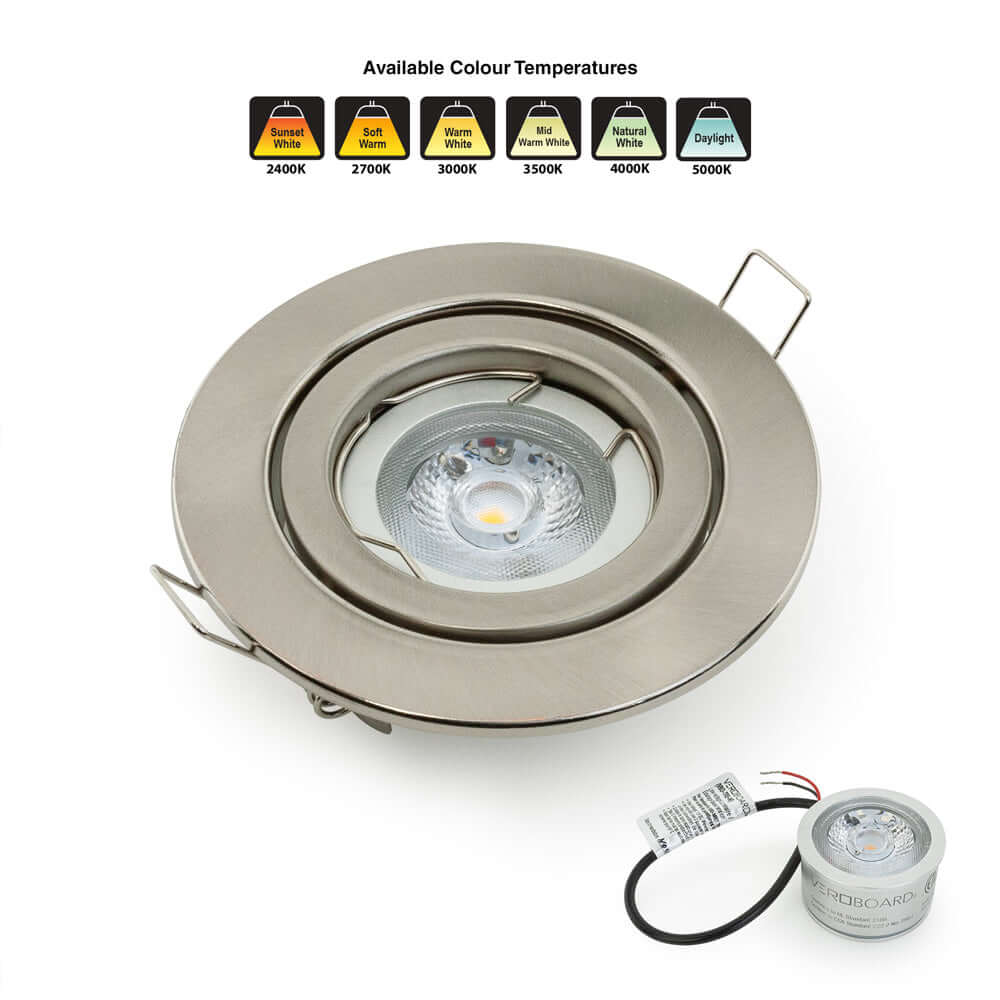

Lumens

CCT →
Diffuser ↓

 2400K
(Sunset White) 		2700K
(Soft White) 		3000K
(Warm White) 		3500K
(Mid-Warm White) 		4000K
(Natural White) 		5000K
(Daylight)
Frosted Glass (FG) 380 Lm 400 Lm 430 Lm 450 Lm 470 Lm 500 Lm
Clear Lens (L) 450 Lm 480 Lm 520 Lm 550 Lm 580 Lm 600 Lm

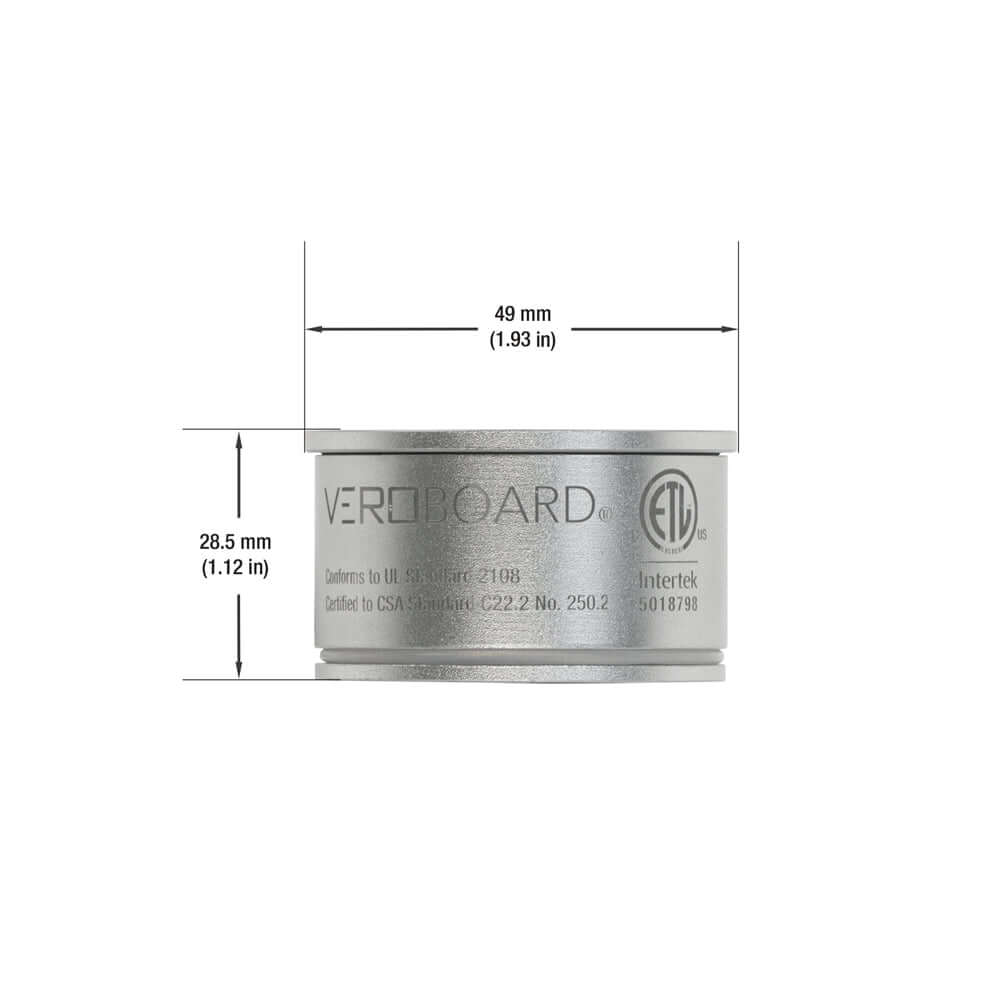

Light Engine Models (Sold Separately)

Color Temperature  Diffuser SKU Model
  • 2400K (Sunset White)
 Frosted Glass (FG)
Clear Lens (L)		 666561428518
666561428464
 VBD-TR5-W-FG-24K
VBD-TR5-W-L-24K
  • 2700K (Soft White)
 Frosted Glass (FG)
Clear Lens (L)
 666561428525
666561428471
 VBD-TR5-W-FG-27K
VBD-TR5-W-L-27K
  • 3000K (Warm White)
 Frosted Glass (FG)
Clear Lens (L)
 666561428532
666561428488
 VBD-TR5-W-FG-30K
VBD-TR5-W-L-30K
  • 3500K (Mid-Warm White)
 Frosted Glass (FG)
Clear Lens (L)
 666561428549
666561428495
 VBD-TR5-W-FG-35K
VBD-TR5-W-L-35K
  • 4000K (Natural White)
 Frosted Glass (FG)
Clear Lens (L)
 666561428556
666561428501
 VBD-TR5-W-FG-40K
VBD-TR5-W-L-40K
  • 5000K (Daylight)
 Frosted Glass (FG)
Clear Lens (L)
 666561429997
666561429980
 VBD-TR5-W-FG-50K
VBD-TR5-W-L-50K
  • RGBW
 Frosted Glass (FG) 666561428457 VBD-TR4-FG-RGBW
