VBD-MTR-17C Low Voltage IC Rated Recessed Light Trim

VBD-MTR-17C Low Voltage IC Rated Recessed Light Trim

SKU: 666561407070
Product:

Product

Elevate your downlighting with the VBD-MTR-17C Round LED Light Fixture Recessed Trim, designed to infuse sophistication into your space. These trims add an intricate touch of class while seamlessly matching your interior design, enhancing the overall aesthetic appeal. The VBD-MTR-17C is fully compatible with our VBD-TR Series Light engines, available separately, which offer a range of advanced features to cater to your specific lighting needs.


  • Models No: VBD-MTR-17C
  • Trim Color: Polished Chrome
  • Outer Ring Color: White
  • Trim Material: Aluminum
  • Trim Shape: Round
  • Pivot Trim: No
  • Light Source: VBD-TR Module Series
  • IC Rated: Yes
  • Mounting Plate (Sold Separately):
    VBD-MP-UNV-23345 SKU: 666561433802

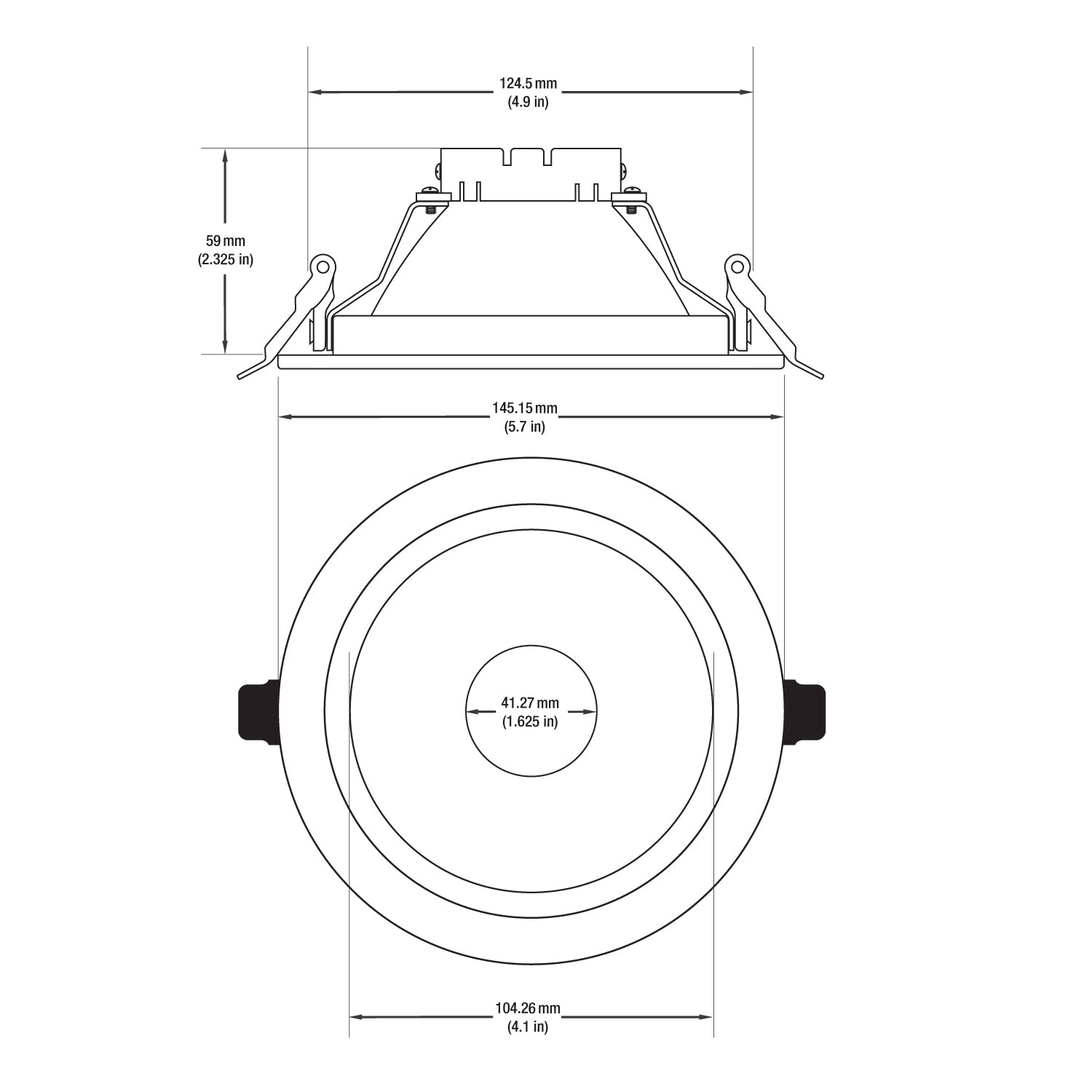

  • Dimensions: Ø145.15mm (5.7 in)
  • Cut Size: Ø124.5mm (5 in)
  • Depth: 59mm (2.3 in)

Light Engine Models (Sold Separately)

Color Temperature  Diffuser SKU Model
  • 2400K (Sunset White)
Frosted Glass (FG)
Clear Lens (L)
666561428518
666561428464

VBD-TR5-W-FG-24K
VBD-TR5-W-L-24K
  • 2700K (Soft White)
Frosted Glass (FG)
Clear Lens (L)
666561428525
666561428471

VBD-TR5-W-FG-27K
VBD-TR5-W-L-27K
  • 3000K (Warm White)
Frosted Glass (FG)
Clear Lens (L)
666561428532
666561428488

VBD-TR5-W-FG-30K
VBD-TR5-W-L-30K
  • 3500K (Mid-Warm White)
Frosted Glass (FG)
Clear Lens (L)
666561428549
666561428495

VBD-TR5-W-FG-35K
VBD-TR5-W-L-35K
  • 4000K (Natural White)
Frosted Glass (FG)
Clear Lens (L)
666561428556
666561428501

VBD-TR5-W-FG-40K
VBD-TR5-W-L-40K
  • 5000K (Daylight)
Frosted Glass (FG)
Clear Lens (L)
666561429997
666561429980

VBD-TR5-W-FG-50K
VBD-TR5-W-L-50K
  • RGBW
Frosted Glass (FG) 666561428457 VBD-TR4-FG-RGBW
