VBD-LR-2P Wire to Wire Connector

SKU: 666561426248

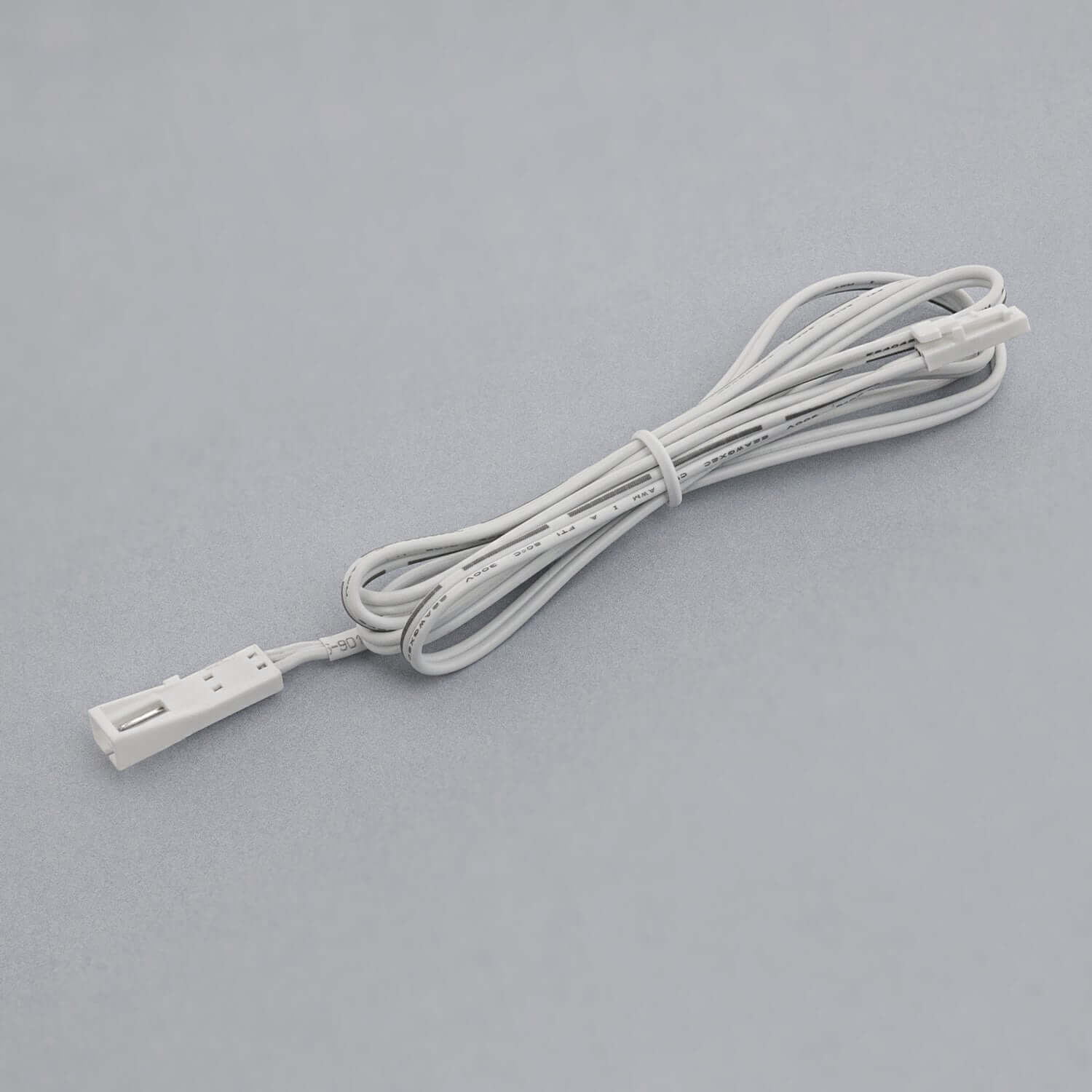

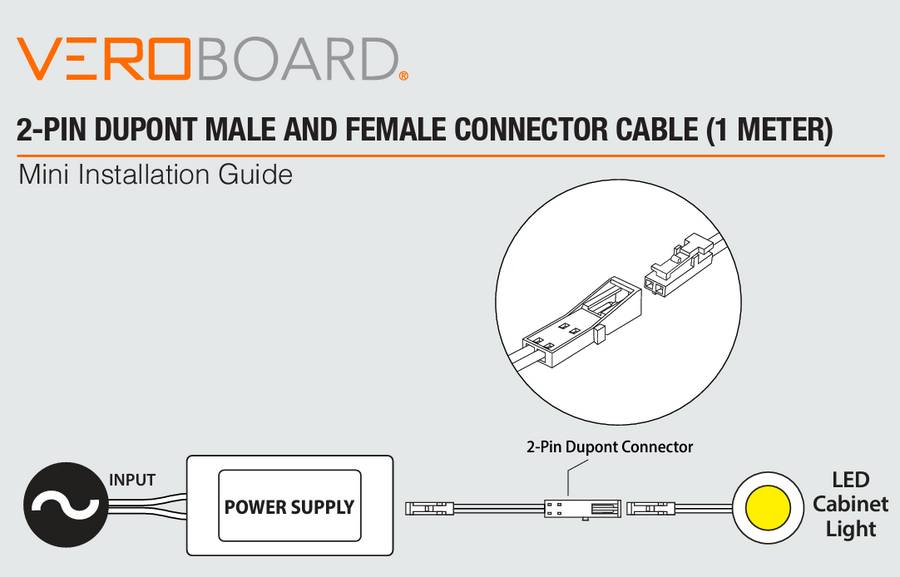

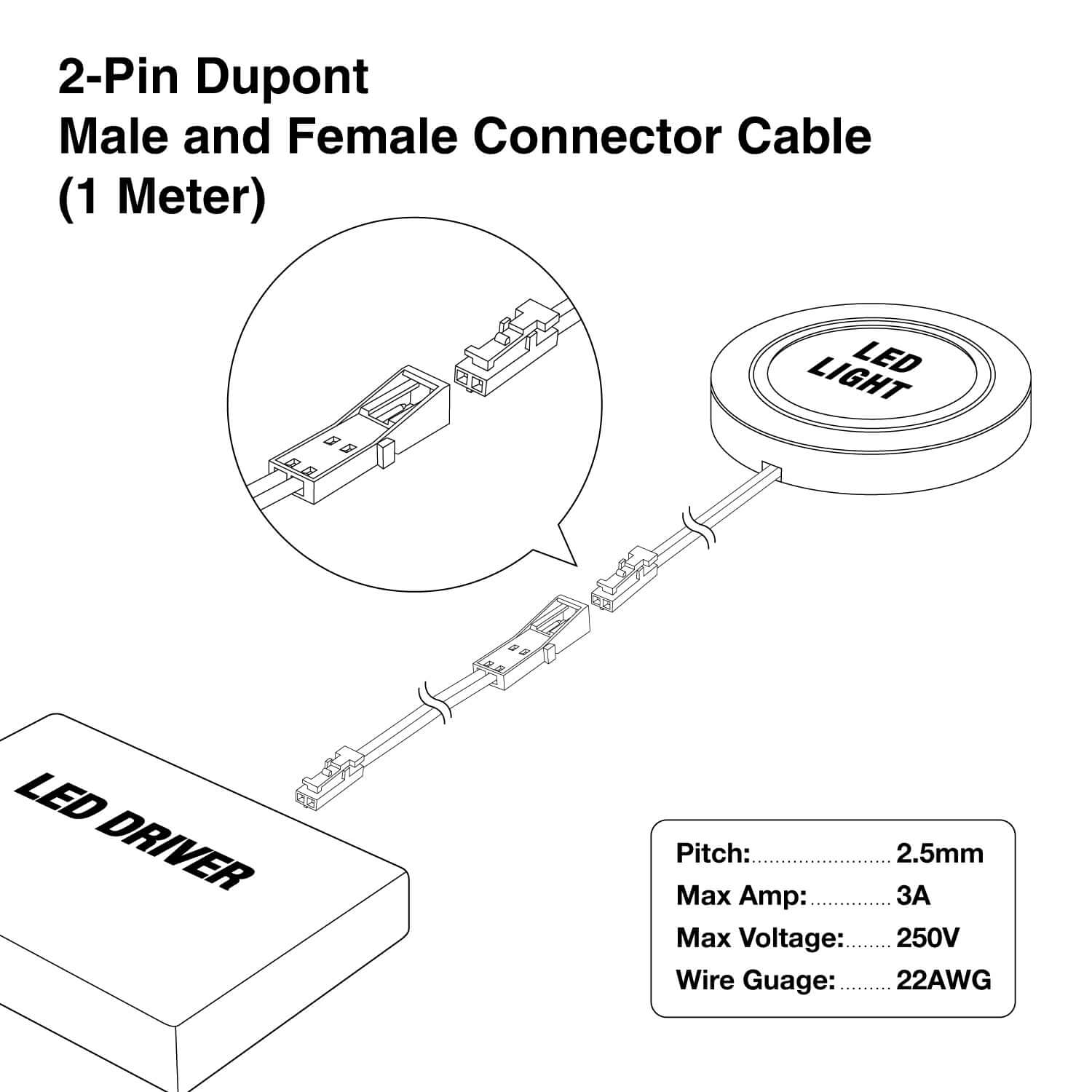

VBD-LR-2P Wire to Wire Connector with Voltage Rating: 250V, Current Rating 3A max, Port Type 2-pin Dupont Port/ 2-pin JST, The male and female connectors are connected with a 1-meter length cable, thereby acting as an extension when needed. They are specially designed for LED cabinet lights that come with a DuPont connector terminal.


  • Model No: VBD-LR-2P
  • Voltage Rating: 250V
  • Current Rating: 3A max
  • Pitch: 2.54mm (0.100 in)

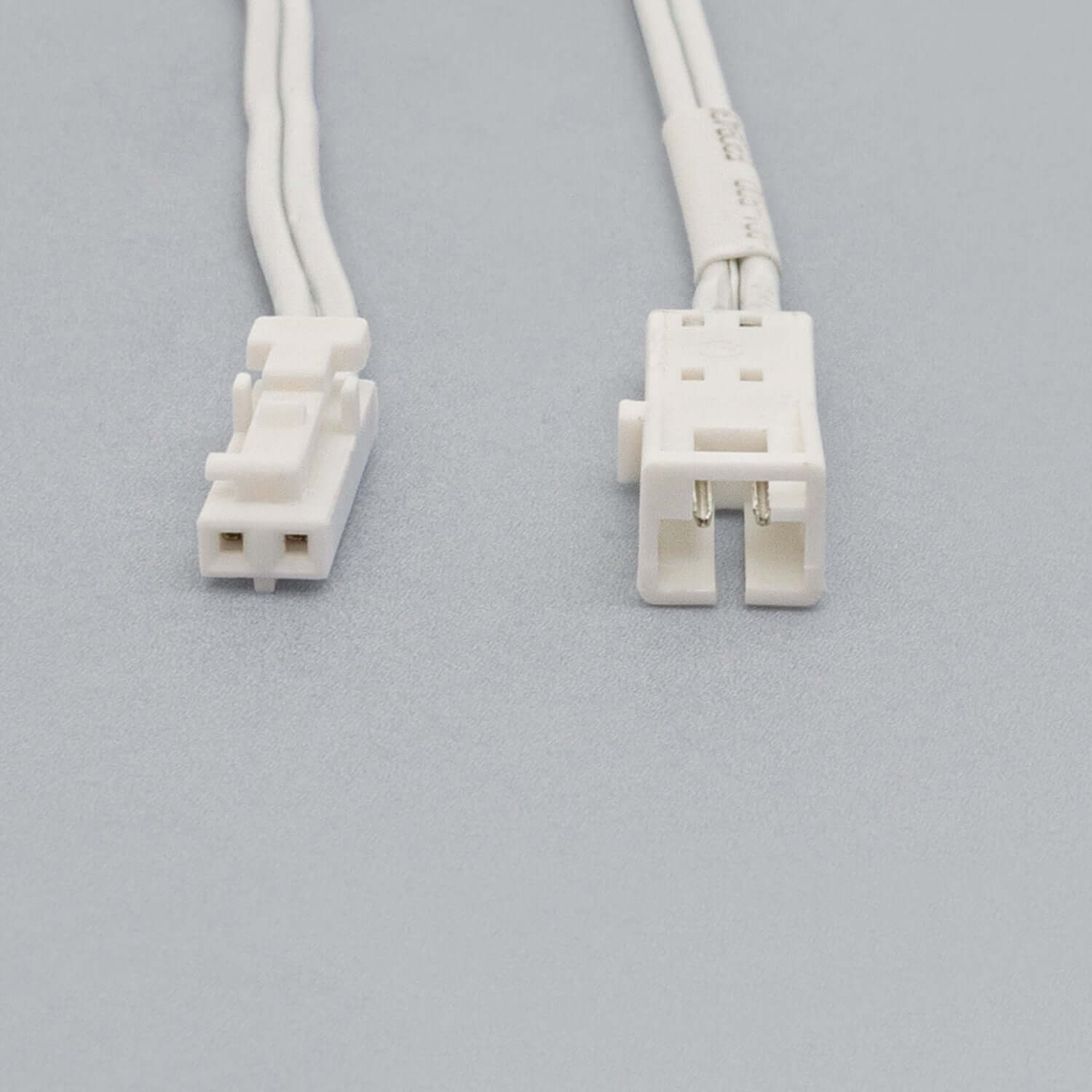

  • Port Type: 2-pin Dupont Port/ 2-pin JST
  • Type: ale to Female 2-pin Dupont/ 2-pin JST Connector
  • Category: Wire to Wire Connector
  • Fastening Type: Locking Ramp
  • Material: PVC (Plastic)
  • Color: White
  • Wire Length: 39 inch (1 Meter)
  • Wire Gauge: 22AWG
  • Certificate: RoHS
