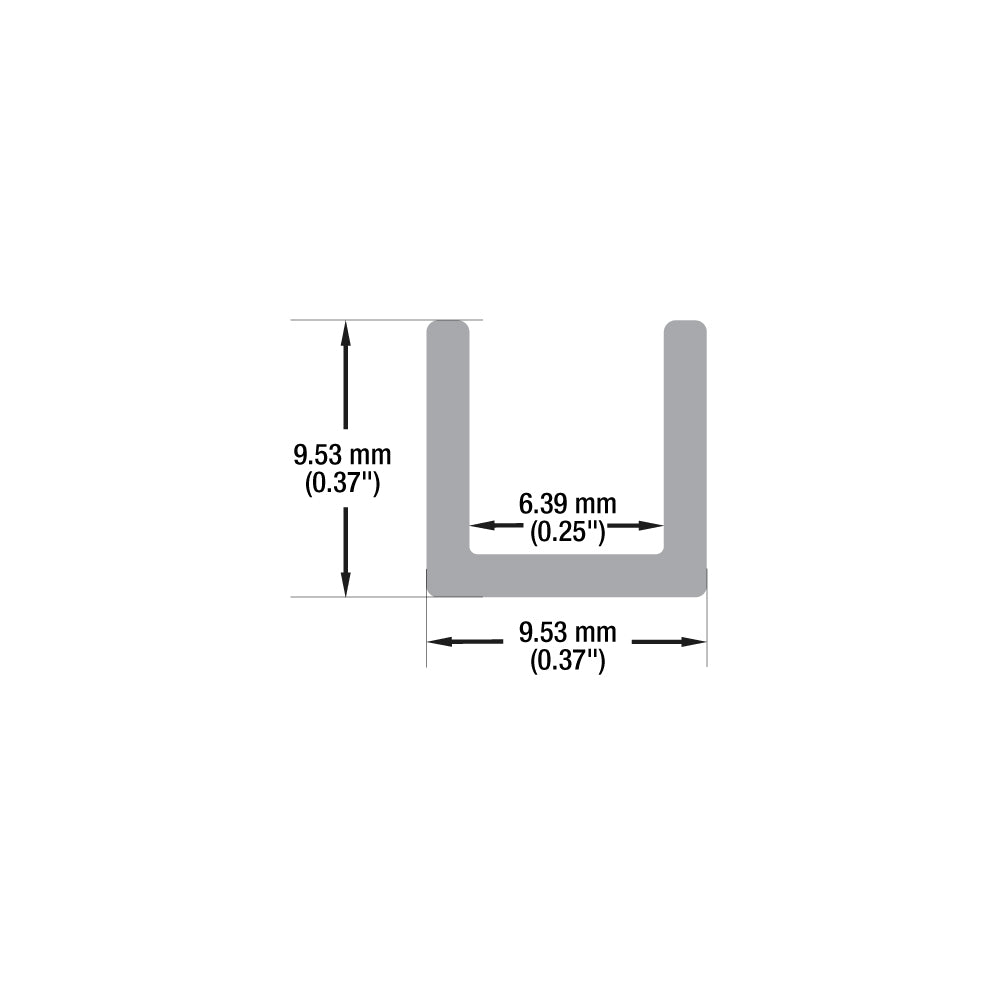

The VBD-CH-U1 is an anodized aluminum U channel available in three different dimensions: 3000 x 9.53 x 9.53mm (118 x 0.37 x 0.37in), 2400 x 9.53 x 9.53mm (94.4 x 0.37 x 0.37in), and 2000 x 9.53 x 9.53mm (78.7 x 0.37 x 0.37in). The product is also available in a 5/8-inch width and is sold in custom sizes per foot. The channel can be cut using a regular hacksaw and is corrosion-free.
This channel is designed to act as a heat sink for brighter (high-watt) LED strips with a compatible LED strip width of up to 6 mm. It does not come with a diffuser and is applicable for sticking outdoor-rated LED Great wall having inner width less than 0.5 inches. The channel projects light vertically and is applicable for use in heat sinking the flexible LED Great wall installed in it, increasing its lifetime.
The VBD-CH-U1 is surface-mounted and is used for sticking the LED strip lights for heat dissipation. If you have any queries regarding this product or any other products, you can contact the manufacturer for guidance.
