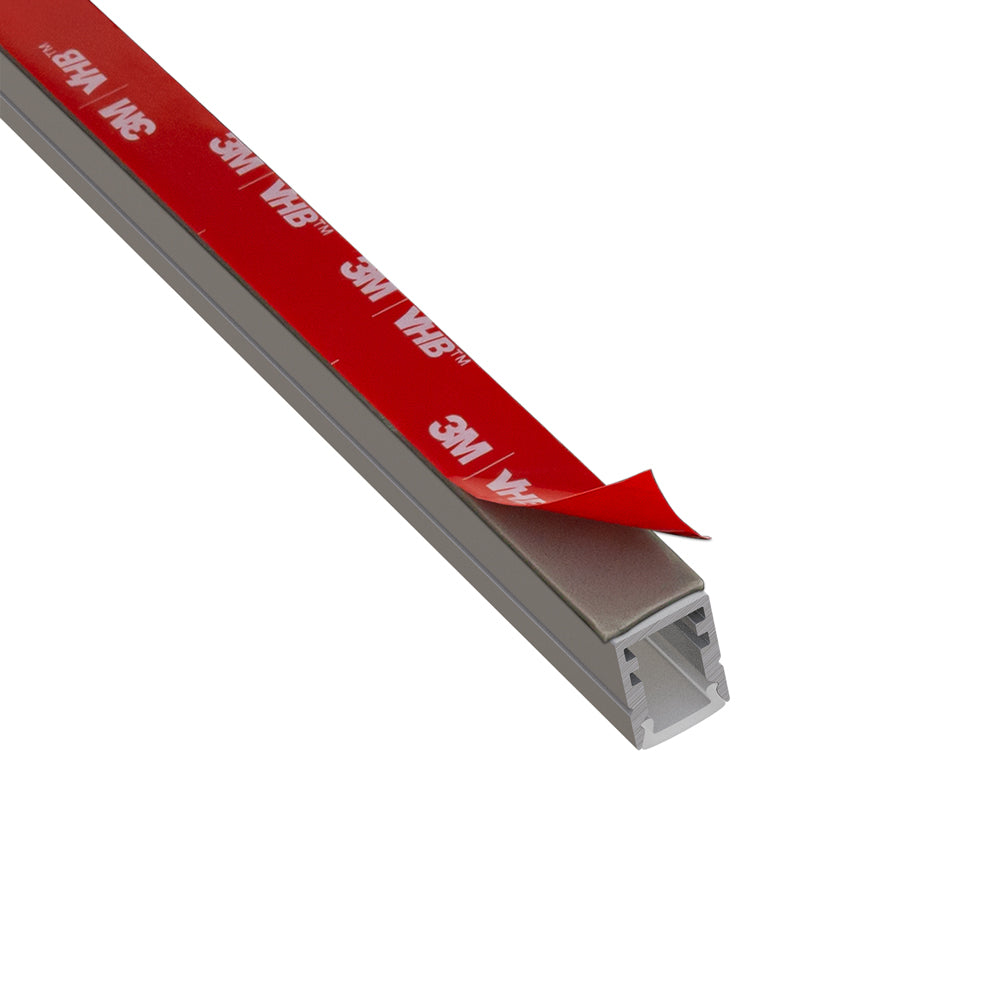

VBD-CH-S9 LED Aluminum Channel 2.4Meters(94.4in) and 3Meters(118in)
VBD-CH-S9 LED Aluminum Channel/Profile 2.4Meters(94.4in) and 3Meters(118in),can be used for applications such as cabinets, shelves, closets, ceiling, accent lighting, showcases in the stores, etc. These are popular channels for preventing any visible spots of the LED strip and provides a good surface finish for flush mount Installation.
*Available in 2.4 Meters (94.4 inch) and 3 Meters (118 inch) *Full 3-meter(118inch) lengths are limited to delivery within BC ONLY
Model No: VBD-CH-S9
Colour: Silver Grey
Diffuser Type: Frosted
Diffuser Material: Polycarbonate (PC)
Dimensions: 3000 x 13.45 x 10mm (118 x 0.52 x 0.39in) 2400 x 13.45 x 10mm (94.4 x 0.52 x 0.39in) * Depends on Place of Delivery

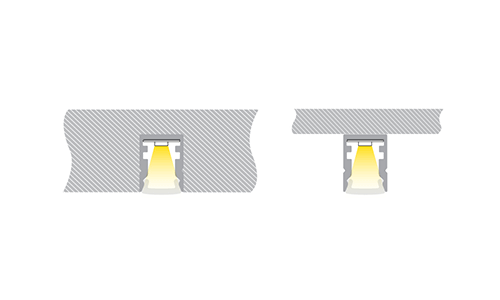

The VBD-CH-S9 LED Aluminum Channel is a surface mount profile designed to provide a flush and polished installation for LED strip lights. The channel comes in two lengths, 2.4 meters (94.4 inches) and 3 meters (118 inches), and is made from high-quality aluminum with a silver grey finish. The diffuser type is frosted, and the diffuser material is polycarbonate (PC), which ensures even light distribution and prevents any visible spots of the LED strip.
The dimensions of the channel are 3000 x 13.45 x 10mm (118 x 0.52 x 0.39in) for the 3-meter length and 2400 x 13.45 x 10mm (94.4 x 0.52 x 0.39in) for the 2.4-meter length. The channel is compatible with LED strips up to 8mm in width and comes with end caps (1 pair) included. The installation method is surface mount, and additional end caps (VBD-ENCH-S9) are available for purchase separately.
This LED aluminum channel is ideal for a variety of applications, such as cabinets, shelves, closets, ceilings, accent lighting, and showcases in stores. It provides a sleek and professional finish for your LED strip lighting, while also protecting the LED strips and extending their lifespan.
