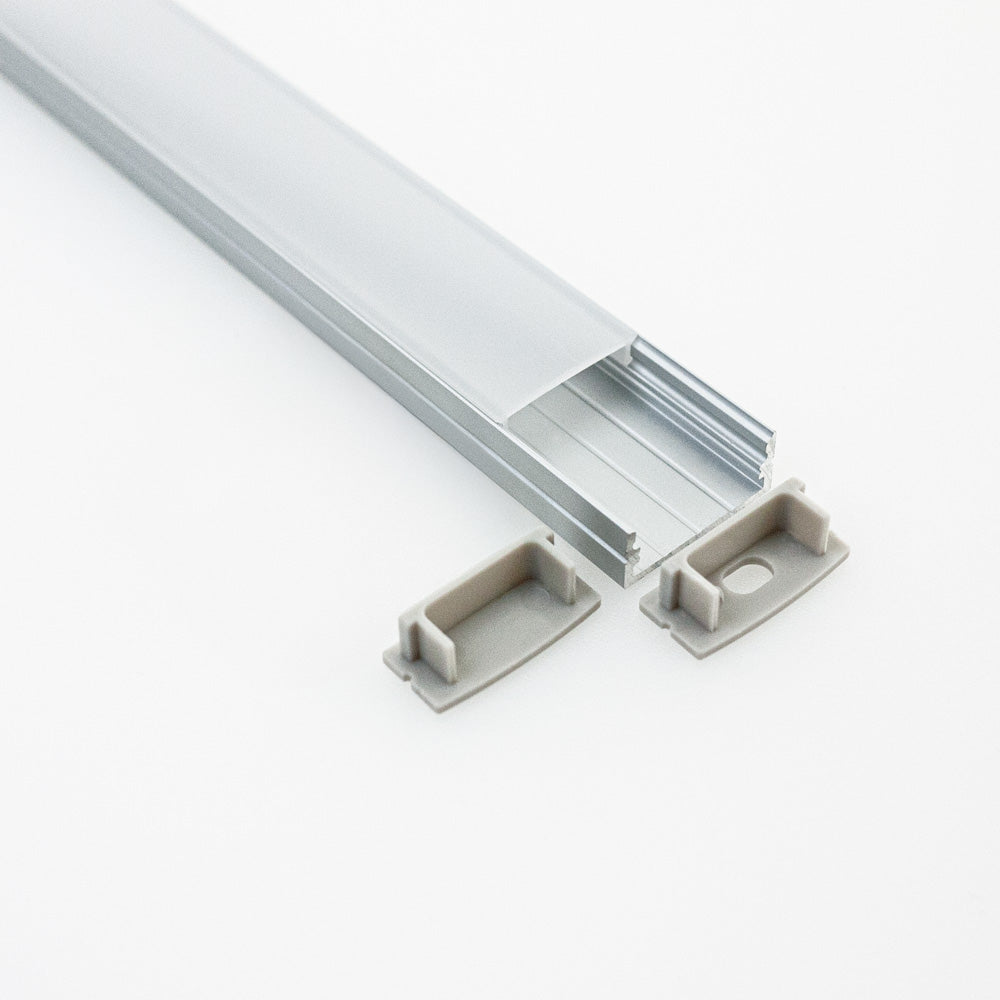

The VBD-CH-S6 LED Aluminum Channel is an anodized aluminum profile that comes in three sizes: 2000mm (78.7 inches), 2400mm (94.4 inches) and 3000mm (118 inches) in length, and has a width of 23.45mm and a height of 10.6mm. The channel is compatible with LED strips that are up to 20mm in width, and comes with a frosted opal diffuser that helps to reduce light glare and protect the LED strip from dust and damage. The end caps that come with the channel have wiring holes and can be easily mounted at the end of the project.
This channel can be used for a variety of indoor/outdoor projects, including cabinets, shelves, closets, ceilings, and showcases in stores. It can be cut using a regular hack saw, and several lengths can be positioned together. The channel acts as a heat sink for the LED strip, which helps to increase the lifetime of the LEDs.

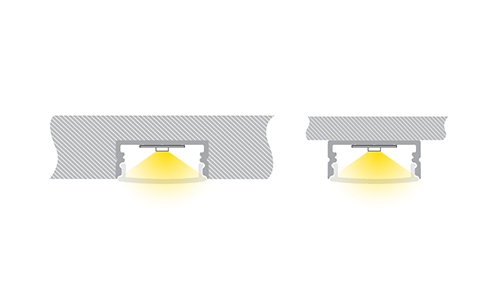

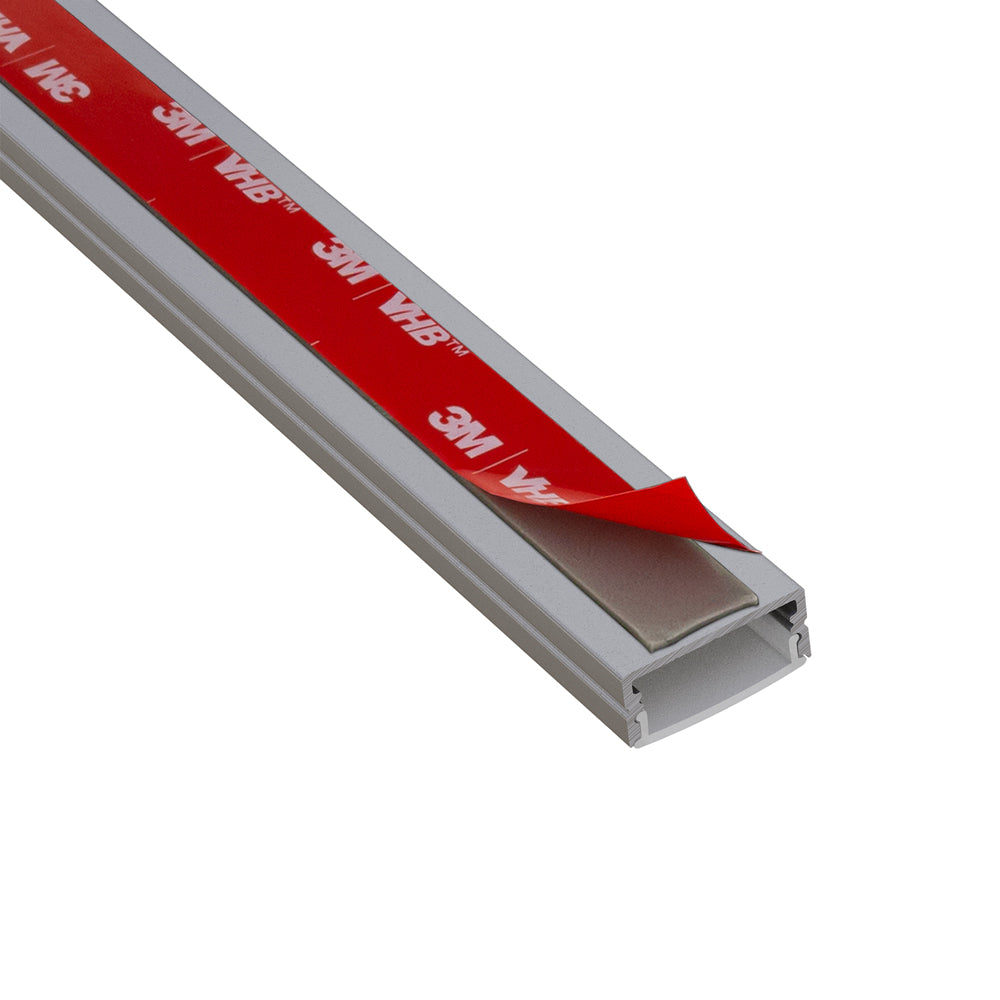

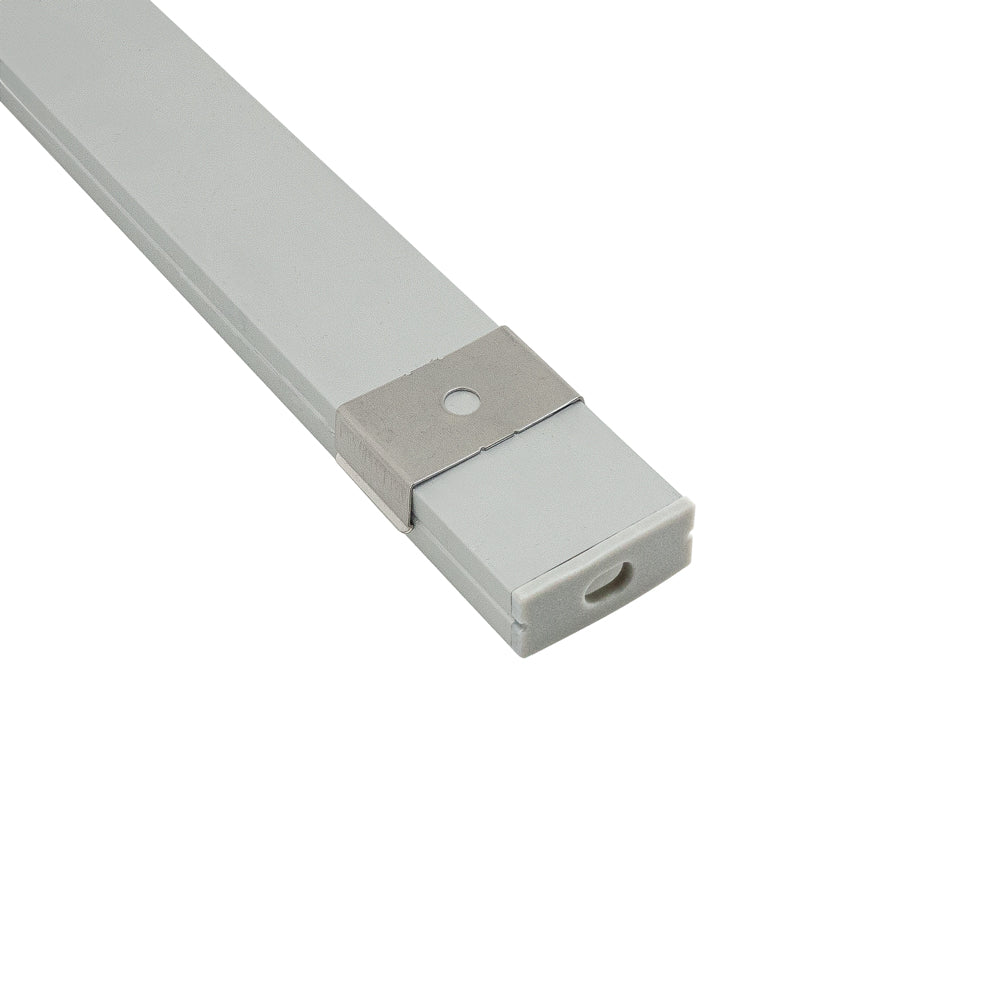

The VBD-CH-S6 can be recessed in a groove or mounted onto the surface using double-sided tape or screws. The channel comes with end caps, but additional accessories such as mounting clips, adjustable brackets, and extra end caps can be purchased separately.
