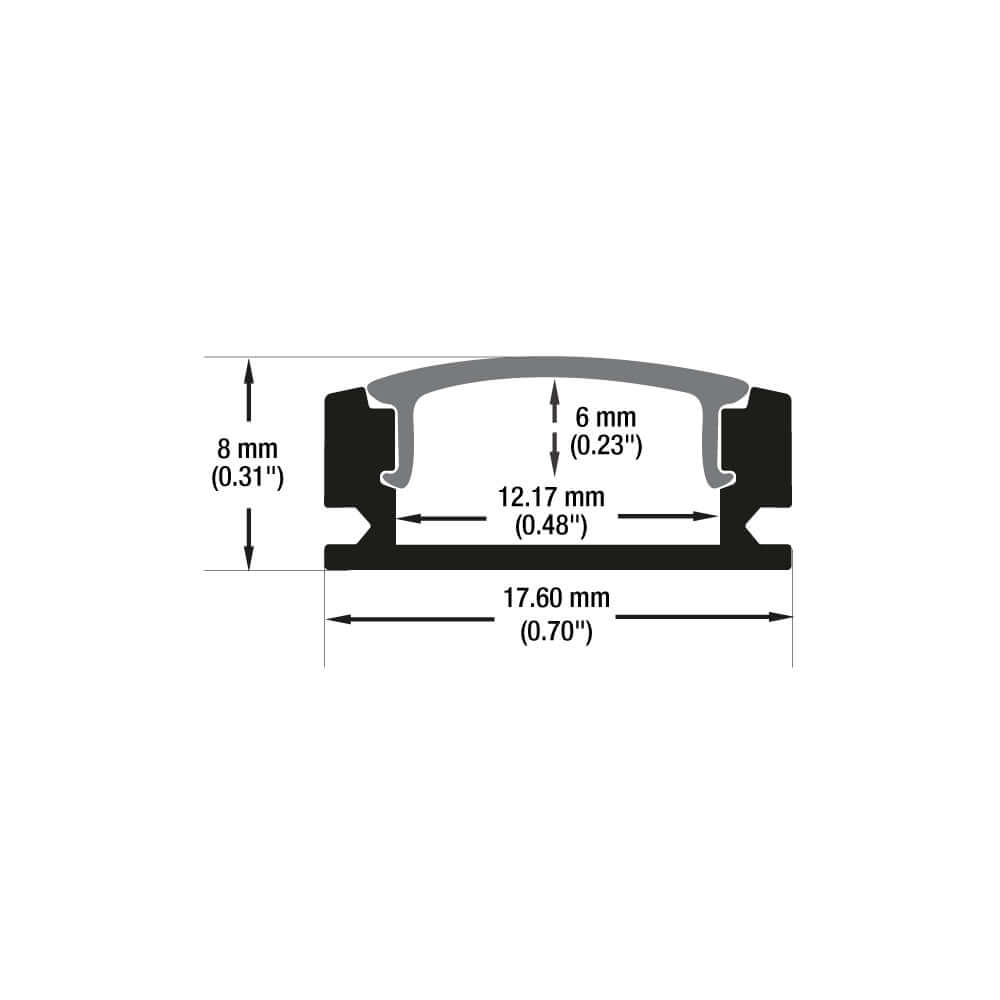

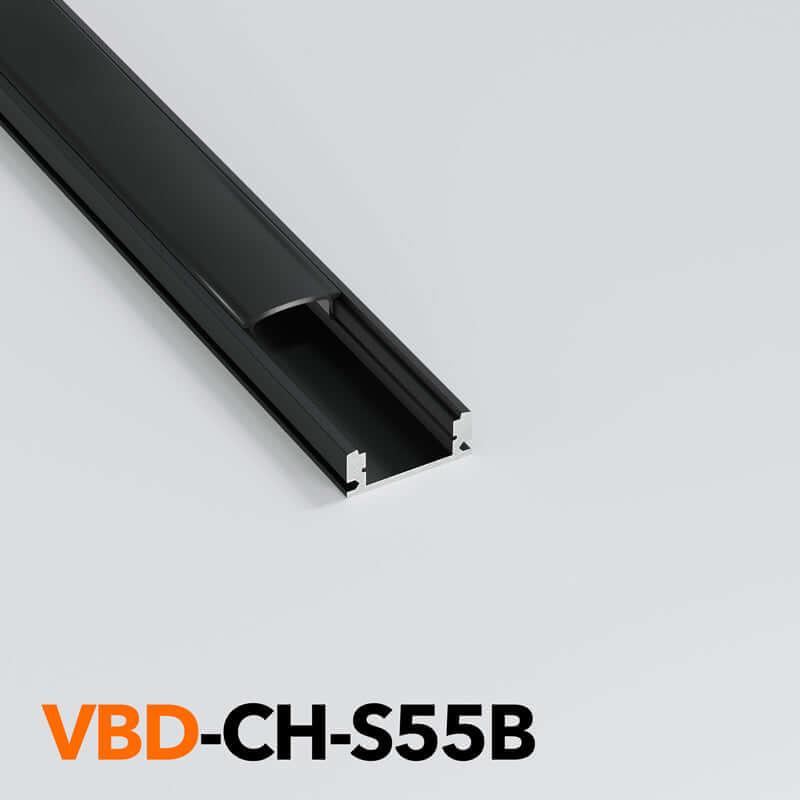

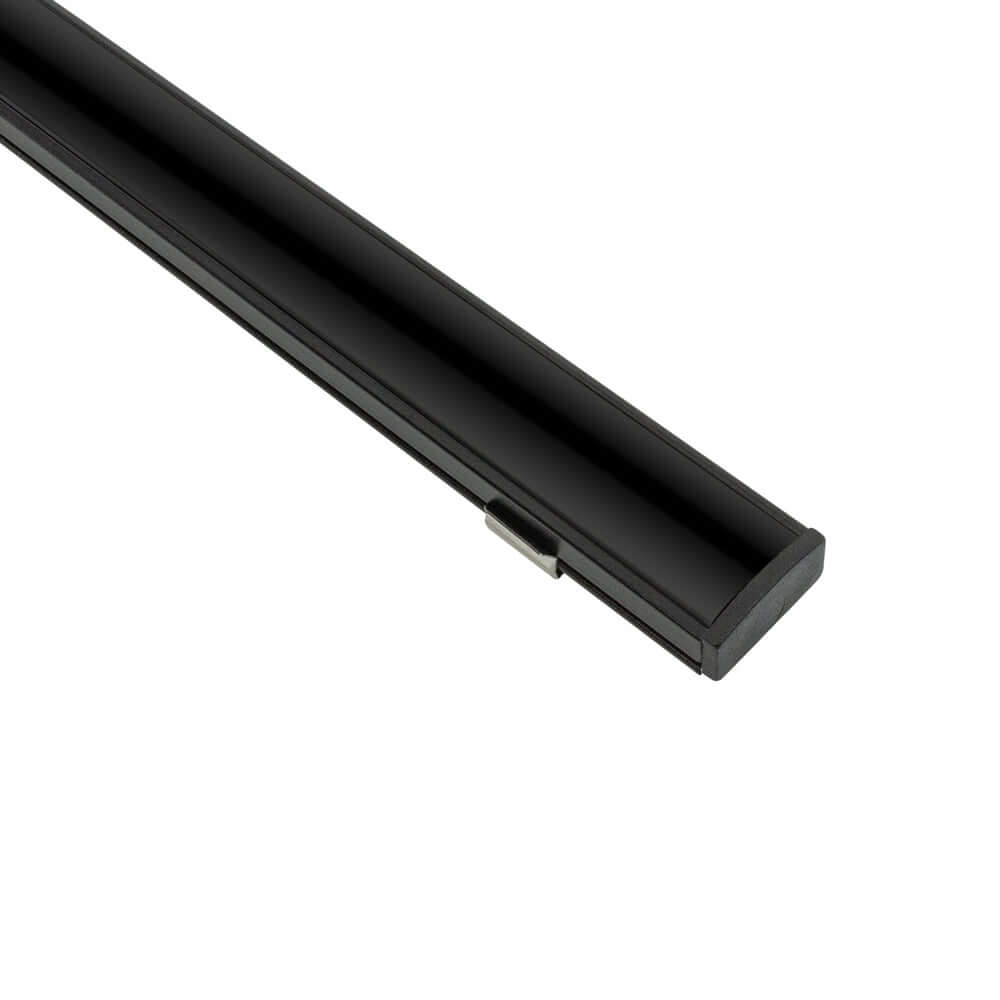

The VBD-CH-S55B is a black LED aluminum channel that comes in two sizes: 2.4 meters (94.4 inches) and 3 meters (118 inches). It is made of anodized aluminum and has a frosted polycarbonate (PC) diffuser that helps to reduce light glare and protect the LEDs from dust and damage. The dimensions of the VBD-CH-S55B are 3000 x 17.6 x 8mm (118 x 0.69 x 0.31in) and 2400 x 17.6 x 8mm (94.4 x 0.69 x 0.31in), and it is compatible with LED strip widths up to 12mm.

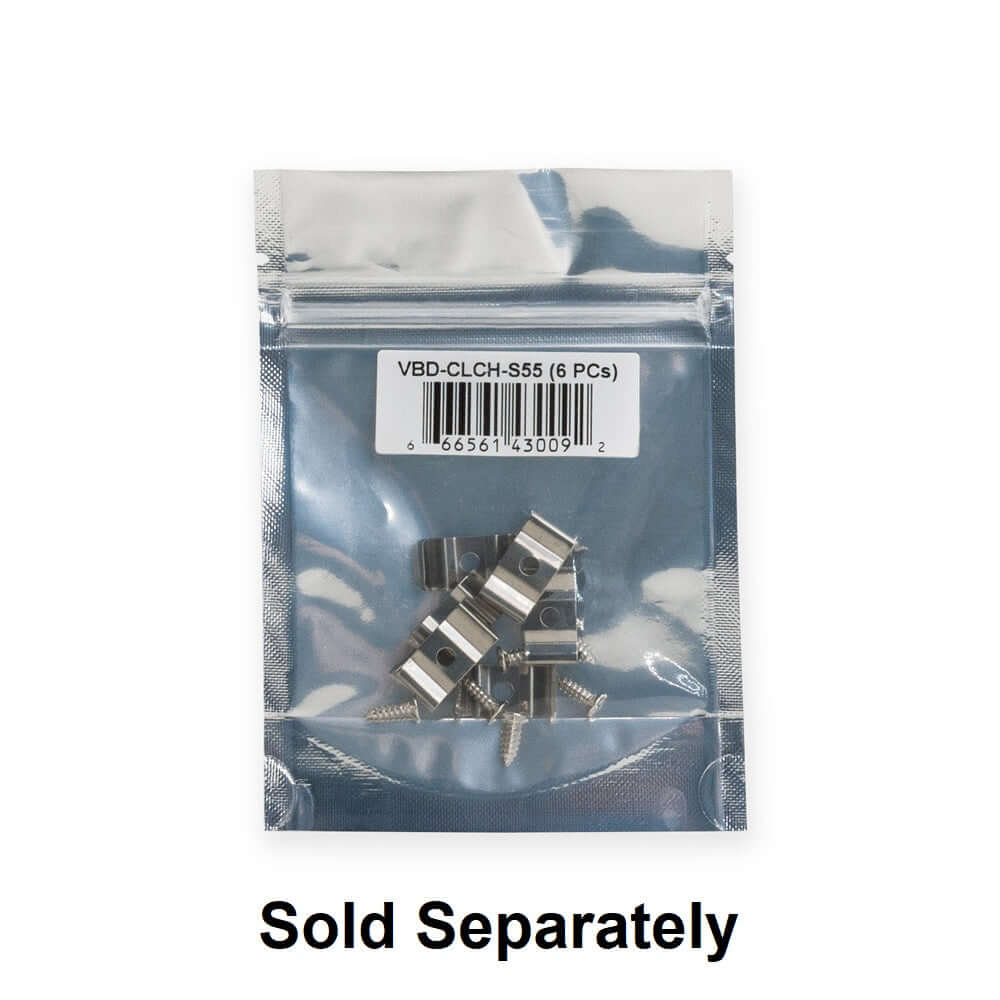

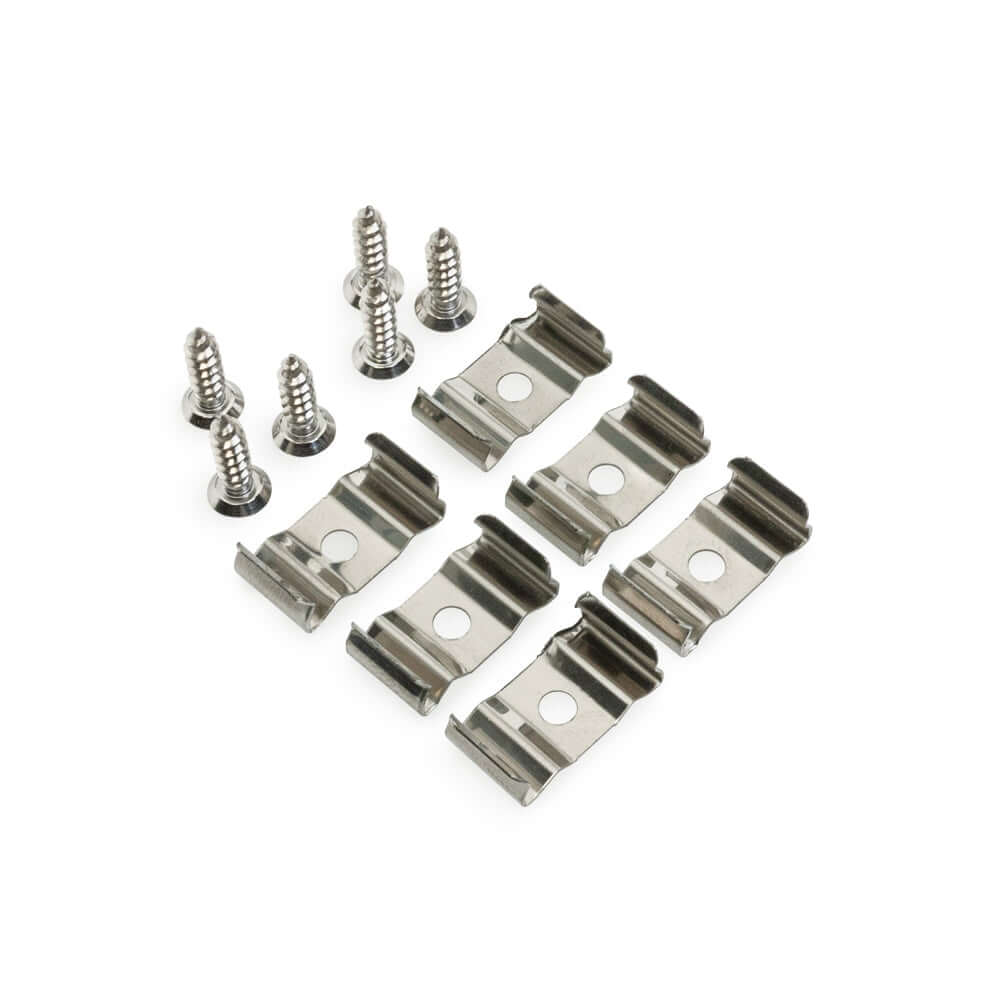

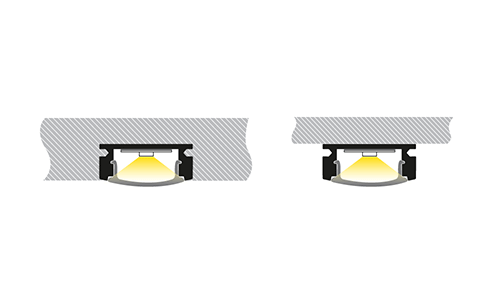

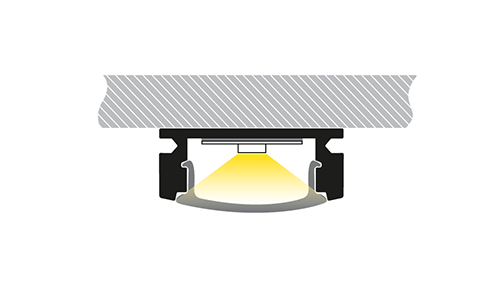

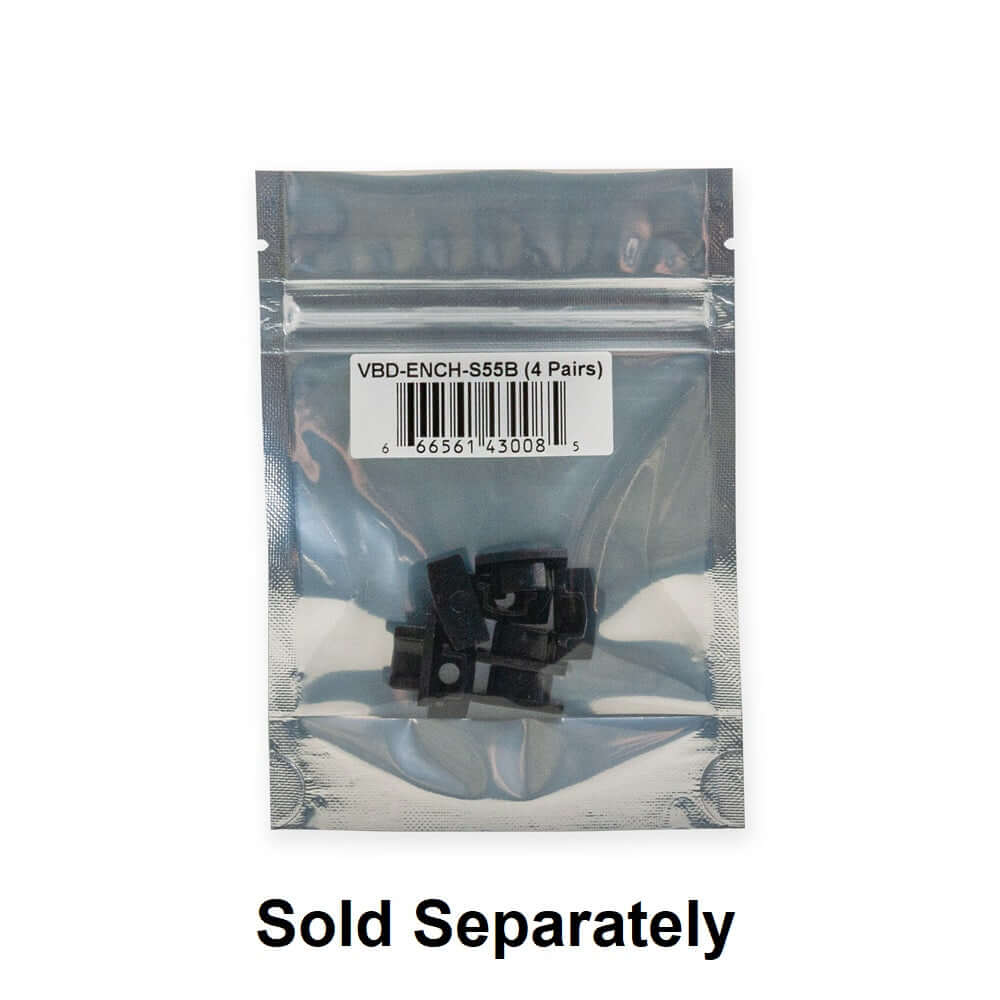

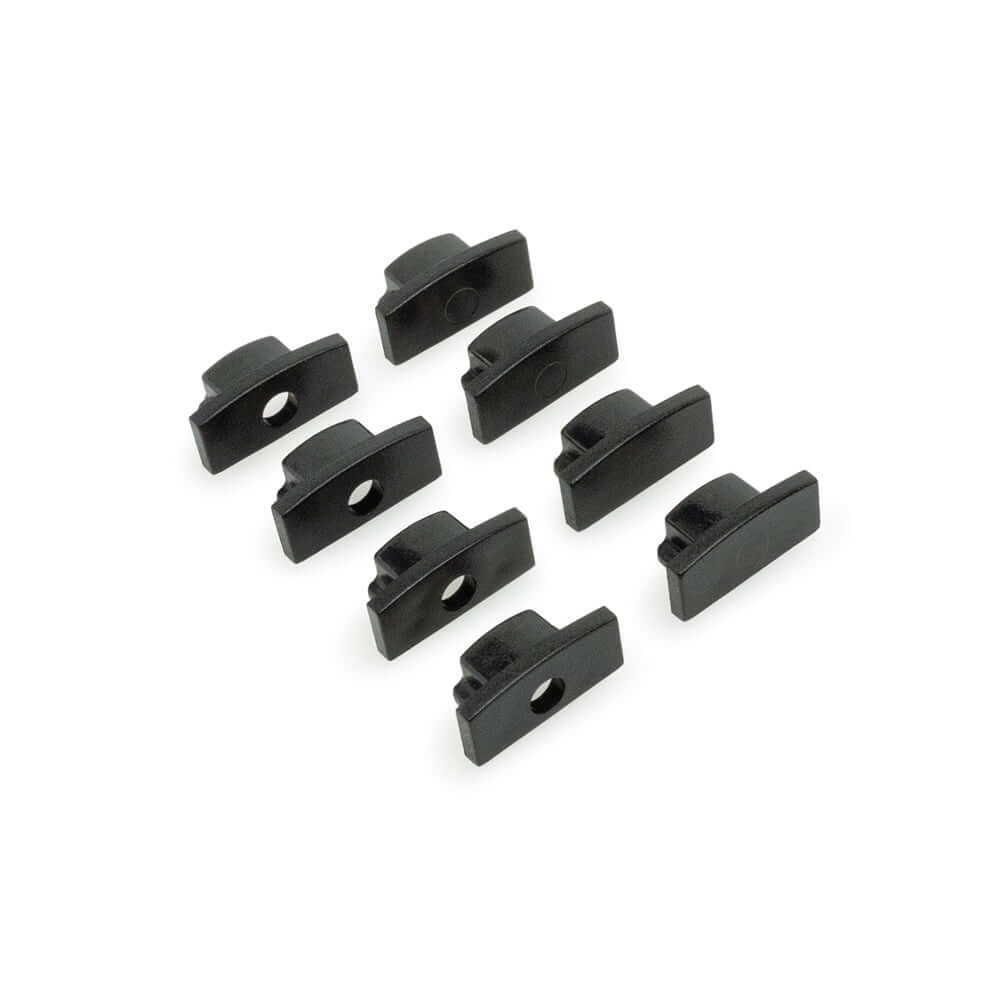

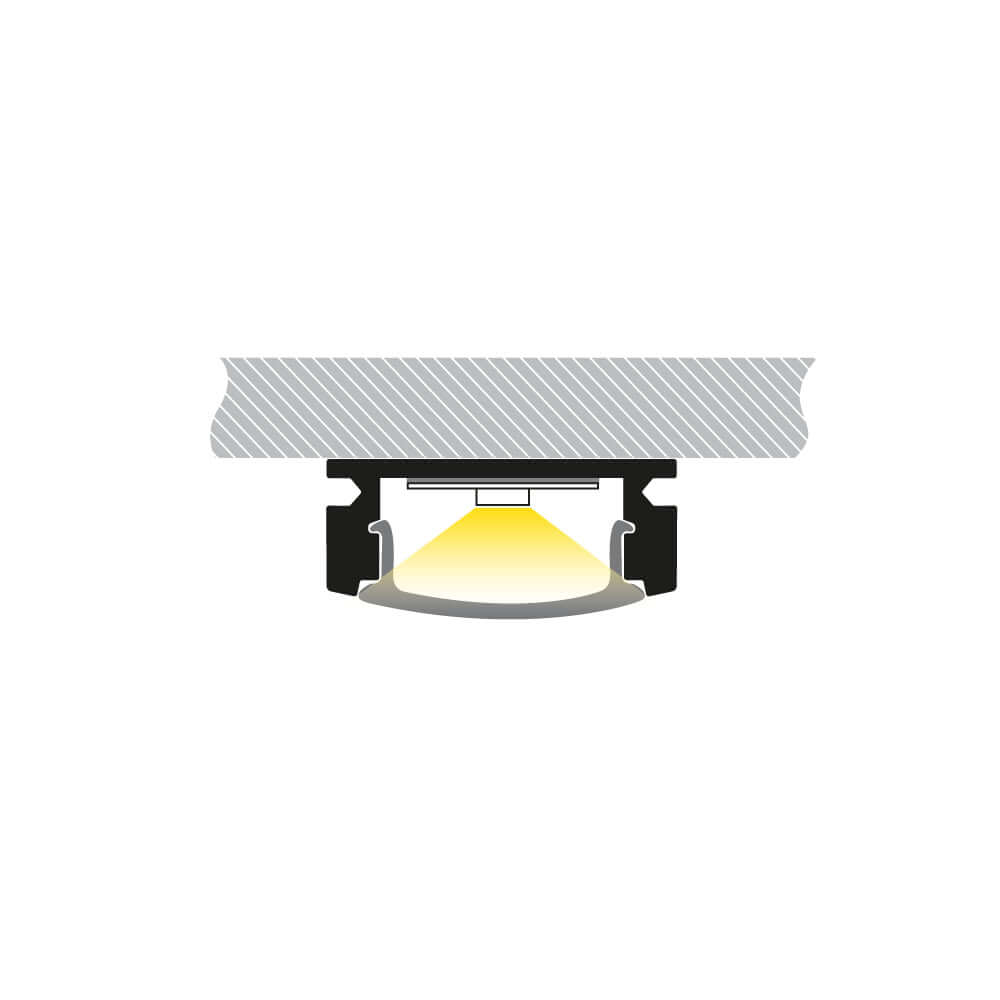

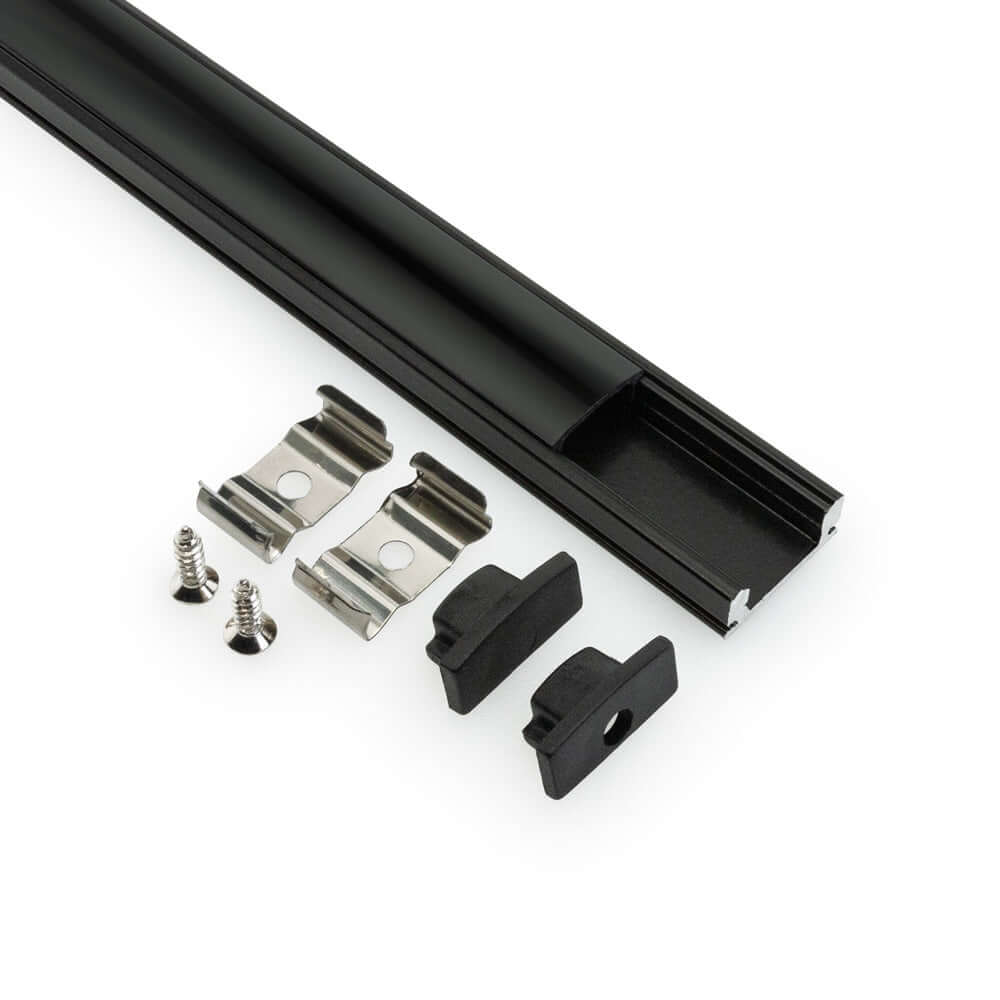

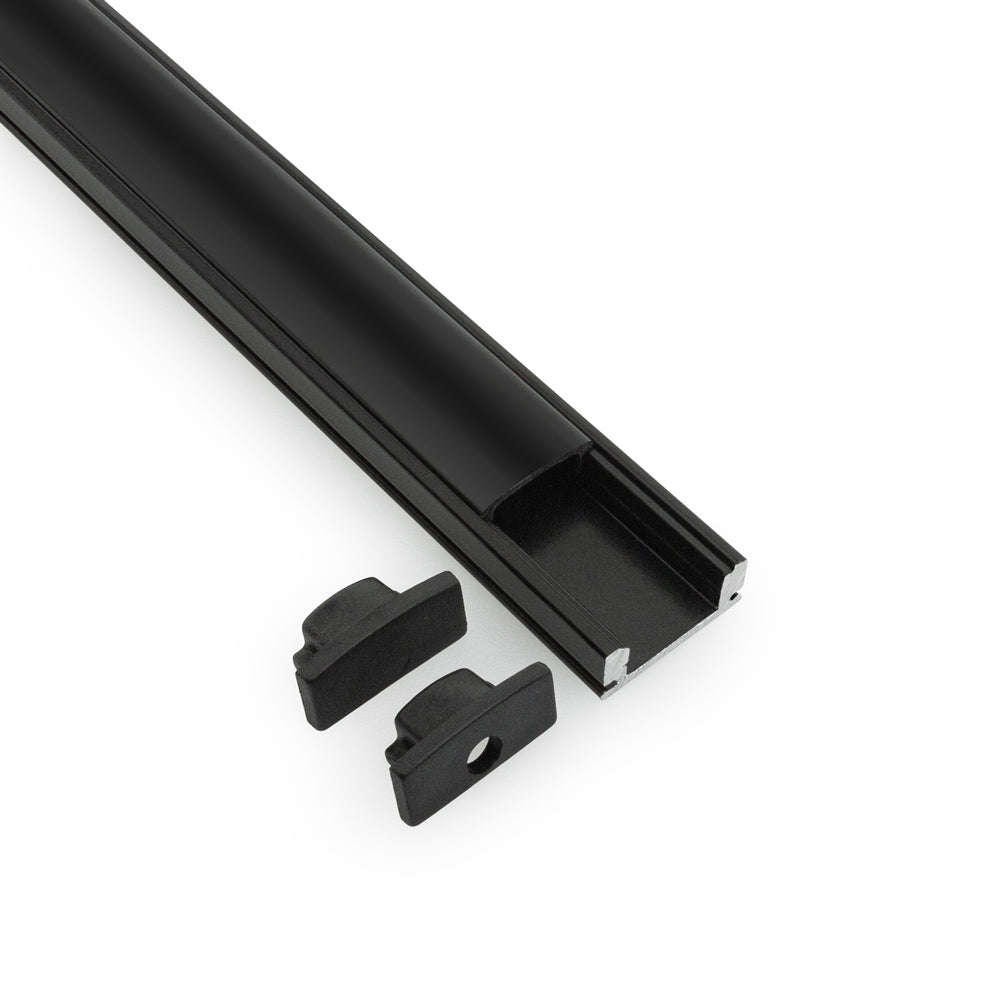

The VBD-CH-S55B can be used for both indoor and outdoor projects, and it can be cut using a regular hack saw. It acts as a heat sink for the LED strip installed in it, which helps to increase the lifetime of the LEDs. The channel can be recessed in a groove or mounted onto the surface using double-sided tape or screws. It comes with end caps that have wiring holes, and additional end caps and mounting clips are sold separately.
The VBD-CH-S55B is applicable for various lighting applications, including under cabinet lighting, staircase lighting, closet lighting, vanity lighting, ceiling lighting, window lighting, accent lighting, and showcases in stores. The aluminum material is corrosion-free and can be used even for outdoor purposes with waterproof strip lights (IP 66 and higher rating). The endcaps should be sealed with silicone to avoid contact with water. The diffuser material, PC, is resistant to UV rays and also protects from moisture.
