The VBD-CH-R3 Round 60mm(2.36in) Diameter Diffuser LED Channel is a high-quality linear aluminum channel designed for pendant lights applications such as libraries, hospitals, schools, and offices. It is made of anodized aluminum material with a silver grey color and has a frosted polycarbonate diffuser that reduces light glare and protects the LED strip from dust and damage.
The dimensions of this LED channel are 3000 x 60mm (118 x 2.36in) outer diameter for the 3-meter length and 2400 x 60mm (94.4 x 2.36in) outer diameter for the 2.4-meter length, but they depend on the place of delivery. It can accommodate LED strips up to 38mm in width and can be easily cut using a regular hack saw.
The VBD-CH-R3 can be installed as a pendant light using aircraft cables, which provide bright and intense light all around, making it an ideal choice for drop or suspender lighting. Additionally, it can be powder-coated to any desired color, and several lengths can be positioned together to create a unique and modern lighting design.
The VBD-CH-R3 also acts as a heat sink for the LED strip installed in it, which increases the lifetime of the LEDs. It comes with end caps that have wiring holes, making it easy to mount at the end of the project, and the frosted diffuser helps to reduce light glare.

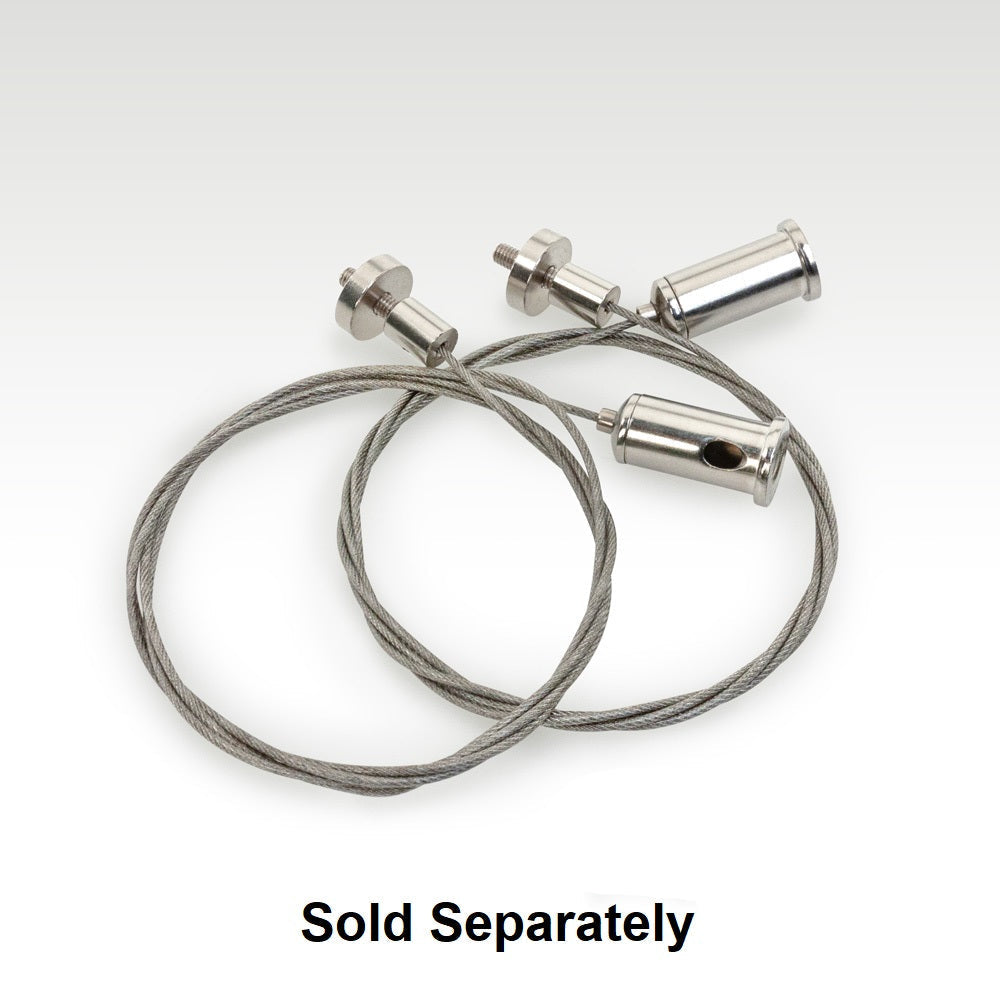

This LED channel is also suitable for outdoor use with waterproof strip lights (IP 66 and higher rating) due to the corrosion-free aluminum material. Accessories such as end caps and suspension kits are sold separately.
