VBD-CH-R1 LED Aluminum Channel 2 Meters(78.7in) and 2.4Meters(94.4in) and 3Meters(118in)

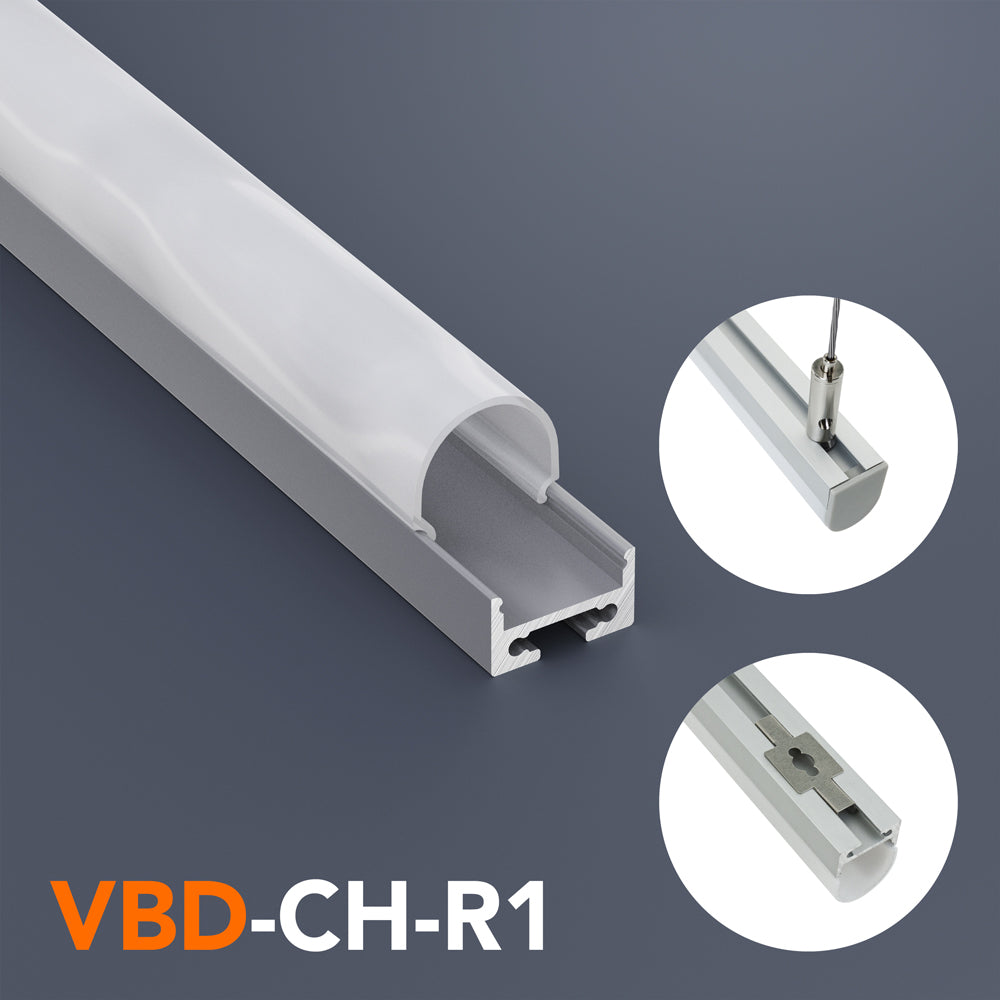

VBD-CH-R1 LED Aluminum Channel/Profile 2 Meters(78.7in) and 2.4Meters(94.4in) and 3Meters(118in). These Aluminum Channels are popular for offices, libraries, closets, ceiling applications. Can be hanged using Aircraft cables or can also be mounted on the ceiling using mounting brackets.
*Available in 2 Meters (78.7 inch) and2.4 Meters (94.4 inch) and 3 Meters (118 inch) *Full 3-meter(118inch) lengths are limited to delivery within BC ONLY
Model No: VBD-CH-R1
Material: Anodized Aluminum
Colour: Silver Grey
Diffuser Type: Frosted
Diffuser Material: Opal
Dimensions: 3000 x 20.7 x 26.7mm(118 x 0.81 x 1in) 2400 x 20.7 x 26.7mm(94.4 x 0.81 x 1in) 2000 x 20.7 x 26.7mm(78.7 x 0.81 x 1in) * Depends on Place of Delivery
The VBD-CH-R1 LED Aluminum Channel is a linear profile designed for surface mounting and suitable for use in various applications such as offices, libraries, closets, and ceiling applications. The channel is made of anodized aluminum material and has a silver grey color. It comes in three different sizes: 3000 x 20.7 x 26.7mm (118 x 0.81 x 1in), 2400 x 20.7 x 26.7mm (94.4 x 0.81 x 1in), and 2000 x 20.7 x 26.7mm (78.7 x 0.81 x 1in). The dimensions may vary depending on the place of delivery.

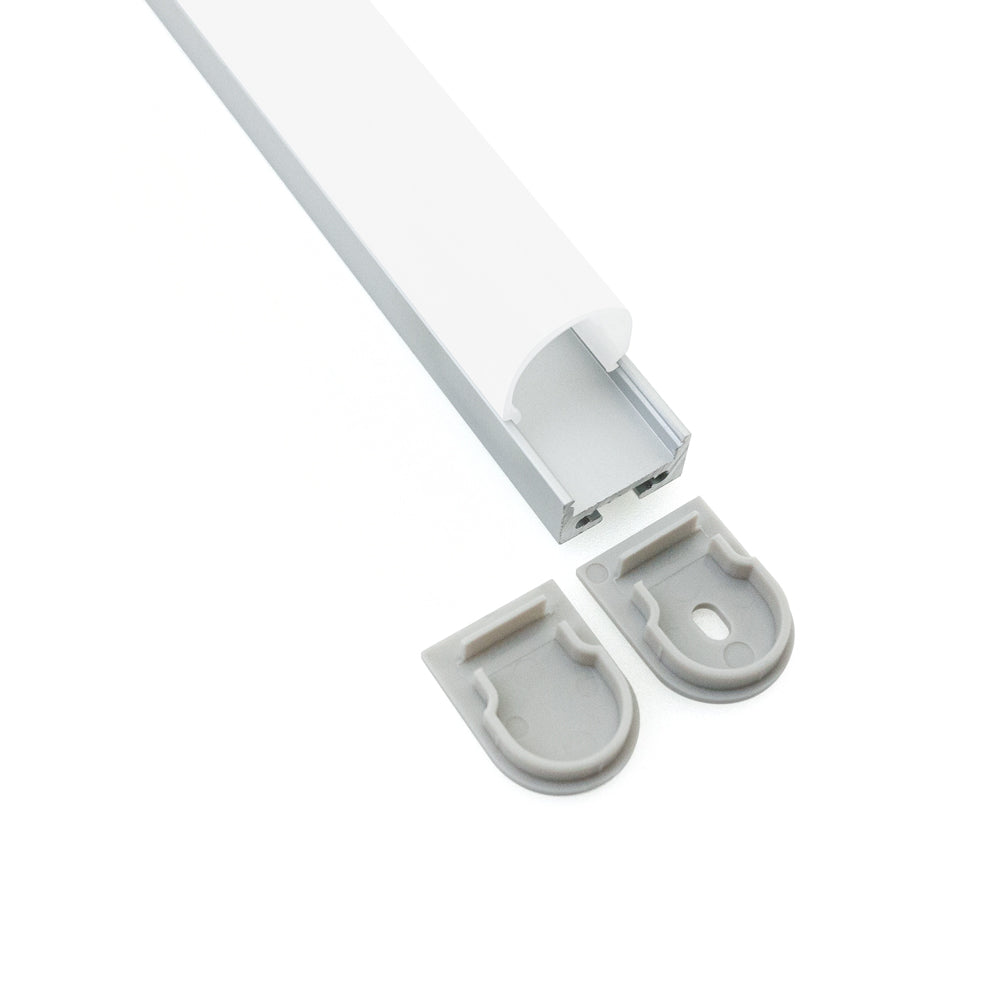

The diffuser type for this aluminum channel is frosted, and the diffuser material is made of opal. It can accommodate LED strip widths of up to 16mm. The channel comes with a pair of end caps included in the package for installation.
Additional accessories that can be purchased separately include 4 pairs of end caps (VBD-ENCH-R1), 4 pcs of mounting clips (VBD-CLCH-R1), and a pair of suspension kits (SKU: 666561430016), which have a length of 6.5ft.
This aluminum channel provides versatile interior lighting options when combined with your desired color temperature LED strips, making it an elegant and modern lighting solution in any application.
