SKU: 666561437107
Available Lengths::

Available Lengths:

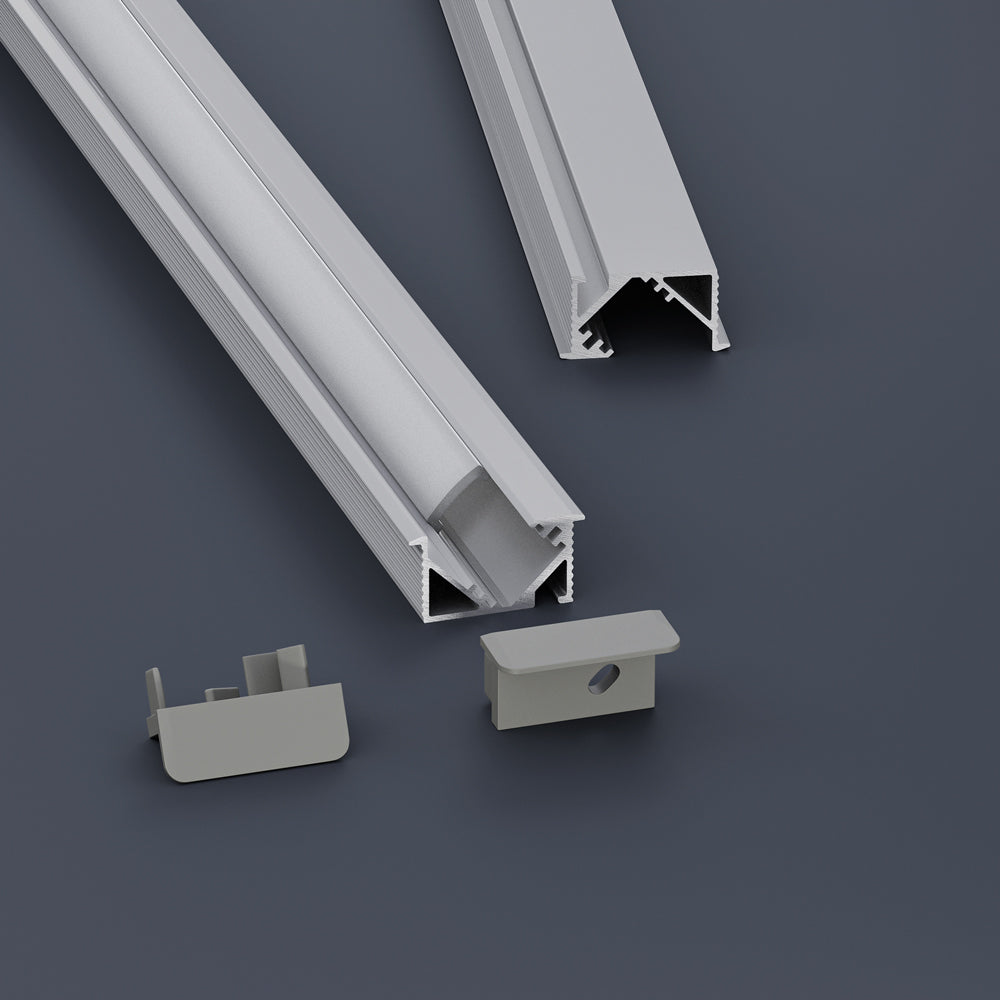

VBD-CH-K1 LED Aluminum Channel/Profile, 3Meters(118in), 2.4Meters(94.4in), 2Meters(78.7in) and can be used for applications such as cabinets, shelves, closets, ceiling, accent lighting, showcases in the stores, etc. These are popular channels for preventing any visible spots of the LED strip and provides a good surface finish for flush mount Installation.



*Available in 2 Meters (78.7 inch) 2.4 Meters (94.4 inch) and 3 Meters (118 inch)
*Full 3-meter(118inch) lengths are limited to delivery within BC ONLY

  • Model No: VBD-CH-K1
  • Material: Aluminum
  • Colour: Silver Grey
  • Diffuser Type: Frosted
  • Diffuser Material: Polycarbonate (PC)
  • Dimensions:
    3000 x 20.30 x 9.70mm(118 x 0.8 x 0.38in)
    2400 x 20.30
    x 9.70mm(94.4 x 0.8 x 0.38in)
    2000 x 20.30 x 9.70mm(78.7 x 0.8 x 0.38in)
    * Depends on Place of Delivery
  • LED Strip Width: Up to 8mm
  • Accessories Included: End caps (1 Pair)

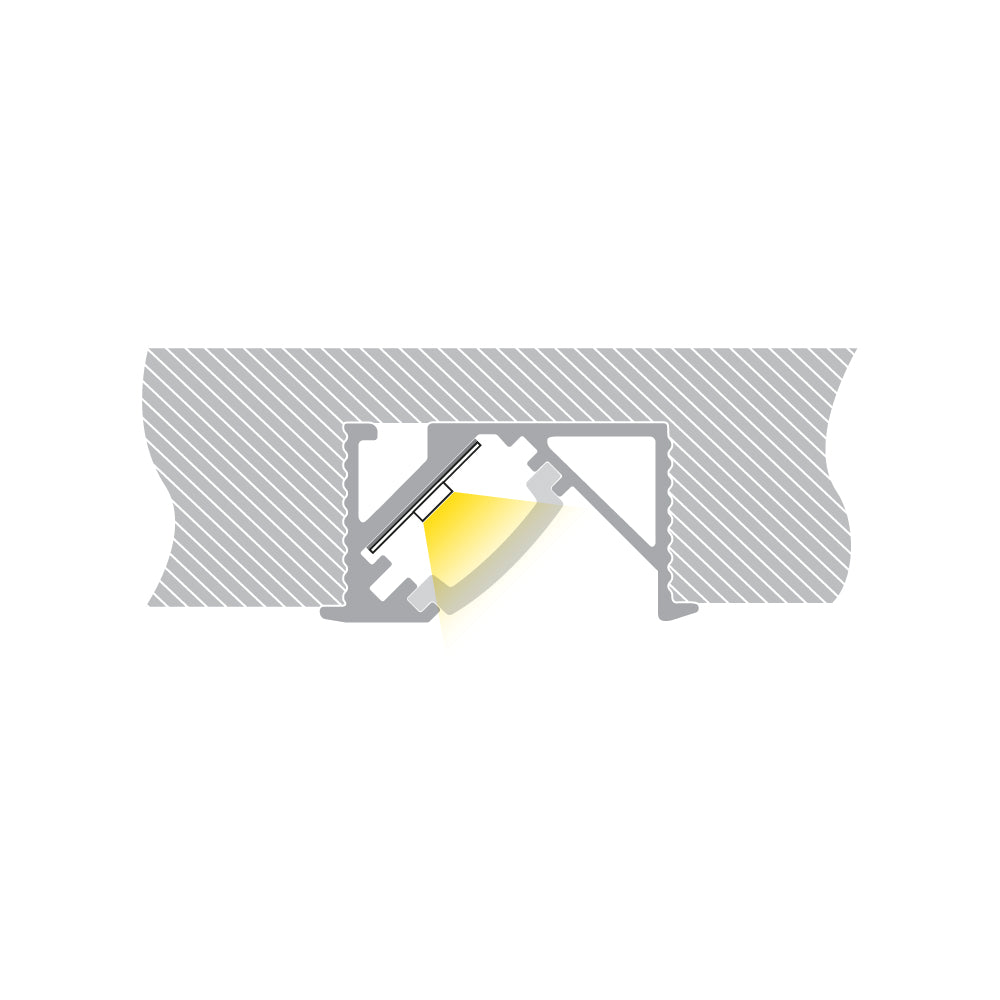

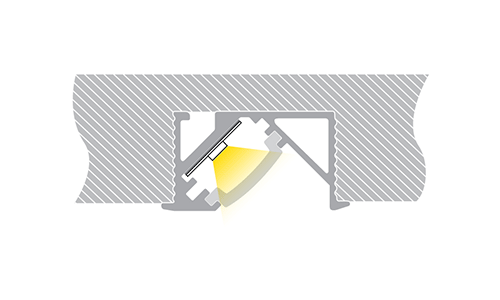

  • Installation: Recessed or Flush Mount, Surface Mount
  • Accessories (Sold Separately):

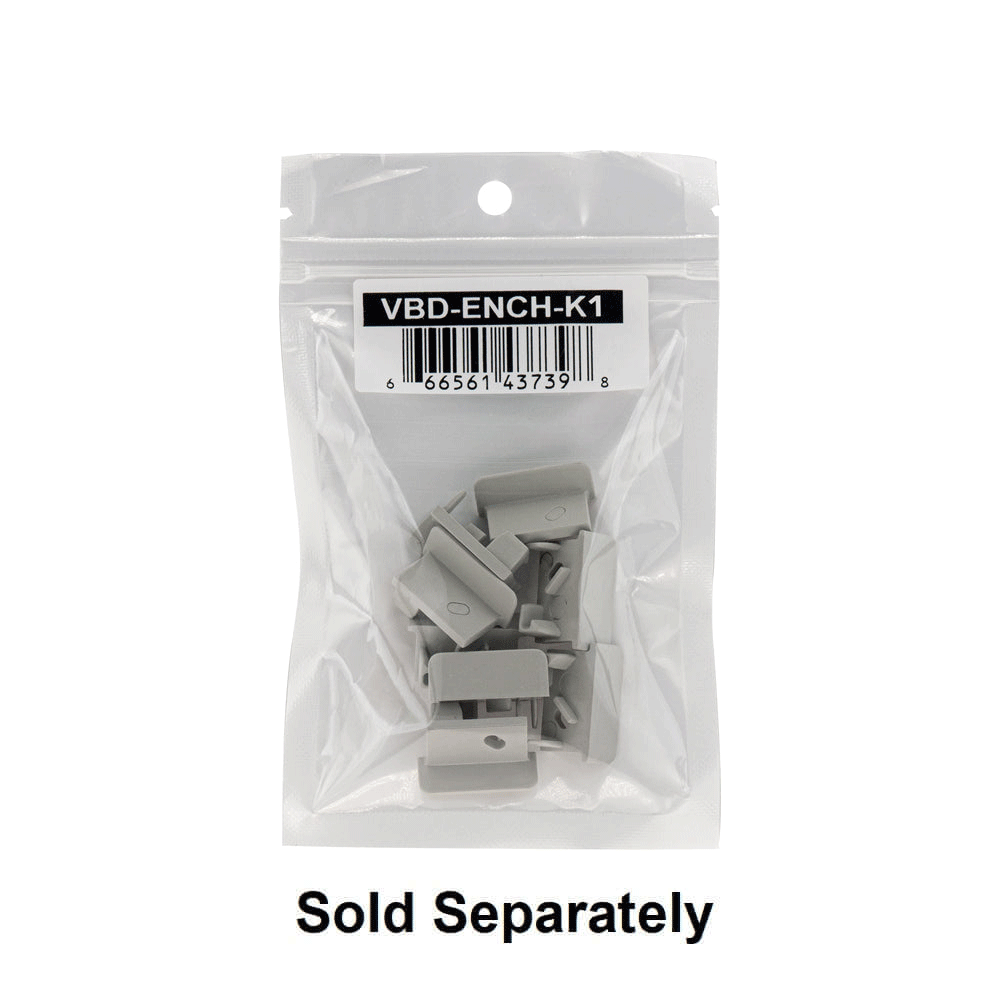

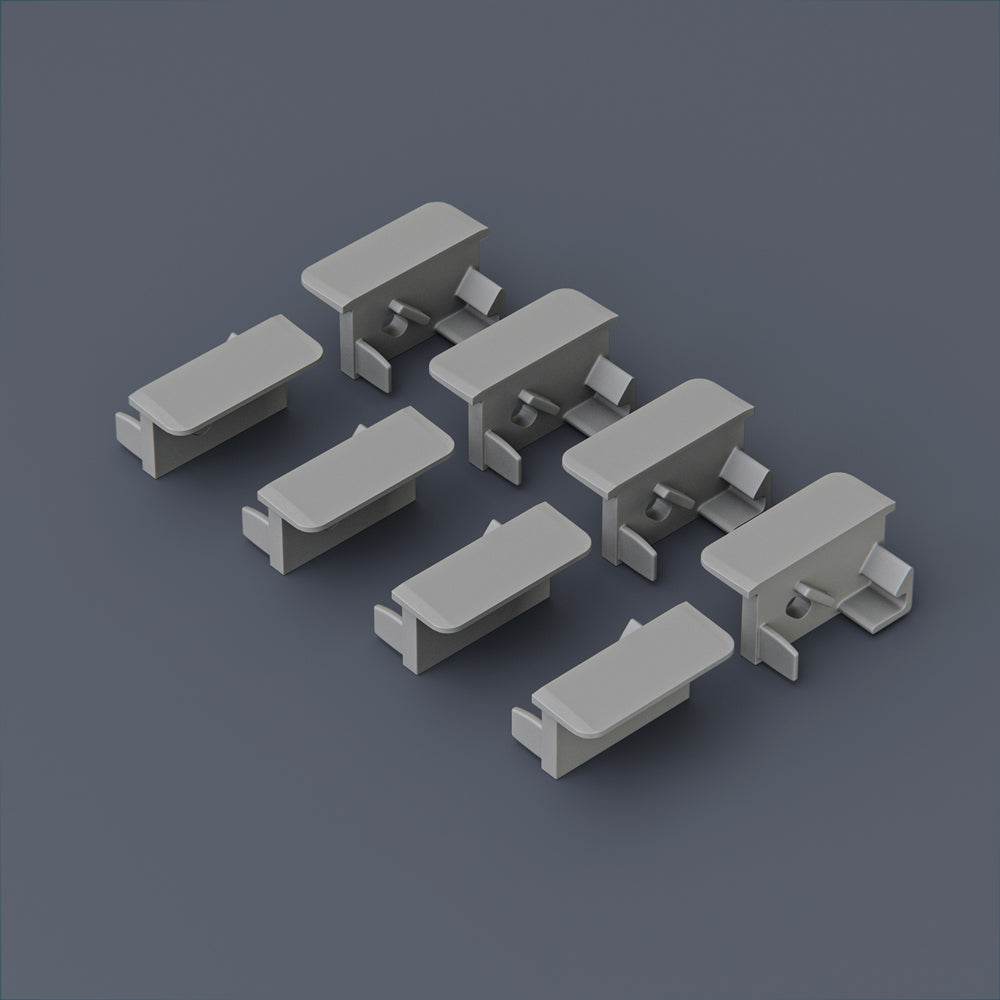

    4 pair Endcaps VBD-ENCH-K1
    SKU: 666561437398

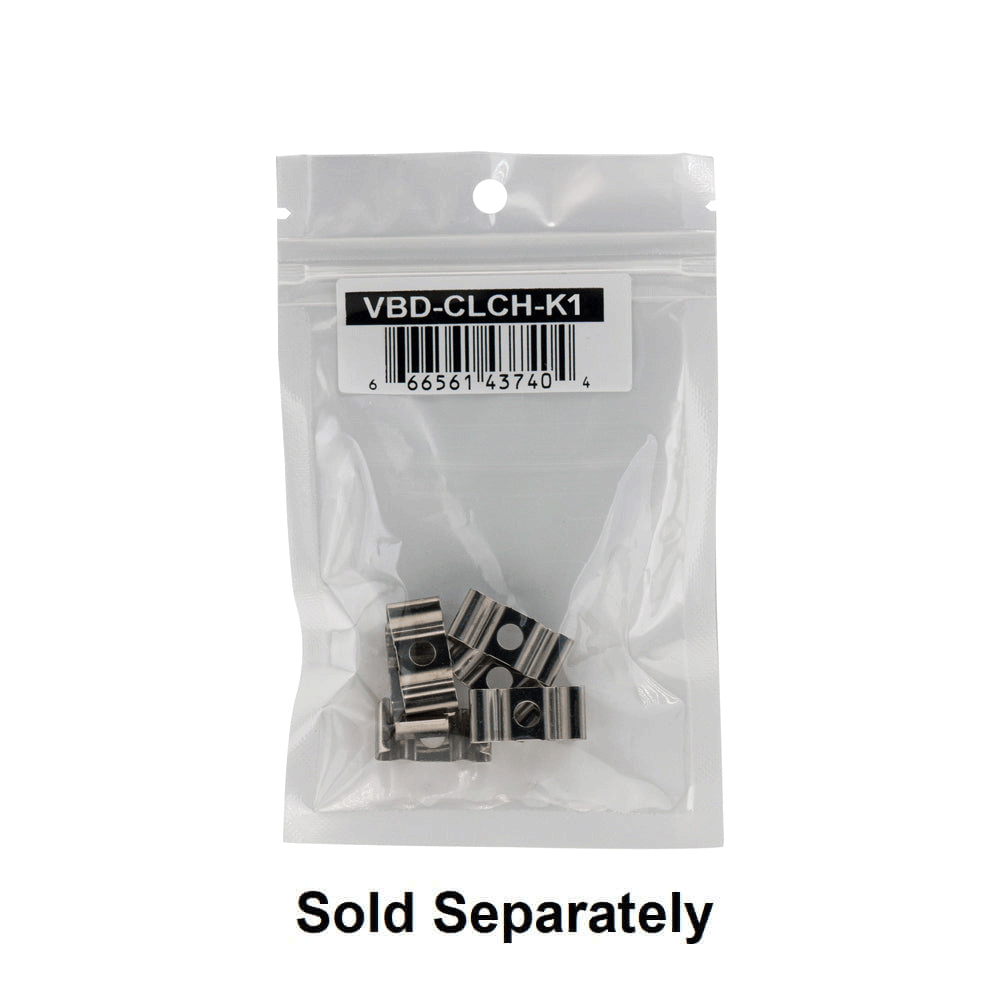

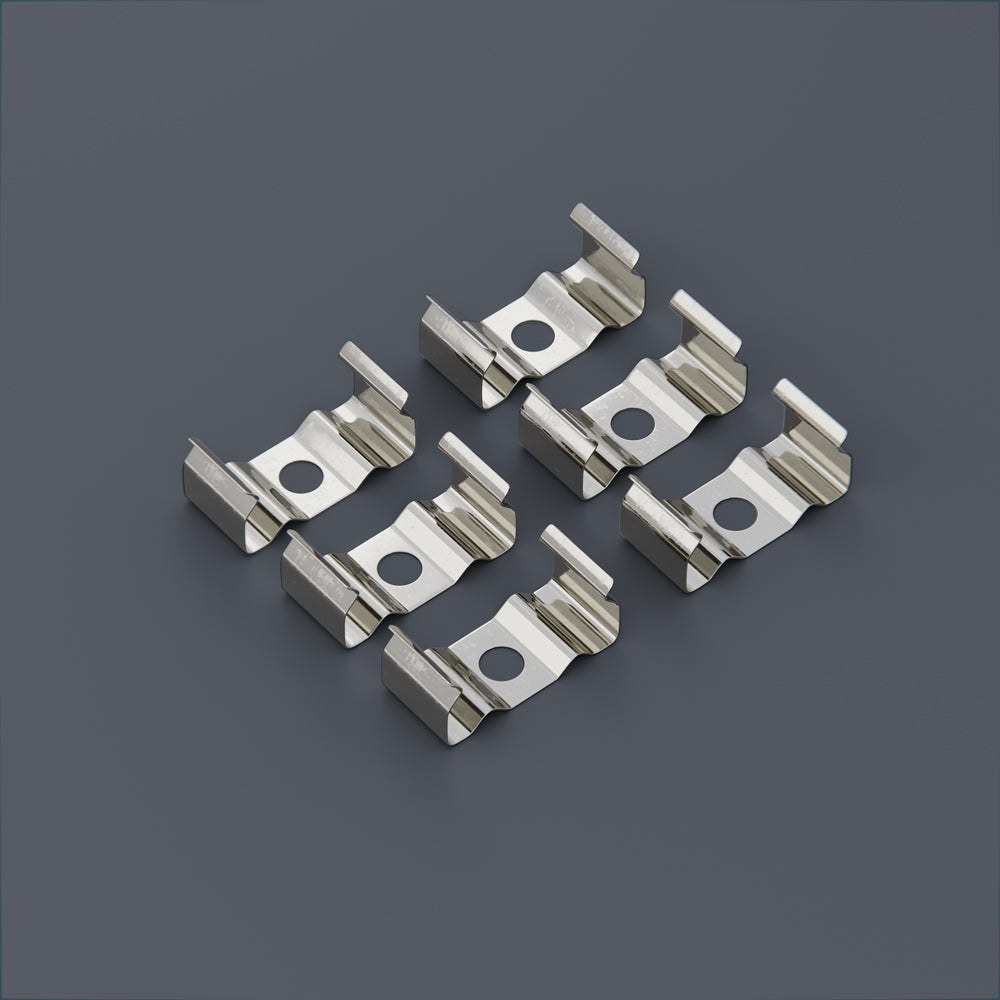

    6 pcs Mounting clips VBD-CLCH-K1 SKU: 666561437404
