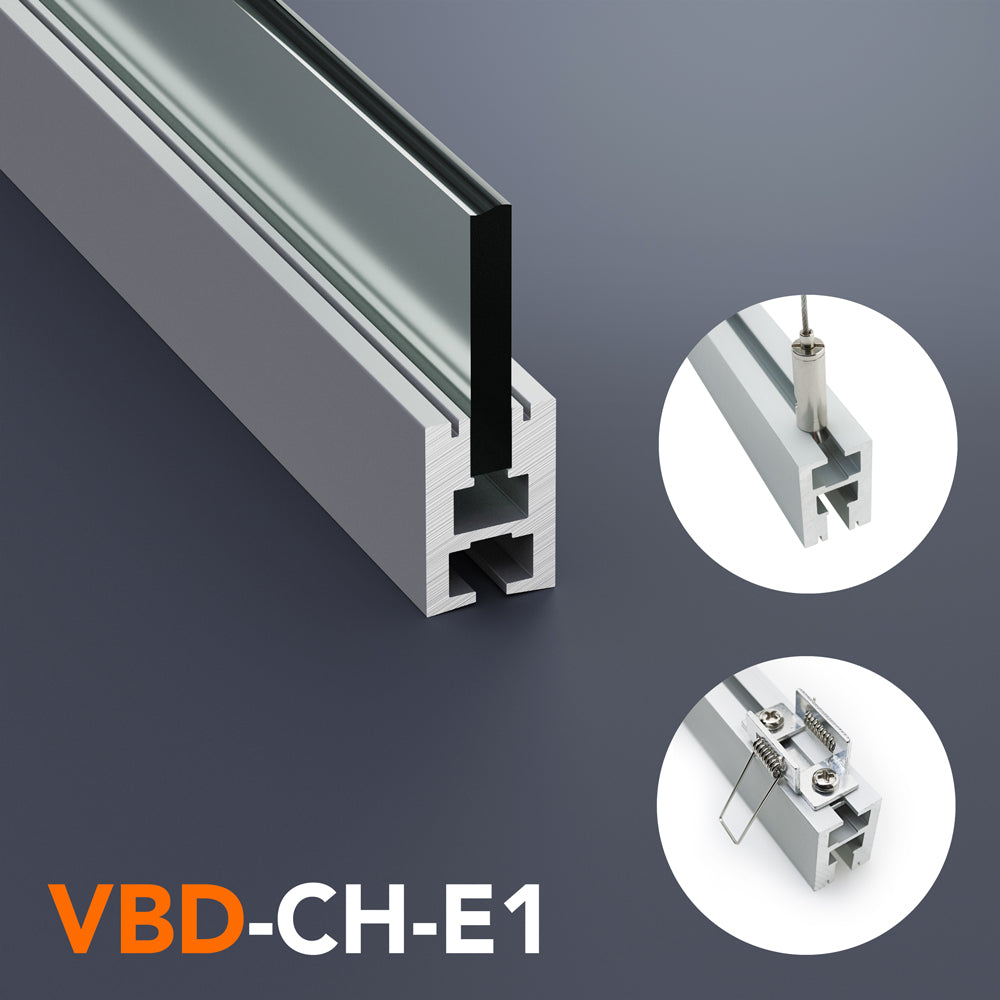

The VBD-CH-E1 LED Aluminum Channel is a linear LED profile made of anodized aluminum material and has a silver grey color. It comes in a length of 2 meters (78.7 inches) with dimensions of 2000 x 22.9 x 34.3mm (78.7 x 0.9 x 1.35 inches) and can accommodate LED strips up to 13mm in width. The channel does not include a diffuser, but end caps (1 pair) are included in the package. The product can be flush-mounted or suspended, and accessories such as end caps with wire holes and a suspension kit (6.5ft) are available for purchase separately.
The VBD-CH-E1 Aluminum Channel is specifically designed for edge backlighting of glass and acrylic panels with a thickness of 6mm or less. It is also capable of holding the glass and preventing the LEDs from being crushed, and acts as a heat sink for the LED Strip installed, thus increasing their lifespan. The product can be easily cut into custom sizes using a regular hack saw. However, it cannot be extended beyond the given length.
The product is ideal for a variety of applications such as edge backlighting in kitchens, living rooms, galleries, etc. The product can also be used for signs, inscriptions, and loop lamination. The light can be illuminated even from the frosted glass edges, providing versatile interior lighting options that are elegant and modern in any application.
