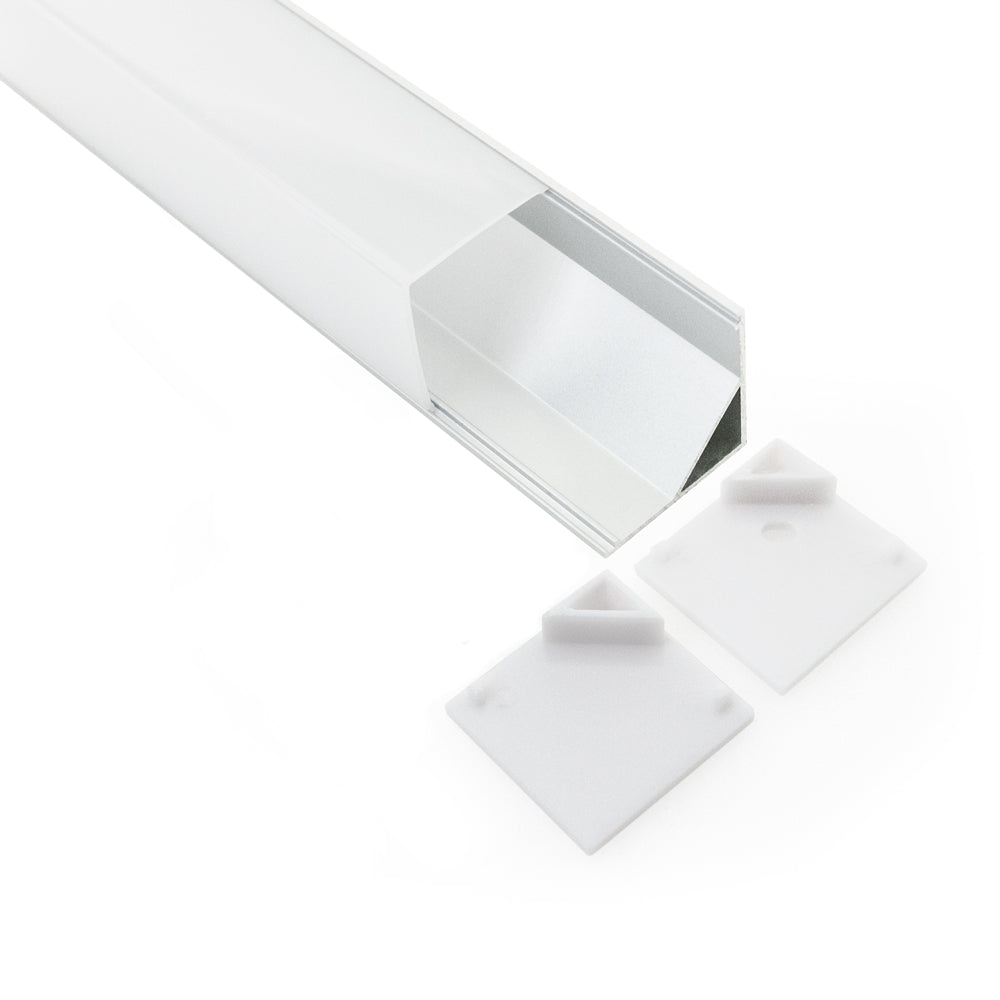

VBD-CH-C4 Corner Mount Square LED Aluminum Channel 2.4Meters(94.4in) and 3Meters(118in)
VBD-CH-C4 Corner Mount Square LED Aluminum Channel/Profile 2.4Meters(94.4in) and 3Meters(118in), These are popular channels for projecting lights at a 45-degree angle of the LED strip useful for illuminating light at the adjacent sides.
*Available in 2.4 Meters (94.4 inch) and 3 Meters (118 inch) *Full 3-meter(118inch) lengths are limited to delivery within BC ONLY
Model No: VBD-CH-C4
Material: Anodized Aluminum
Colour: Silver Grey
Diffuser Type: Frosted
Diffuser Material: Polycarbonate (PC)
Dimensions: 3000 x 30 x 30mm (118 x 1.1 x 1.1in) 2400 x 30 x 30mm (94.4 x 1.1 x 1.1in) * Depends on Place of Delivery
The VBD-CH-C4 Corner Mount Square LED Aluminum Channel is a lighting accessory that is made of anodized aluminum material and comes in a silver grey color. It has a frosted polycarbonate (PC) diffuser that provides protection to the LED strip and helps in reducing light glare. The dimensions of the product are 3000 x 30 x 30mm (118 x 1.1 x 1.1in) and 2400 x 30 x 30mm (94.4 x 1.1 x 1.1in), depending on the place of delivery.
This product is designed to accommodate LED strips with a width of up to 20mm and can be cut using a regular hack saw. It can be surface-mounted using double-sided tape or screws and comes with a pair of end caps with wiring holes for easy installation. The endcaps can be easily mounted at the end of the project, and accessories such as 2 pairs of endcaps and 6 mounting clips can be purchased separately.
The VBD-CH-C4 Corner Mount Square LED Aluminum Channel is suitable for indoor and outdoor applications and can be used for illuminating cabinets, shelves, closets, ceilings, showcases, and other accent lighting projects. It also acts as a heat sink, increasing the lifetime of the LEDs. The product is corrosion-free and can be used for outdoor purposes with waterproof strip lights (IP 66 and higher rating), and the endcaps should be sealed with silicon to avoid getting in contact with water. The diffuser material, PC, is resistant to UV rays and also protects from moisture. This product is also available in black color in the same size.
