The VBD-CH-C1 LED Aluminum Channel is a surface-mount anodized aluminum profile that comes in a length of 2000mm (78.7 inches), with a width of 21.1mm and a height of 23.6mm. It is compatible with LED strips that are up to 15mm in width, and comes with an opal diffuser that helps to reduce light glare and protect the LED strip from dust and damage. The end caps that come with the channel have wiring holes and can be easily mounted at the end of the project.
This channel can be used for a variety of indoor/outdoor projects, including cabinets, shelves, closets, accent lighting, and showcases in stores. It can be cut using a regular hack saw, and several lengths can be positioned together. The channel acts as a heat sink for the LED strip, which helps to increase the lifetime of the LEDs.

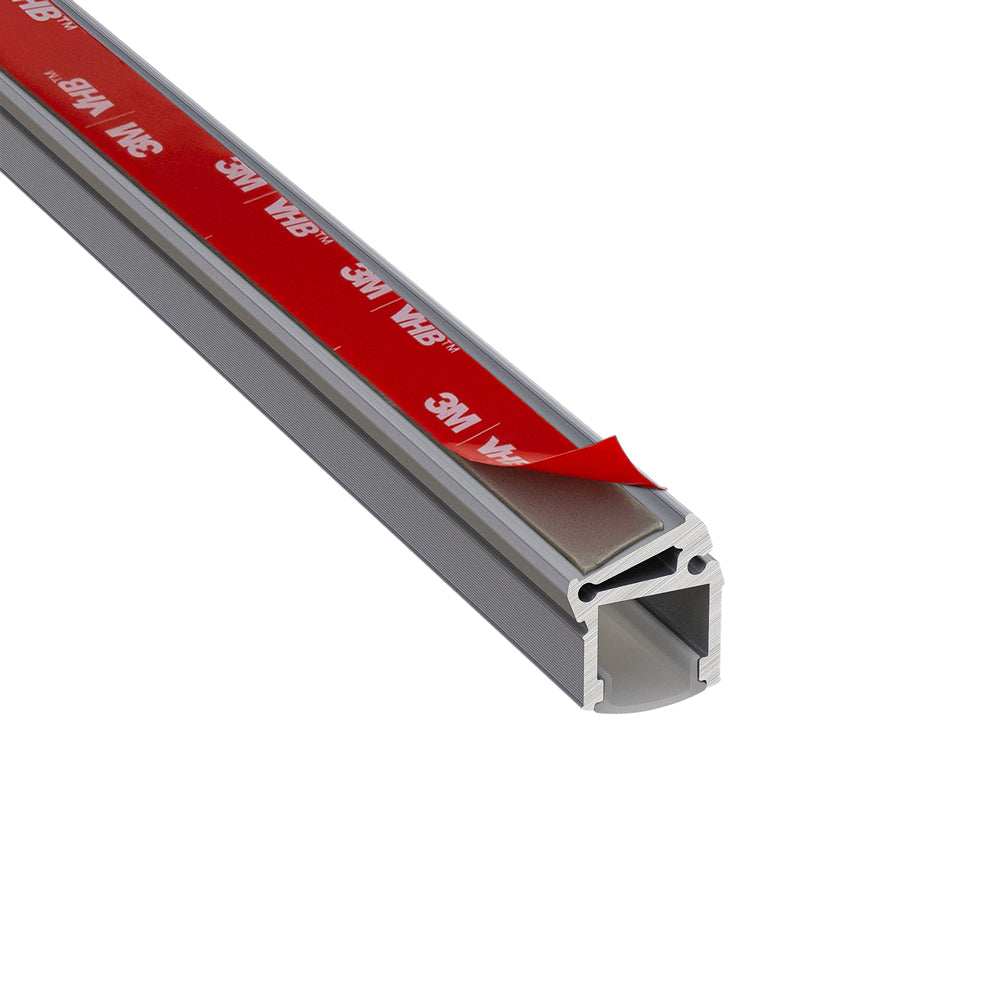

The VBD-CH-C1 is designed for surface-mount installations and can be mounted using double-sided tape or screws. The channel comes with end caps, but additional accessories such as extra end caps can be purchased separately.
Overall, the VBD-CH-C1 LED Aluminum Channel provides a versatile and elegant option for interior lighting applications and can be used to create a modern and sophisticated look in any project.
