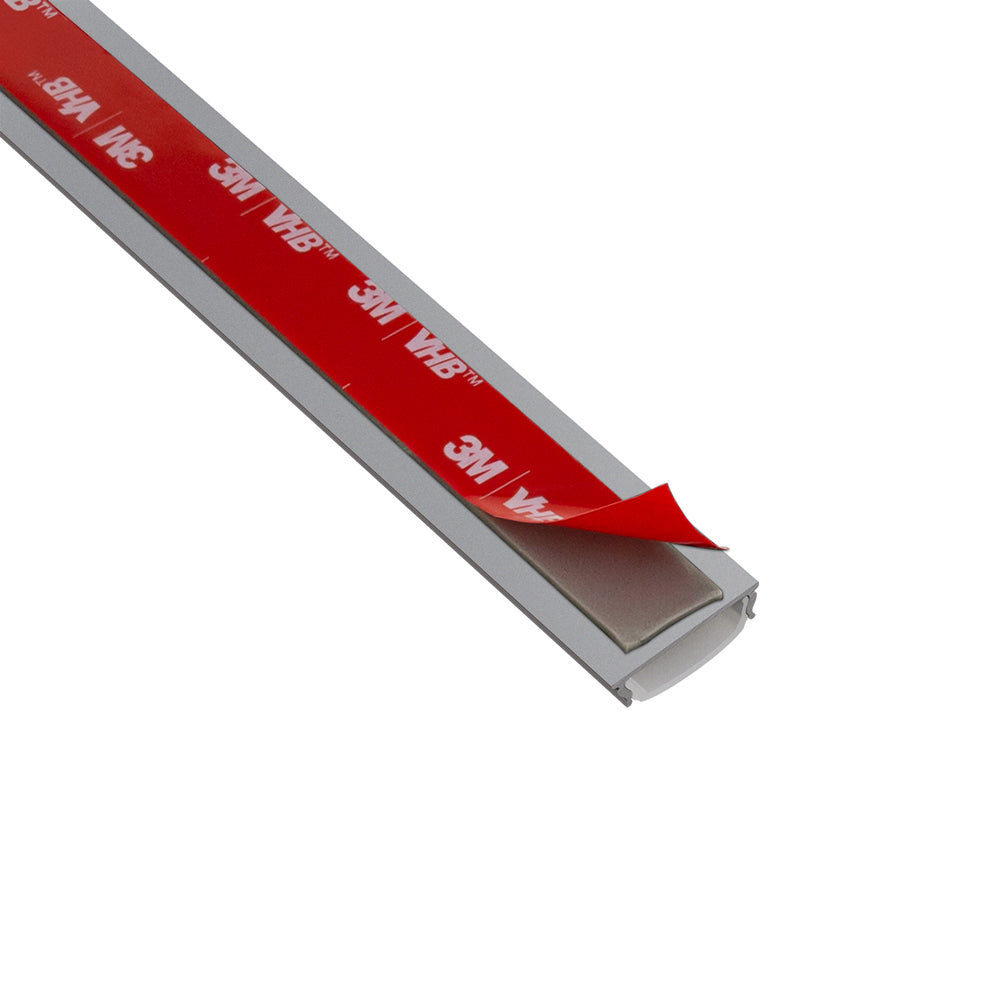

The VBD-CH-B1 Bendable Thin Aluminum Channel is a flexible linear LED profile that is perfect for both linear and non-linear installations, curved shapes, and continuous glow applications. This channel is made of anodized aluminum material, which is lightweight, ultra-thin, and bendable. The color of the channel is silver grey, and the diffuser type is frosted. The diffuser material is polycarbonate (PC).

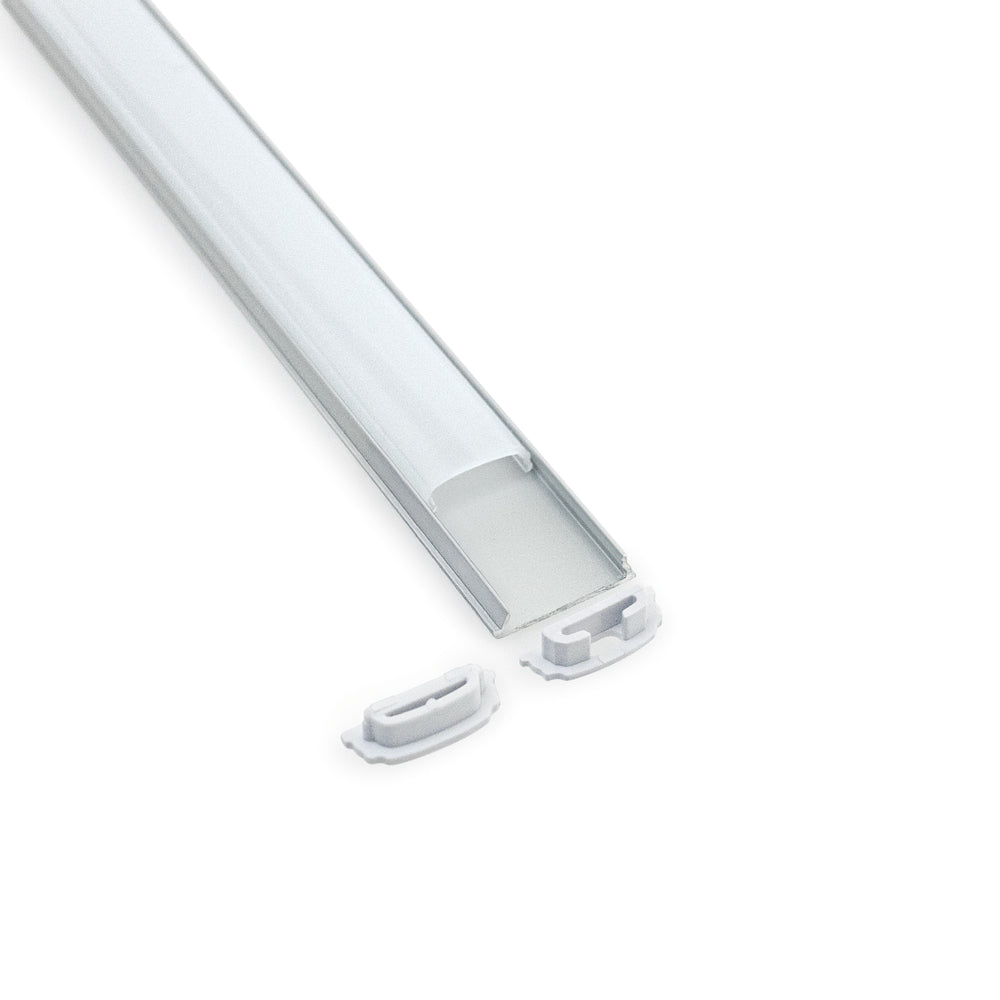

The dimensions of the VBD-CH-B1 channel are 3000 x 18.77 x 6mm (118 x 0.73 x 0.24in) or 2400 x 18.77 x 6mm (94.4 x 0.73 x 0.24in), depending on the place of delivery. This channel can accommodate LED strips up to 12mm in width. The package includes one pair of end caps, and additional accessories like end caps (4 pairs), mounting clips (6pcs), and adjustable brackets (1 pair) are sold separately.
The VBD-CH-B1 channel can be bent into any shape and can be used with any of VEROBOARD's strip light products of width 12mm or less. The channel can be cut using a regular hack saw and can be positioned together with several lengths. This channel acts as a heat sink for the LED strip installed in it, increasing the lifetime of the LEDs.
The VBD-CH-B1 channel is applicable for cabinets, shelves, closets, ceiling, shower doors, windows, accent lighting, and showcases in stores for linear shapes. It is also applicable for golf court trim, counter lighting, arched doorways, or entryways for non-linear applications. The bending radius of this channel is 9 inches.
The frosted diffuser of the VBD-CH-B1 channel helps in reducing light glaring and also gives protection from dust and damage to the LEDs. The aluminum material is corrosion-free and can be used for outdoor purposes with waterproof strip lights (IP 66 and higher rating), and the end caps should be sealed with silicon to avoid water contact.
