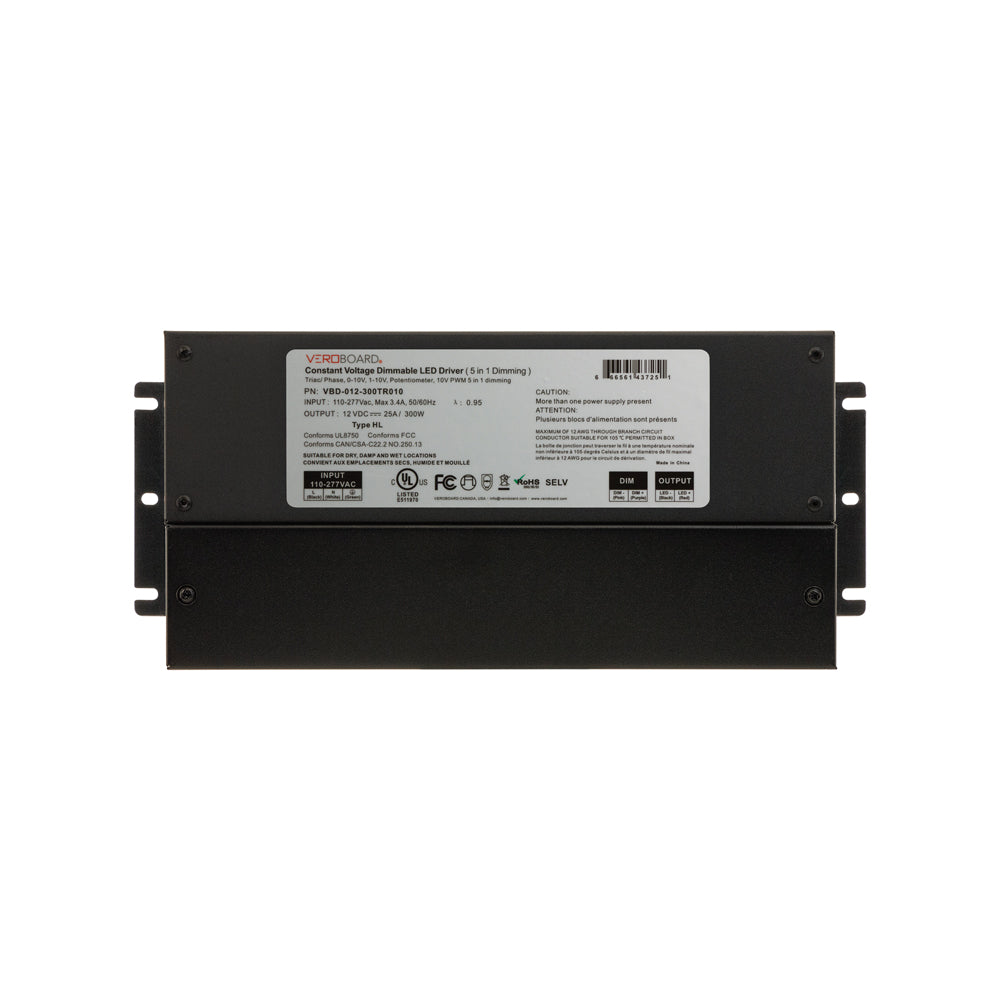

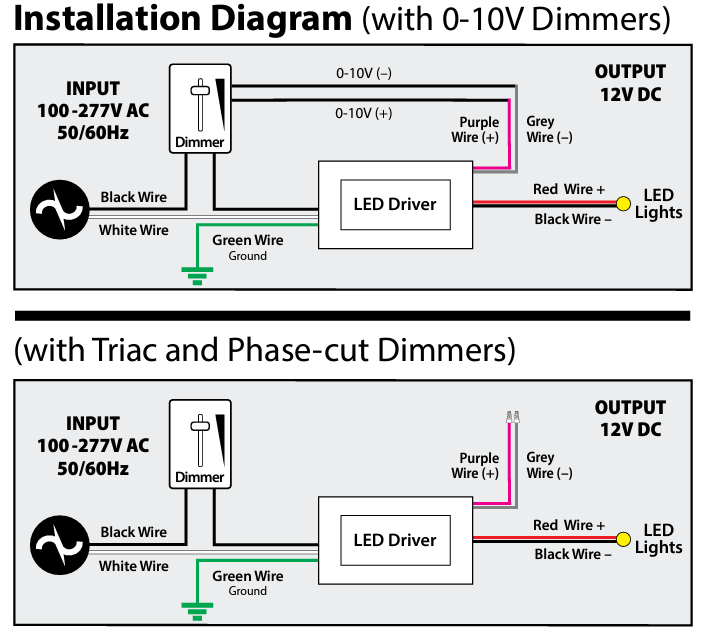

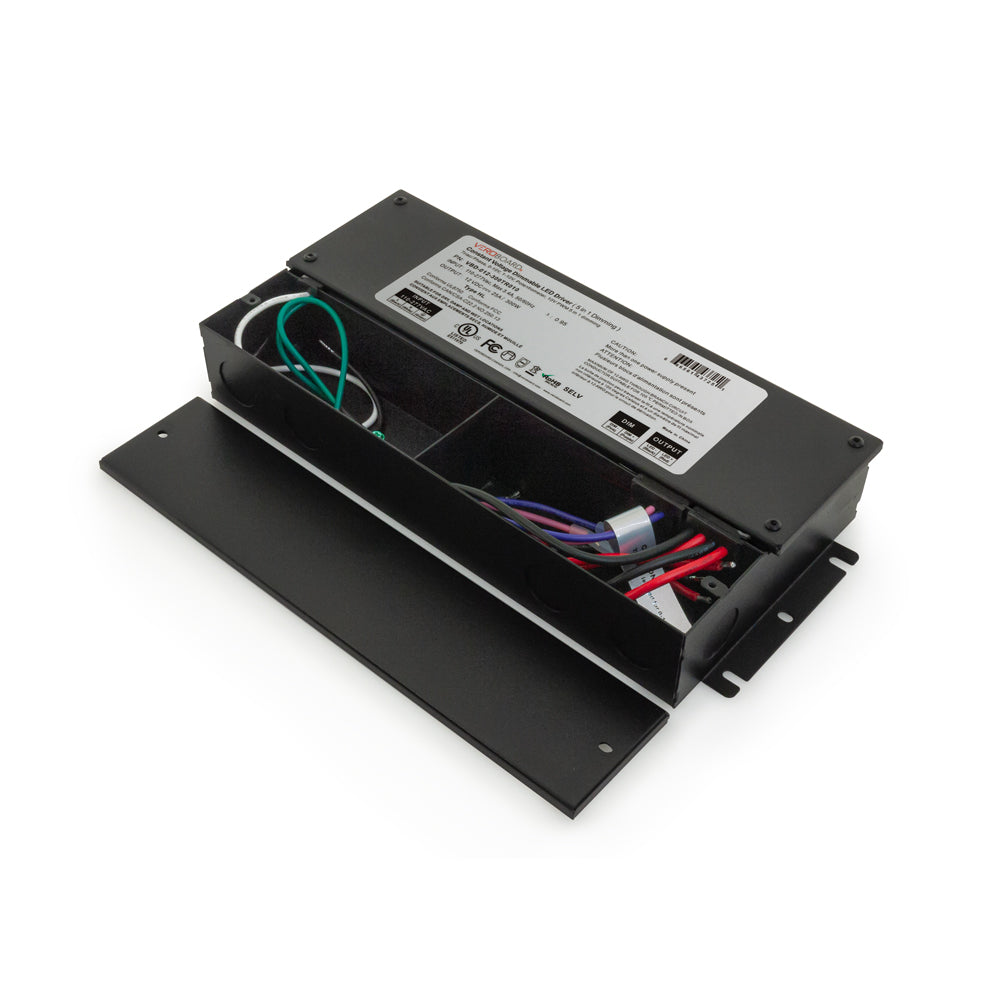

The VBD-012-300TR010 sets the bar as a state-of-the-art solution for both powering and dimming 12V LED lighting systems. Its impressive capabilities make it a versatile and adaptable choice across a multitude of applications. A highlight among its features is the 5-in-1 dimming capability, which makes it compatible with a diverse range of dimming protocols, encompassing Triac/Phase, 0-10V/1-10V, Potentiometer, and 10V PWM. This adaptability empowers users to seamlessly tailor the driver to their specific lighting control requirements.
Functioning within a broad input voltage range of 100-277V AC and an input current of 3.4A, the VBD-012-300TR010 can supply a robust 300W of power to the connected 12V LED lighting system. It maintains a steady output voltage at 12V DC, ensuring unwavering and stable illumination. With an output current of 25A and a maximum load capacity of 300W, it accommodates various LED lighting configurations.
