VBD-UL-1022-0300-A-3K-xx In-Ground Light 12-24V 3W 3000K(Warm White)
UL-1022-0300-A-xx In-Ground Light 12-24V 3W 3000K(Warm White) - veroboard
VBD-UL-1022-0300-A-3K-xx In-Ground Light 12-24V 3W 3000K(Warm White)
VBD-UL-1022-0300-A-RGBW In-Ground Light 12-24V
VBD-UL-1022-0300-A-3K-xx In-Ground Light 12-24V 3W 3000K(Warm White)
VBD-UL-1022-0300-A-3K-xx In-Ground Light 12-24V 3W 3000K(Warm White)

VBD-UL-1022-0300-A-3K-xx In-Ground Light 12-24V 3W 3000K(Warm White)

SKU: 666561424084

VBD-UL-1022-0300-A-3K-xx is a In-ground light that is designed to operate on 12-24 volts DC, consuming 3 watts of power. It emits a warm white light with a color temperature of 3000K. The light is made of stainless steel and uses an integrated LED bulb type. It is available in different trim, including 1-way, 2-way, 4-way, and flat trim (sold separately).

Where to buy?


  • Models No: VBD-UL-1022-0300-A-3K-xx
  • Voltage: 12-24V DC
  • Wattage: 3W
  • Color Temperature: 3000K (Warm White)
  • Brightness: 240-300 Lumens
  • Material: Stainless Steel
  • Available Trim Color(Sold Separately):
    1Way Trim (Ø60mm x H16mm)
    2Way Trim (Ø60mm x H16mm)
    4Way Trim (Ø60mm x H16mm)
    Flat Trim (Ø49mm x H2mm)
  • Bulb Type: Integrated LED
  • Cut Size: Ø 37.41mm (2.9in)
  • IK Rating: IK09
  • Installation: Concrete, Deck
    (Do not cut the cable short to prevent water from entering the light.)
  • IP Rating: IP67

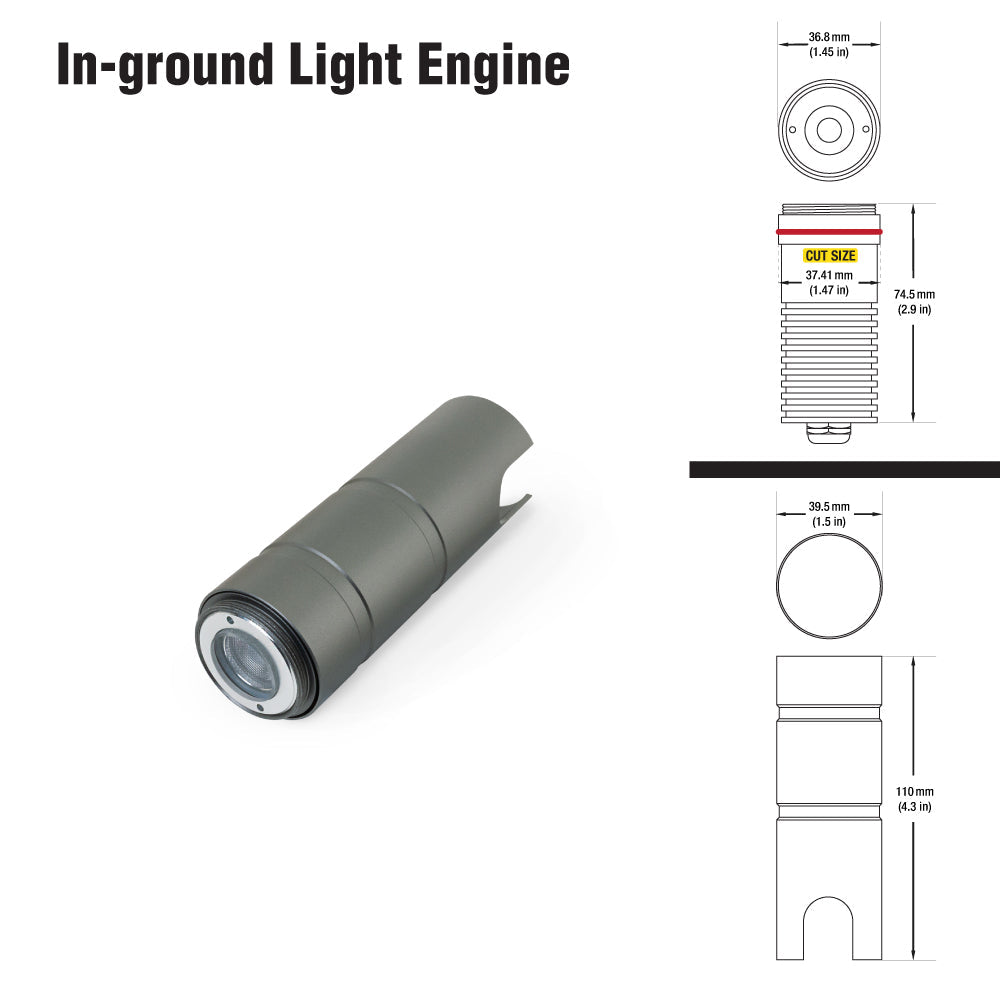

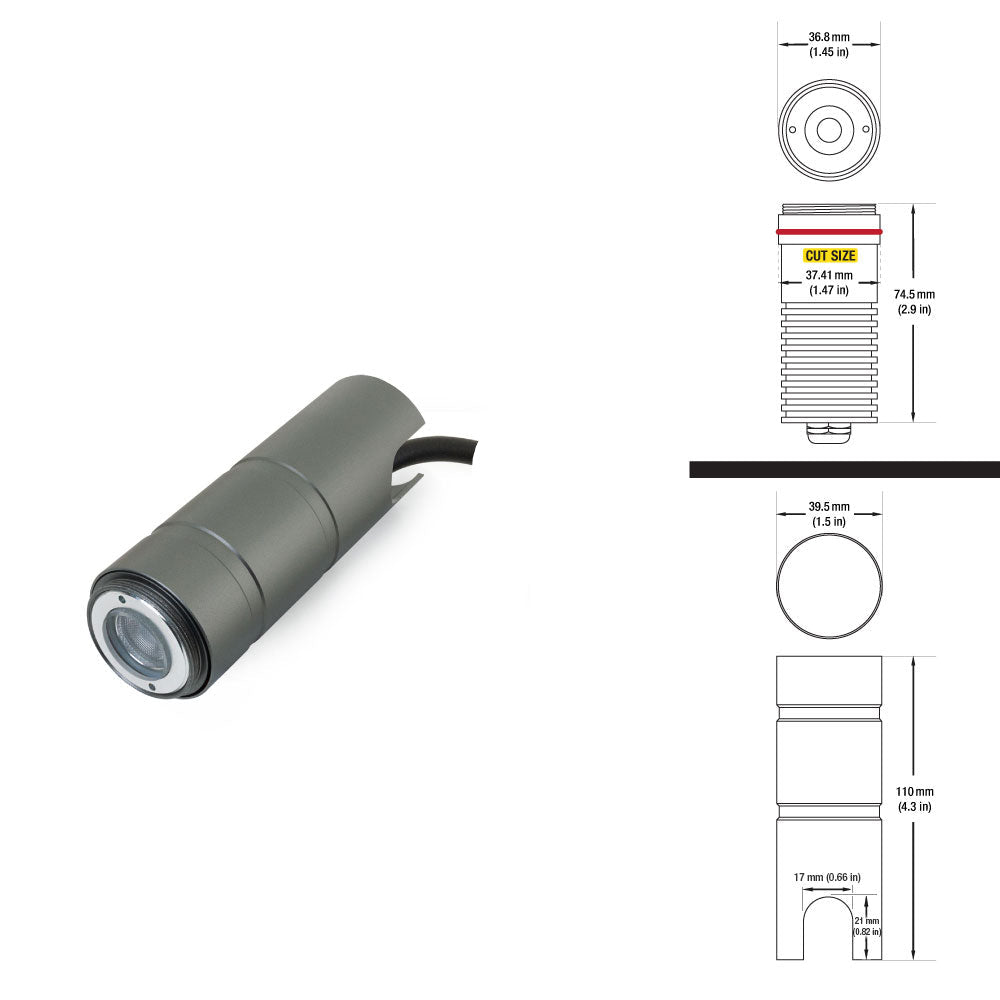

  • Engine Dimensions:
    Ø 36.8mm (1.45in)
    H 74.5mm (2.9in)
  • Housing Dimensions:
    Ø 39.5mm (1.5in)
    H 110mm (4.3in)
  • Cable Size:
    Length: 100cm (3.2ft)
    Ø 7.7mm (0.3in)
    18 AWG
    FT2
  • Certification: ETL, CE
