VBDFS-315-xxxx-120-12-NS Side Emitting LED Strip, 1320Lm/m(402Lm/ft) 9W/m(3W/ft) CCT(3K, 5K, Green)

SKU: 666561423827
Color Temperatures:

Color Temperatures

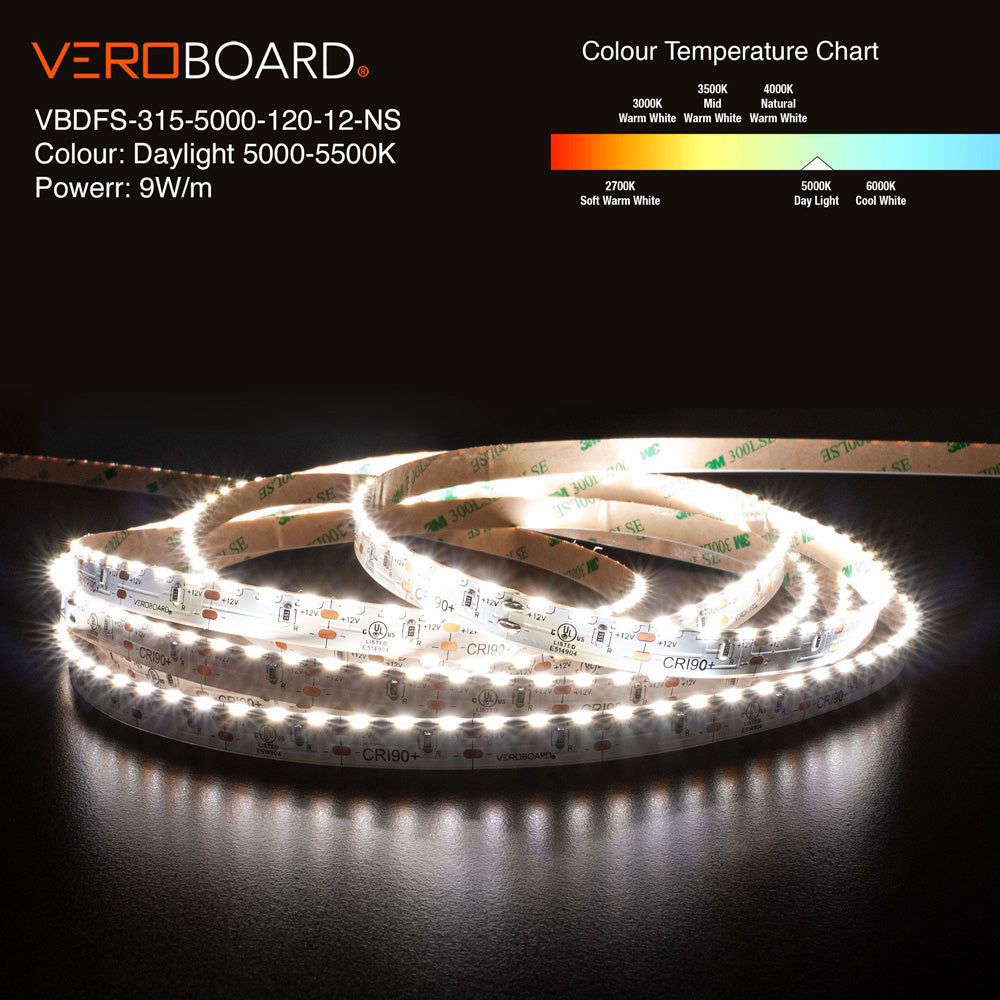

VBDFS-315-xxxx-120-12-NS Indoor LED Strip Lights with Input Voltage: 12V DC, Wattage: 9W/m(3W/ft), Brightness: 1320Lm/m(402Lm/ft), It can be used for cove lighting, under cabinet lighting, backlighting, and much more. Long Run LED Strip(Ribbon) Light Series comes in 5Meter (16.4ft) rolls and is 10mm wide. This LED Strip(Ribbon) Light can be powered without experiencing voltage drop for the whole 5Meter (16.4ft) roll.


  • Model No: VBDFS-315-xxxx-120-12-NS
  • Input Voltage: 12V DC
  • Wattage: 9W Per meter (3W/ft)
  • Brightness: 1080-1320 Lm/meter (329-402 Lm/ft)
  • Lumen/LED: 9-11Lm Per LED
  • Available Color Temperatures:
    3000K (Warm White)
    5000K (Daylight)
    Green
  • Dimensions: 5,000mm x 10mm (196.8in x 0.39in)
  • Roll Length: 5meter per roll (16.4ft)
  • LED Qty: 120 LEDs per meter
  • LED Type: 315 SMD
  • Rendering Index: CRI>95
  • Lifespan: >50,000 hours
  • PCB: 4 oz PCB, Double-side, white color 10mm width
  • Waterproof rating:  IP20 [Indoor use only]
  • Dimmable: Yes
  • Beam angle: 120°
  • Operating temperature: -15℃ to +40℃
  • Cut Size: Every 3 LED chips (1 inches)
  • Certifications: UL/RoHS
