SKU: 666561437213
Trim and Cone Color:

Trim and Cone Color

Veroboard LED-S12W-1224V-5CCTWH-SQ 4-inch regressed downlight/ Ceiling Lights with Voltage 12~36V DC, Wattage 12W, Brightness 800 Lumens, is specially designed to eliminate the glare when illuminated. It is an IC-rated fixture that comes along with a junction box LED driver. They come in both white and Black reflector trims.

Where to buy?



  • Model No: LED-S12W-1224V-5CCTWH-SQ
  • Voltage: 12~36V DC
  • Wattage: 12W
  • Frequency: 60Hz
  • Power Factor (PF): 0.9
  • Brightness: 800 Lumens
  • Color Temperature:
    5CCT Selectable Color Temperature
    2700K (Soft White)
    3000K (Warm White)
    3500K (Mid-Warm White)
    4000K (Natural White)
    5000K (Daylight)
  • Rendering Index: CRI>90
  • LED Driver: IC Rated
  • Dimmable: Yes (PWM Dimmable)
  • Mounting Plate (Sold Separately):
    VBD-MP4  SKU: 666561433789
    VBD-MP-UNV-346  SKU: 666561433796
  • Rated Life: >50,000 hours

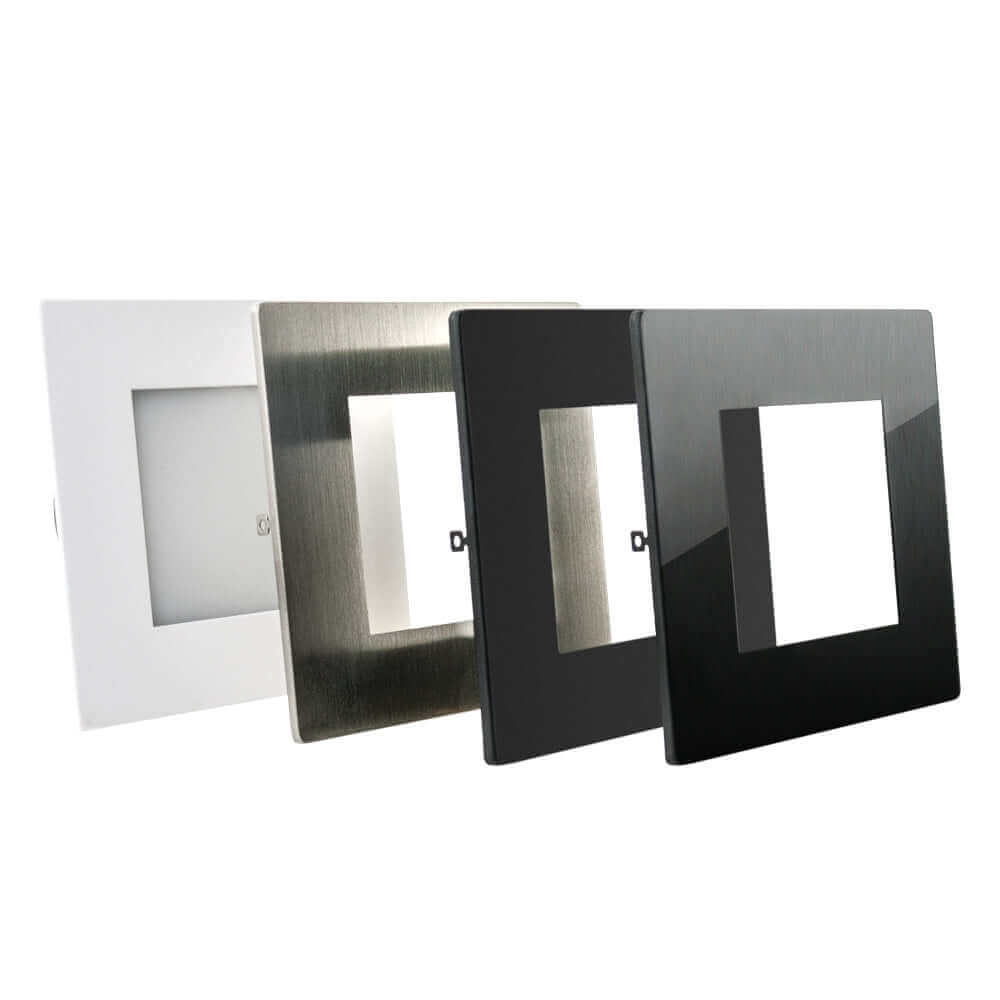

  • Available Trim Colors(Sold Separately):
    Black, Brush Nickel, Black Nickel
  • IP Rating: IP20 (Damp Locations)

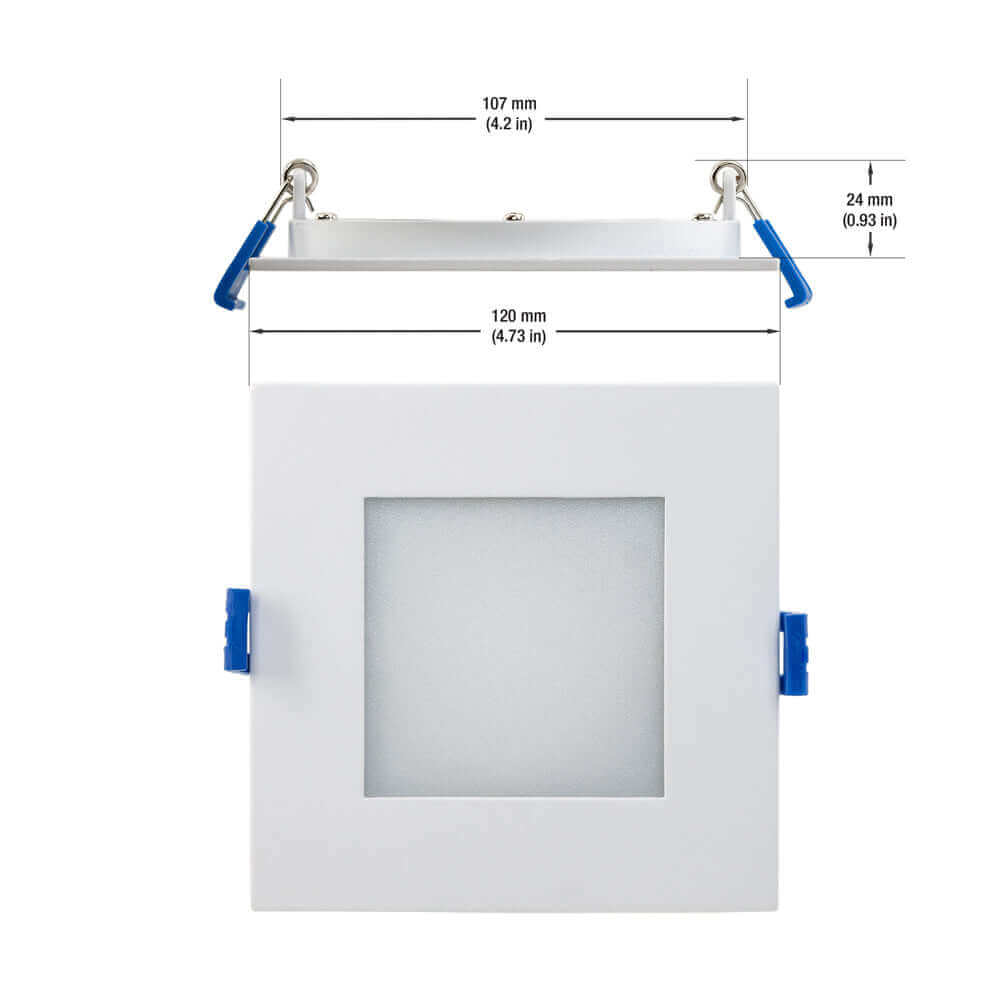

  • Dimensions: Length- 120 x 120mm (4.7 x 4.7 in)
    Depth – 32mm (1.25 in)
  • Cut Size: 111 x 111mm (4.3 x 4.3 in)
  • LED Driver Dimensions: 52.35 x 27.54 x 18.76mm (2.06 x 1.08 x 0.73in)

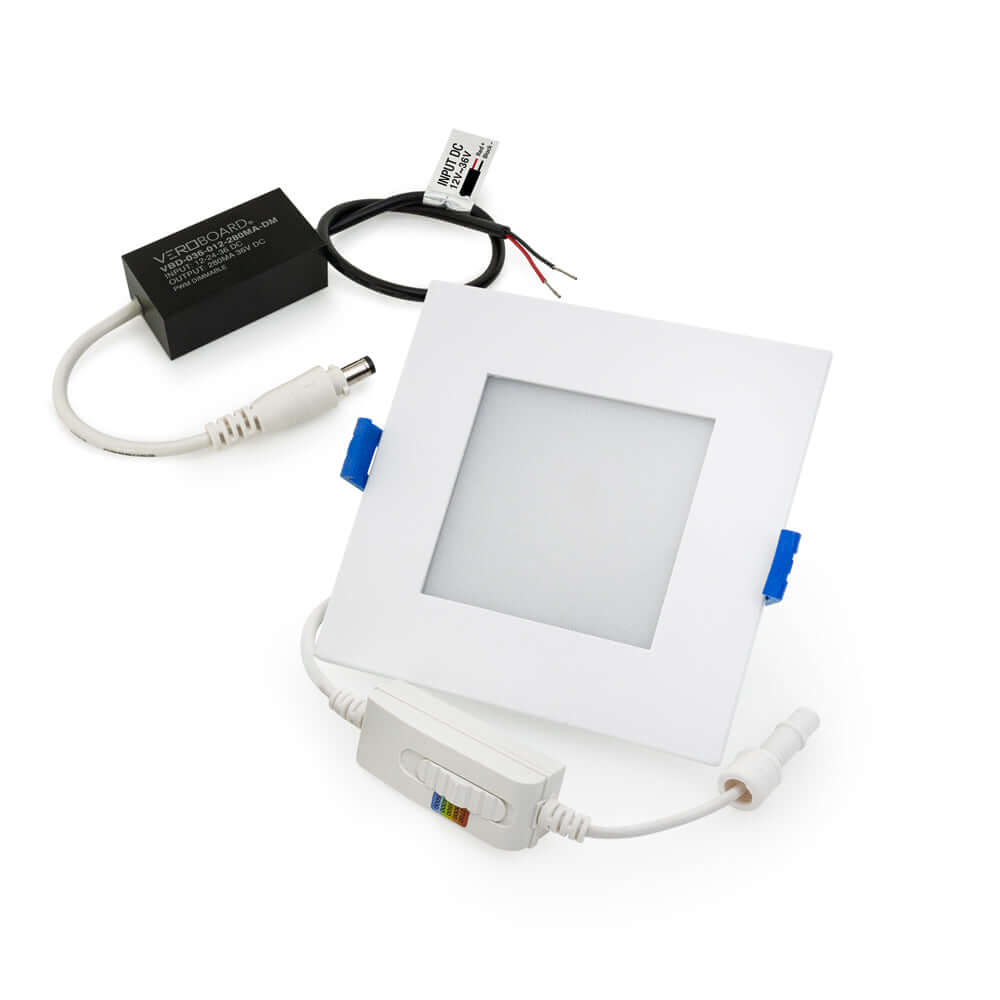

  • Package Content: Downlight with IC rated LED Driver
  • Package Dimensions: 160 x 130 x 70mm(6.3 x 5.1 x 2.7in)
  • Certificates: FCC/ ETL/Energy Star/RoHS
