SKU: 666561432263

Veroboard LED-4-S9W-1224V-5CCTWH-EFG 4-inch floating Gimbal Downlights/ Ceiling Lights with Voltage 12-24V AC/DC, Wattage 9W, Brightness 700 Lumens. It is a LED light fixture with selectable color options from 5 different color temperatures ranging from 2700K, 3000K, 3500K to 4000K, and 5000K. It is suitable for indoor applications and renders high-quality colors of any object when illuminated due to its rendering index CRI90+.



  • Model No: LED-4-S9W-1224V-5CCTWH-EFG
  • Voltage: 12-24V AC/DC
  • Wattage: 9W
  • Brightness: 700 Lumens
  • Frequently: 50/60Hz
  • Power Factor (PF): 0.9
  • Color Temperature:
    5CCT Selectable Color Temperature
    2700K (Soft White)
    3000K (Warm White)
    3500K (Mid-Warm White)
    4000K (Natural White)
    5000K (Daylight)
  • Rendering Index: CRI>90
  • Dimmable: No
  • Beam Angle: 40°
  • Angle Rotation: 360°
  • Gimbal Tilt Angle: 90°
  • Mounting Plate (Sold Separately):
    VBD-MP4  SKU: 666561433789
    VBD-MP-UNV-346  SKU: 666561433796
  • Rated Life: >50,000 hours
  • Fixture Material: Die-cast Aluminum
  • Fixture Color: White
  • IP Rating: IP20 (Damp locations)
  • Installation Type: Recessed/ Flush Mount
  • Dimensions: Ø 125.24 mm (4.93 in) x 38mm (1.5 in) Depth
  • Cut Size: 108mm (4-¼ in)

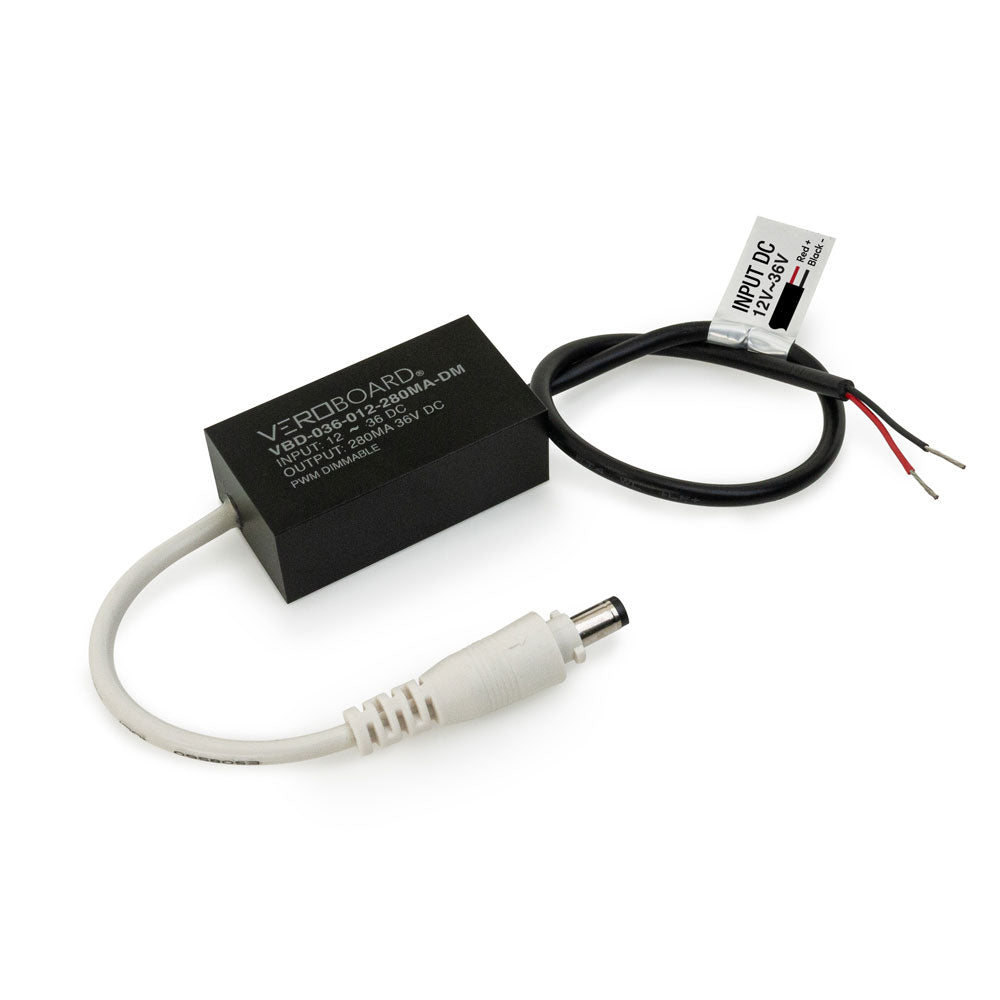

  • LED Driver Dimensions: 67.76mm x 25.4mm x 25.4mm (2.67in x 1in x 1in)

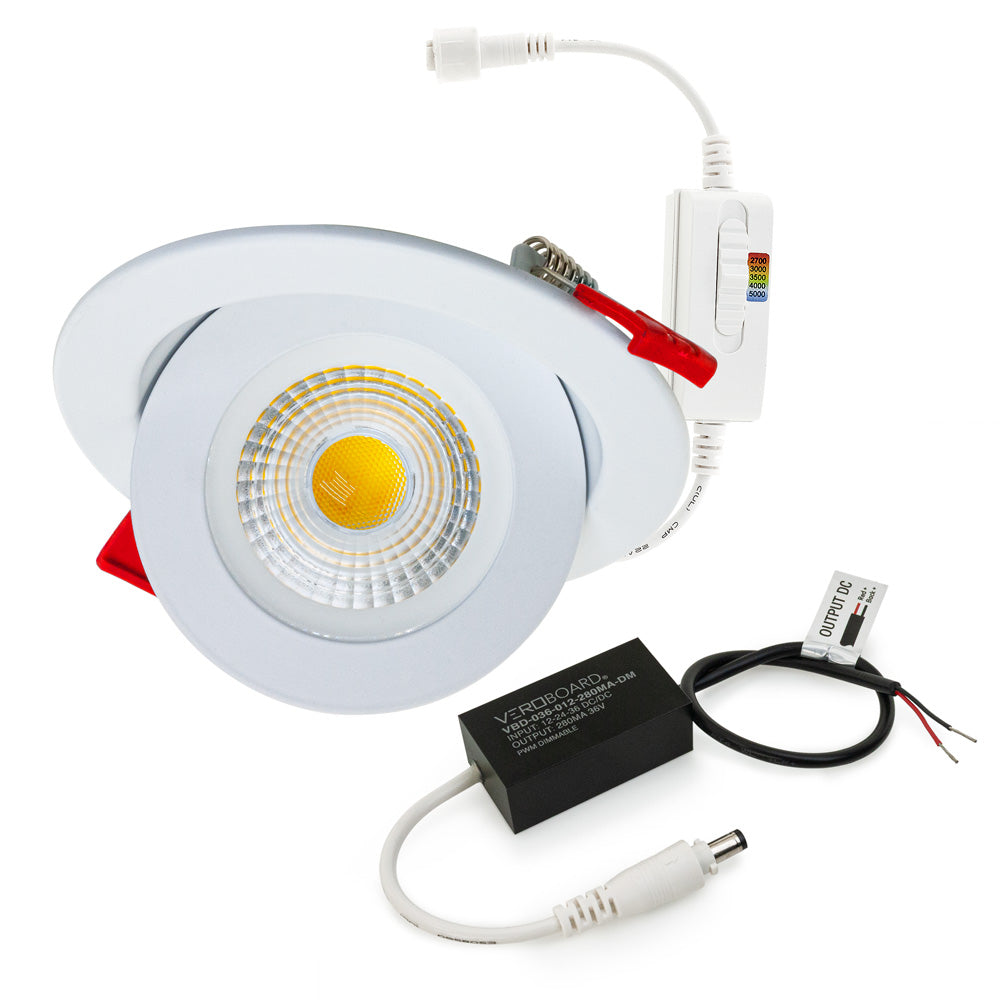

  • Package Content: Gimbal Downlight with LED Driver
  • Package Dimensions: 140 x 140 x 82mm (5.5 x 5.5 x 3.2in)
  • Certificates: FCC/ ETL/Energy Star/RoHS
