LD022H-VU18012-Q22P 0-10V Dimmable Constant Voltage LED Driver 12V 22W, Veroboard
LD022H-VU18012-Q22P 0-10V Dimmable Constant Voltage LED Driver 12V 22W
LD022H-VU18012-Q22P 0-10V Dimmable Constant Voltage LED Driver 12V 22W

LD022H-VU18012-Q22P 0-10V Dimmable Constant Voltage LED Driver 12V 22W

SKU: 666561434939

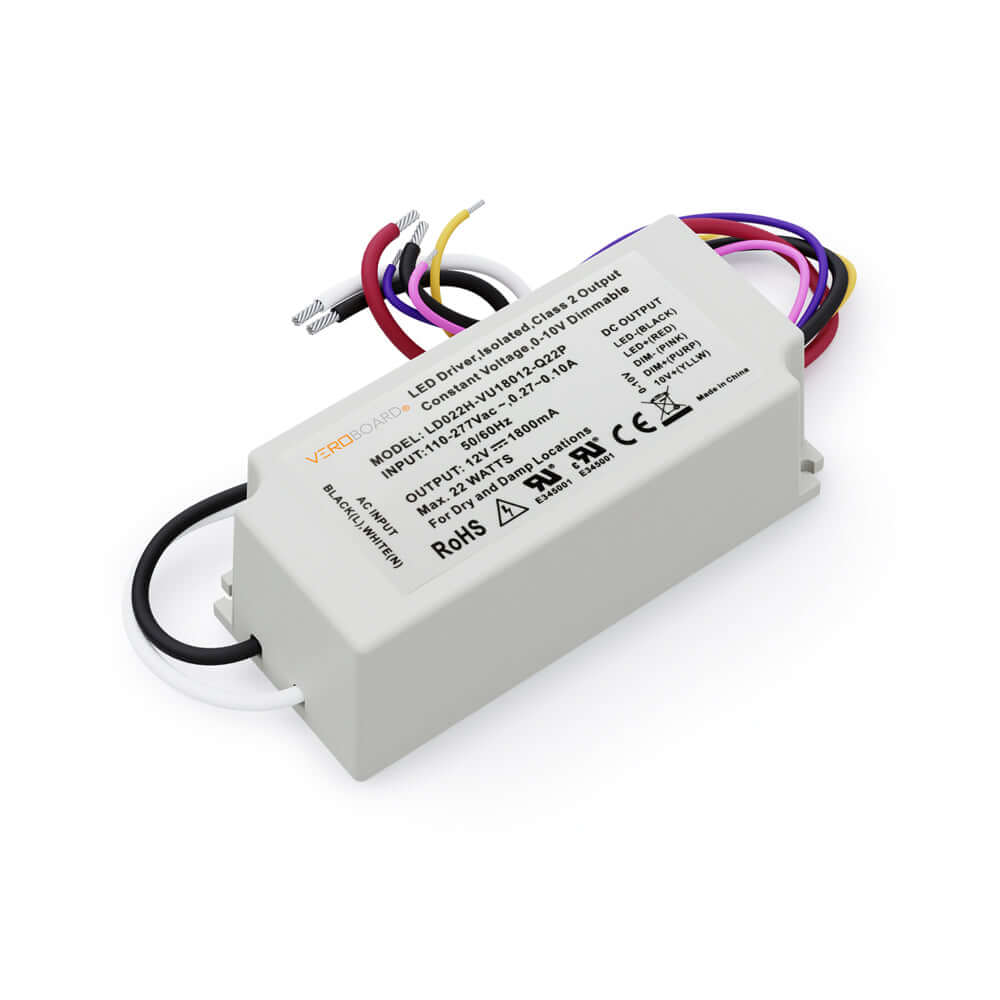

Veroboard LD022H-VU18012-Q22P 0-10V Dimmable Constant Voltage LED Driver with Input Voltage: 110-277V AC, Input Current: 0.27~0.10A, Input Frequency: 50-60 Hz, Output Voltage: 12V DC, Output Current: 1800mA, Wattage: 22W.


  • Model No: LD022H-VU18012-Q22P
  • Input Voltage: 110-277V AC
  • Input Current: 0.27~0.10A
  • Input Frequency: 50-60 Hz
  • Output Voltage: 12V DC
  • Output Current: 1800mA
  • Max Load: 22W
  • Dimmable: Yes (0-10V Dimming)
  • IP Rating: IP20 (Dry, Damp Locations)

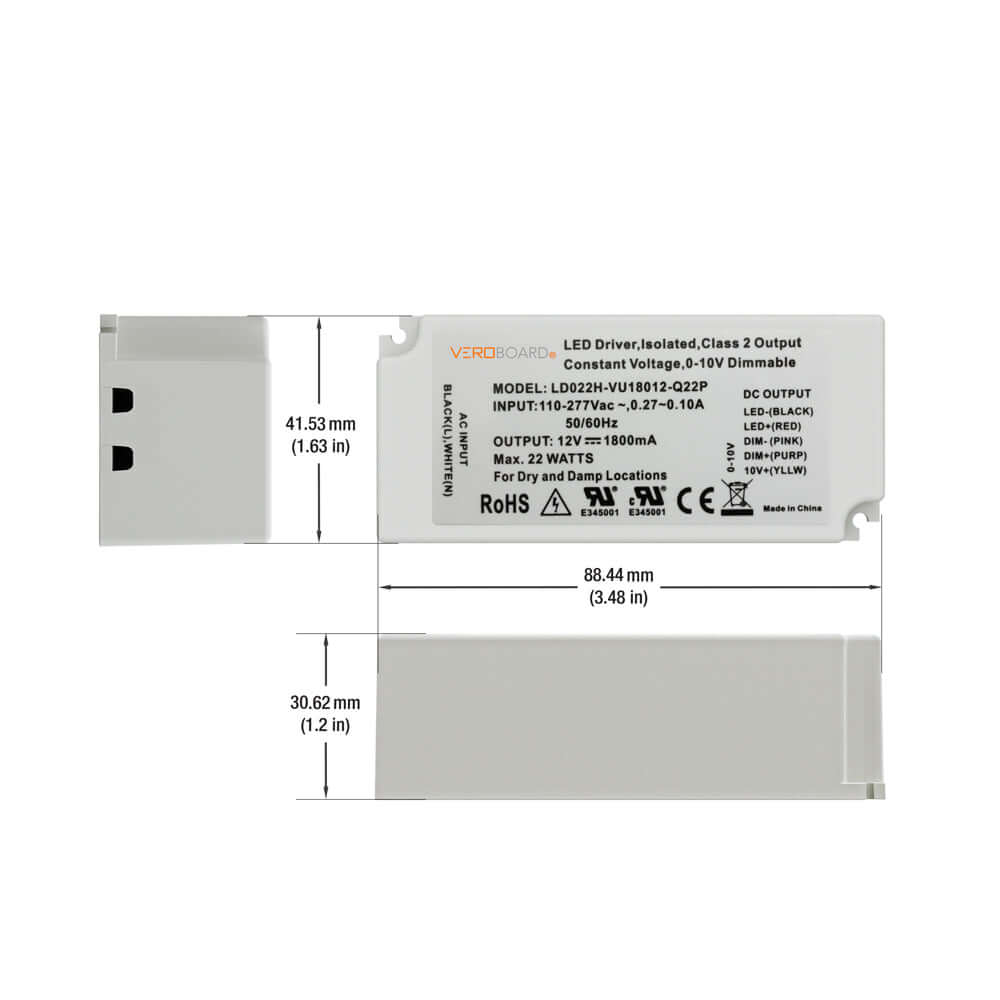

  • Dimensions:
    88.4 x 41.5 x 30.6mm (3.4 x 1.6 x 1.2in)
  • Wiring/ Housing: Hardwire
  • Certificates: UL/CE
