HM04-PR8-18W120-3CCT-WSA Space Series Ceiling Lights, 120V 18W 3CCT(3K, 4K, 5K)

SKU: 666561420345
Trim Colors:

Trim Colors

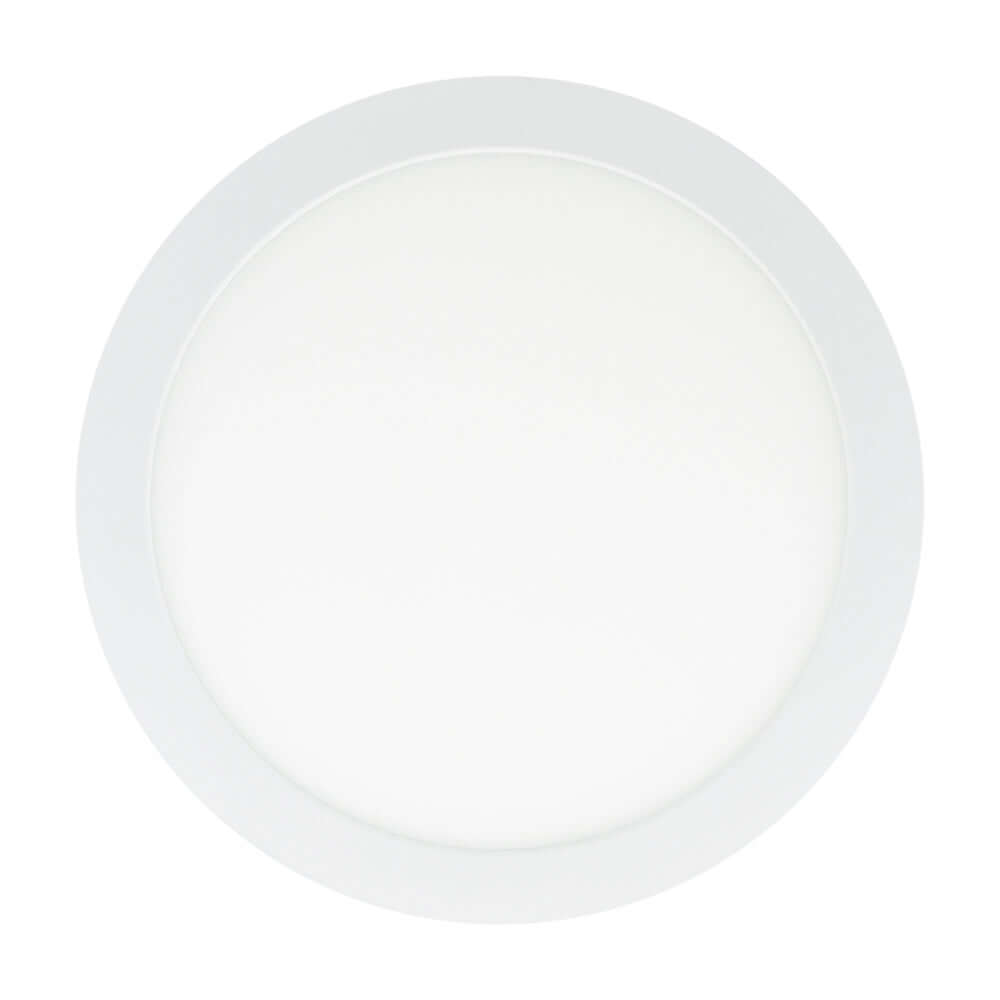

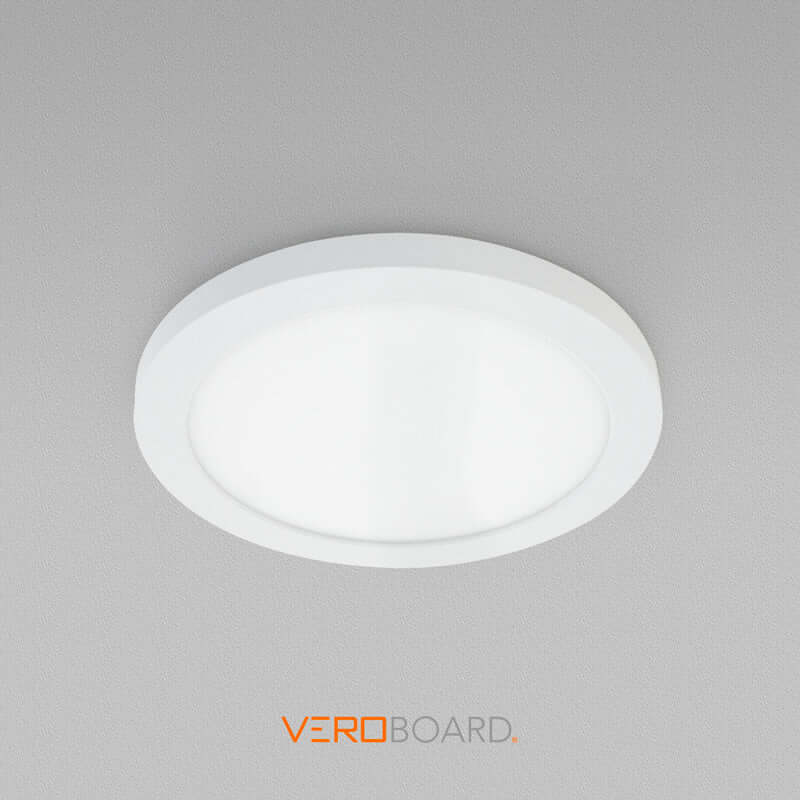

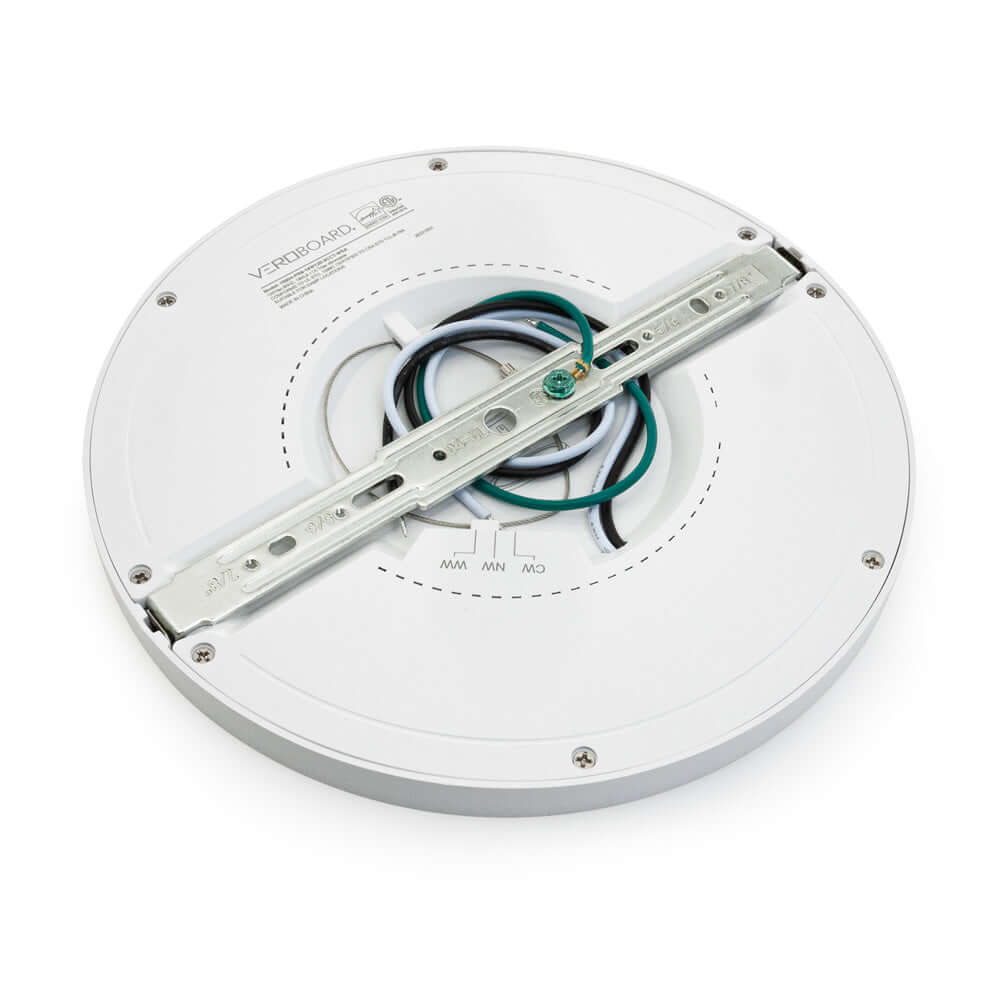

Veroboard HM04-PR8-18W120-3CCT-WSA 8-inch LED Downlight/Ceiling Lights Space Series with Voltage 120V AC, Wattage 18W, Brightness 1260 Lumens are lightweight with ultra-slim depth. They are manufactured with pure aluminum to ensure better heat dissipation and a high quality PS light guide plate to ensure higher light efficiency. They have a feature of selecting the light color from three temperatures ranging from 3000K-4000K-5000K.


  • Model No: HM04-PR8-18W120-3CCT-WSA
  • Voltage: 120V AC
  • Wattage: 18W
  • Frequency: 60Hz
  • Brightness: 1260 Lumens
  • Color Temperature:

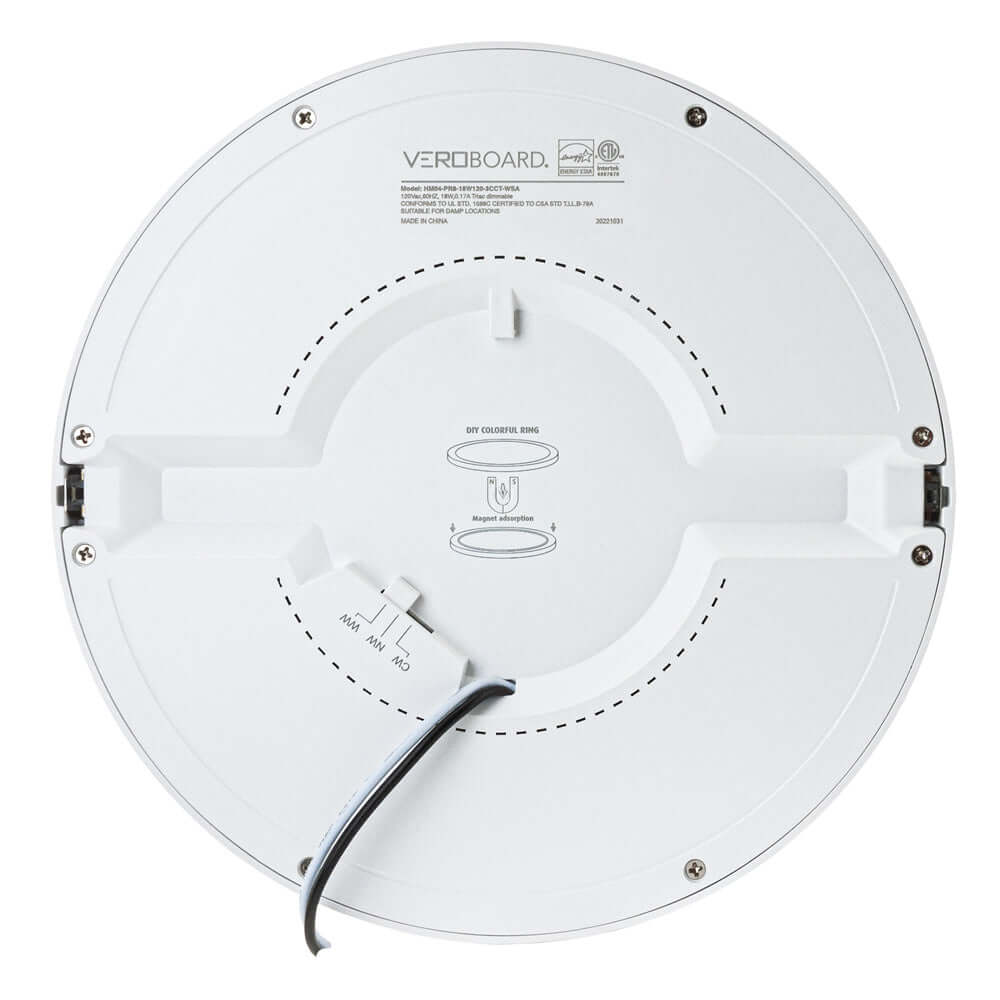

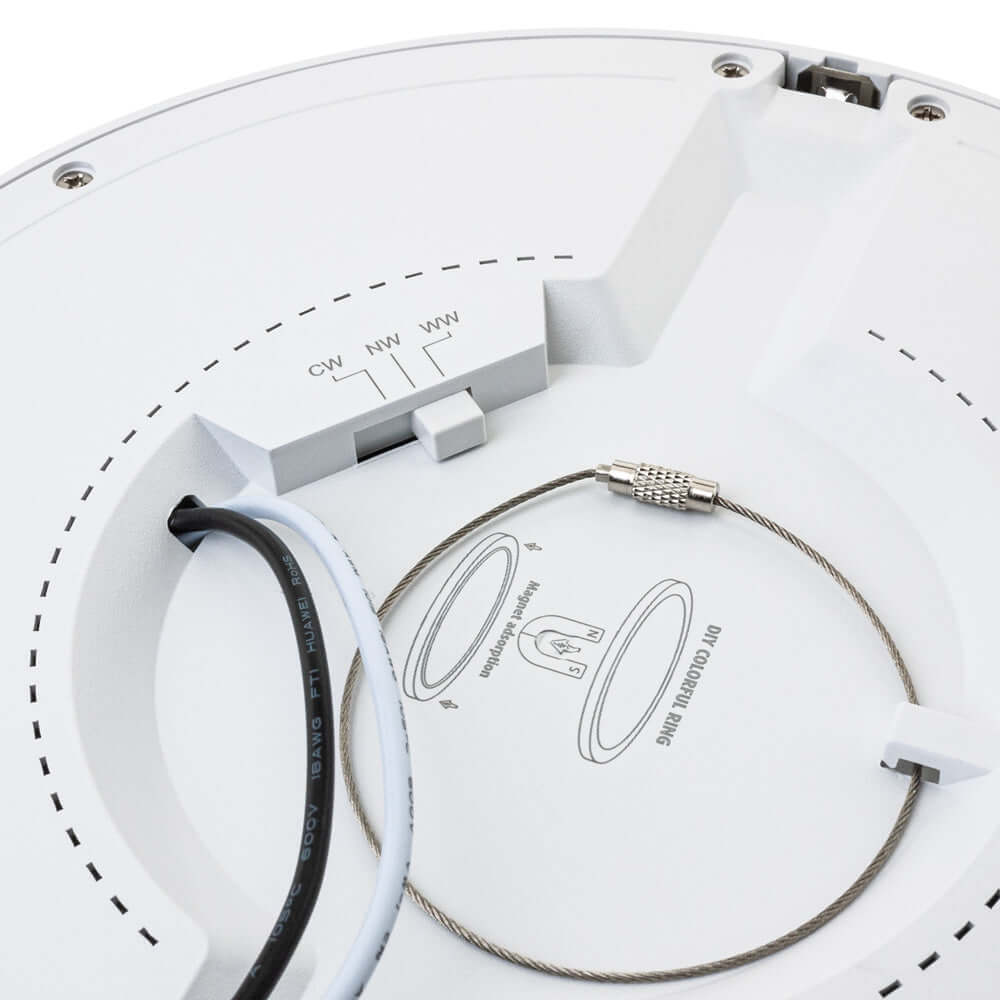

    3CCT Selectable Color Temperature
    3000K (Warm White)
    4000K (Natural White)
    5000K (Daylight)
  • Rendering Index: CRI>80+

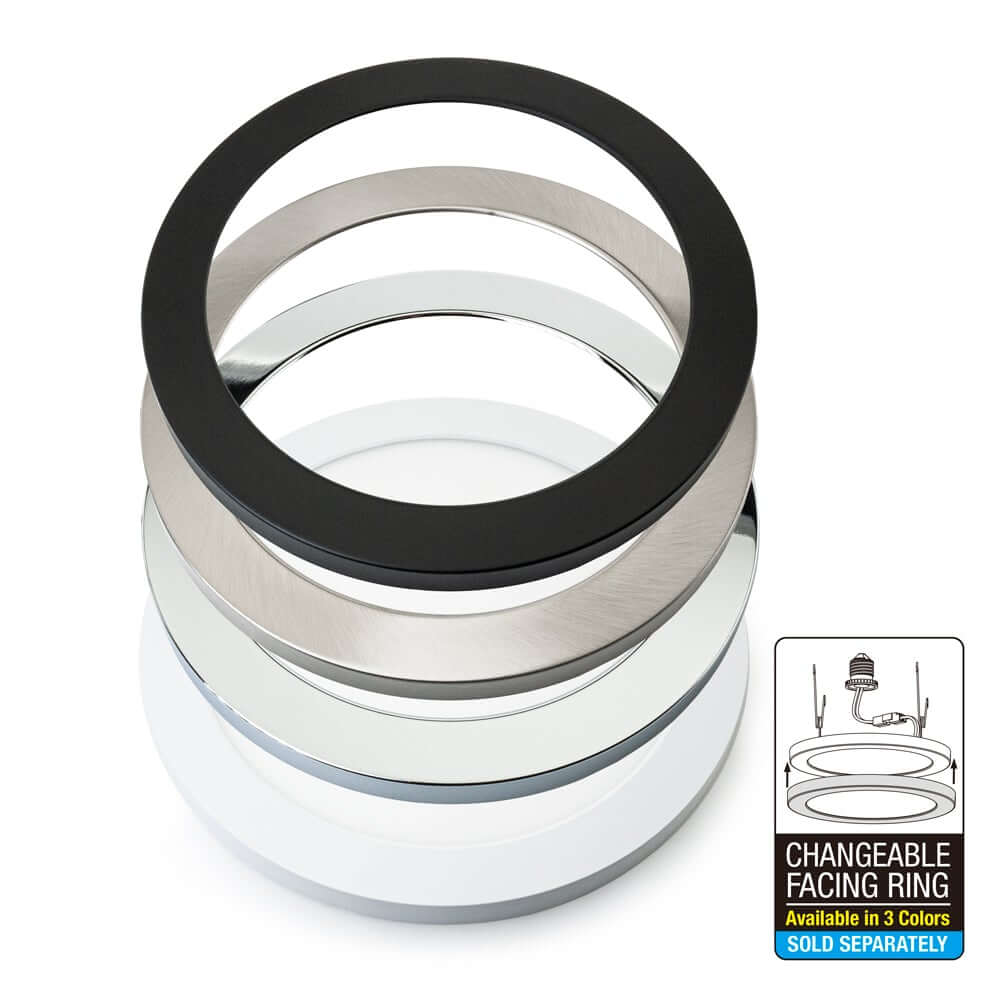

  • Available Trim Colors(Sold Separately):

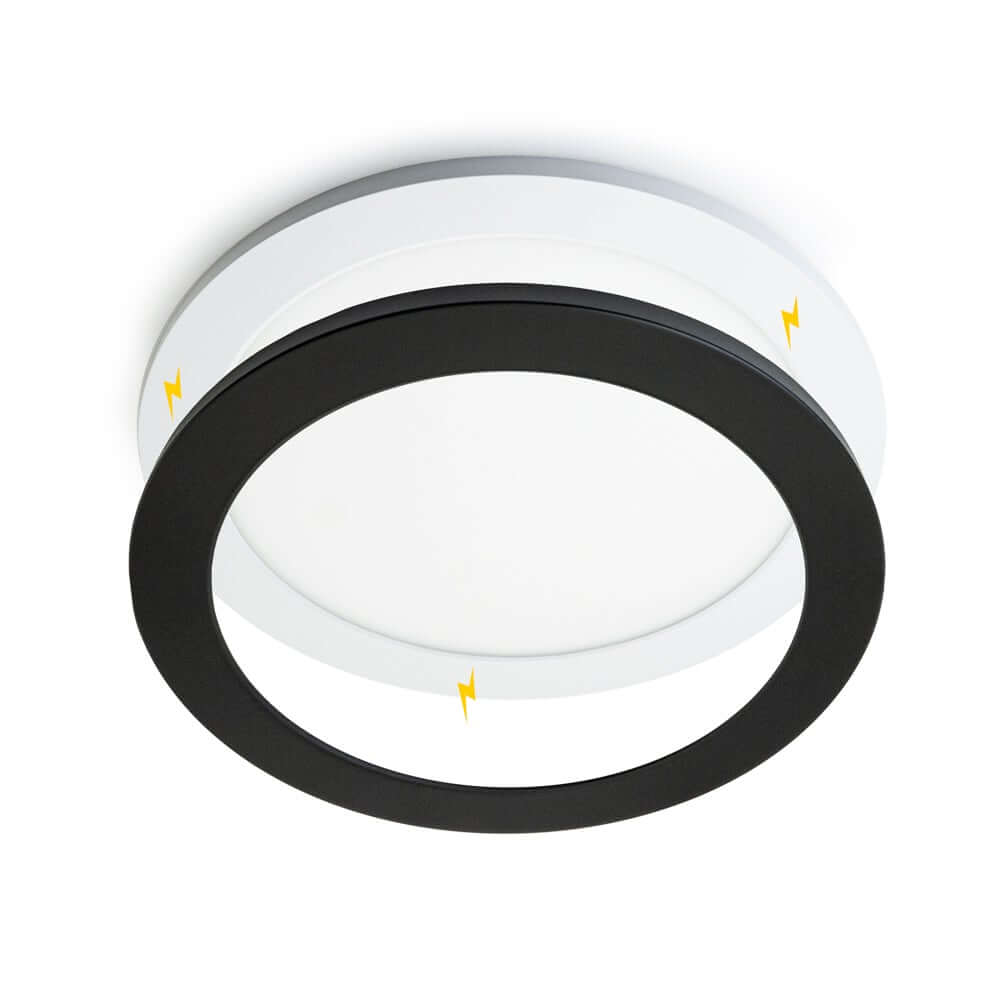

    Matt Black SKU: 666561420383

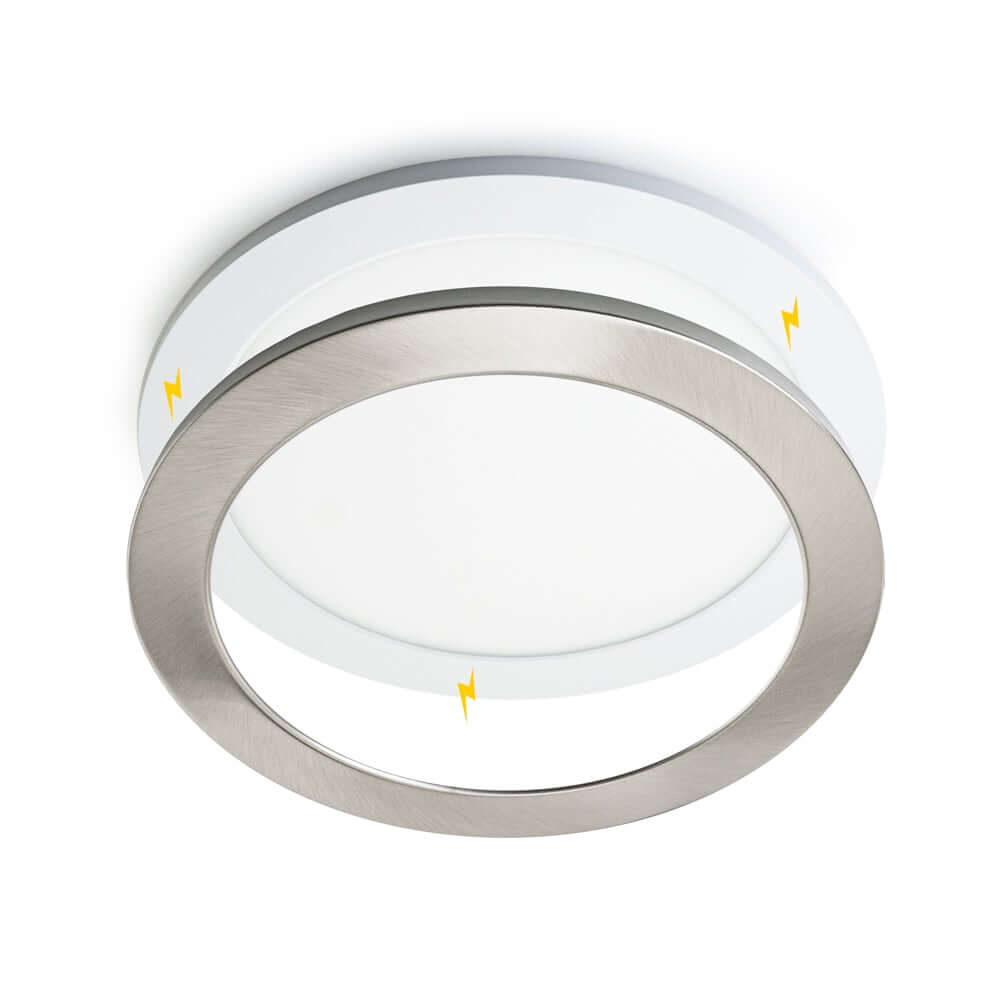

    Stain Nickel SKU: 666561420390

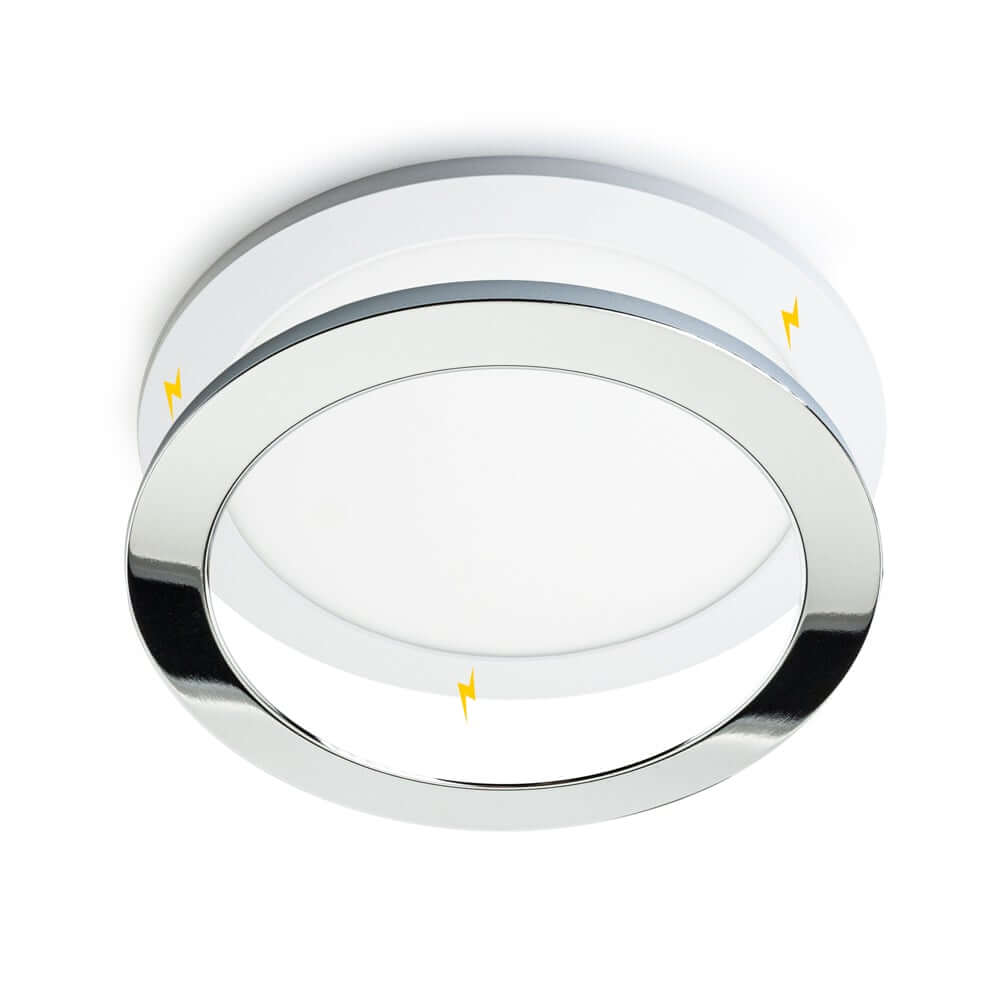

    Polished Chrome SKU: 666561420406

  • Rated Life: 35,000 hours
  • IP Rating: IP20 (Indoor use only)
  • Dimmable: Yes
  • Dimmer Options:
    Leviton Dimmers
    Sure Slide 6672
    Illuma Tech IPL06
    Decora DLS06-1LZ
    Lutron Dimmers
    Caseta PD-6WCL
    Ariadni CL TGL-135P
    Maestro CL MACL-153M
    Skylark Contour CTCL-153P

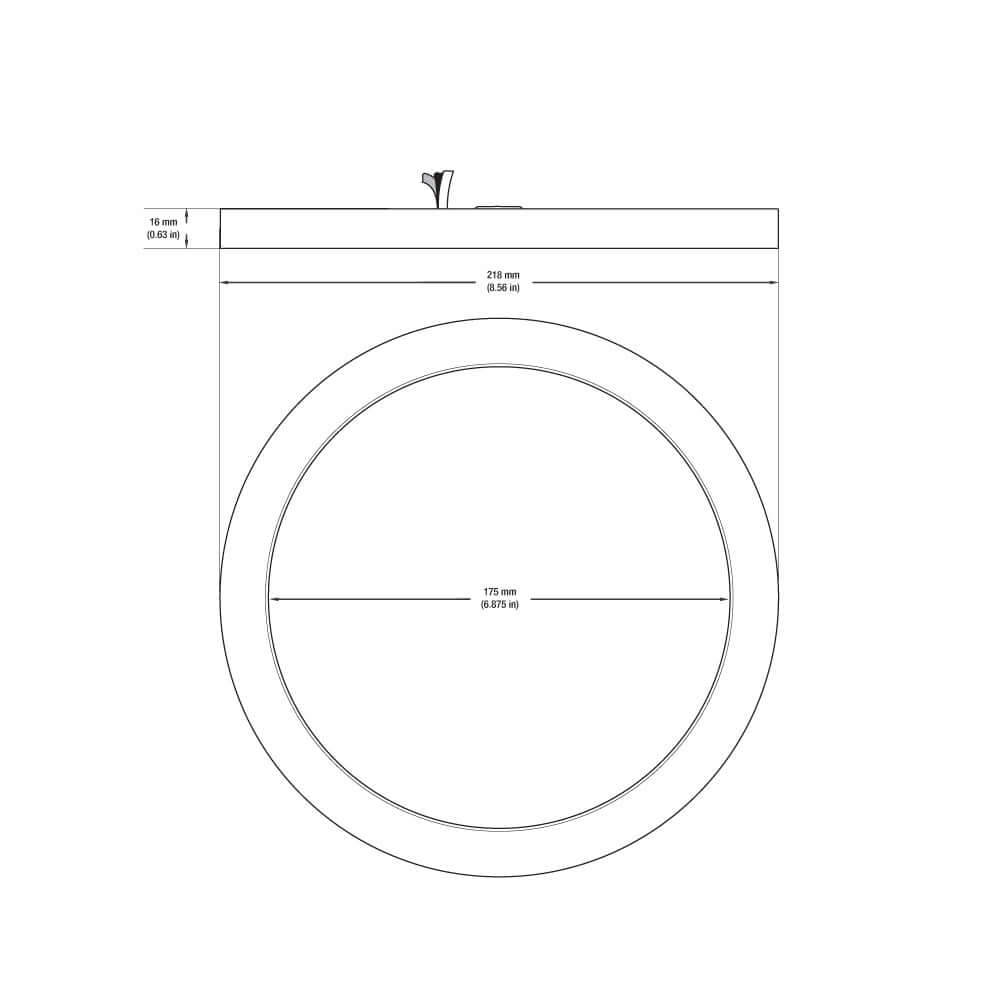

  • Dimensions:
    Diameter - 203mm (8 inches)
    Depth - 14mm (0.5 inches)
  • Certificates: FCC/ ETL/Energy Star/RoHS

Beam Details
Beam Angle 120º

 Metric Imperial
Distance  Beam Width Lux
1m 3.5m 420 lx
2m 6.9m 105 lx
3m 10.4m 47 lx
4m 17.3m 26 lx
5m 17.3m 17 lx
Distance Beam With
Footcandles
3.3ft 11.4ft 39 fc
6.6ft 22.9ft 10 fc
9.8ft 33.9ft 9.8 fc
13.1ft 45.4ft 2 fc
16.4ft 56.8ft 2 fc
