AD-LED-4-S12W-1224V-5CCTWH-EY, 4 inch Gimbal Adjustable Downlight Canless LED

SKU: 666561430375

Veroboard AD-LED-4-S12W-1224V-5CCTWH-EY 4-inch adjustable recessed gimbal Downlight/ Ceiling Light with Voltage 12-24V AC/DC, Wattage 12W, Brightness 1000 Lumens, has a 360-degree angle rotation that helps in rotating the luminaire in the needed direction. They come with an IC-rated LED driver. They come with zero flickers and with a rendering index of 90+. These lights have a feature of selecting the light color from five temperatures ranging from 2700K-3000K-3500K to 4000K-5000K. Moreover, they are compatible with most of the dimmers including DVCL-153P and DVELP-300P dimmers.


  • Model No: AD-LED-4-S12W-1224V-5CCTWH-EY
  • Voltage: 12-24V AC/DC
  • Wattage: 12W
  • Frequency: 60Hz
  • Power Factor (PF): 0.9
  • Brightness: 1000 Lumens
  • Color Temperature:
    5CCT Selectable Color Temperature
    2700K (Soft White)
    3000K (Warm White)
    3500K (Mid-Warm White)
    4000K (Natural White)
    5000K (Daylight)
  • Rendering Index: CRI>90

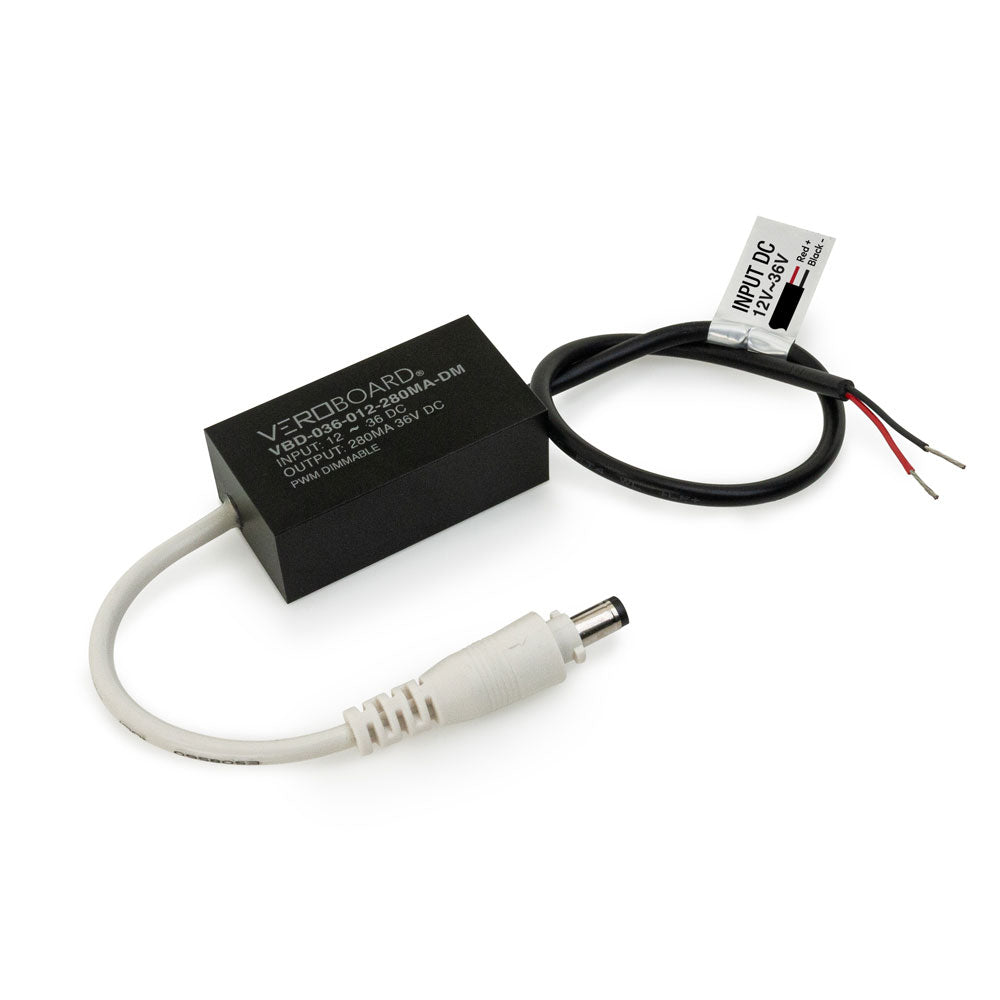

  • LED Driver: IC Rated
  • Dimmable: No
  • LED Type: Integrated COB
  • Angle Rotation: 360°
  • Beam Angle: 40°
  • Gimbal Tilt Angle: 30°
  • Air Tight: Yes
  • Rated Life: >50,000 hours
  • Fixture Material: Die-cast Aluminum
  • Fixture Color: White
  • IP Rating: Suitable for wet location
  • Installation Type: Recessed/ Flush Mount
  • Outer Dimensions: Ø 125mm (4.9 in) x  50.50mm (2 in) Depth
  • Cut Size: 108mm (4-¼ in)
  • LED Driver Dimensions: 67.76mm x 25.4mm x 25.4mm (2.67in x 1in x 1in)

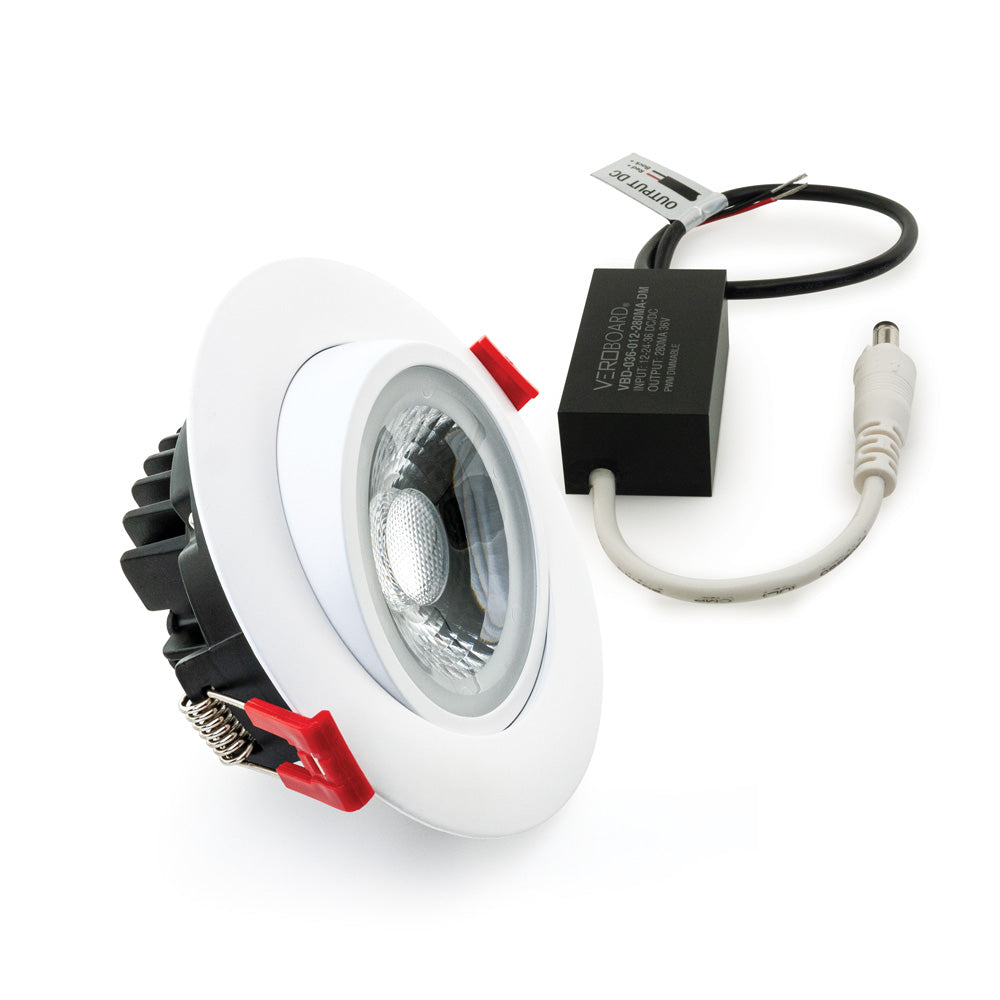

  • Package Content: Gimbal Downlight with IC-rated LED Driver
  • Package Dimensions: 143 x 133 x 102mm (5.6 x 5.2 x 4in)
  • Certificates: FCC/ ETL/Energy Star/RoHS
