Veroboard Canada

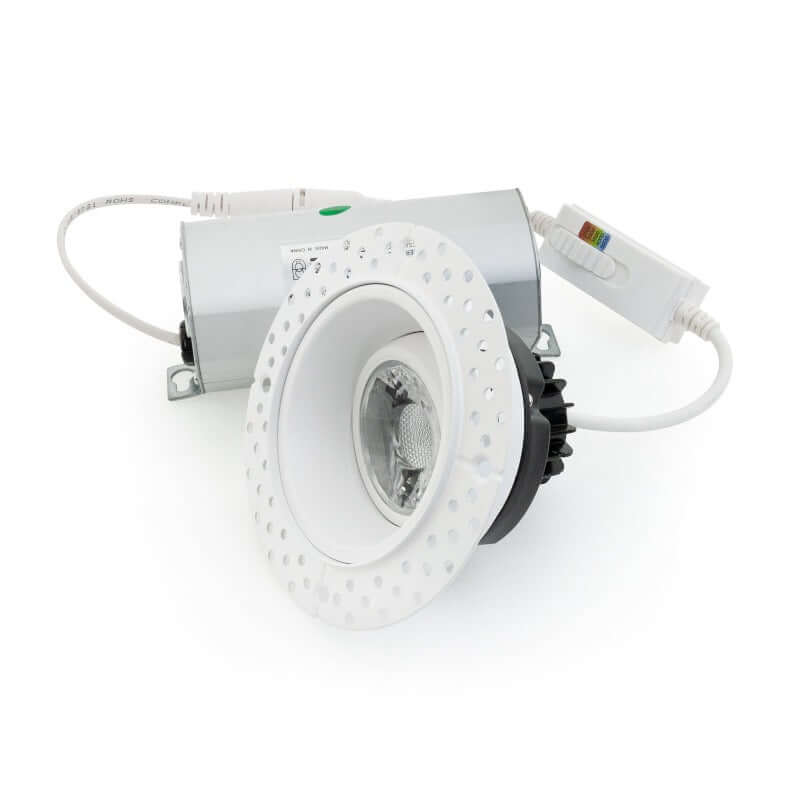

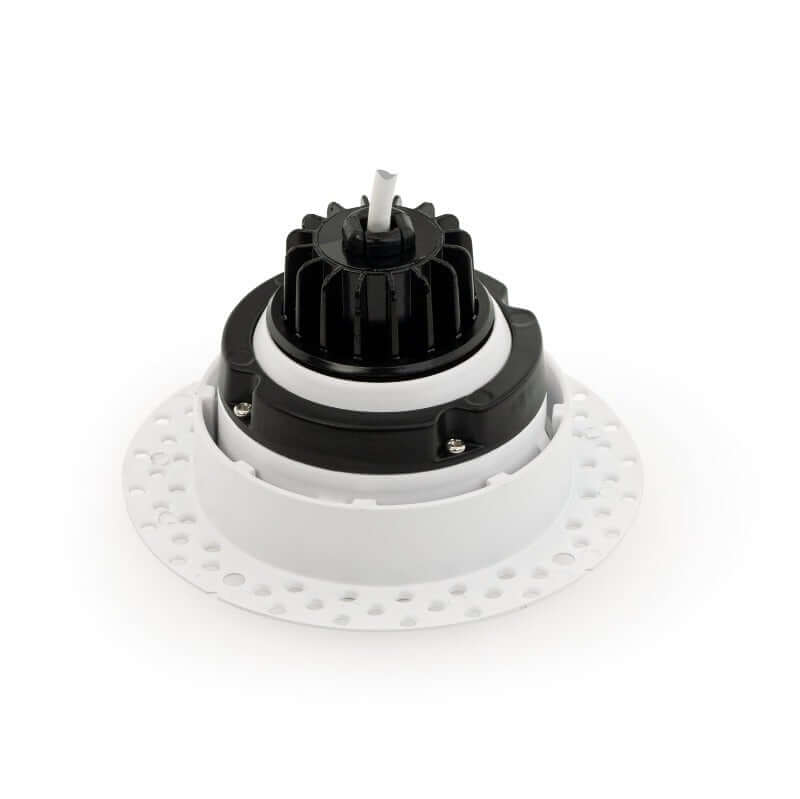

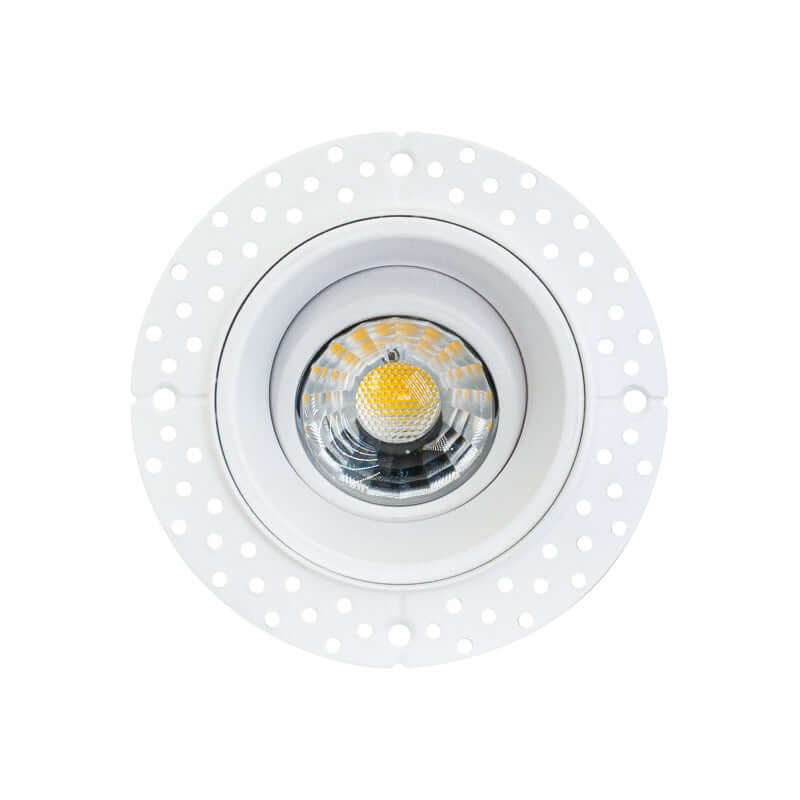

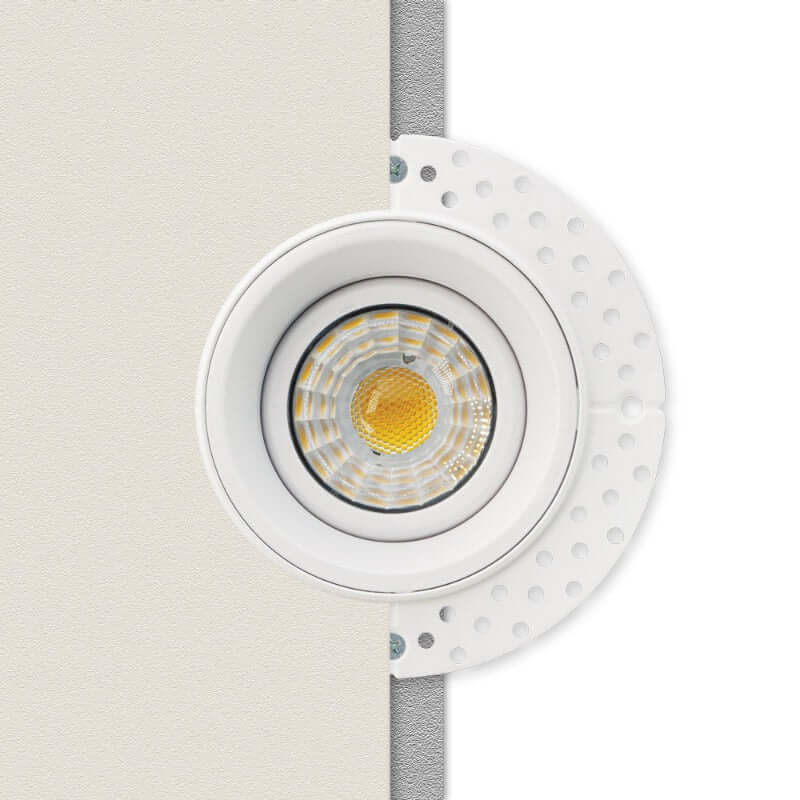

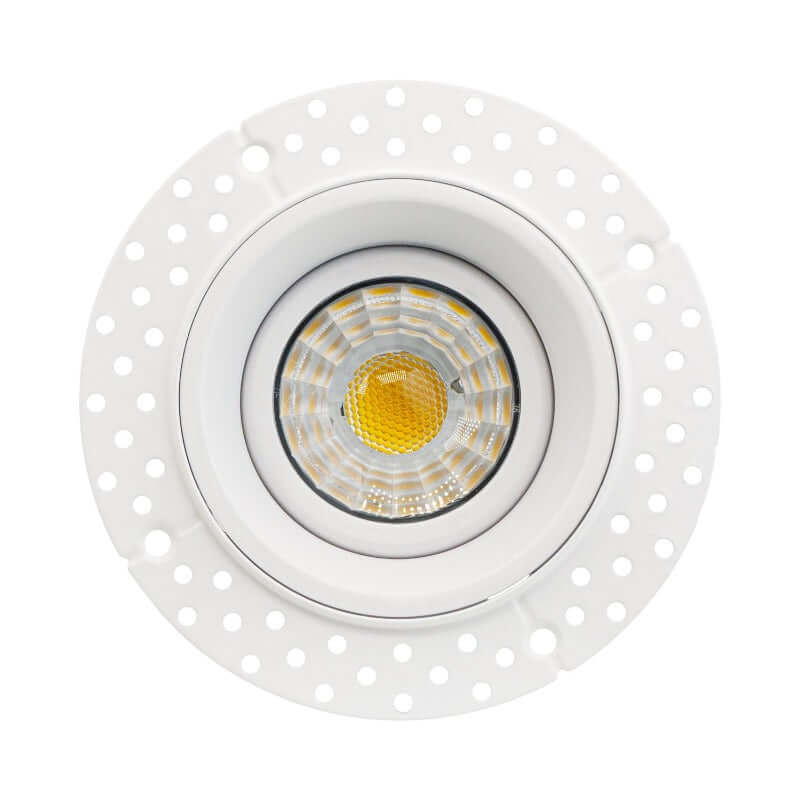

LED-3-S8W-L5CCTWH-T, 3 inch Trimless Gimbal Ceiling Light

SKU: 666561425692

Veroboard LED-3-S8W-L5CCTWH-T 2 inches trimless downlight/ Ceiling Lights with Voltage 120V AC, Wattage 8W, Brightness 600 Lumens is specially designed to eliminate glare when illuminated. It is an IC-rated fixture that comes along with a junction box LED driver. It has the option of choosing desired color temperature from 2700K-3000K-3500K-4000K- 5000K.


  • Model No: LED-3-S8W-L5CCTWH-T
  • Voltage: 120V AC
  • Wattage: 8W
  • Frequency: 60Hz
  • Power Factor (PF): 0.9
  • Brightness: 600 Lumens

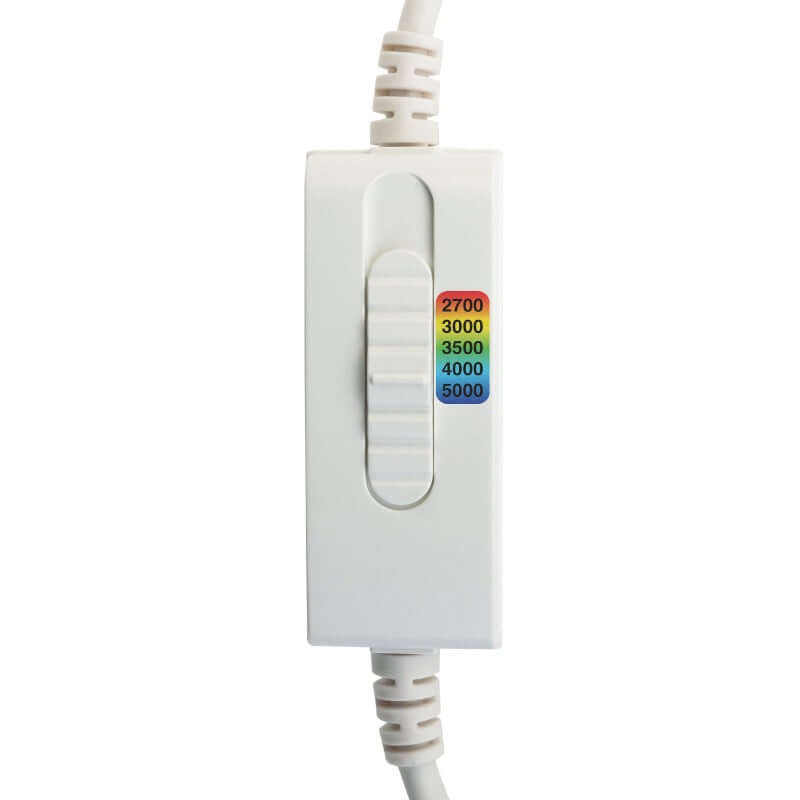

  • Color Temperature:
    5CCT Selectable Color Temperature
    2700K (Soft White)
    3000K (Warm White)
    3500K (Mid-Warm White)
    4000K (Natural White)
    5000K (Daylight)
  • Rendering Index: CRI>90
  • LED Driver: IC Rated
  • Dimmable: Yes
  • Dimmer: 100-10% (Triac Dimming)
  • LED Type: Integrated COB
  • Angle Rotation: 360°
  • Beam Angle: 40°
  • Gimbal Tilt Angle: 30°
  • Air Tight: Yes
  • Rated Life: >50,000 hours
  • Fixture Material: Die-cast Aluminum
  • Fixture Color: White
  • IP Rating: Suitable for wet location
  • Installation Type: Recessed/ Flush Mount

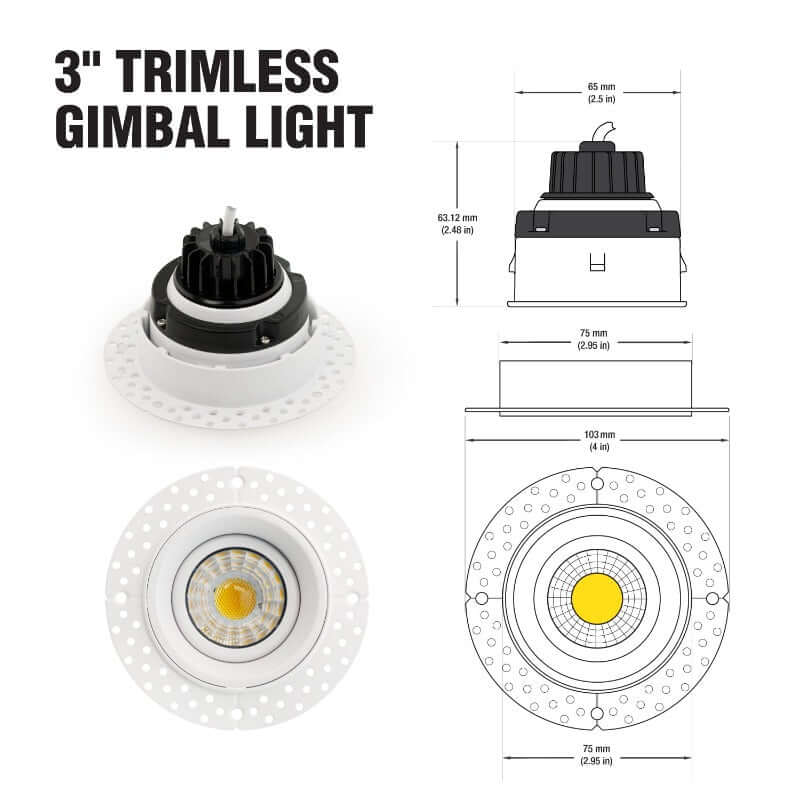

  • Outer Dimensions: Ø 75mm (2.9 in) x  65mm (2.5 in) Depth
  • Cut Size: 78mm (3-¼ in)
  • LED Driver Dimensions: 100 x 53 x 47mm(4 x 2 x 1.7in)
  • Package Content: Downlight with IC-rated LED Driver
  • Package Dimensions: 160 x 130 x 70mm(6 x 5 x 3in)
  • Certificates: FCC/ ETL/Energy Star/RoHS
