AD-35S12W-1224V-5CCTWH-REY-SQ, 3.5 inch 1 Head Regressed Gimbal

SKU: 666561430382

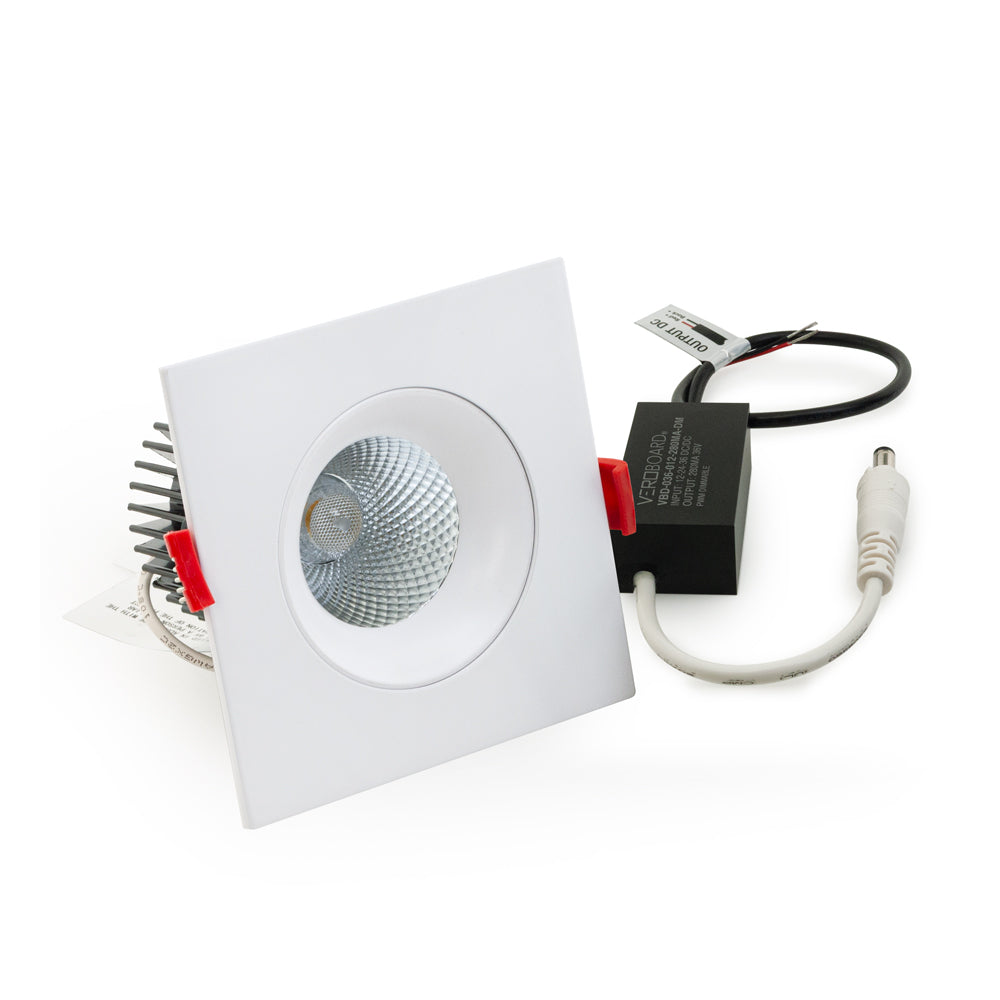

Veroboard AD-35S12W-1224V-5CCTWH-REY-SQ 3.5 inches 1 head regressed downlight/ Ceiling Lights with Voltage 120V AC, Wattage 12W, Brightness 800 Lumens, is specially designed to eliminate glare when illuminated. It is an IC-rated fixture that comes along with a junction box LED driver. It has the option of choosing desired color temperature from 2700K-3000K-3500K 4000K-5000K. This light is perfect for both new construction and remodeling installation with easy push spring clips.


  • Model No: AD-35S12W-1224V-5CCTWH-REY-SQ
  • Voltage: 12-24V AC/DC
  • Wattage: 12W
  • Frequency: 60Hz
  • Power Factor (PF): 0.9
  • Brightness: 800 Lumens
  • Color Temperature:
    5CCT Selectable Color Temperature
    2700K (Soft White)
    3000K (Warm White)
    3500K (Mid-Warm White)
    4000K (Natural White)
    5000K (Daylight)
  • Rendering Index: CRI>90

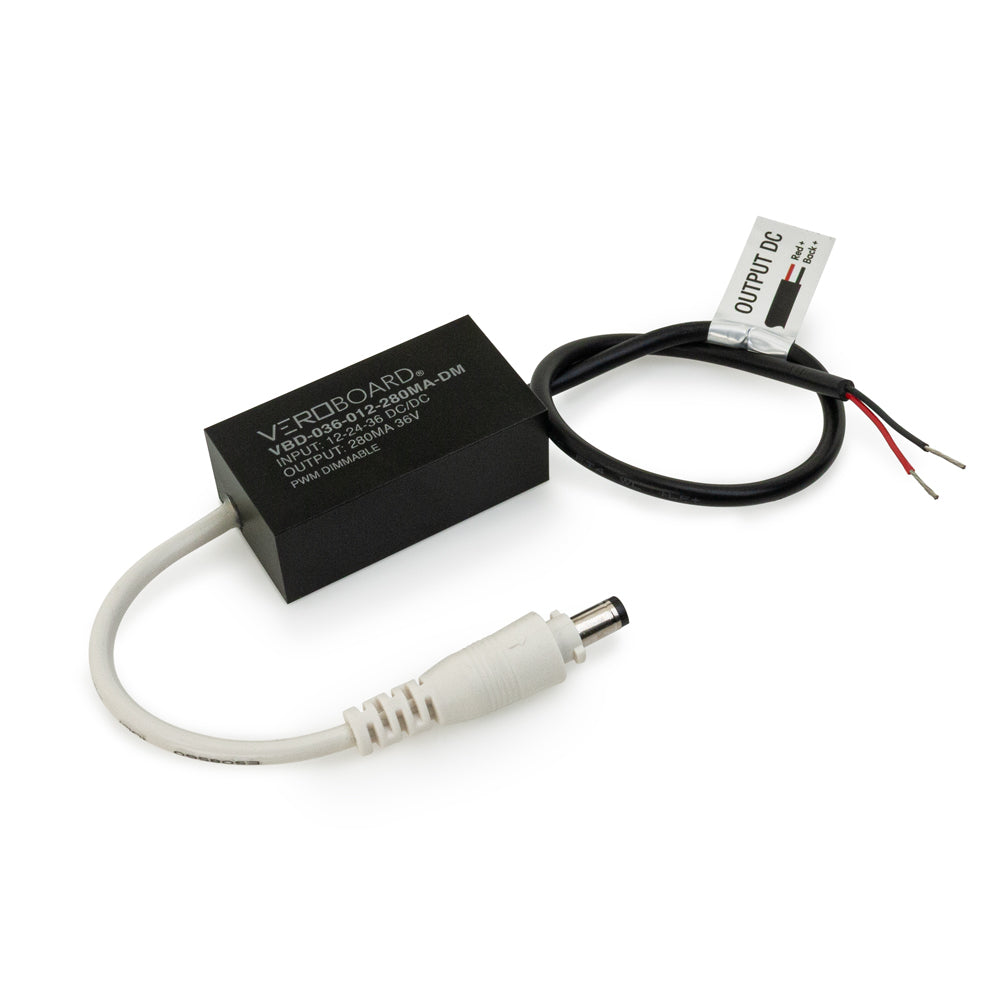

  • LED Driver: IC Rated
  • Dimmable: No
  • LED Type: Integrated COB
  • Beam Angle: 40°
  • Gimbal Tilt Angle: 15°
  • Air Tight: Yes
  • Rated Life: >50,000 hours
  • Fixture Material: Die-cast Aluminum
  • Fixture Color: White
  • IP Rating: IP20 (Damp Locations)
  • Installation Type: Recessed/ Flush Mount
  • Outer Dimensions: 111.40 x 111.40 x 77.66 mm (4.4 x 4.4 x 3 in)
  • Cut Size: 95mm (3-¾ in)
  • LED Driver Dimensions: 67.76 x 25.4 x 25.4mm (2.67 x 1 x 1in)
  • Package Content: Square Regressed Gimbal Downlight with IC-rated LED Driver
  • Package Dimensions: 180 x 153 x 106mm(7.1 x 6 x 4.2in)
  • Certificates: FCC/ ETL/Energy Star/RoHS
