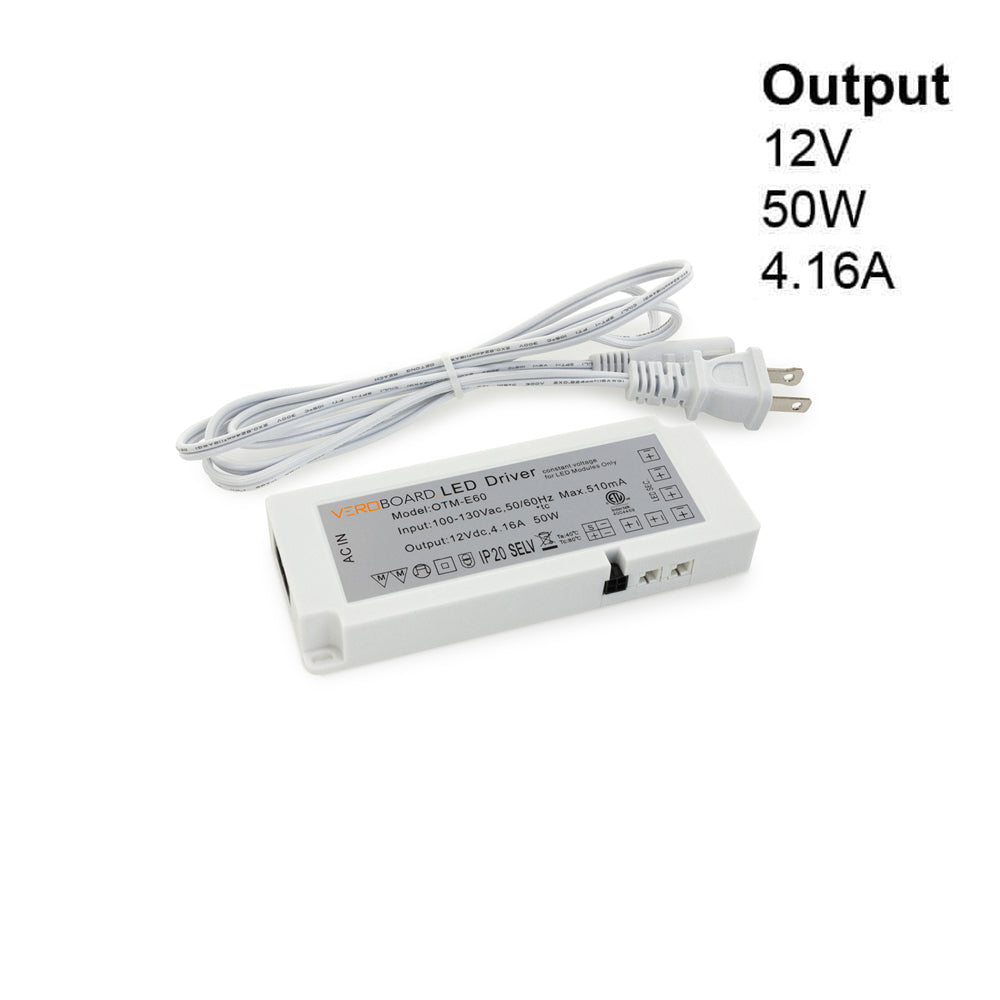

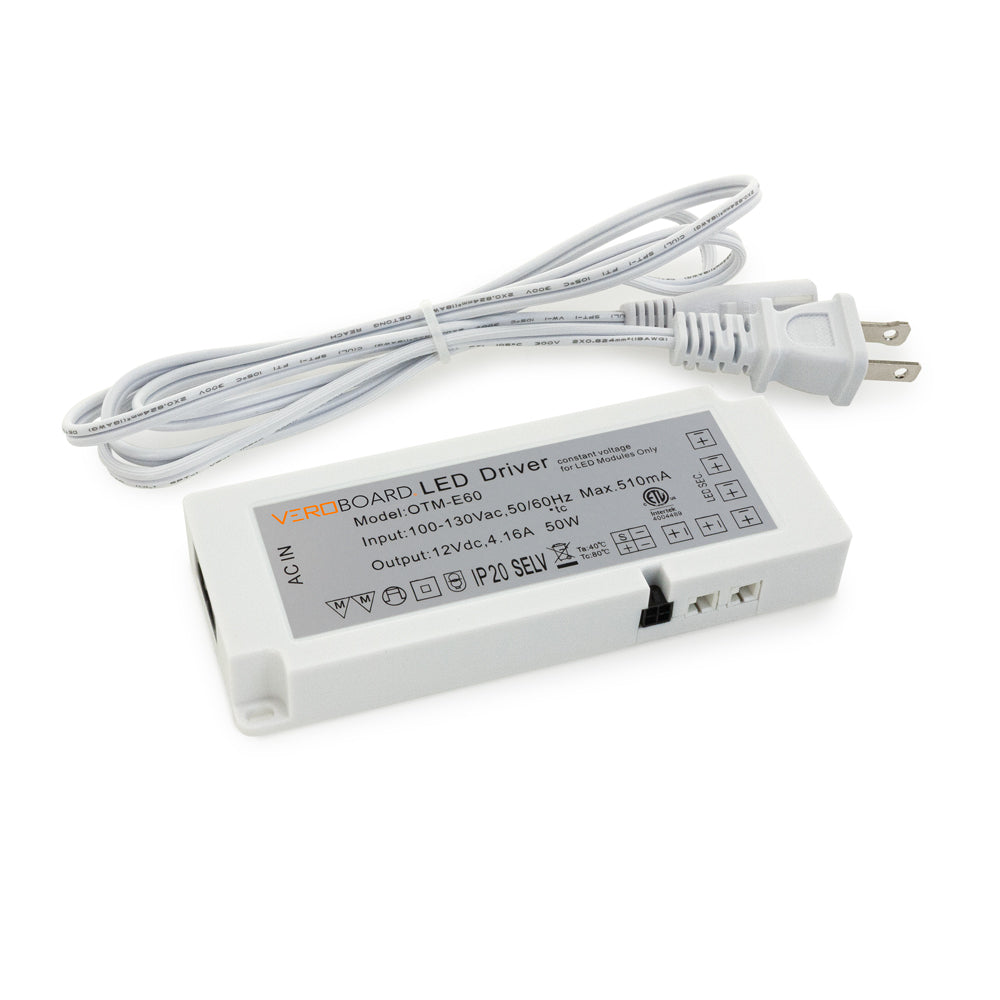

The OTM-E60 Cabinet Multiple Output CV Non-Dimmable LED Driver is a high-quality power supply that provides a reliable and efficient source of power for LED lighting applications. It is designed to operate with an input voltage range of 100-240V AC and an input frequency range of 50-60 Hz.
This LED driver has a maximum output power of 50W, and it features 6 output channels with a 2-pin Dupont/ 2-pin JST connector. The output voltage is 12V DC, with an output current of 4.16A. It also has a single input channel with a 2-prong AC power cord, with a cable length of 5 feet.
The OTM-E60 is not dimmable and has an IP rating of IP20, which makes it suitable for use in indoor environments. It is also certified as Class 2, which means that it is a low voltage power supply that is safe for use in lighting applications.

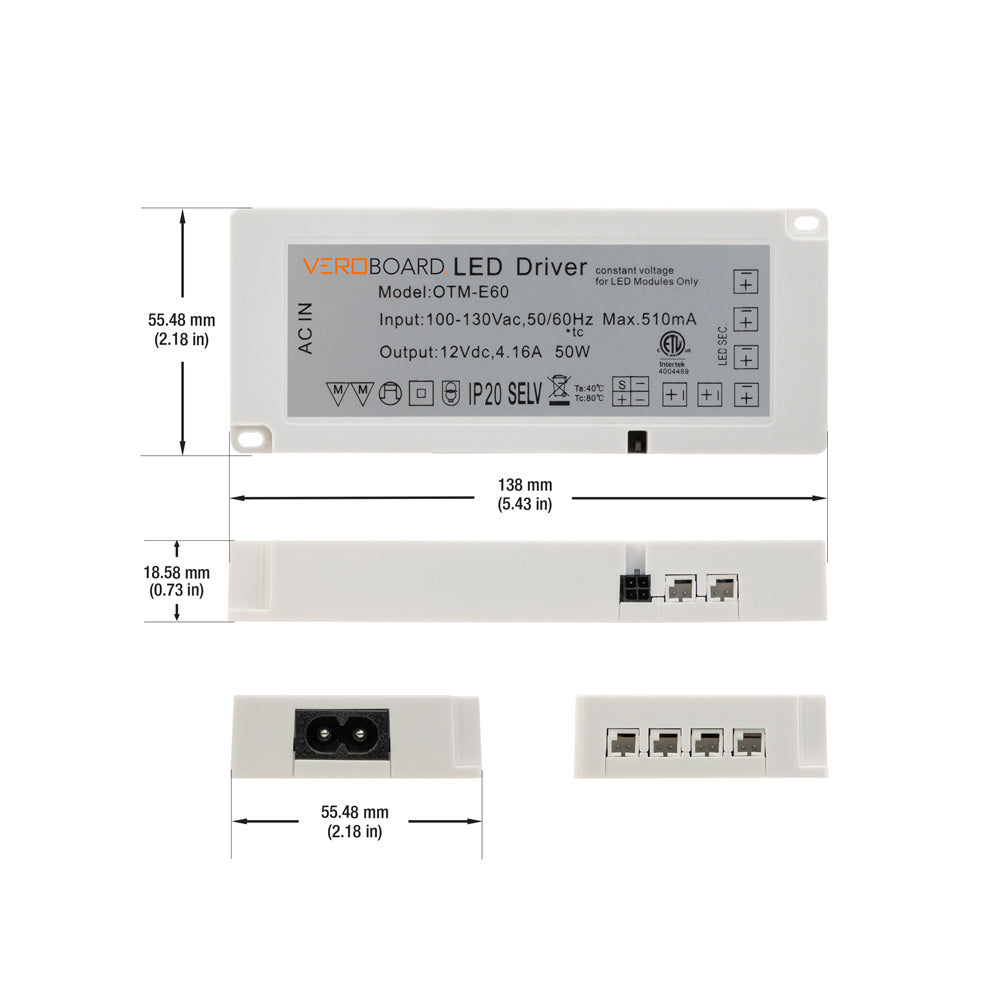

The dimensions of the OTM-E60 are 120.3 x 55 x 18.6mm (4.7 x 2.1 x 0.7in), and it features a plug-in design that is easy to install and use. The product content includes the LED driver with AC power cord, and it is certified with CE, ETL, and RoHS certifications, indicating that it meets the standards for safety and environmental protection North America.
Overall, the OTM-E60 Cabinet Multiple Output CV Non-Dimmable LED Driver is a reliable and efficient power supply option for LED lighting applications, with multiple output channels and a high maximum load capacity.

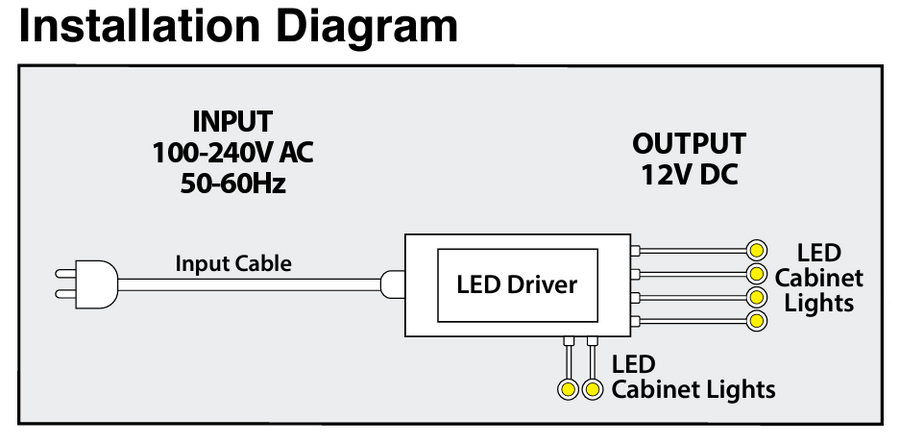

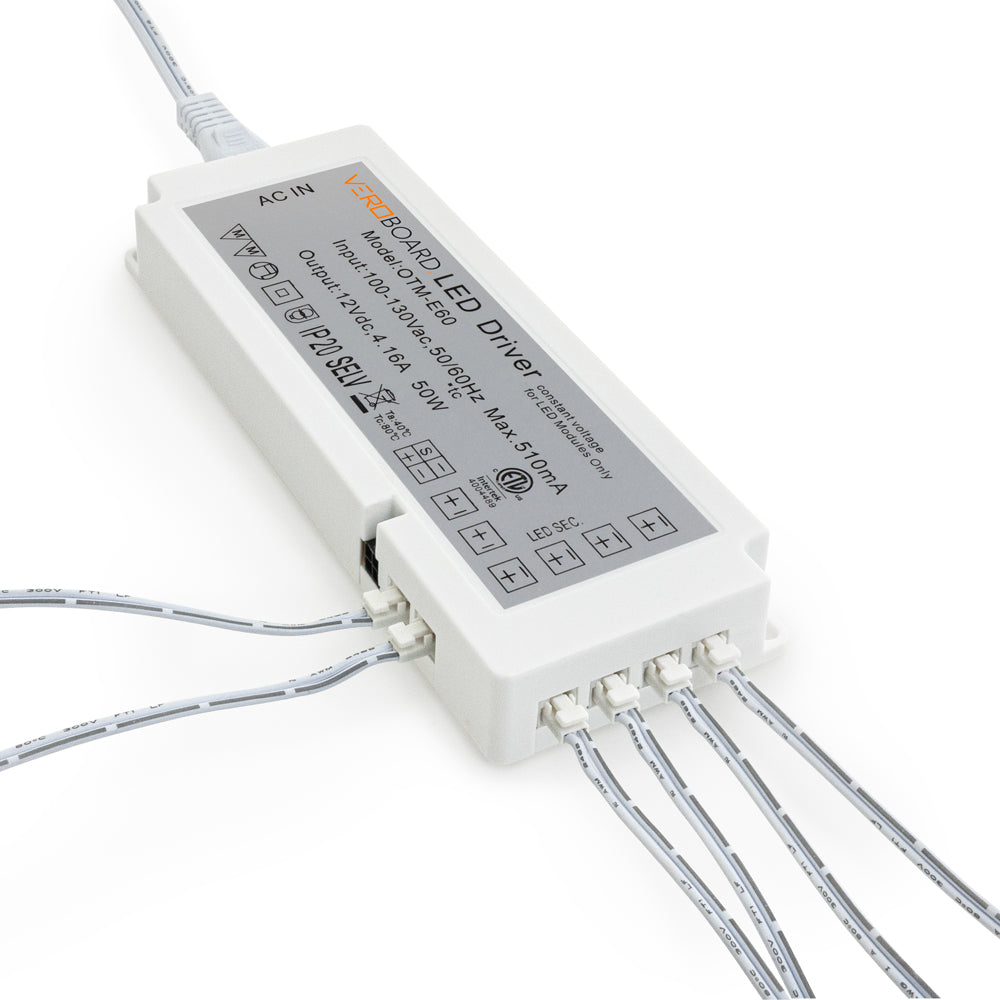

This 12V constant voltage LED driver has a slim design. It is easy to install either using adhesive tapes or using screws. Its shallow depth and multiple-output connections (6 lights) make this driver best suitable for our LED Cabinet lights, LED strips, or other similar 12V lighting applications. Six lights of a maximum load not more than 4.0A can easily be installed in this LED driver using 2-pin Dupont connectors because of its unique 1- input to 6-way output port feature.
