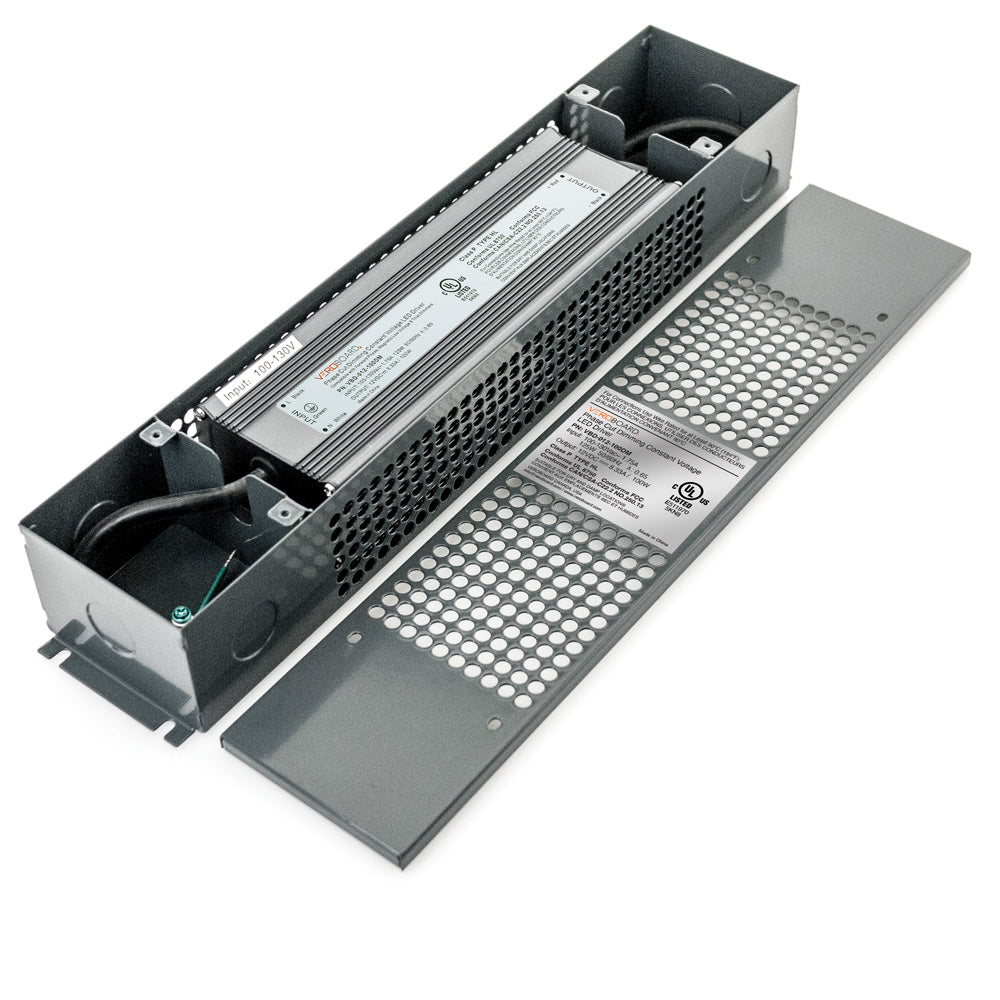

The VBD-012-100DM is a triac dimmable constant voltage LED driver designed for use with LED lighting systems. This model is capable of delivering up to 100 watts of power to 12V DC LED lighting systems.
The input voltage for the VBD-012-100DM is 100-130V AC, and the input current is 1.53A with an input frequency of 47-63 Hz. The driver's output voltage is 12V DC, with an output current of 8.0A, making it ideal for driving high power LED lighting systems.
This LED driver is dimmable, supporting triac or phase-cut dimming, allowing for smooth dimming control of LED lighting systems. It is also rated IP67, meaning it is suitable for use in dry, damp, and wet locations. The VBD-012-096DM has been certified by FC, UL, and RoHS, meeting safety standards and ensuring the product's reliability and safety.
Veroboard Phase Cut Dimming Constant Voltage LED drivers work with any standard Leading Edge, MLV, or TRIAC dimmers. The dimmer switch must be installed on the 120V AC side of the driver.
