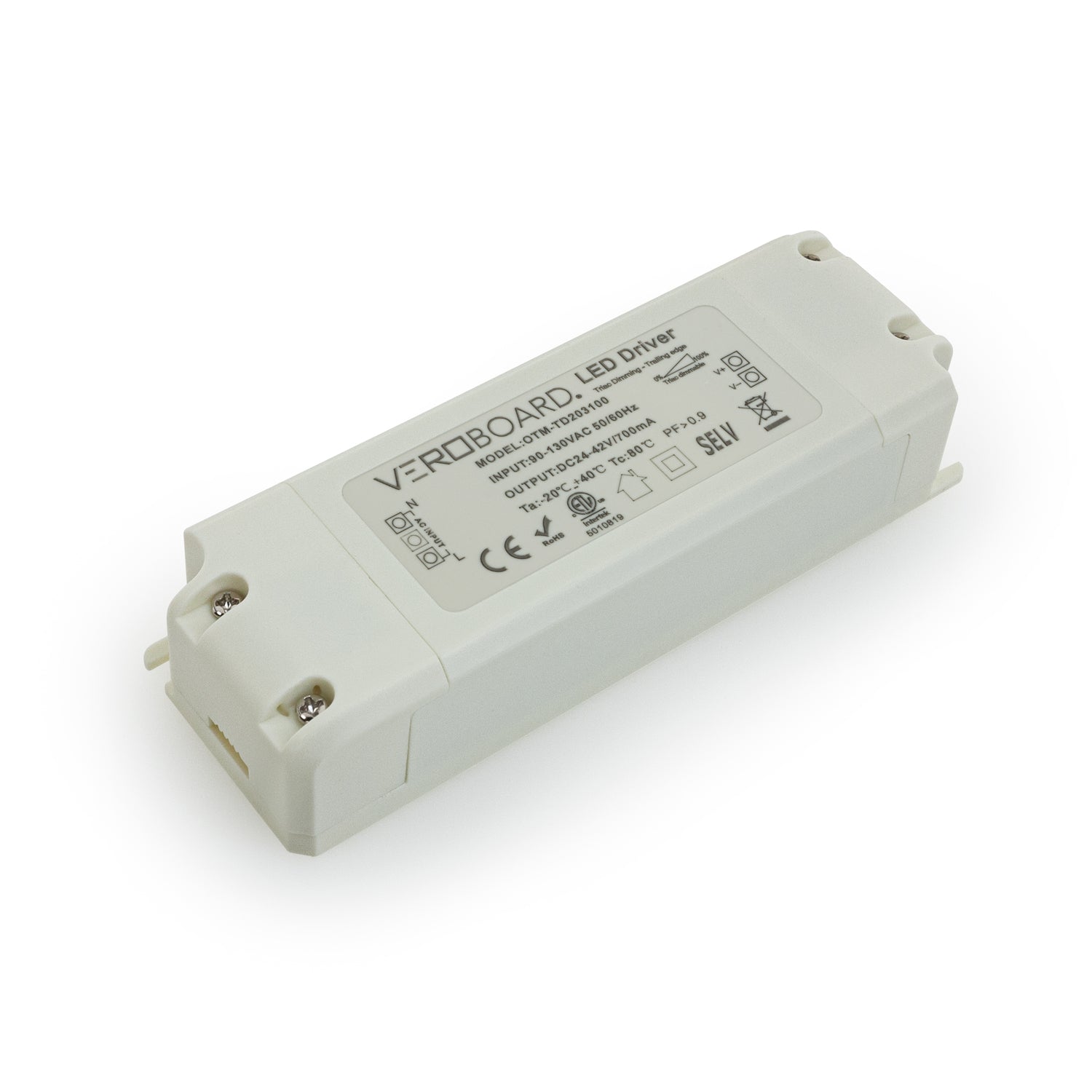

The OTM-TD203100700 is a dimmable constant current LED driver that provides power to LED lighting fixtures. It has an input voltage range of 90-130V AC, an input current of 0.9A, and an input frequency of 50-60 Hz. The output voltage range is 24-42V DC with an output current of 700mA, allowing for a maximum load of 30W.
This LED driver is dimmable and compatible with Triac dimming (Trailing edge), which allows for adjusting the brightness of LED lights. It has an IP20 rating, making it suitable for indoor use only. The driver is certified with Class 2, Class P, and Type HL certifications.
The driver is designed for hardwire installation and operates at an operating temperature range of -20℃ to +40℃. Its dimensions are 139 x 46 x 28mm (5.4 x 1.8 x 1.1in), making it compact and easy to install. Additionally, the driver is certified with CE, FC, UL, and RoHS certificates, ensuring it meets safety and quality standards.
At Veroboard, we manufacture constant current LED drivers that are available in a variety of case sizes, output currents, output powers, and input voltages. Depending on the requirements required for your application, you can select from over 20 different models, all of which have the ability to be dimmed. Ideal for a variety of uses, such as LED downlights, LED wall sconces, linear lights, area lights, bollards, wall packs, and interior spotlights and floodlights. A constant current driver is the best way to drive high-power LEDs as it maintains consistent brightness across all LEDs in series.
