SKU: 666561419929

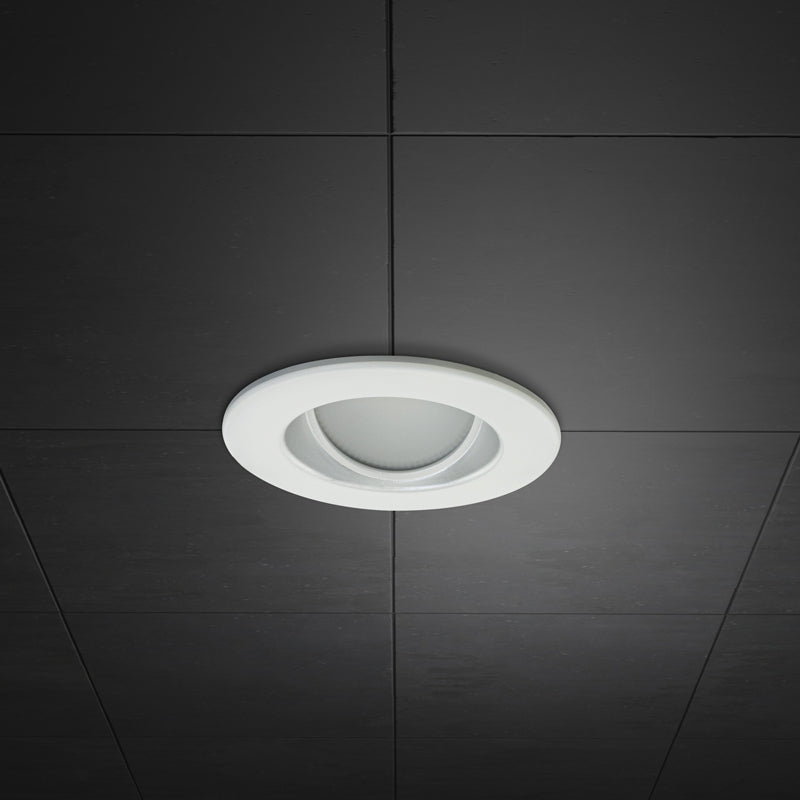

VBD-COM-4-xxxx-4SRL 4 inch LED Commercial Downlight Sloped Ceiling Reflector Round Trim with Input Voltage 120-347V AC, Wattage 20W, Brightness 1530Lm, Choose the options which best suits you. Warm White (3000K), Natural White (4000K), and Daylight (5000K). The 20W engine is compatible with all commercial lighting reflector trims (CPS series Model). Applicable for Indoor use only (dry and damp locations)


  • Model No:
    VBD-COM-4-3K-4SLR
    VBD-COM-4-4K-4SLR
    VBD-COM-4-5K-4SLR
  • Input Voltage: 120-347V AC
  • Wattage: 20W
  • Input Current: 0.2A
  • Available Color Temperature:
    3000K (Warm White)
    4000K (Natural White)
    5000K (Daylight)
  • Brightness: 1530Lm
  • Frequency: 50-60 Hz
  • Beam Angle: 80º
  • Ceiling Sloped Angle: 35º
  • Trim Type: Open reflector trim
  • Color: White
  • Lifespan: 50,000 hours
  • Dimmable: Yes (0-10 Dimming)
  • Package Content:
    J Box structured engine
    Reflector trim
  • Dimensions (Reflector):
    Diameter- 162mm (6.3 inch)
    Overall depth- 158.75mm (6.25 inch)
  • Dimensions (Cut Size):
    132.9mm (5.23 inch)
  • Certification: UL/ Energy Star

Beam Details
Beam Angle 8

 Metric Imperial
Distance  Beam Width Lux
1m 1.7m 888 lx
2m 3.4m 222 lx
3m 5m 99 lx
4m 8.4m 56 lx
5m 8.4m 36 lx
Distance Beam With
Footcandles
3.3ft 5.5ft 83 fc
6.6ft 11.1ft 21 fc
9.8ft 16.4ft 9 fc
13.1ft 22ft 5 fc
16.4ft 27.5ft 3 fc
