SKU: 666561432911
Color Temperature:

Color Temperature

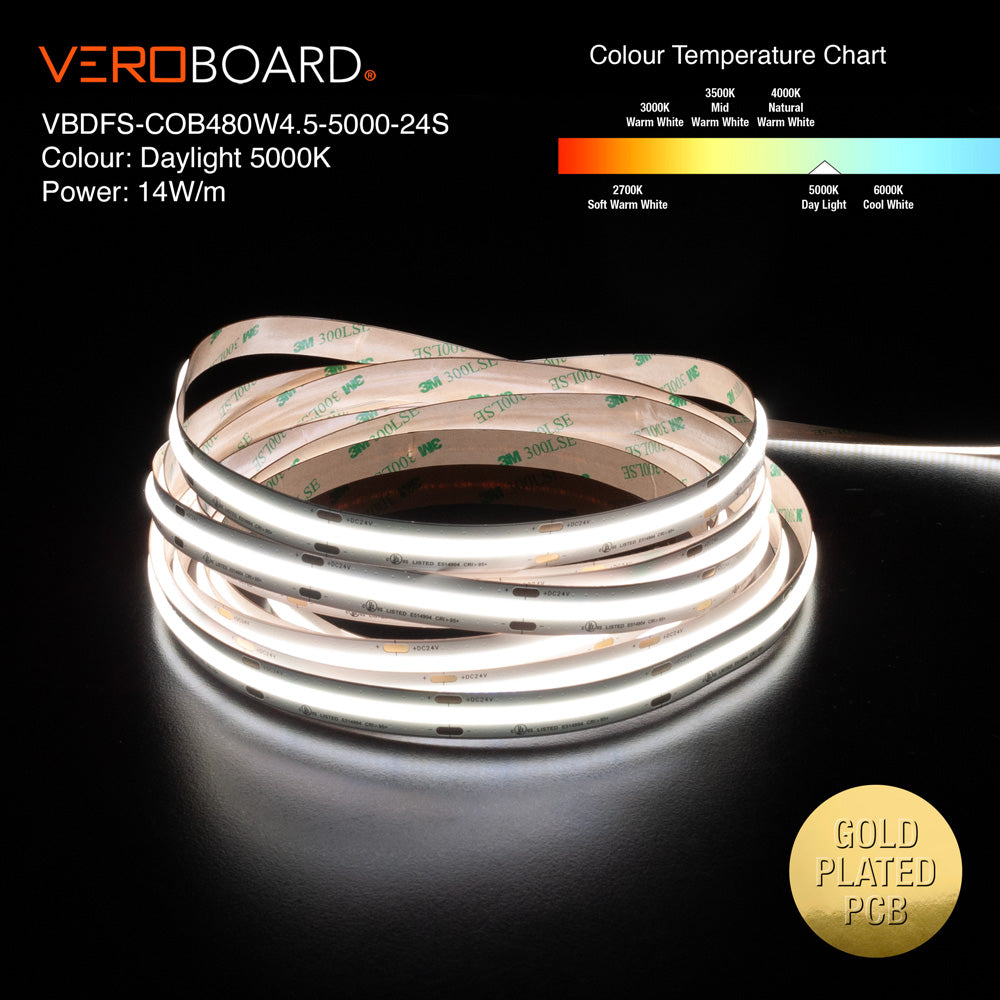

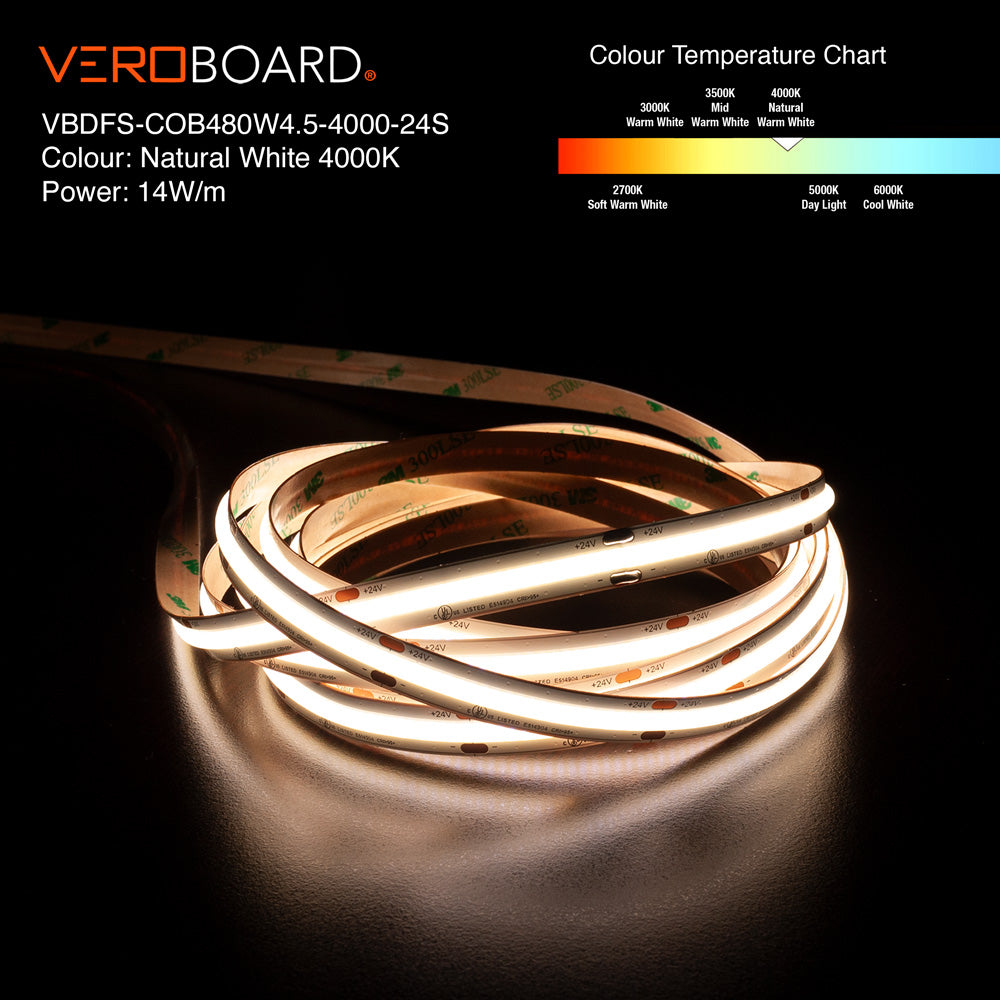

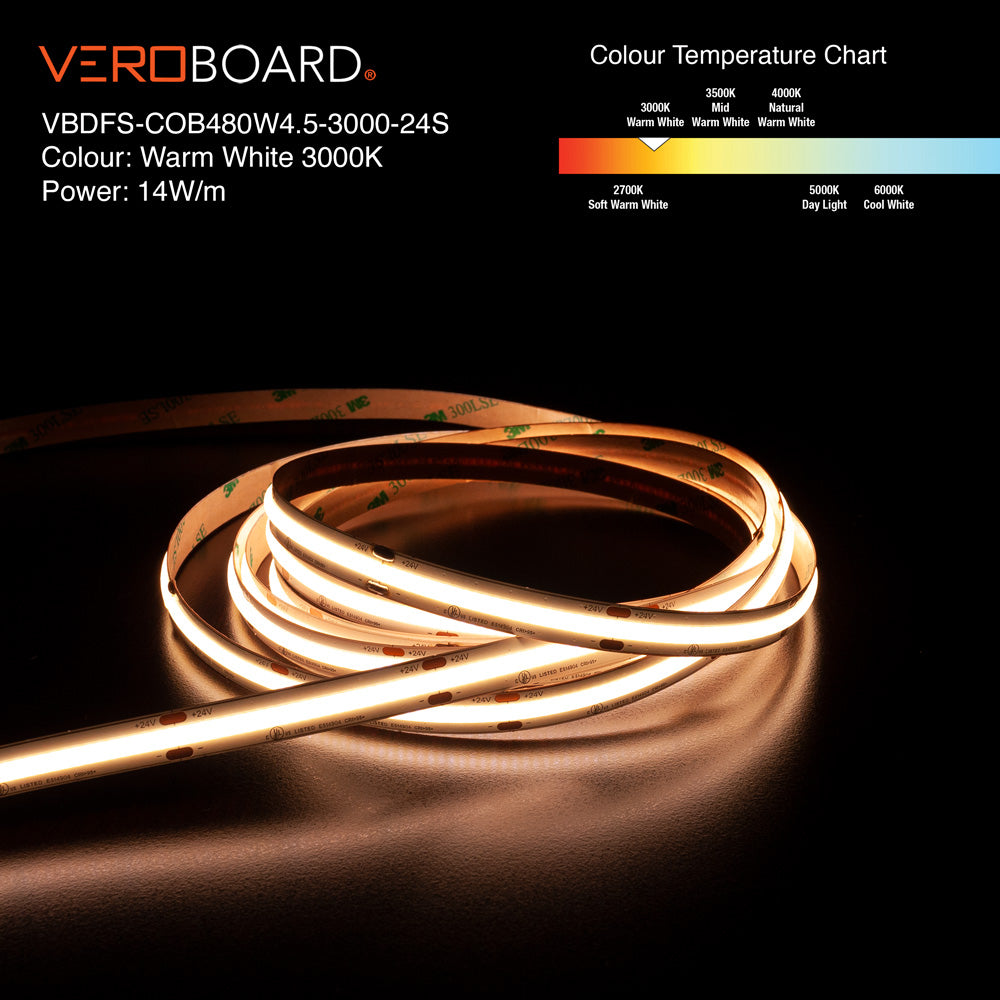

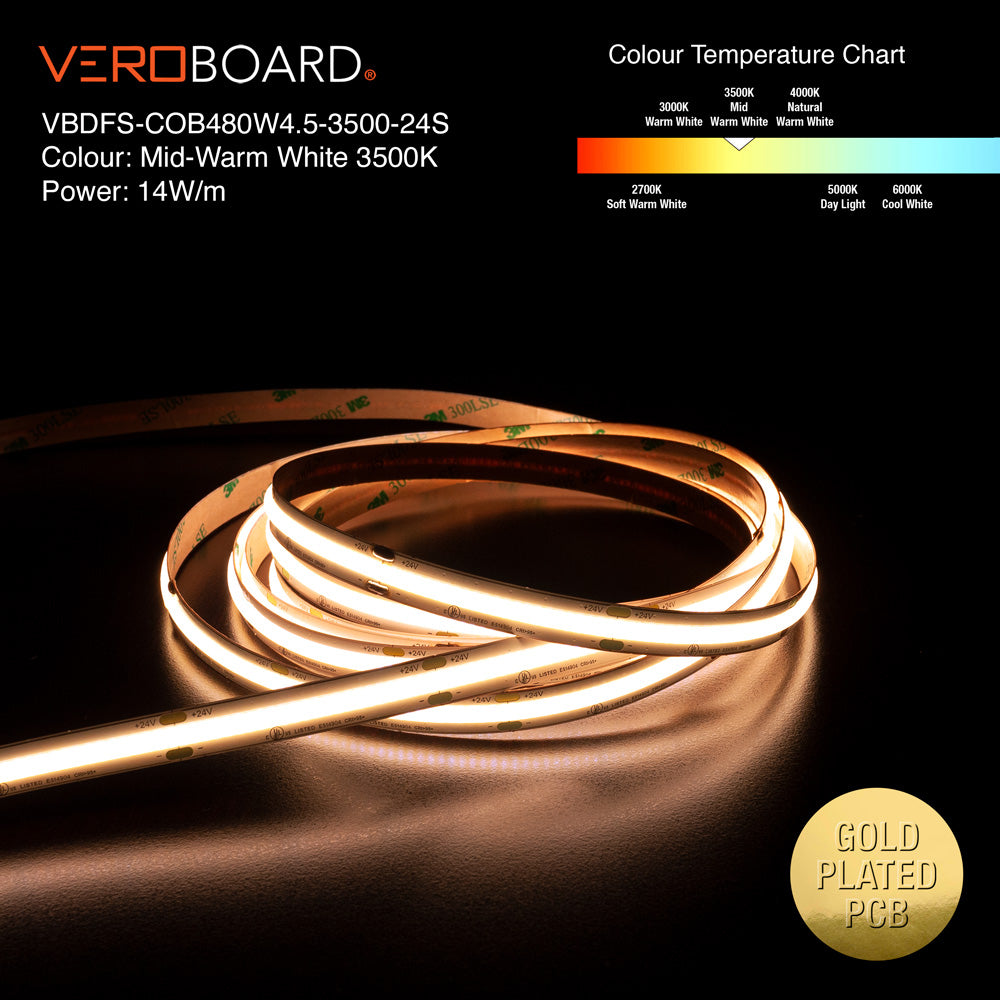

VBDFS-COB480W4.5-xxxx-24S Indoor LED Strip with Input Voltage: 24V DC, Wattage: 14W/m(4.5W/ft), Brightness: 1190Lm/m(363Lm/ft), It can be used for cove lighting, under cabinet lighting, backlighting, and much more. This Long Run LED Strip(Ribbon) Light Series comes in 5Meter (16.4ft) rolls and is 12mm wide. This LED Strip(Ribbon) has Gold PCB and Light can be powered without experiencing voltage drop for the whole 5Meter (16.4ft) roll.


  • Model No: VBDFS-COB480W4.5-xxxx-24S
  • Input Voltage: 24V DC
  • Wattage: 14W Per meter (4.5W/ft)
  • Brightness: 1190 Lm/meter (363 Lm/ft)
  • Available Color Temperatures:
    2700K (Soft White)
    3000K (Warm White)
    3500K (Mid-Warm White)
    4000K (Natural White)
    5000K (Daylight)
  • Dimensions: 5,000mm x 12mm x 2.15mm (196.8in x 0.47in x 0.08in)
  • Roll Length: 5 meter per roll (16.4ft)
  • LED Qty: 480 LEDs per meter
  • LED Type: COB
  • Rendering Index: CRI>95
  • Lifespan: >50,000 hours
  • PCB: 3oz PCB, Double-side, White color 12mm width
  • Waterproof rating: IP20 (Indoor use only)
  • Dimmable: Yes
  • Beam angle: 120°
  • Operating temperature: -15℃ to +40℃
  • Cut Size: Every 2 inches
  • Certifications: UL/RoHS


Model No.
(For each Color Temperature)
SKU
VBDFS-COB480W4.5-2700-24S 666561432911
VBDFS-COB480W4.5-3000-24S 666561429287
VBDFS-COB480W4.5-3500-24S 666561432324
VBDFS-COB480W4.5-4000-24S 666561429270
VBDFS-COB480W4.5-5000-24S 666561432928
