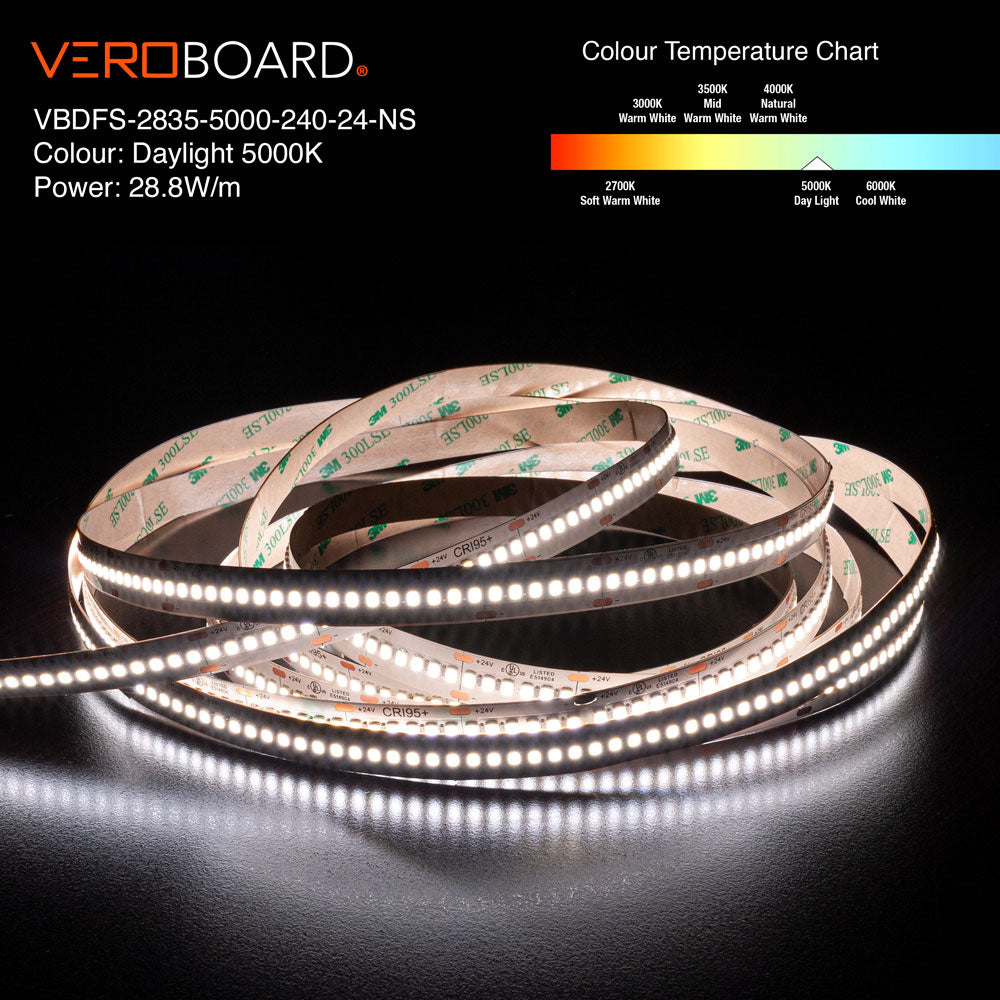

VBDFS-2835-xxxx-240-24-NS 5280Lm/m(1609Lm/ft) 28.8W/m(9W/ft) CCT(2.7K, 3K, 3.5K, 4K, 5K, 6K)

SKU: 666561420048
Color Temperatures:

Color Temperatures

VBDFS-2835-xxxx-240-24-NS Indoor LED Strip Lights with Input Voltage: 24V DC, Wattage: 28.8W/m(9W/ft), Brightness: 5280Lm/m(1609Lm/ft), It can be used for cove lighting, under cabinet lighting, backlighting, and much more. This Long Run LED Strip(Ribbon) Light Series comes in 5Meter (16.4ft) rolls and is 12mm wide. This LED Strip(Ribbon) Light can be powered without experiencing voltage drop for the whole 5Meter (16.4ft) roll.


  • Model No: VBDFS-2835-xxxx-240-24-NS
  • Input Voltage: 24V DC
  • Wattage: 28.8W Per meter (9W/ft)
  • Brightness: 4800-5280 Lm/meter (1463-1609Lm/ft)
  • Lumen/LED: 20-22Lm Per LED
  • Available Color Temperatures:
    2700K (Soft White)
    3000K (Warm White)
    3500K (Mid-Warm White)
    4000K (Natural White)
    5000K (Daylight)
    6000K (Cool White)
  • Dimensions: 5,000mm x 12mm x 1mm (196.8in x 0.47in x 0.03in)
  • Roll Length: 5meter per roll (16.4ft)
  • LED Qty: 240 LEDs per meter
  • LED Type: 2835 SMD
  • Rendering Index: CRI>95
  • Lifespan: >50,000 hours
  • PCB: 4oz PCB, Double-side, white color 12mm width
  • Waterproof rating:  IP20 [Indoor use only]
  • Dimmable: Yes
  • Beam angle: 120°
  • Operating temperature: -15℃ to +40℃
  • Cut Size: Every 6 LED chips (1 inches)
  • Certifications: UL/RoHS


Model No.
(For each Color Temperature)
SKU
VBDFS-2835-2700-240-24-NS 666561420048
VBDFS-2835-3000-240-24-NS 666561420055
VBDFS-2835-3500-240-24-NS 666561420086
VBDFS-2835-4000-240-24-NS 666561420093
VBDFS-2835-5000-240-24-NS 666561420109
VBDFS-2835-6000-240-24-NS 666561420116
