VBD-MTR-78T Low Voltage IC Rated Recessed Light Trim

VBD-MTR-78T Low Voltage IC Rated Recessed Light Trim

Name: VBD-MTR-78T Low Voltage IC Rated Recessed Light Trim
Brand: Veroboard Canada
SKU: 666561413644
Availability: InStock

SKU: 666561413644

Product:

Variant

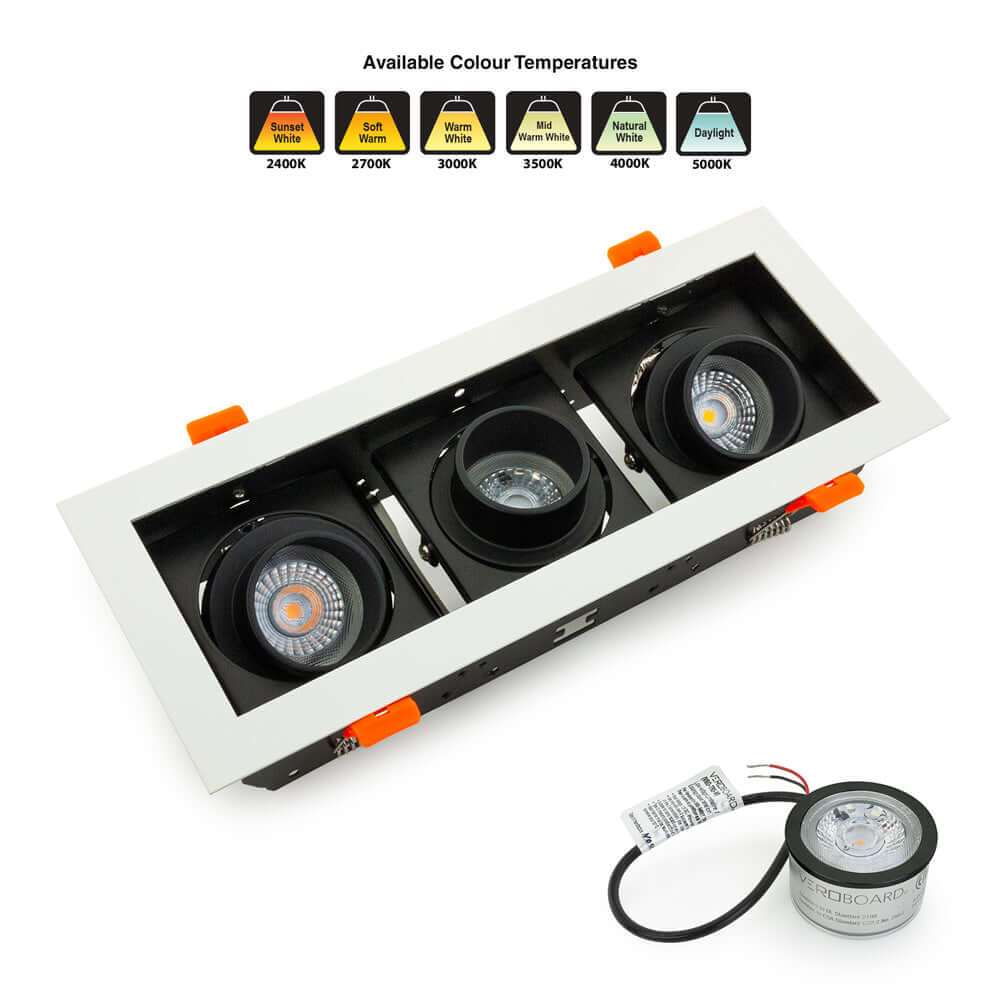

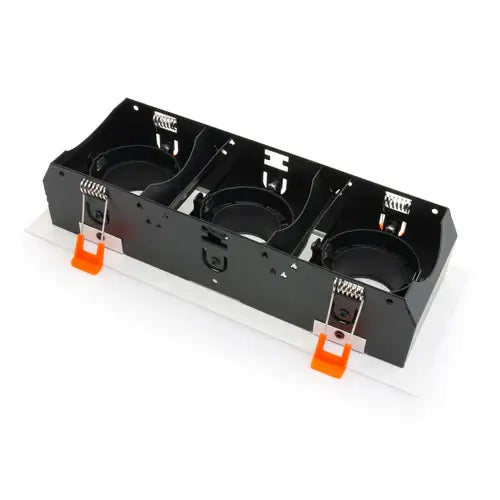

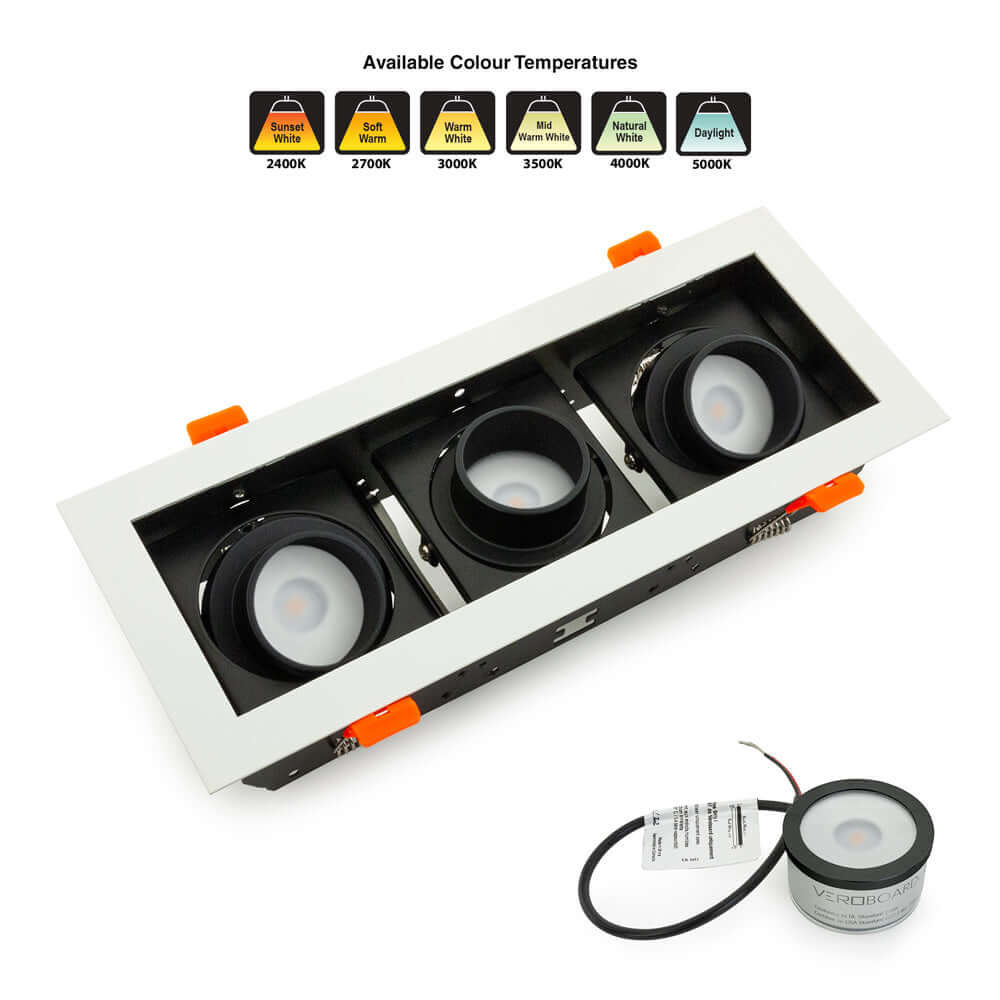

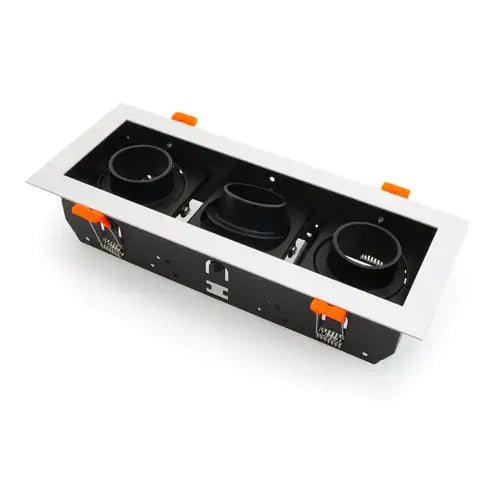

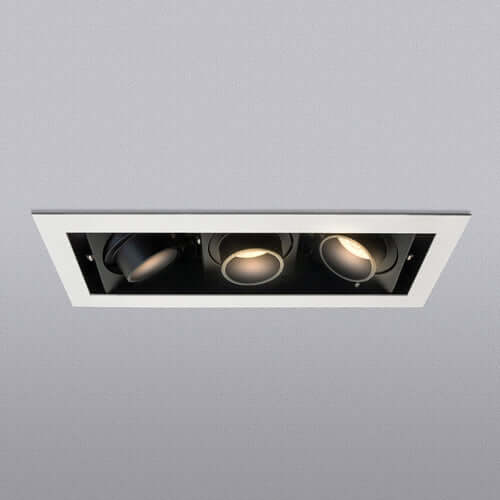

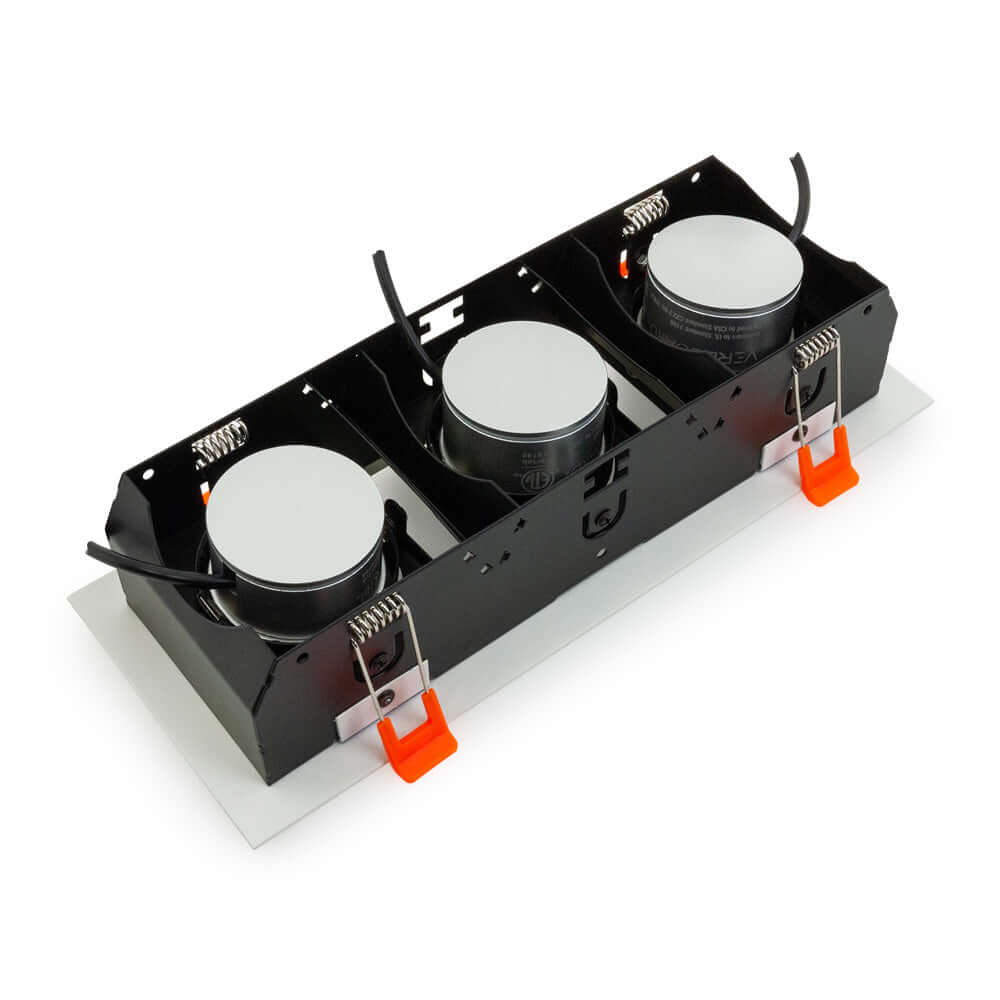

The VBD-MTR-78T Rectangular LED Light Fixture Recessed Trim adds a touch of elegance to your downlighting, effortlessly matching your interior design and enhancing its overall appeal. This trim is designed for compatibility with our VBD-TR Series Light engines, offering advanced features (available separately) to further enhance your lighting experience.

Models No: VBD-MTR-78T
Trim Color: White
Trim Material: Aluminum
Trim Shape: Rectangular
Pivot Trims: Yes
Number of Lights: 3 Lights

Light Source: VBD-TR Module Series

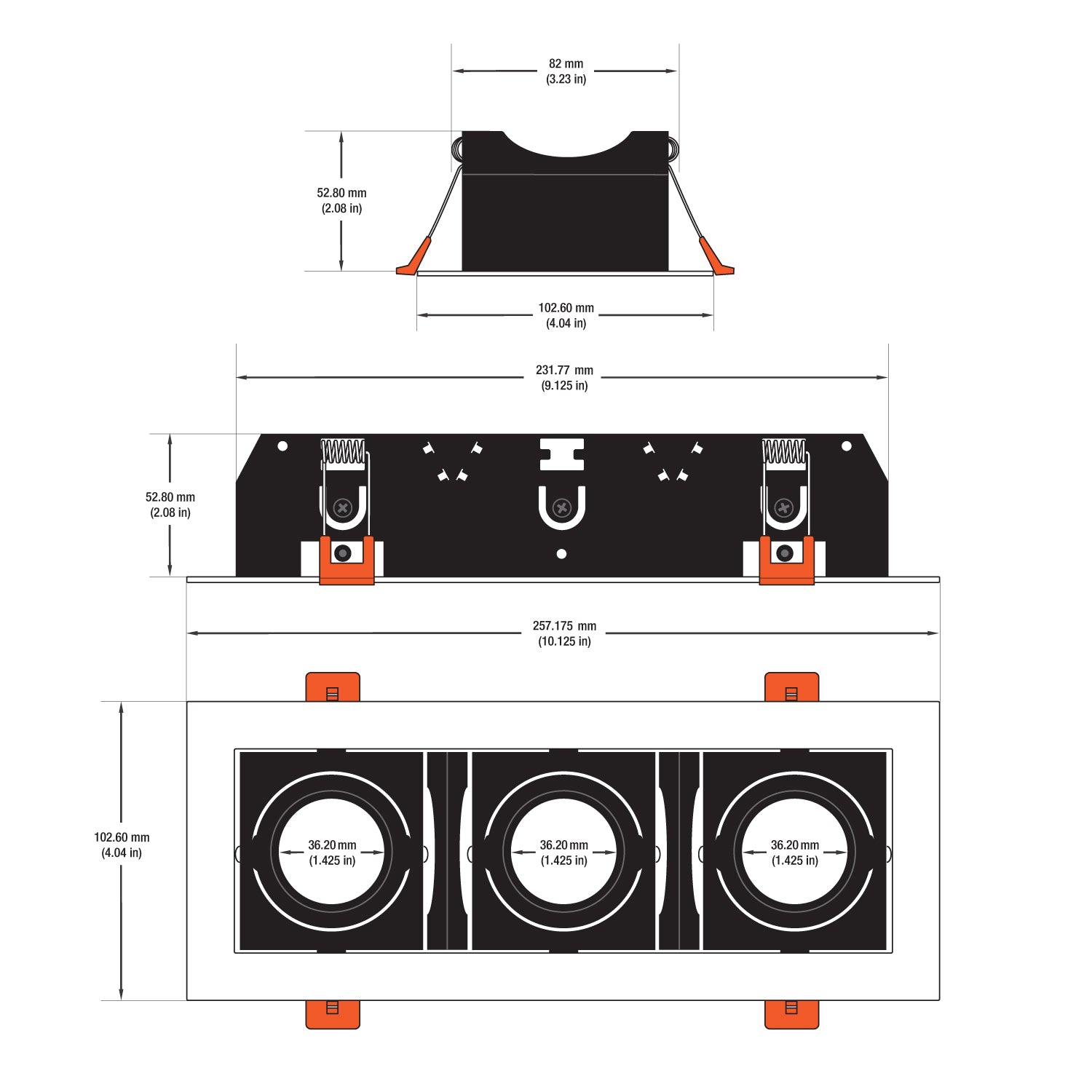

Dimensions: 257.2mm (10.1 in) x 102.60mm (4.04 in)
Cut Size: 231.77mm ( 9.12 in) x 82mm (3.23 in)
Depth: 52.80 mm (2.08 in)

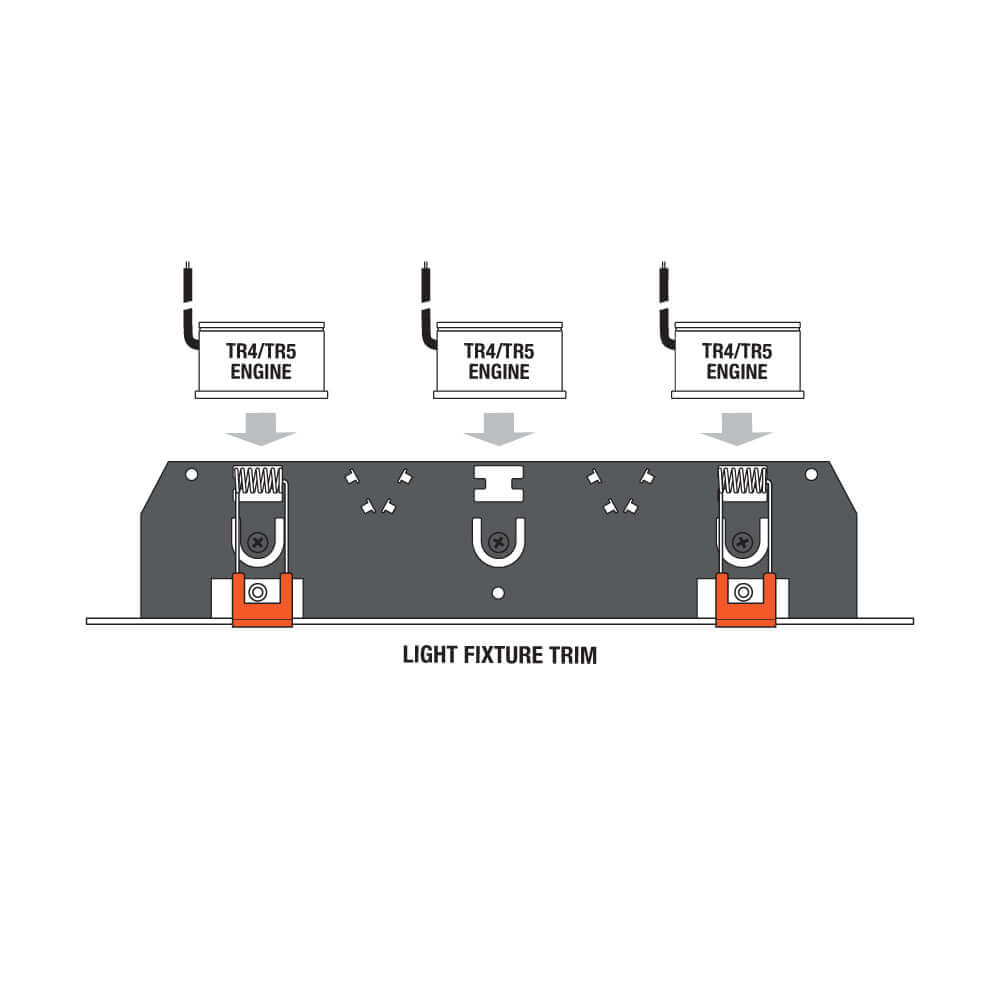

*Note: Required 3 Light Engines

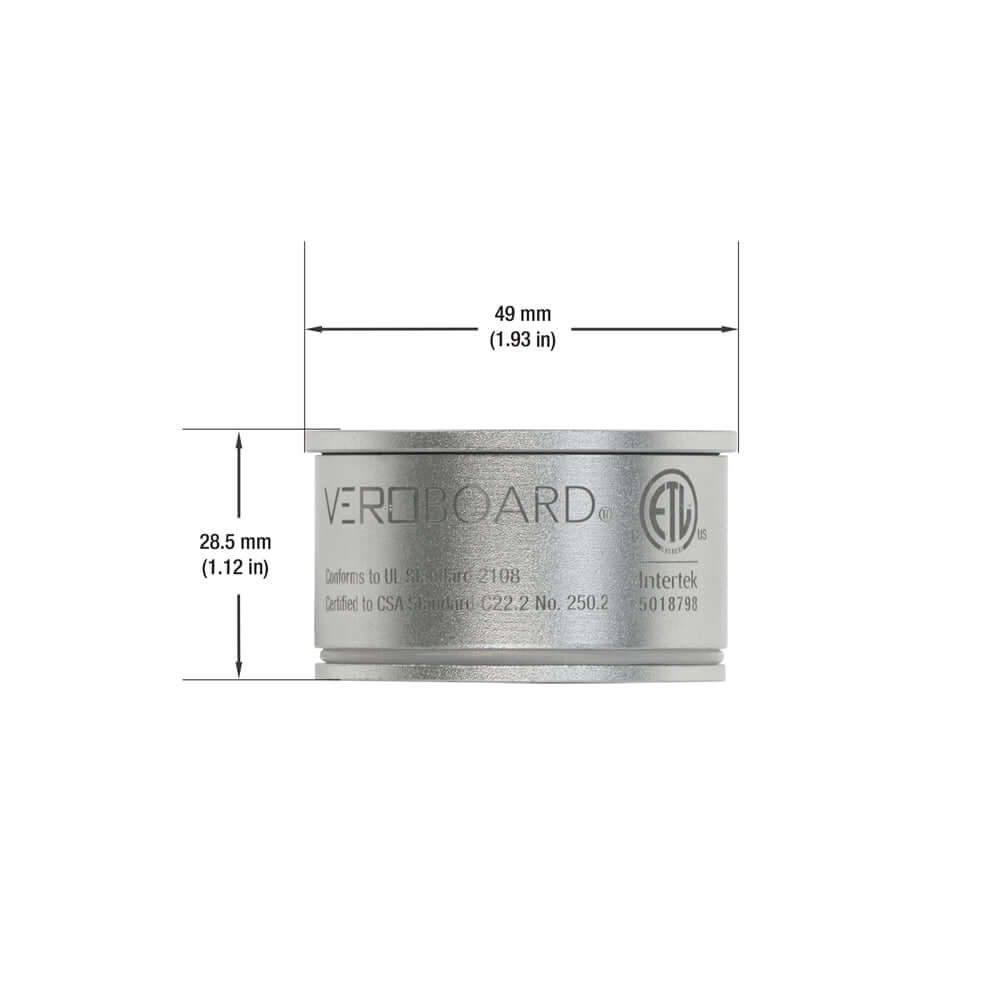

Light Engine Models (Sold Separately)

Color Temperature	Diffuser	SKU	Model
2400K (Sunset White)	Frosted Glass (FG) Clear Lens (L)	666561428518 666561428464	VBD-TR5-W-FG-24K VBD-TR5-W-L-24K
2700K (Soft White)	Frosted Glass (FG) Clear Lens (L)	666561428525 666561428471	VBD-TR5-W-FG-27K VBD-TR5-W-L-27K
3000K (Warm White)	Frosted Glass (FG) Clear Lens (L)	666561428532 666561428488	VBD-TR5-W-FG-30K VBD-TR5-W-L-30K
3500K (Mid-Warm White)	Frosted Glass (FG) Clear Lens (L)	666561428549 666561428495	VBD-TR5-W-FG-35K VBD-TR5-W-L-35K
4000K (Natural White)	Frosted Glass (FG) Clear Lens (L)	666561428556 666561428501	VBD-TR5-W-FG-40K VBD-TR5-W-L-40K
5000K (Daylight)	Frosted Glass (FG) Clear Lens (L)	666561429997 666561429980	VBD-TR5-W-FG-50K VBD-TR5-W-L-50K

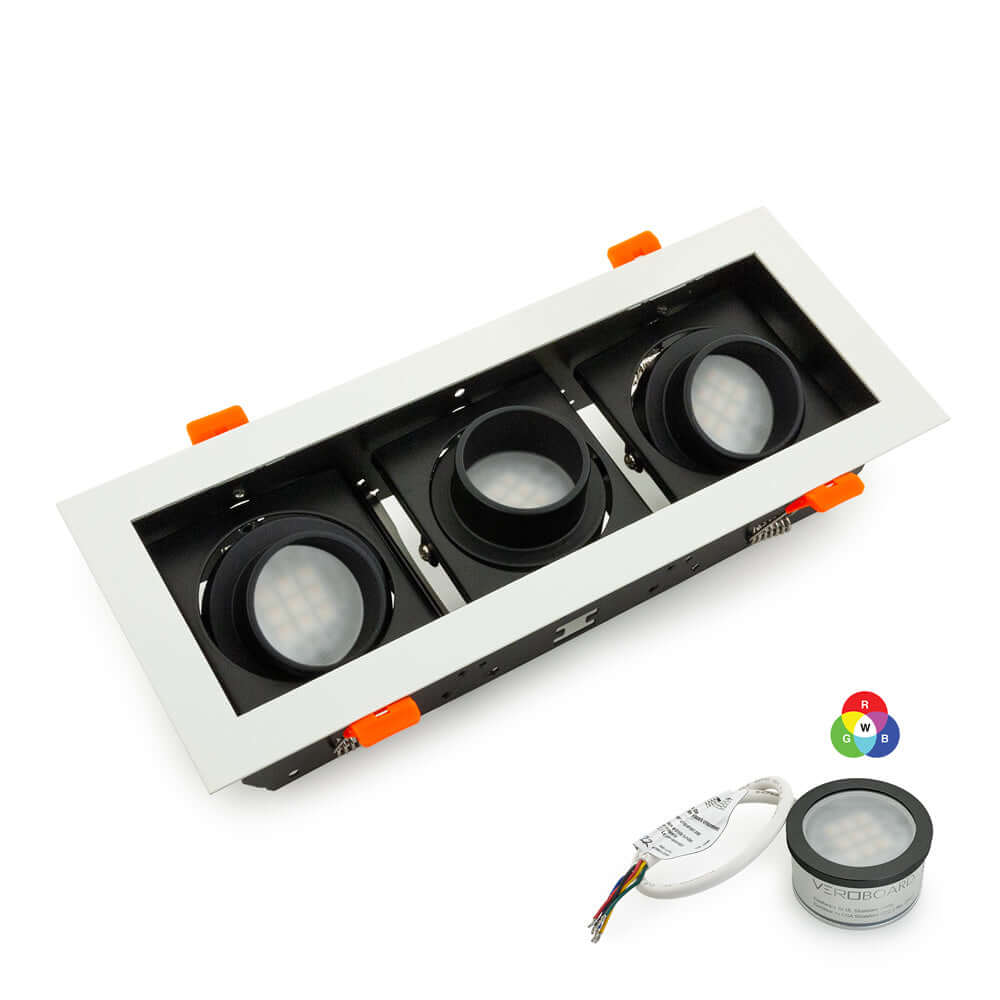

RGBW	Frosted Glass (FG)	666561428457	VBD-TR4-FG-RGBW
