SKU: 666561412913

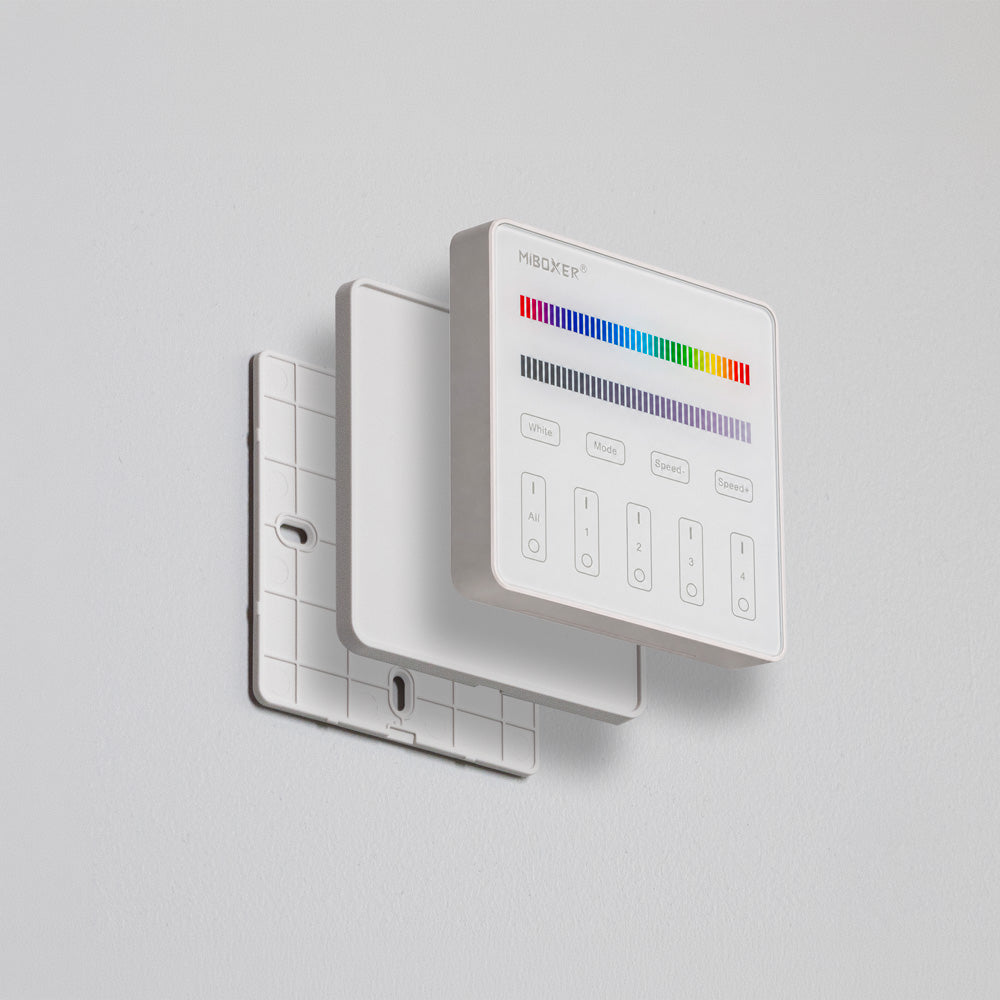

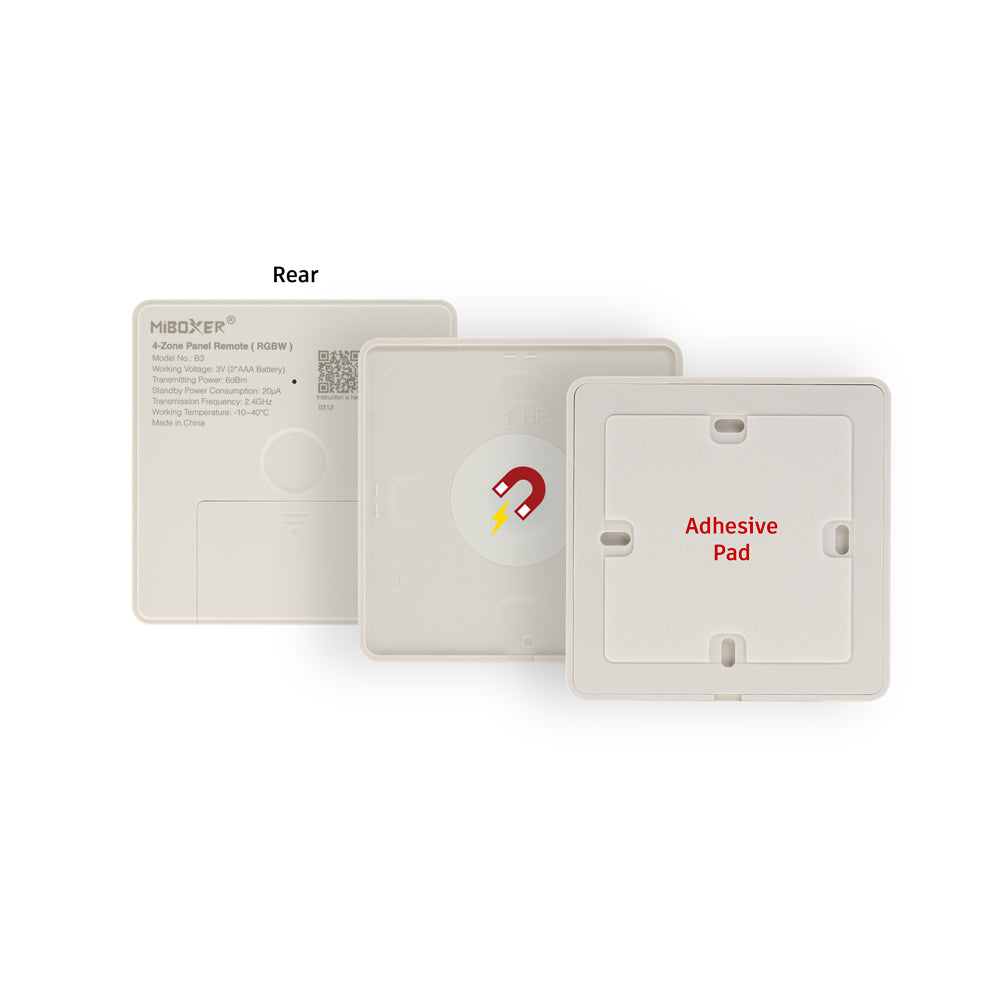

The Wireless Wall Mount Remote Controller allows you to control the lighting system throughout the house with its 4-zone undivided group lighting feature. Having this type of controller lets you manage four separate zones. Moreover, it has a magnetic mount feature, for an easy snap installation on any metal object. Each zone needs one receiver for transmitting signals from the lights to the wireless panel controller. The receiver is chosen based on whether the light is RGB or RGBW. In each zone there can be up to 10 receivers. The LED Strip controller effortlessly adopts 12-24V LED lights.


  • Model No: VBD-MI-4Z-B3
  • Voltage: 3V (2 x AAA Battery)
  • Transmission Freq: 2.4 GHz
  • Transmitting Power: 6dBm
  • Control Distance: 30 Meter
  • Working Temperature: -20~60°C
  • Standby Power: 20uA

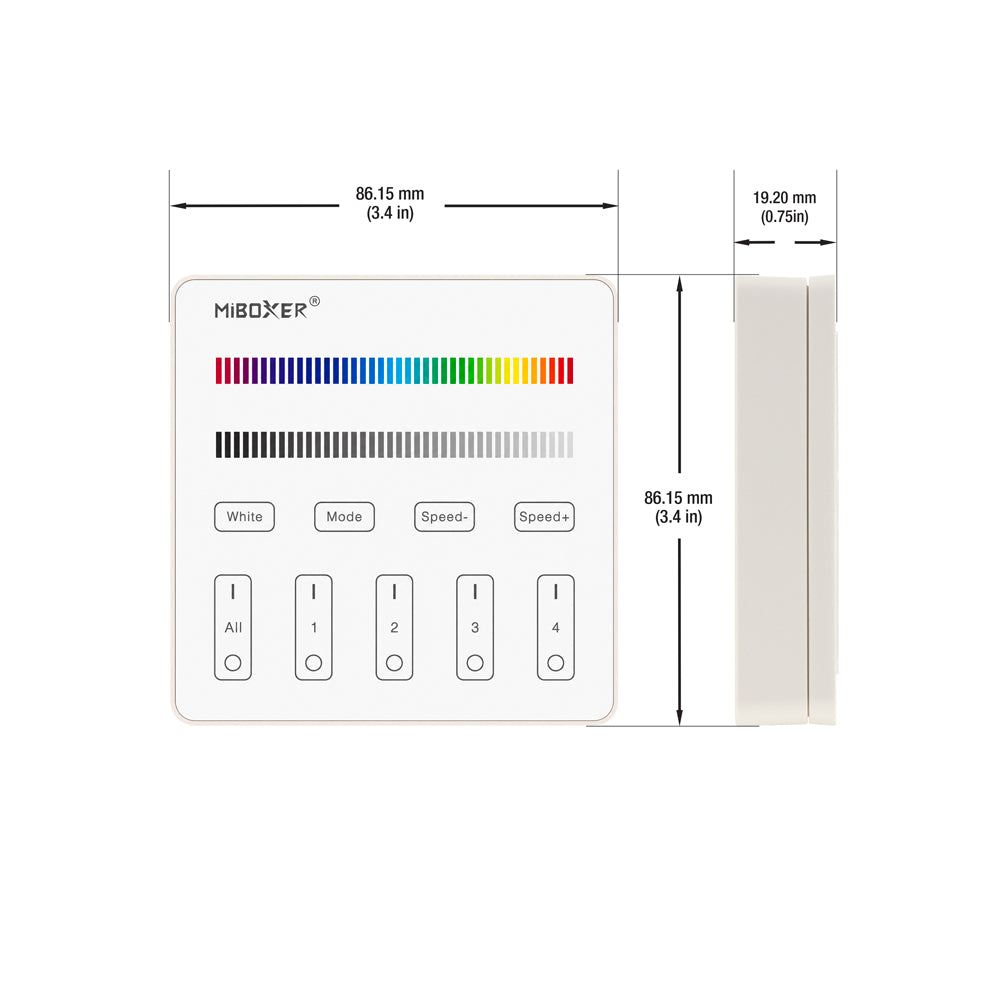

  • Dimensions: 86 x 86 x 19mm (3.38 x 3.38 x 0.73 in)

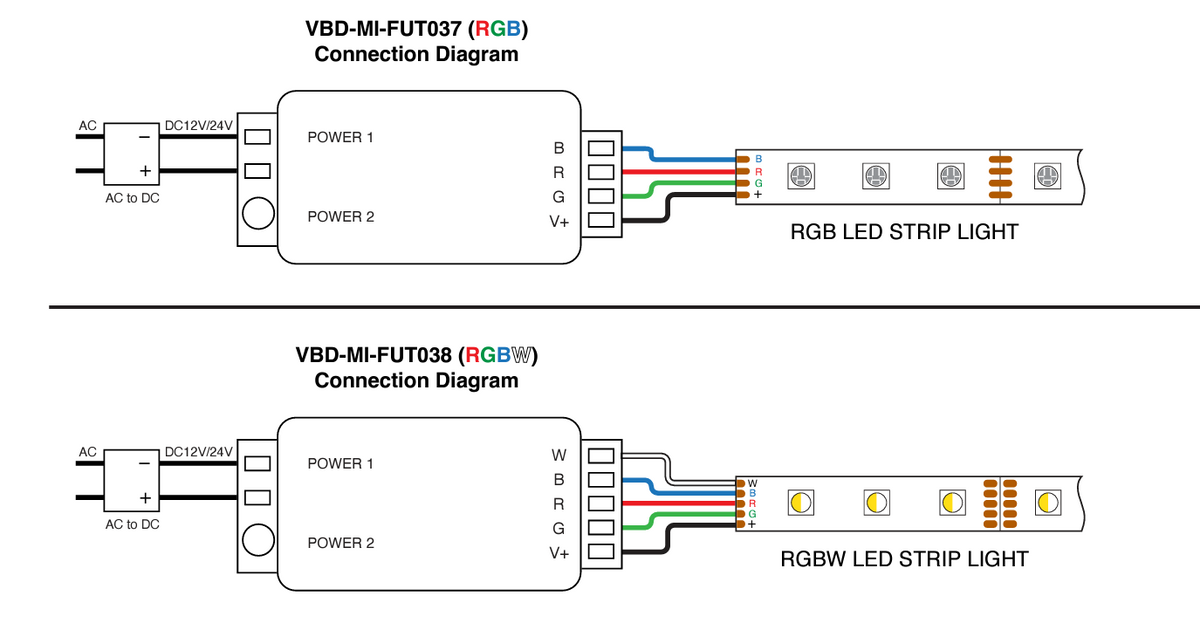

VBD-MI-FUT037 RGB Receiver

  • Model No: VBD-MI-FUT037
    ( SKU: 666561412869)
  • Voltage: 12~24V DC
  • Output Current: 6A per Channel Max
  • Total Current: 10A Max
  • Color: 16 million colors (RGB)
  • Transmission Freq.: 2.4 GHz
  • Distance Range: 30 Meters
  • IP Rating: IP20
  • Dimensions: 85 x 45 x 22.5mm (3.35 x 1.75 x 0.9 in)



VBD-MI-FUT038 RGBW Receiver

  • Model No: VBD-MI-FUT038
    ( SKU: 666561425180)
  • Voltage: 12~24V DC
  • Output Current: 6A per Channel Max
  • Total Current: 10A Max
  • Color: RGBW primary colors with 16 million secondary colors
  • Transmission Freq.: 2.4-2.48 GHz
  • Distance Range: 30 Meters
  • IP Rating: IP20
  • Dimensions: 85 x 45 x 22.5mm (3.35 x 1.75 x 0.9 in)
  • Certifications: CE/ RoHS
